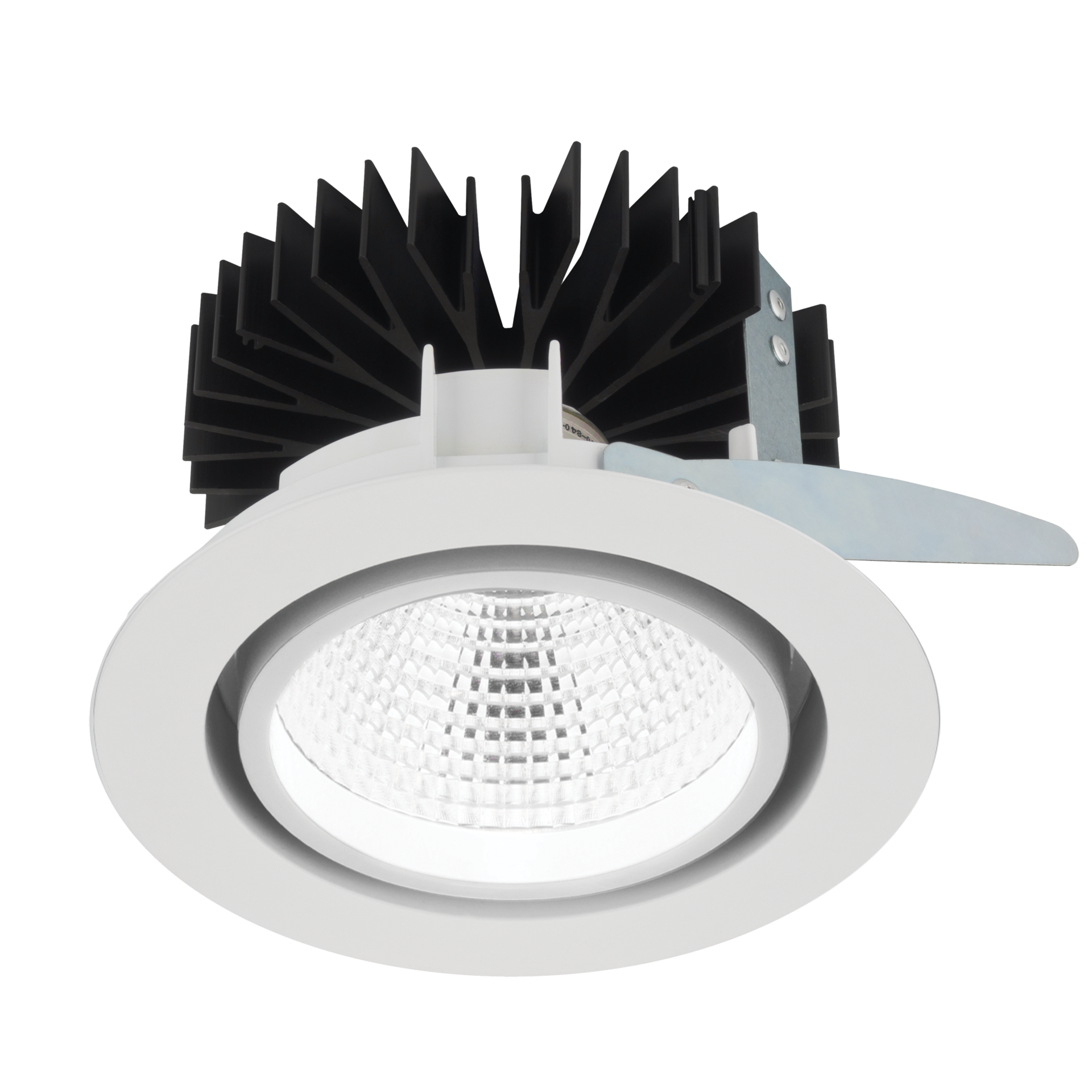

LUGSTAR HI-CRI LED
Decorative downlight luminaire for suspended ceilings, for LED light sources with hi CRI>90.



High efficacy to 72 lm/W

Application

boutiques, delicatessen, jeweler, museums, shopping centers, supermarkets

Available on request

DALI

Luminous flux range

1550 - 3650 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting

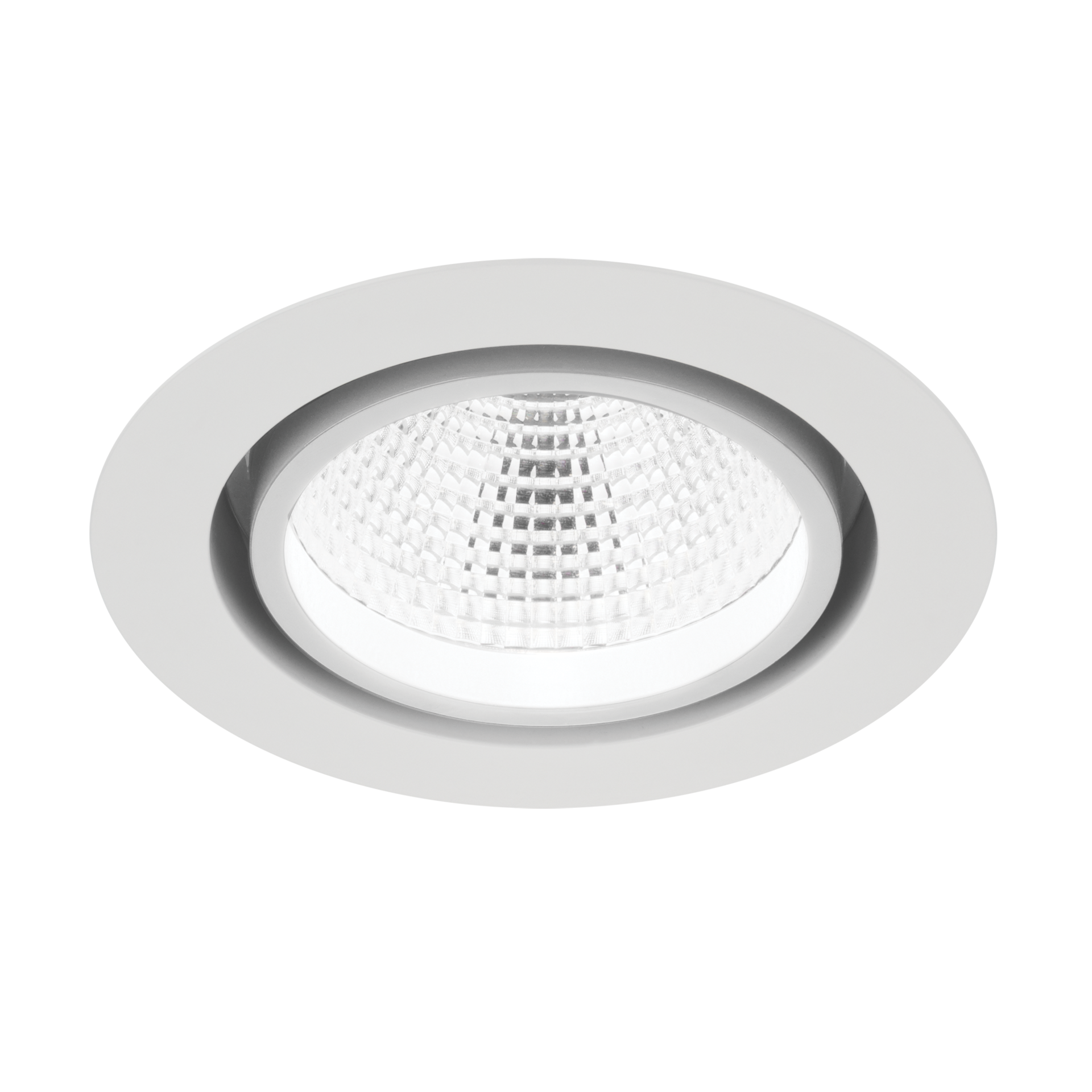

in the ceiling, with mounting brackets (included)
Body colour
white
Operating temperature range
0˚C ... +30˚C
RAL
9003
Body
aluminum

Electrical data

Power supply efficiency
≤85%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
23 - 51
Output current [mA]
500, 600, 700, 925, 1050
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
15
Maximum number of luminaires in the circuit with a 16A fuse (B)
25

Optical data

Way of lighting
direct
Colour temperature [K]
3000, 4000
Beam angle
30°, 72°
CRI/Ra
>90
Lumen luminaire [lm]
1550 - 3650
Efficacy [lm/W]
64 - 72

General data

Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxH Mounting dimensions [mm] W Pallet quantity Quantity in package Net weight [kg]
192x117 170 240 1 1.1
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Beam angle
30°
72°
Clear Filters
Compare Code Type of equipment Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
030281.5L01.311 ED 30° 24 1650 69 3000 >90
030281.5L01.321 ED 72° 24 1700 71 3000 >90
030281.5L02.311 ED 30° 23 1600 70 4000 >90
030281.5L02.321 ED 72° 23 1650 72 4000 >90
030281.5L03.311 ED 30° 34 2400 71 3000 >90
030281.5L03.321 ED 72° 34 2400 71 3000 >90
030281.5L04.311 ED 30° 37 2400 65 4000 >90
030281.5L04.321 ED 72° 37 2400 65 4000 >90
030281.5L07.311 ED 30° 51 3600 71 3000 >90
030281.5L07.321 ED 72° 51 3650 72 3000 >90
Compare selected
Shown 10 / 20
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
