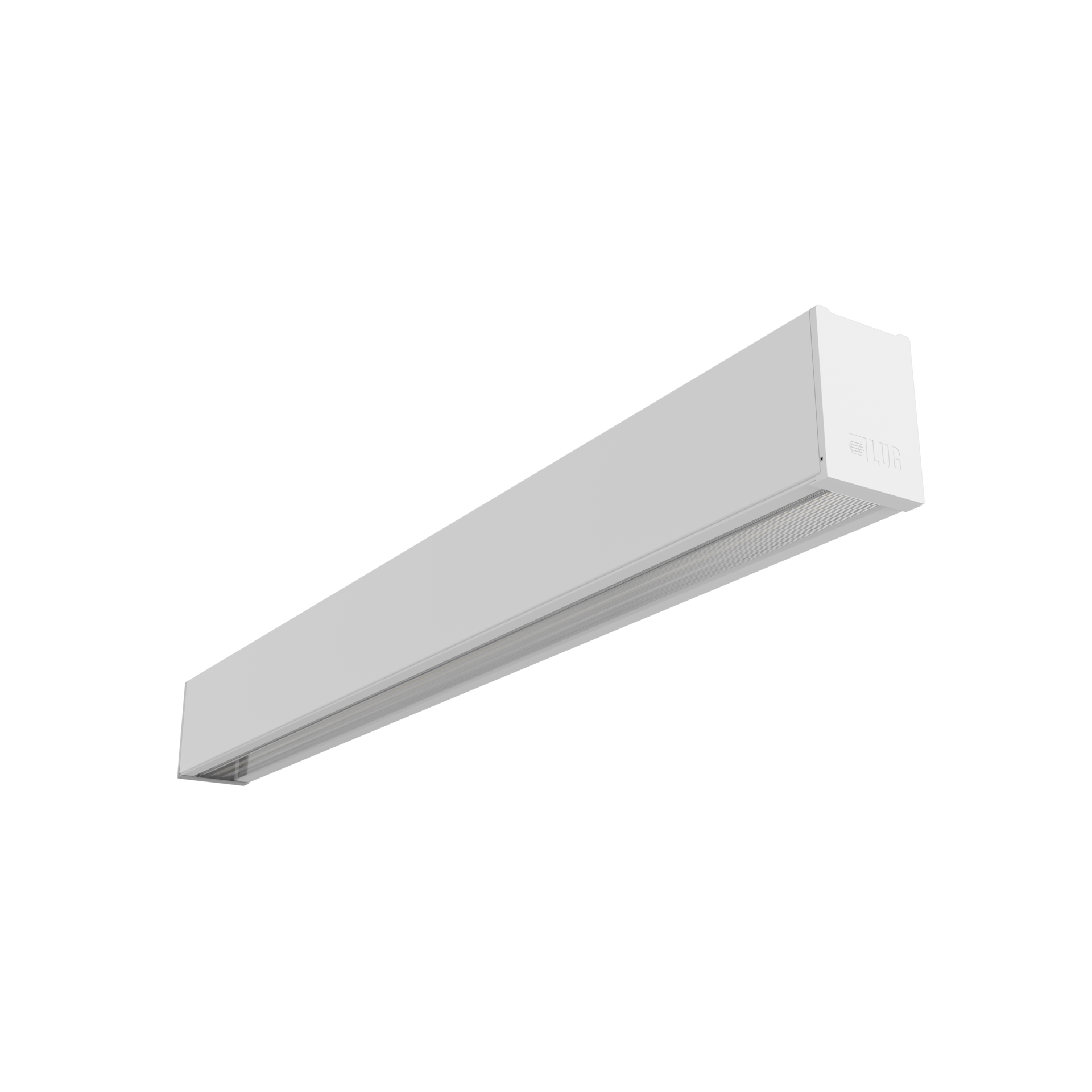

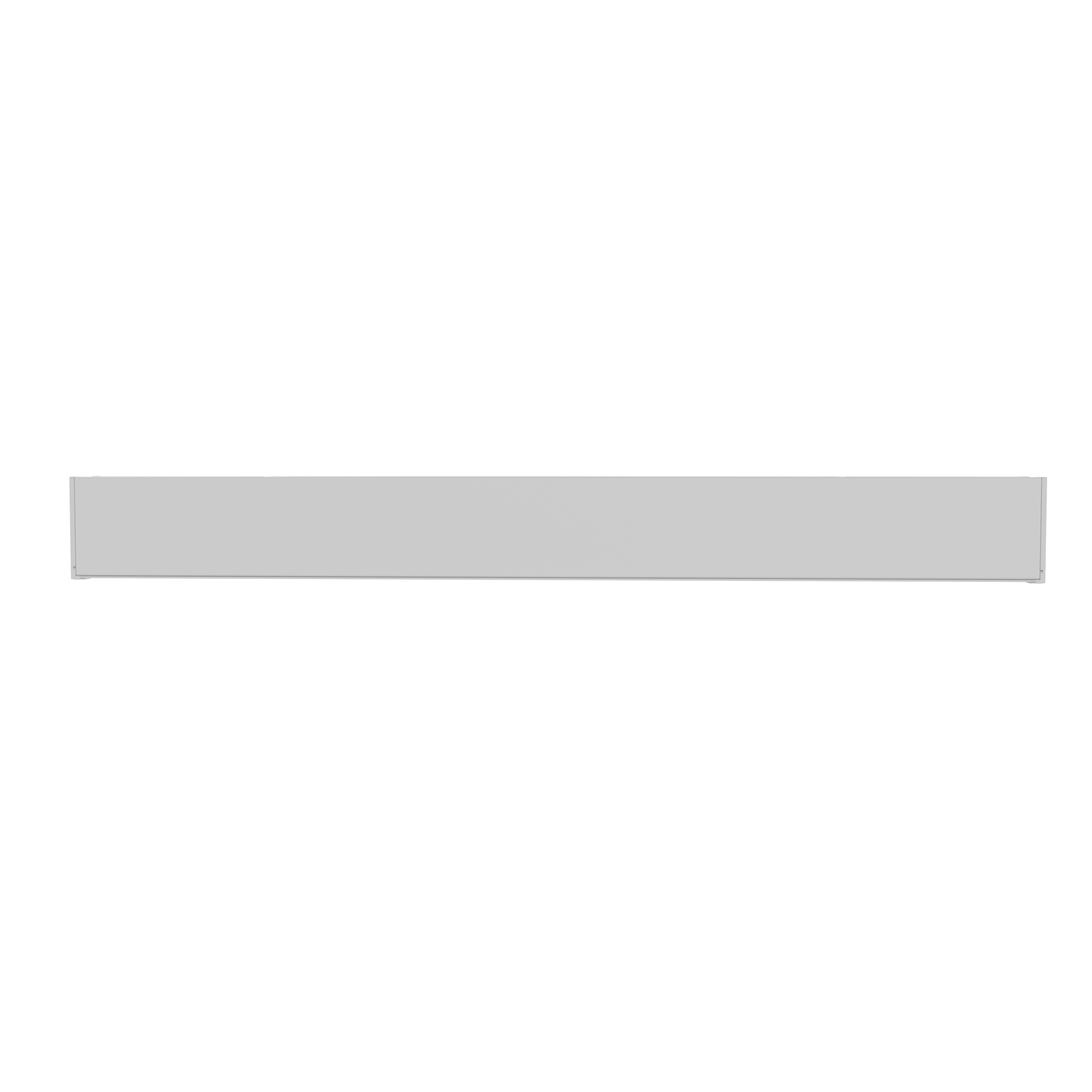

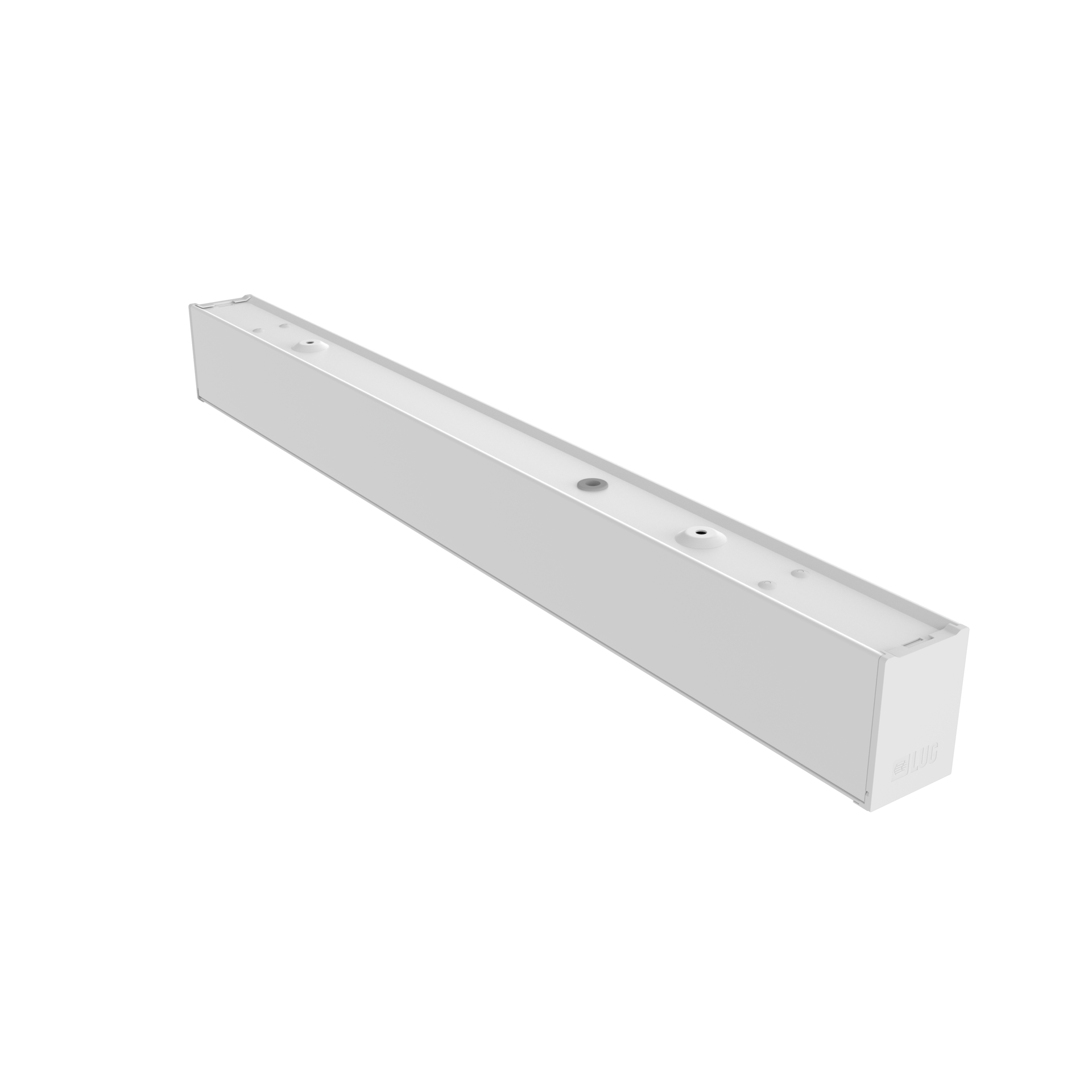

LINER LED n/t
A modern luminaire dedicated to the Retail segment and to the common areas of office buildings.



High efficacy to 182 lm/W
A combination of minimalism, simplicity and the best light performance
Cleverly designed housing for quick installation
Dedicated optics aimed at the best display of commercial goods

Application

galleries, offices, shopping centers, supermarkets

Luminous flux range

2500 - 6650 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
surface mounted
Body colour
white
Surface finish
matt/satin
Operating temperature range
0˚C ... +30˚C, 0˚C ... +35˚C
RAL
9003
Body
powder-painted steel sheet, extruded aluminum

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
14 - 38
Output current [mA]
350, 450, 700, 900
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
16 - 31
Maximum number of luminaires in the circuit with a 16A fuse (B)
25 - 50
Maximum number of luminaires in the circuit with a 25A fuse (B)
31 - 63

Optical data

Light distribution
double asymmetric
Way of lighting
direct
Type of optic
lens
Colour temperature [K]
3000, 4000
CRI/Ra
80
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
2500 - 6650
Efficacy [lm/W]
171 - 182
SVM
≤0.4
PstLM
≤1
Number of LEDs
112, 224

General data

Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
598x45x64 120 1 1.1
1198x45x64 60 1 2.1
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
060501.3L01.011 DALI 14 2550 182 4000 80
060501.3L02.011 DALI 14 2500 179 3000 80
060501.3L03.011 DALI 19 3350 176 4000 80
060501.3L04.011 DALI 19 3250 171 3000 80
060501.3L05.021 DALI 29 5200 179 4000 80
060501.3L06.021 DALI 29 5050 174 3000 80
060501.3L07.021 DALI 38 6650 175 4000 80
060501.3L08.021 DALI 38 6500 171 3000 80
060501.5L01.011 ED 14 2550 182 4000 80
060501.5L02.011 ED 14 2500 179 3000 80
Compare selected
Shown 10 / 16
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
