RELUG

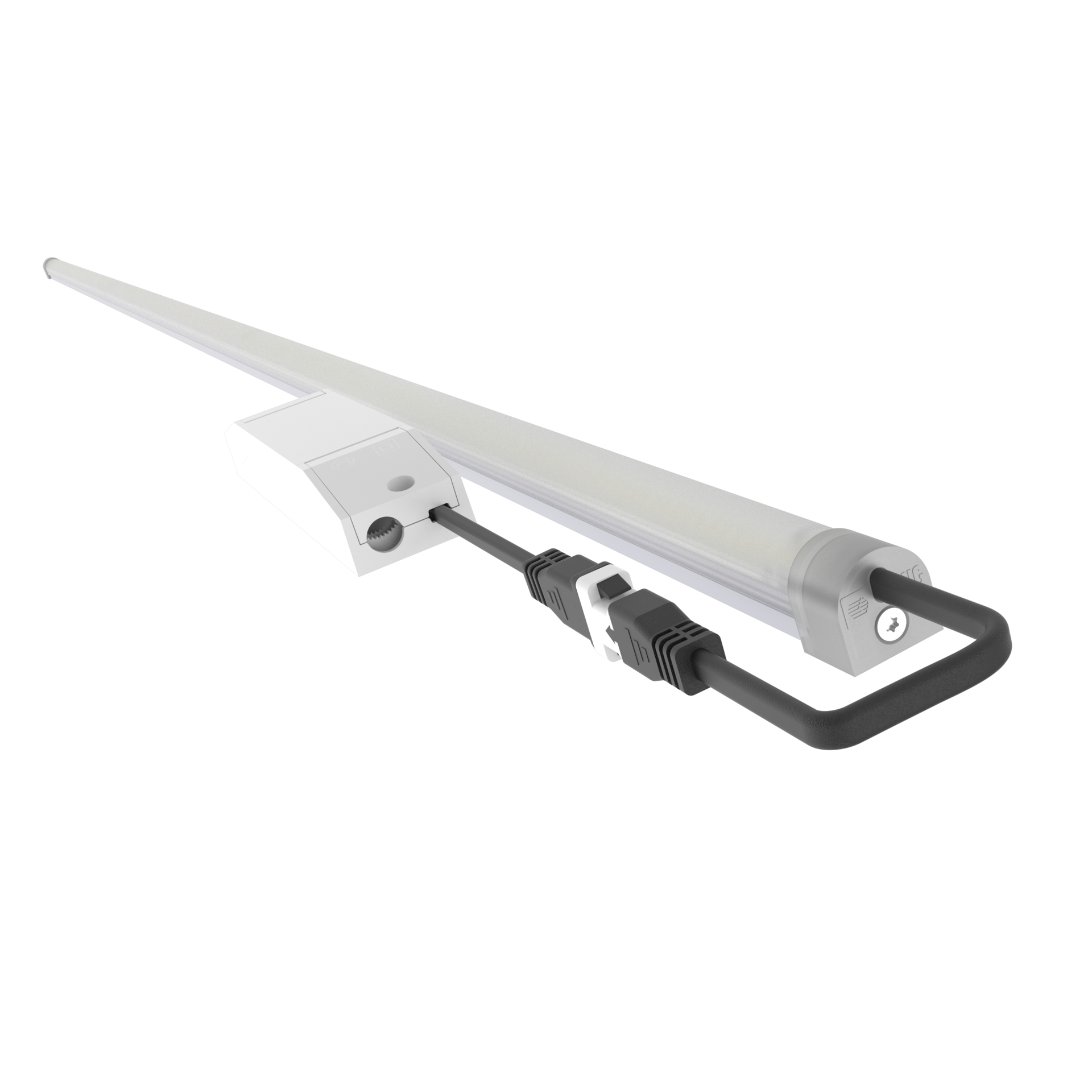

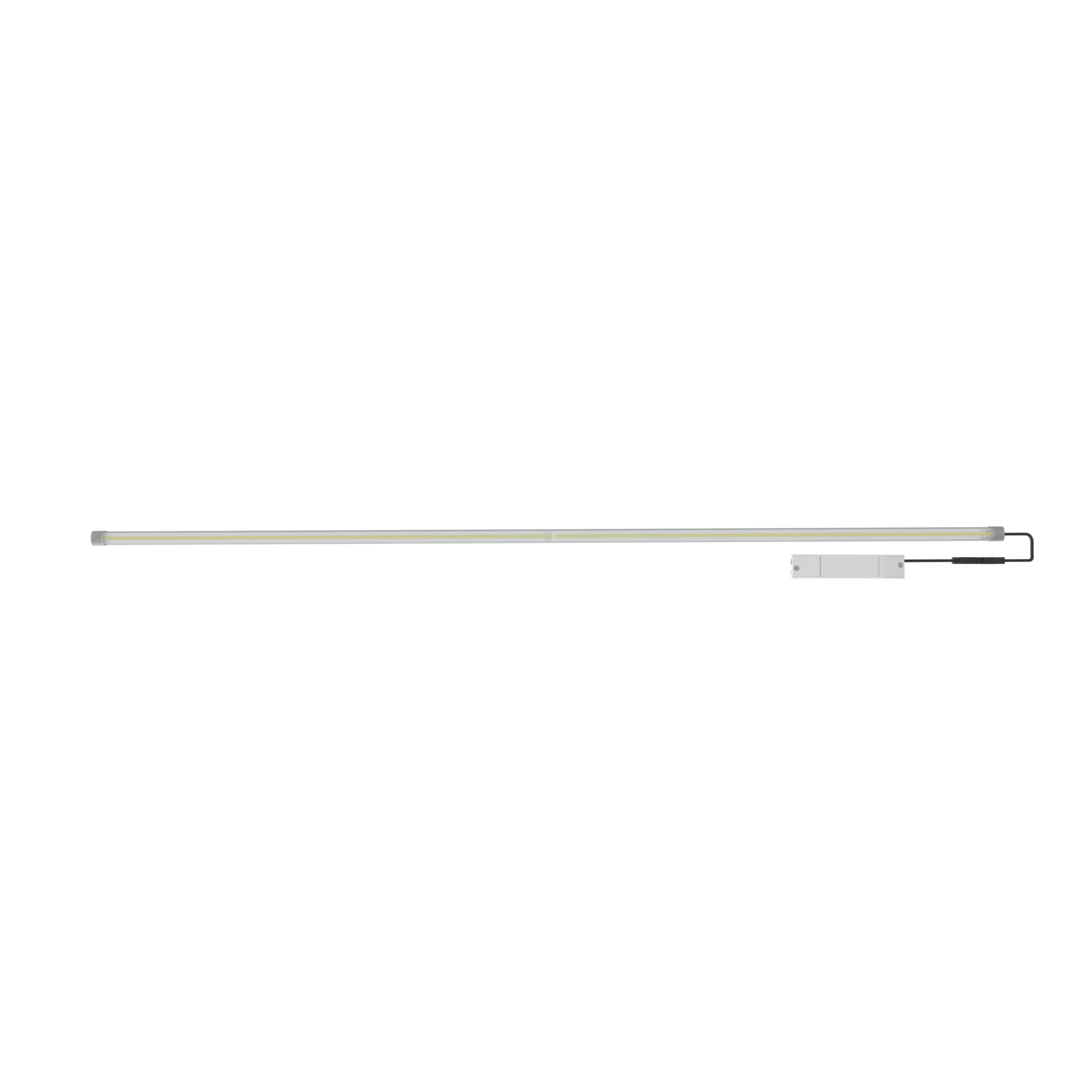

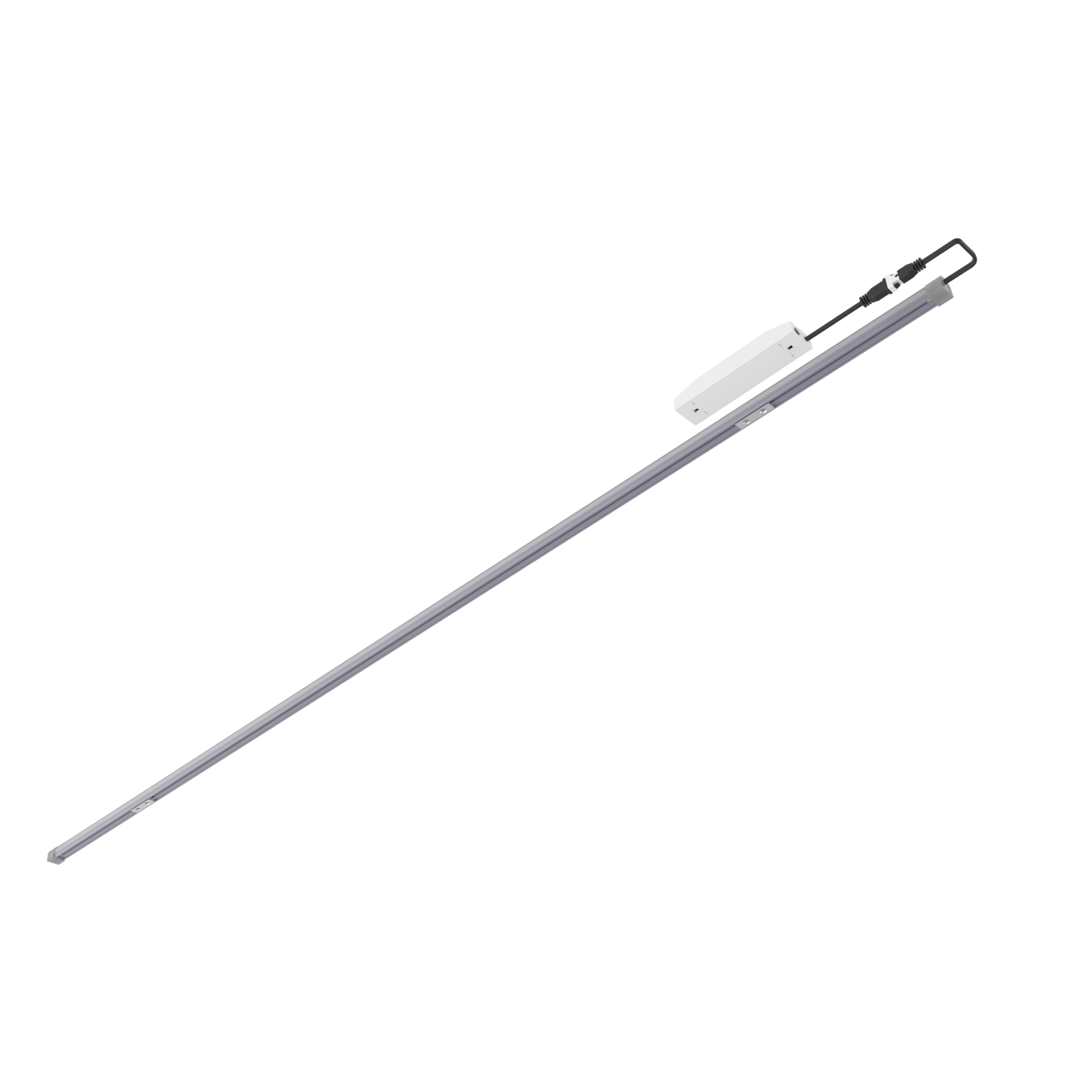

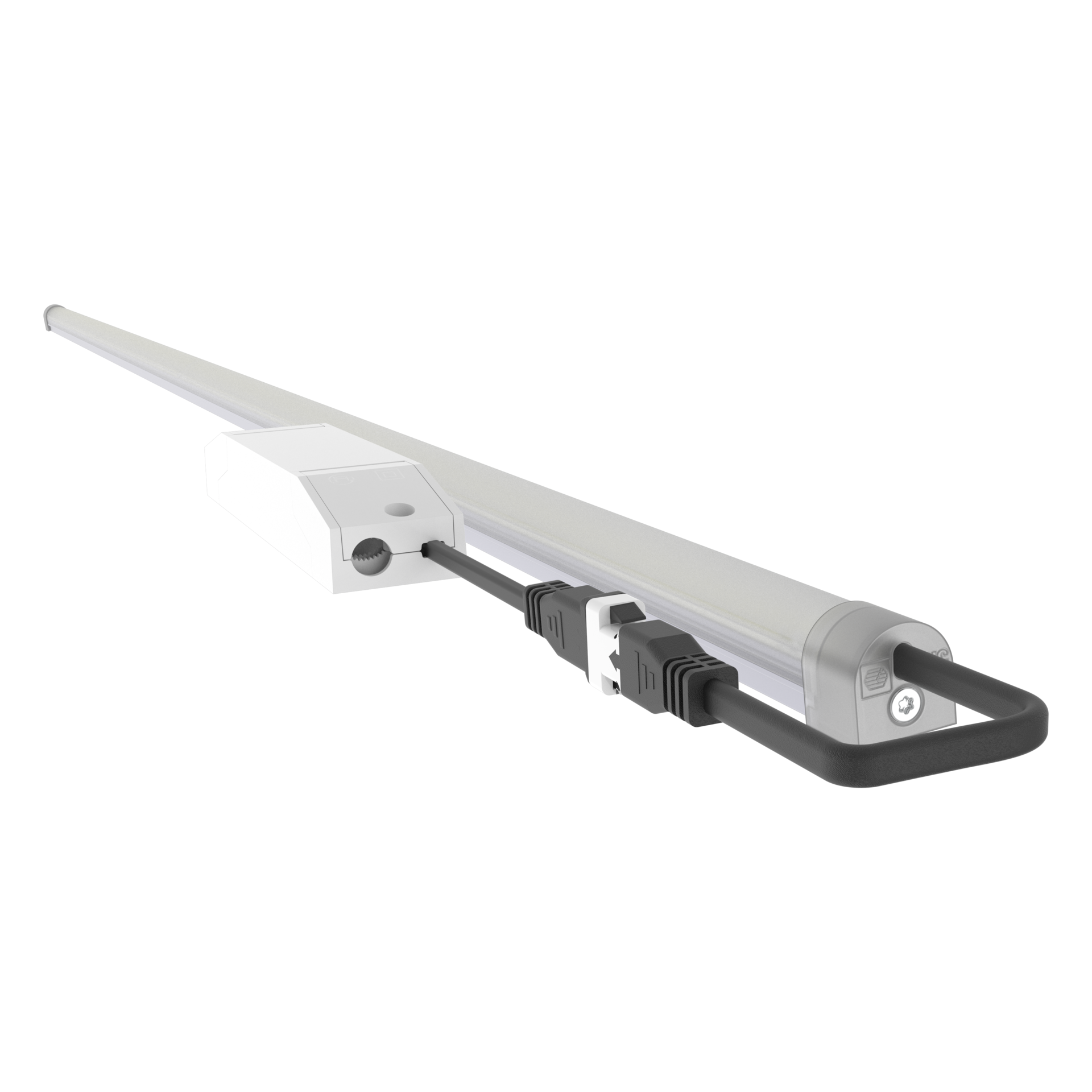

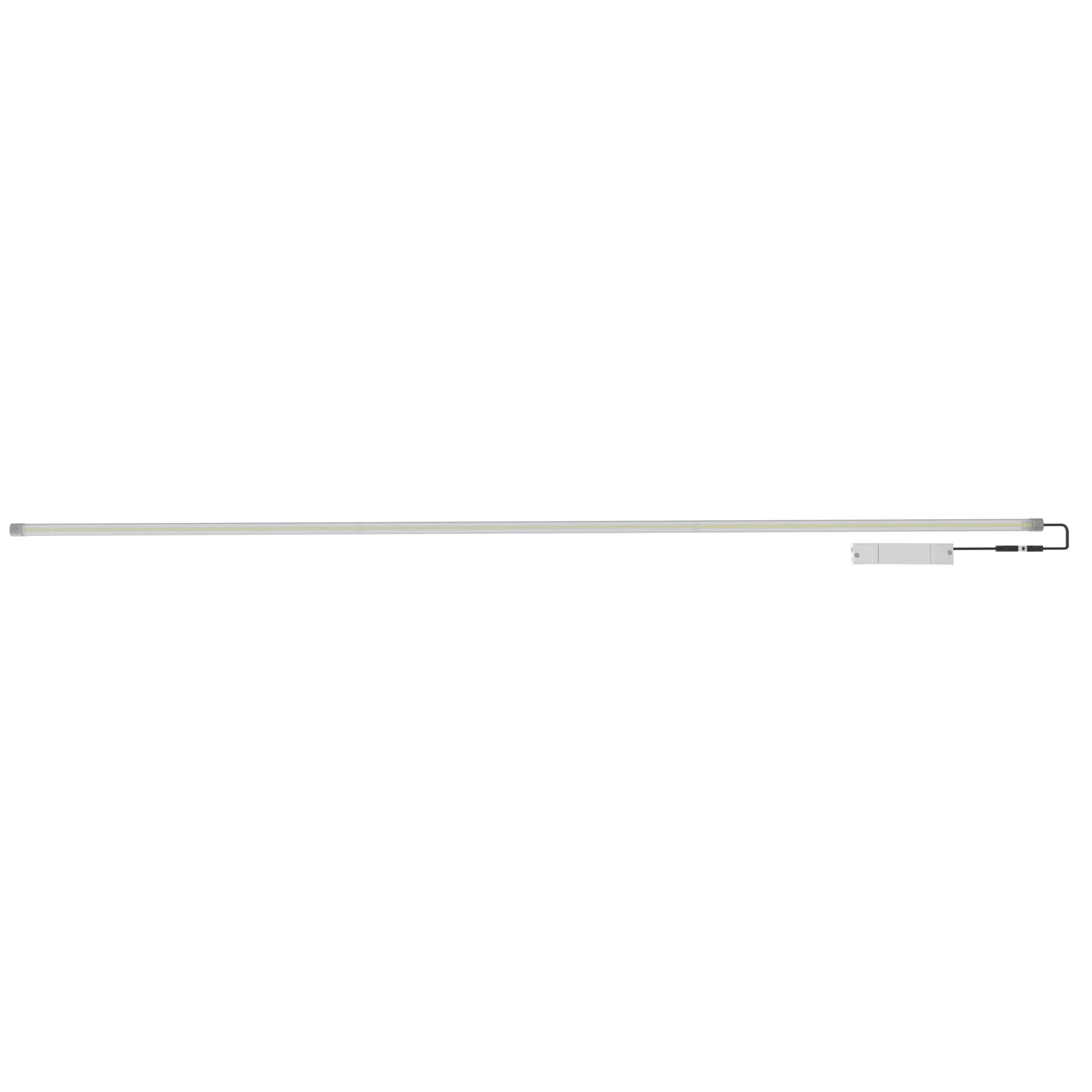

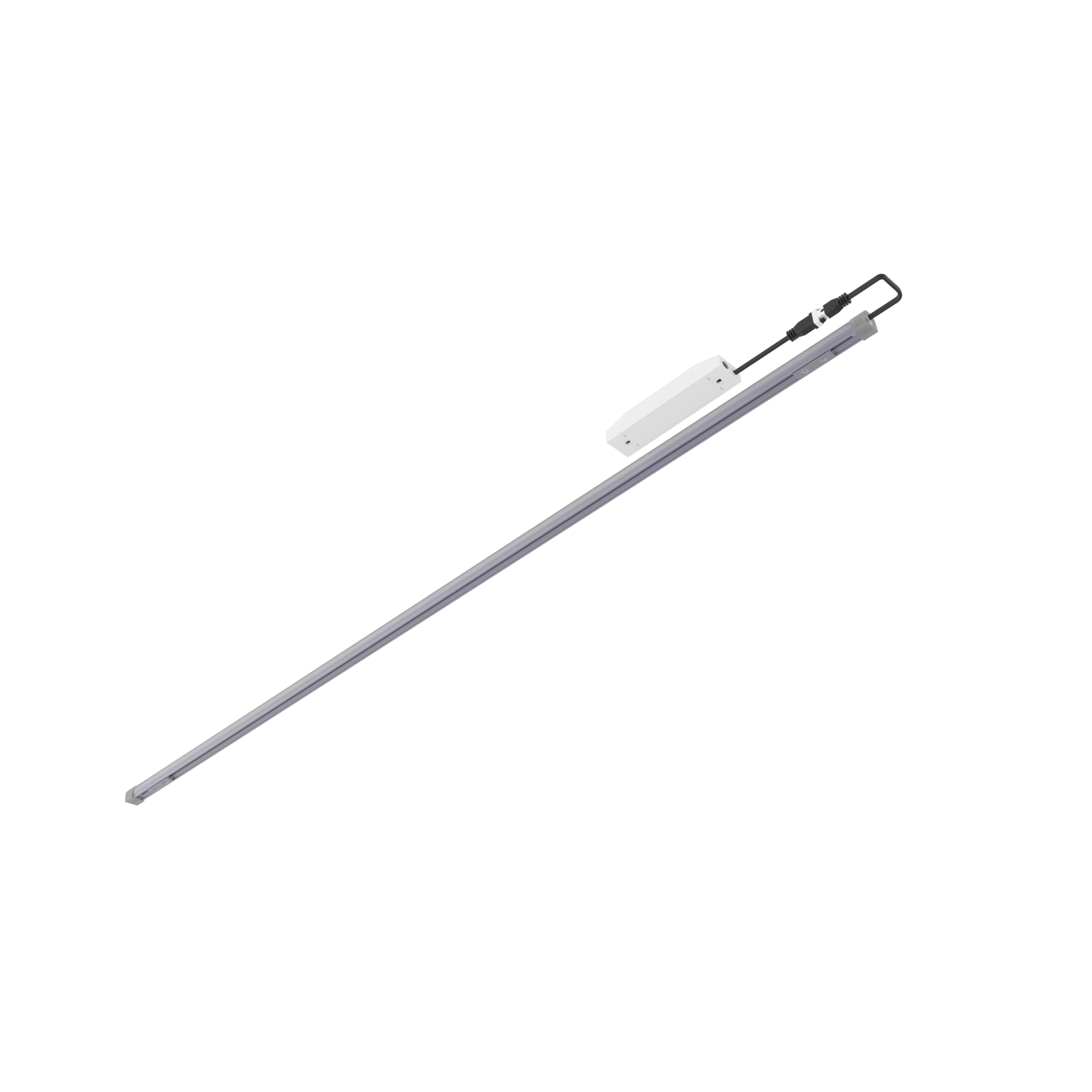

Luminaire dedicated as a replacement for conventional T5 fluorescent lamps. Thanks to the appropriately selected shape of the lens, we control the light emitted so that it reflects the way the fluorescent lamp shines in conventional luminaires. Thanks to this approach, we are able to offer a solution that does not require room lighting redesign or rearrangement.



Unique design
Fast and easy mounting
High efficacy to 167 lm/W

Application

auditorium, classrooms, offices

Luminous flux range

2350 - 6000 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
on magnets for the steel body
Length [mm]
1200, 1500
Body colour
white
Operating temperature range [°C]
0 ... +35
Body
aluminum profile

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
15 - 36
Output current [mA]
153, 182.5, 188, 290, 312.5
Type of equipment
DALI, ED
Light source / lamp
LED
Maximum number of luminaires in the circuit with a 10A fuse (B)
37 - 43
Maximum number of luminaires in the circuit with a 16A fuse (B)
59 - 69

Optical data

Light distribution
symmetric
Way of lighting
direct
Type of optic
lens
Diffuser
acrylic (PMMA)
Colour temperature [K]
3000, 4000
Beam angle
100°x80°
CRI/Ra
≥80
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
2350 - 6000
Efficacy [lm/W]
157 - 167
Photobiological risk group
RG0
SVM
≤0,4
PstLM
≤1
Number of LEDs
224, 294

General data

Additional information
Safe supply of the LED module with low SELV voltage
Lifetime L80B10
100 000 h
Lifetime L90B10
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] D Pallet quantity Quantity in package Net weight [kg]
1125x18x19 895 240 1 0.47
1425x18x19 1235 240 1 0.57
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Length [mm]
Clear Filters
Compare Code Length [mm] Type of equipment Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
190011.3L05.013 1200 DALI 100°x80° 15 2500 167 4000 ≥80
190011.3L06.013 1200 DALI 100°x80° 26 4300 165 4000 ≥80
190011.3L07.014 1500 DALI 100°x80° 19 3150 166 4000 ≥80
190011.3L08.014 1500 DALI 100°x80° 23 3850 167 4000 ≥80
190011.3L09.014 1500 DALI 100°x80° 36 6000 167 4000 ≥80
190011.3L14.013 1200 DALI 100°x80° 15 2350 157 3000 ≥80
190011.3L15.013 1200 DALI 100°x80° 26 4100 158 3000 ≥80
190011.3L16.014 1500 DALI 100°x80° 19 3000 158 3000 ≥80
190011.3L17.014 1500 DALI 100°x80° 23 3650 159 3000 ≥80
190011.3L18.014 1500 DALI 100°x80° 36 5700 158 3000 ≥80
Compare selected
Shown 10 / 20
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
