ATLANTYK 2.0 LOFT LED

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact

Other parameters available View variants

ATLANTYK 2.0 LOFT LED

Modern decorative luminaire, intended for mounting inside offices, apartments and lofts, for LED light sources.

High efficacy to 156 lm/W

Perfect combination of aesthetics and ergonomics

Fast and easy mounting

Modern design

Reliability

Application

flats, lofts, offices

Available on request

DALI

Luminous flux range

3150 - 4950 [lm]

Variable color temperature

2700 - 4000 [K]

Mechanical data

Mounting

suspended, on wire suspension (on request), directly on the ceiling, with mounting brackets (included), on the wall vertically (connector downwards) with mounting brackets (included), on the wall horizontally with mounting brackets (on request)

Body colour

transparent

Operating temperature range

0 ... +35

Body

polycarbonate

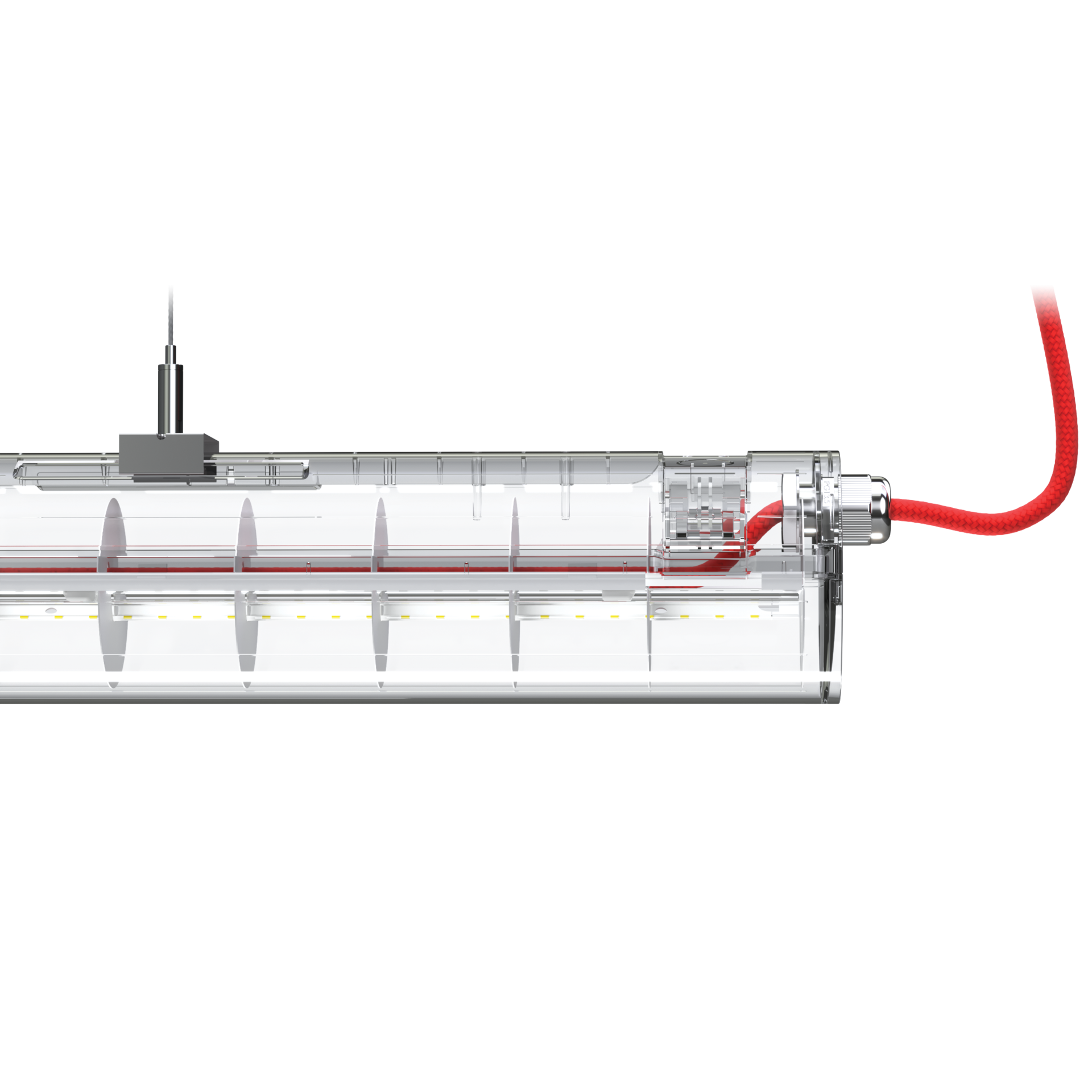

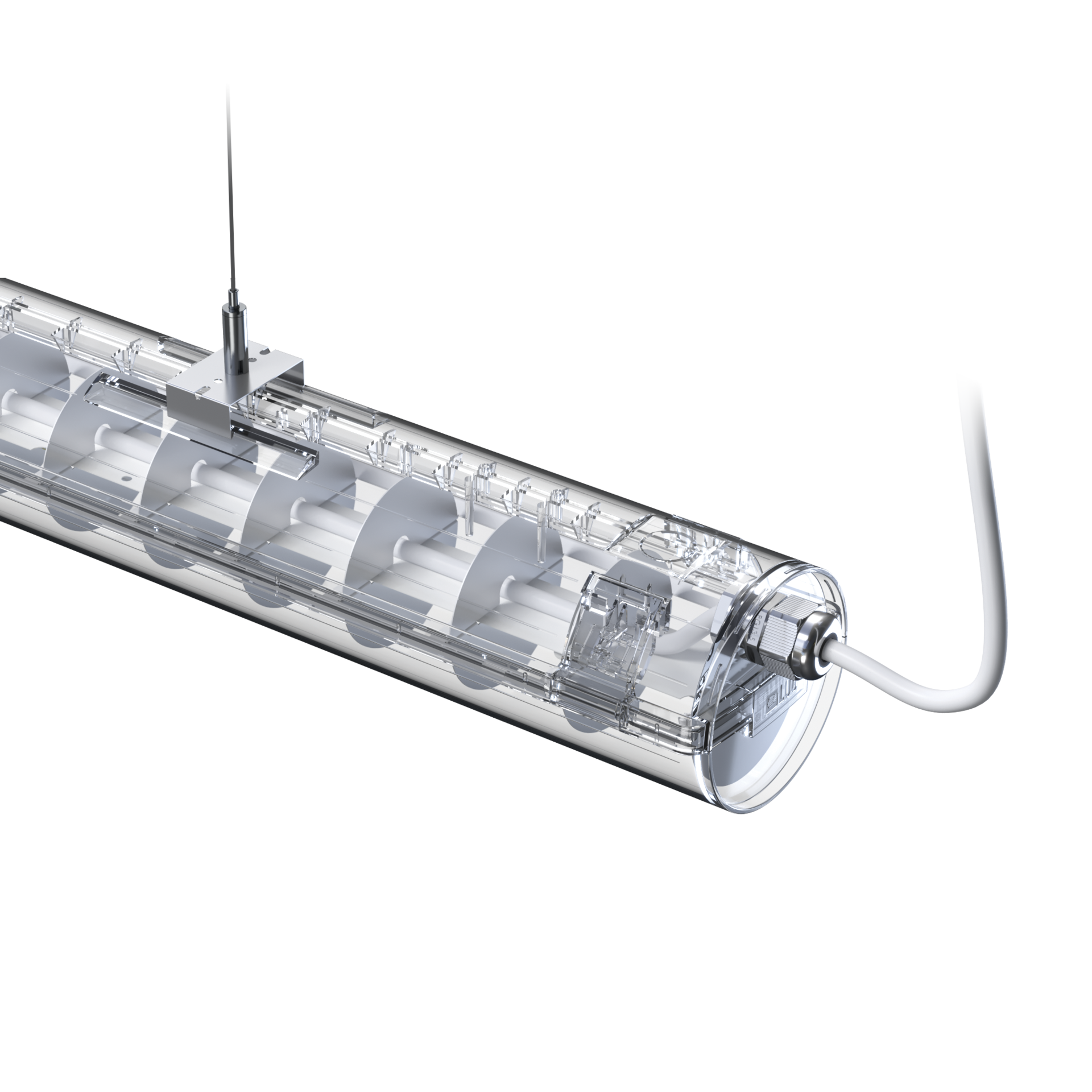

Type

red wire, white wire

Electrical data

Power supply efficiency

≤90%

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

24 - 32

Output current [mA]

250, 350

Type of equipment

Maximum number of luminaires in the circuit with a 10A fuse (B)

Maximum number of luminaires in the circuit with a 16A fuse (B)

Optical data

Way of lighting

direct

Type of optic

diffuser

Diffuser

polycarbonate

Colour temperature [K]

2700, 3000, 4000

CRI/Ra

≥80

ULOR / DLOR

10/90

Lumen luminaire [lm]

3150 - 4950

Efficacy [lm/W]

130 - 156

Photobiological risk group

RG1

General data

Other remarks

in order to apply the luminaire in an aggressive environment a consultation with the LUG Technical Preparation of Production Branch is required

Lifetime L90B10

50 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Mounting dimensions [mm] D	Pallet quantity	Net weight [kg]
1245x100x90	766	120		2

Code	Type of equipment	Degree of water and dust protection	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra
090390.5L01.201	ED	IP20	24	3750	156	3000	≥80
090390.5L01.204	ED	IP20	24	3750	156	3000	≥80
090390.5L02.201	ED	IP20	24	3750	156	4000	≥80
090390.5L02.204	ED	IP20	24	3750	156	4000	≥80
090390.5L03.201	ED	IP20	32	4950	155	3000	≥80
090390.5L03.204	ED	IP20	32	4950	155	3000	≥80
090390.5L04.201	ED	IP20	32	4950	155	4000	≥80
090390.5L04.204	ED	IP20	32	4950	155	4000	≥80
090390.5L07.201	ED	IP20	24	3150	131	2700	≥80
090390.5L07.204	ED	IP20	24	3150	131	2700	≥80

The luminaires are not intended for mounting in places exposed to atmospheric conditions, in car washes, in rooms where washing with pressure washers is used, in livestock rooms, in aggressive environments, etc.
In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
