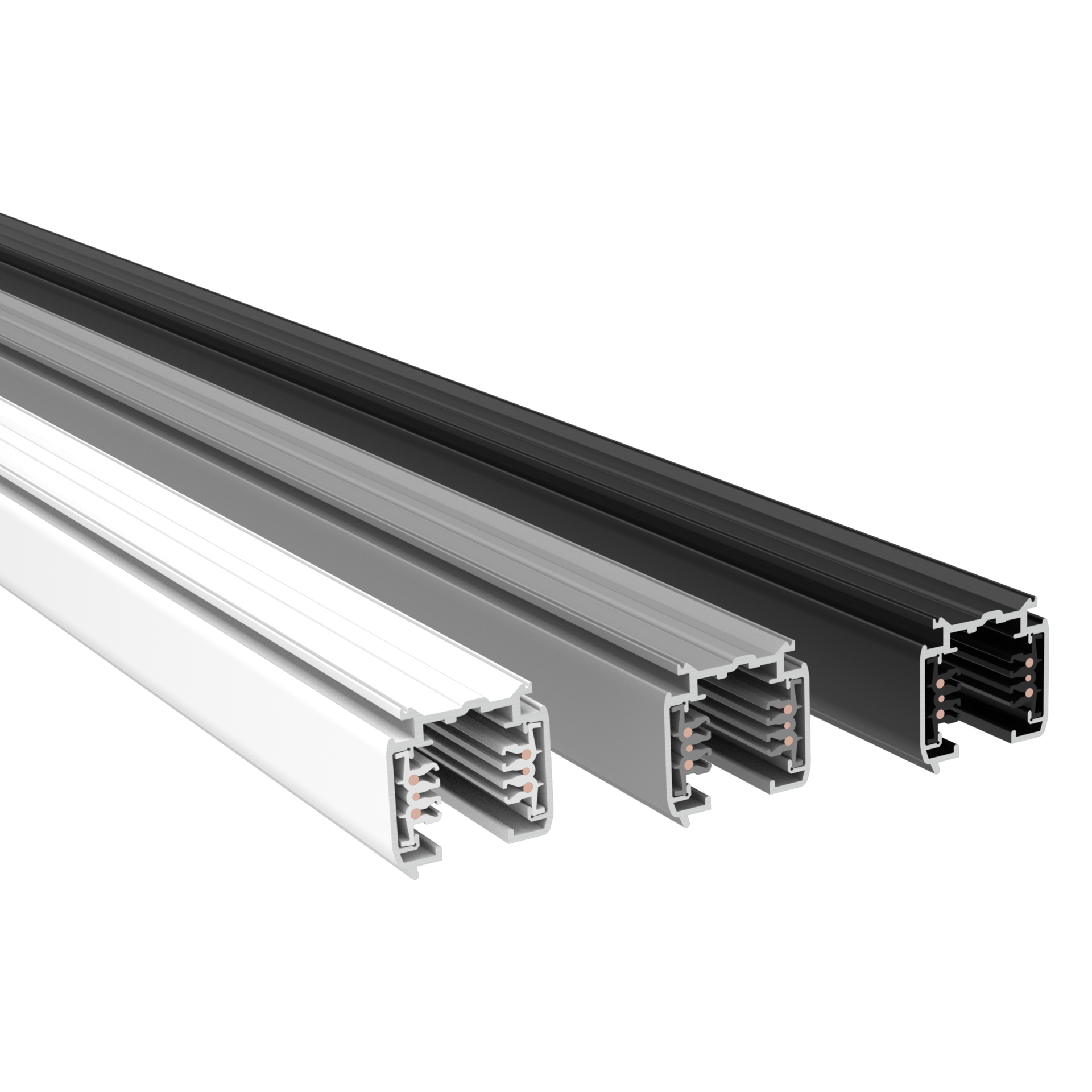

3-PHASE RAIL DALI
3-phase aluminium track DALI.



Application

boutiques, delicatessen, exhibitions, exhibitions, galleries, jeweler, museums, shopping centers, supermarkets

Mechanical data

Mounting
suspended, on wire suspension (on request), directly on the ceiling, with mounting brackets (on request)

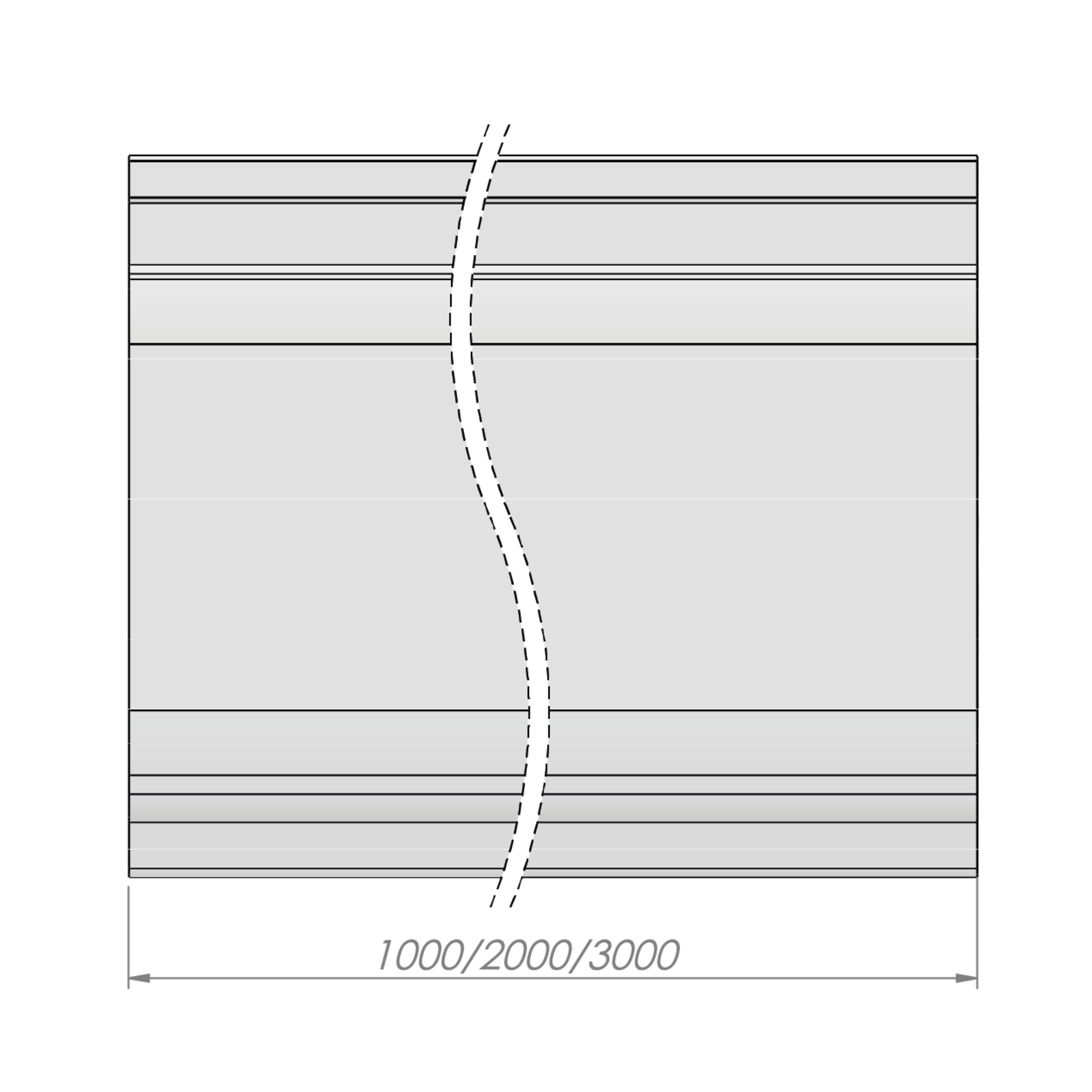

Length [mm]
1000, 2000, 3000
Body colour
black, gray, white

Electrical data

Power
220-240V 50/60Hz

General data

Additional equipment
aluminium profile
Warranty
2 years

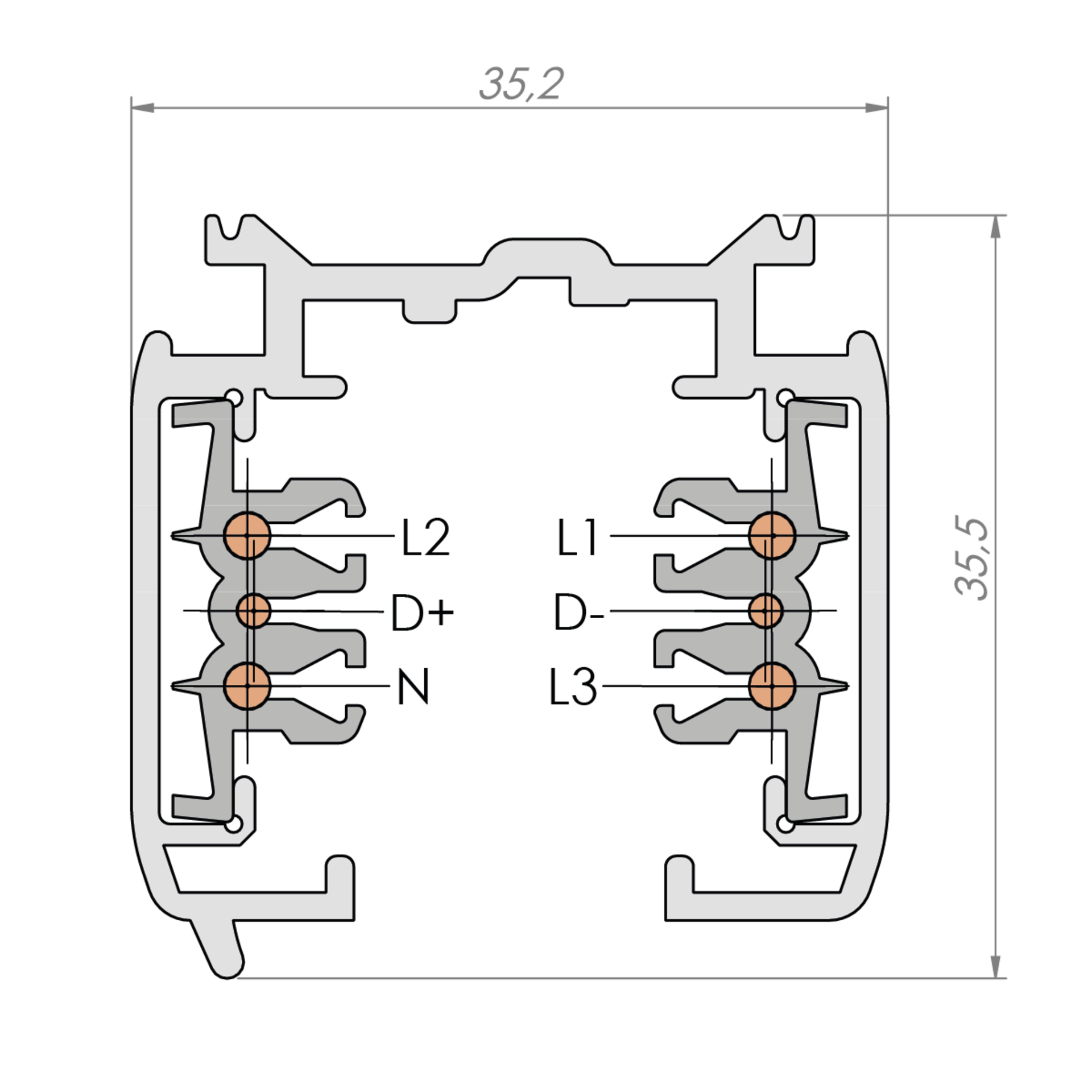

Dimensions

Dimensions [mm] LxWxH Net weight [kg]
1000x35x36 0.918
2000x35x36 1.836
3000x35x36 2.754
X

Available variants

Code
Body colour
black
gray
white
Clear Filters
Compare Code Body colour
150091.01426 white
150091.01427 white
150091.01428 white
150092.01432 gray
150092.01433 gray
150092.01434 gray
150093.01429 black
150093.01430 black
150093.01431 black
Compare selected
The parameters in the data sheet are given for Ta=25°C.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150091.01435
150093.01436
150092.01437

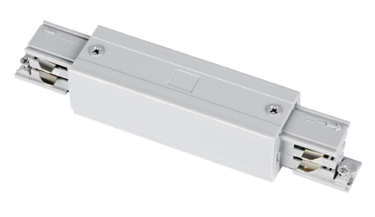

3-phase straight connector DALI
150091.01441
150093.01442
150092.01443
T connector - external right DALI
150091.01438
150093.01439
150092.01440
T connector - external left DALI
150091.01453
150093.01454
150092.01455
L connector - internal DALI
150091.01450
150093.01451
150092.01452

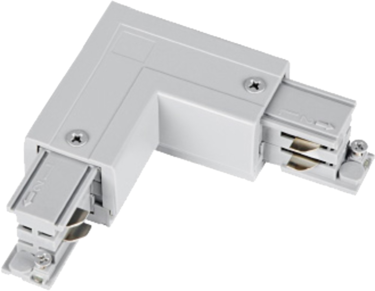

L connector - external DALI
150091.01465
150093.01466
150092.01467

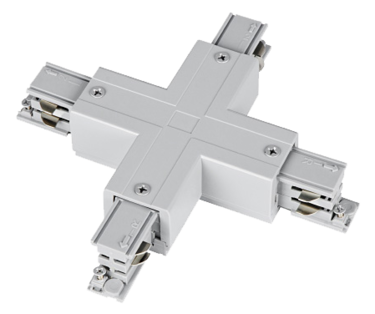

X connector DALI
150091.01456
150093.01457
150092.01458
Supply connector right DALI
150091.01459
150093.01460
150092.01461

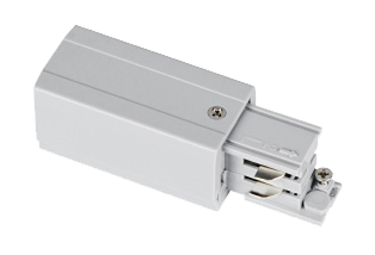

Supply connector left DALI
150091.00115
150093.00683
150092.00116
End cap
150091.01462
150093.01463
150092.01464

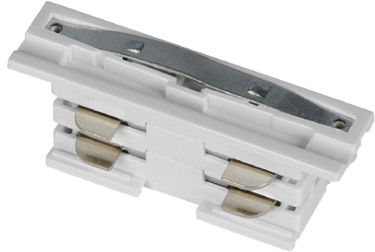

3-phase invisible straight connector DALI
150091.01447
150093.01448
150092.01449

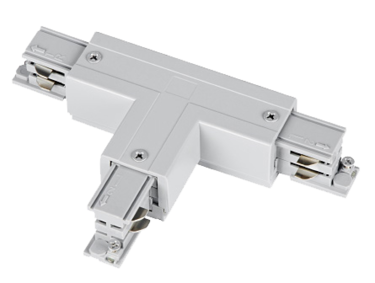

T connector - internal right DALI
150091.01444
150093.01445
150092.01446
T connector - internal left DALI
150091.00119
150093.01040
150092.00120
Suspension
