LUGSTAR LB LED AS

Product description

Technical parameters

To download

Explore services Customisation Support and contact
Other parameters available View variants

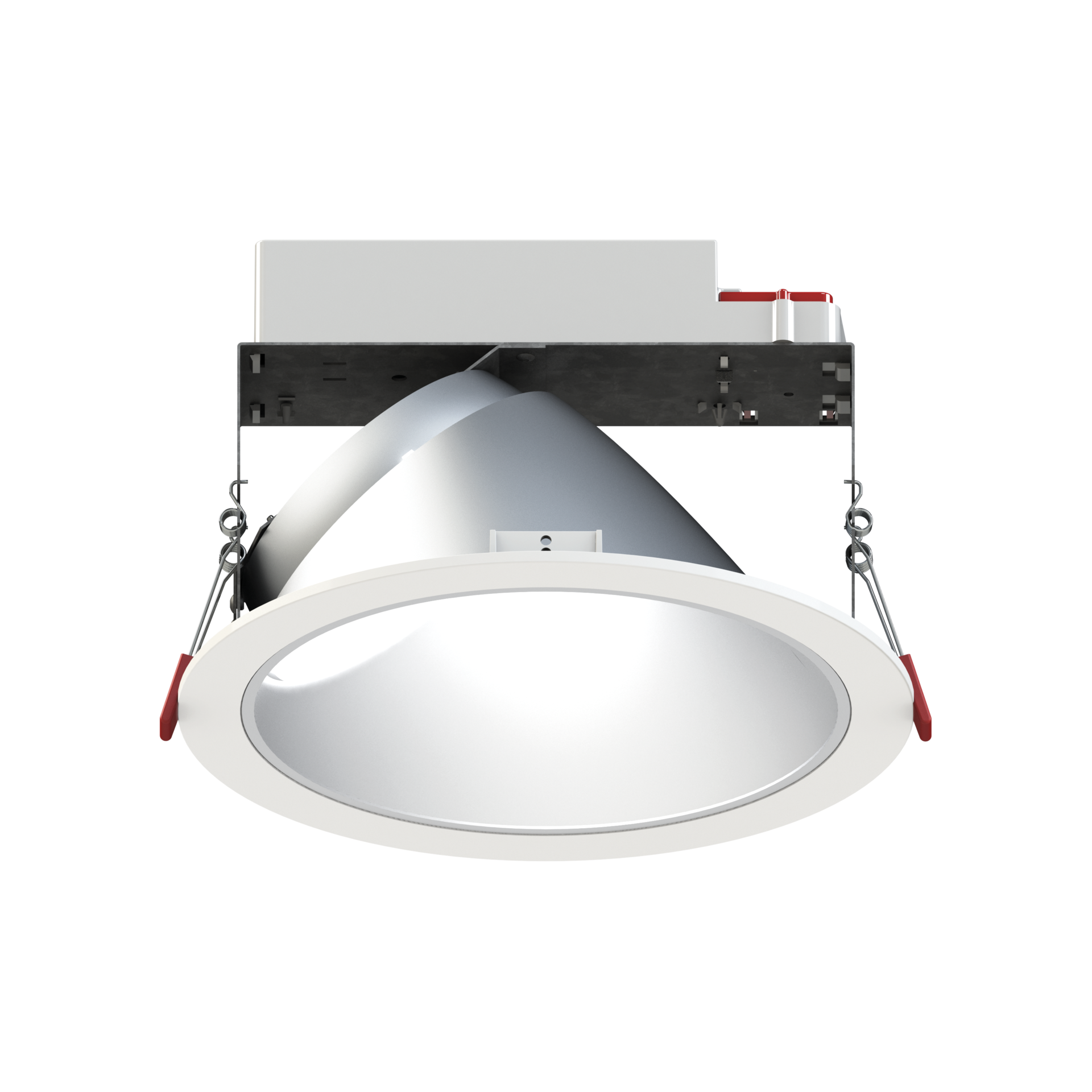

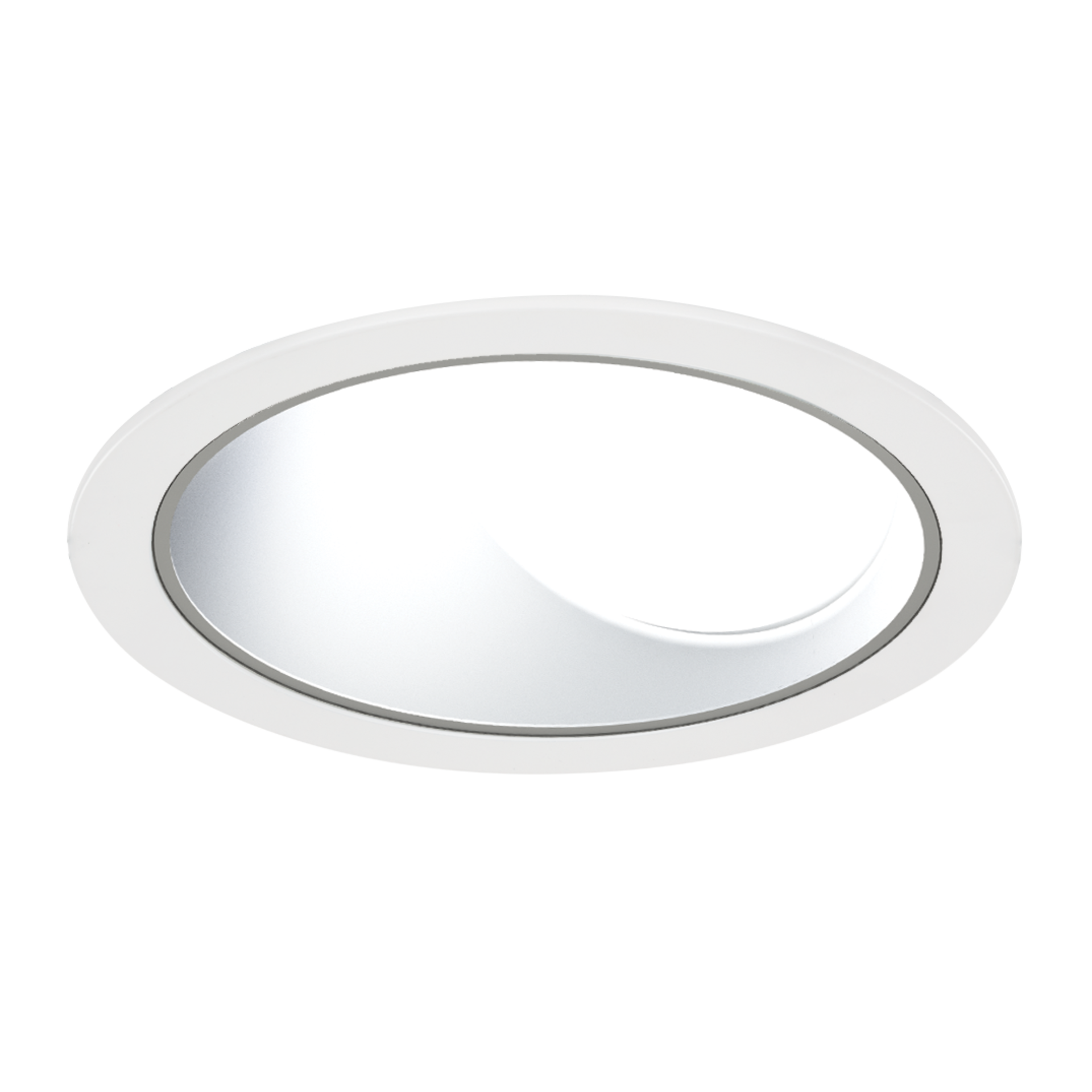

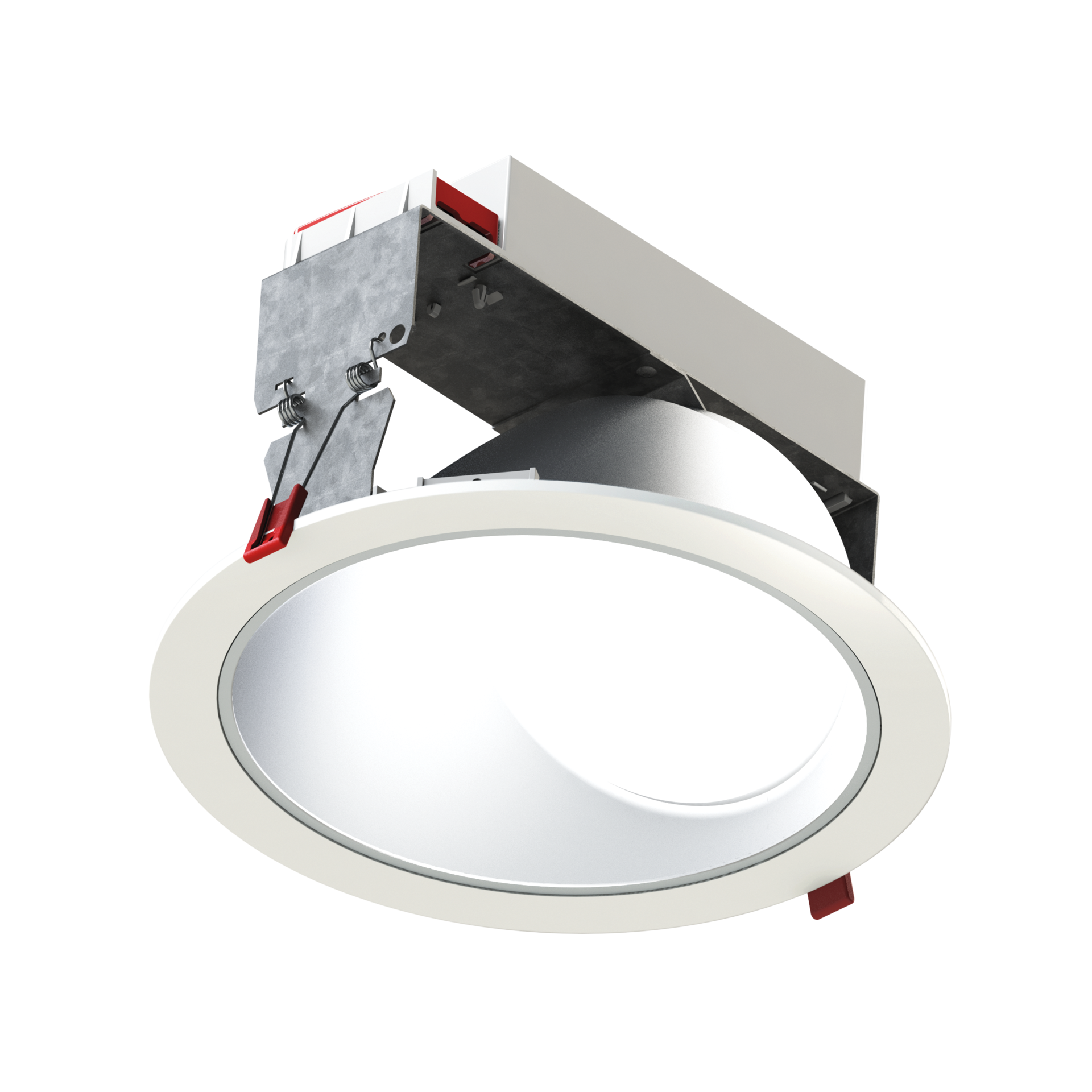

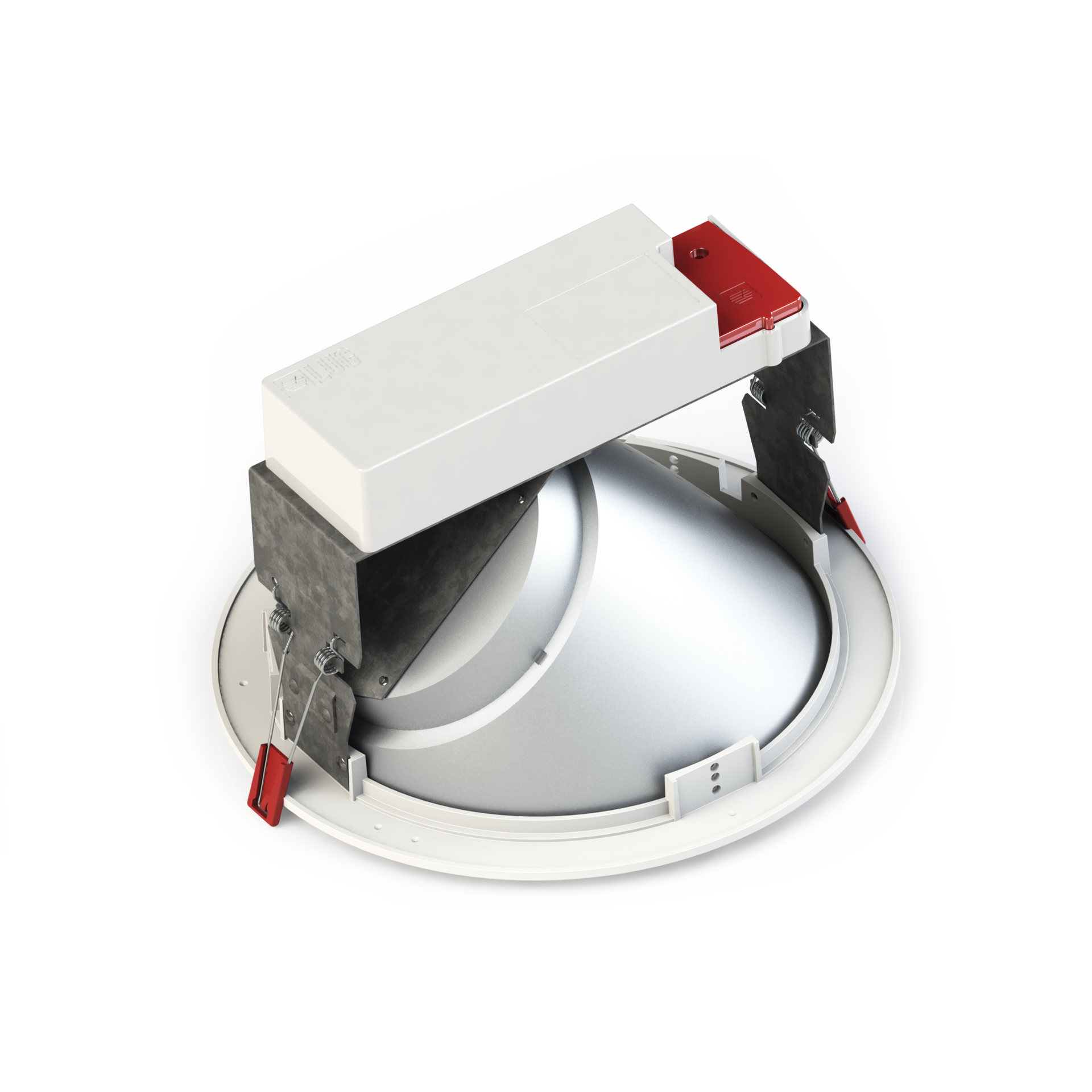

LUGSTAR LB LED AS
Decorative downlight luminaire for suspended ceilings, degree of water and dust-proof IP20 and IP44/20, with asymmetric reflector for LED light sources.



High efficacy to 100 lm/W
Perfect combination of aesthetics and ergonomics
Universal design
Fast and easy mounting
Maintenance-free operation

Application

boutiques, delicatessen, exhibitions, flats, galleries, halls, hotels, jeweler, museums, shopping centers, supermarkets

Luminous flux range

1950 - 2600 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
in the ceiling, with mounting brackets (included)
Body colour
white
Operating temperature range
0 … +35
RAL
9010
Body
aluminum

Electrical data

Power supply efficiency
≤92%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
18 - 24
Output current [mA]
200, 220
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
50
Maximum number of luminaires in the circuit with a 16A fuse (B)
90

Optical data

Way of lighting
direct
Diffuser
opal
Colour temperature [K]
3000, 4000
Beam angle
70°
CRI/Ra
≥80
Lumen luminaire [lm]
1950 - 2600
Efficacy [lm/W]
108

General data

Lifetime L80B10
50 000 h
Warranty
3 years

Dimensions

Dimensions [mm] LxH Mounting dimensions [mm] ØS Pallet quantity Quantity in package Net weight [kg]
240x160 215 132 1 0.7
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Type of equipment Replacement of conventional technology [W] Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
300031.00073 ED 2x18W (48W) 18 1950 108 3000 ≥80 0 … +35
300031.00074 ED 2x18W (48W) 18 1950 108 4000 ≥80 0 … +35
300031.00075 ED 2x26W (64W) 24 2600 108 3000 ≥80 0 … +35
300031.00076 ED 2x26W (64W) 24 2600 108 4000 ≥80 0 … +35
300031.00077 ED 2x18W (48W) 18 1950 108 3000 ≥80 0 … +35
300031.00078 ED 2x18W (48W) 18 1950 108 4000 ≥80 0 … +35
300031.00079 ED 2x26W (64W) 24 2600 108 3000 ≥80 0 … +35
300031.00080 ED 2x26W (64W) 24 2600 108 4000 ≥80 0 … +35
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
