TRAFFIK BPO LED

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact

Other parameters available View variants

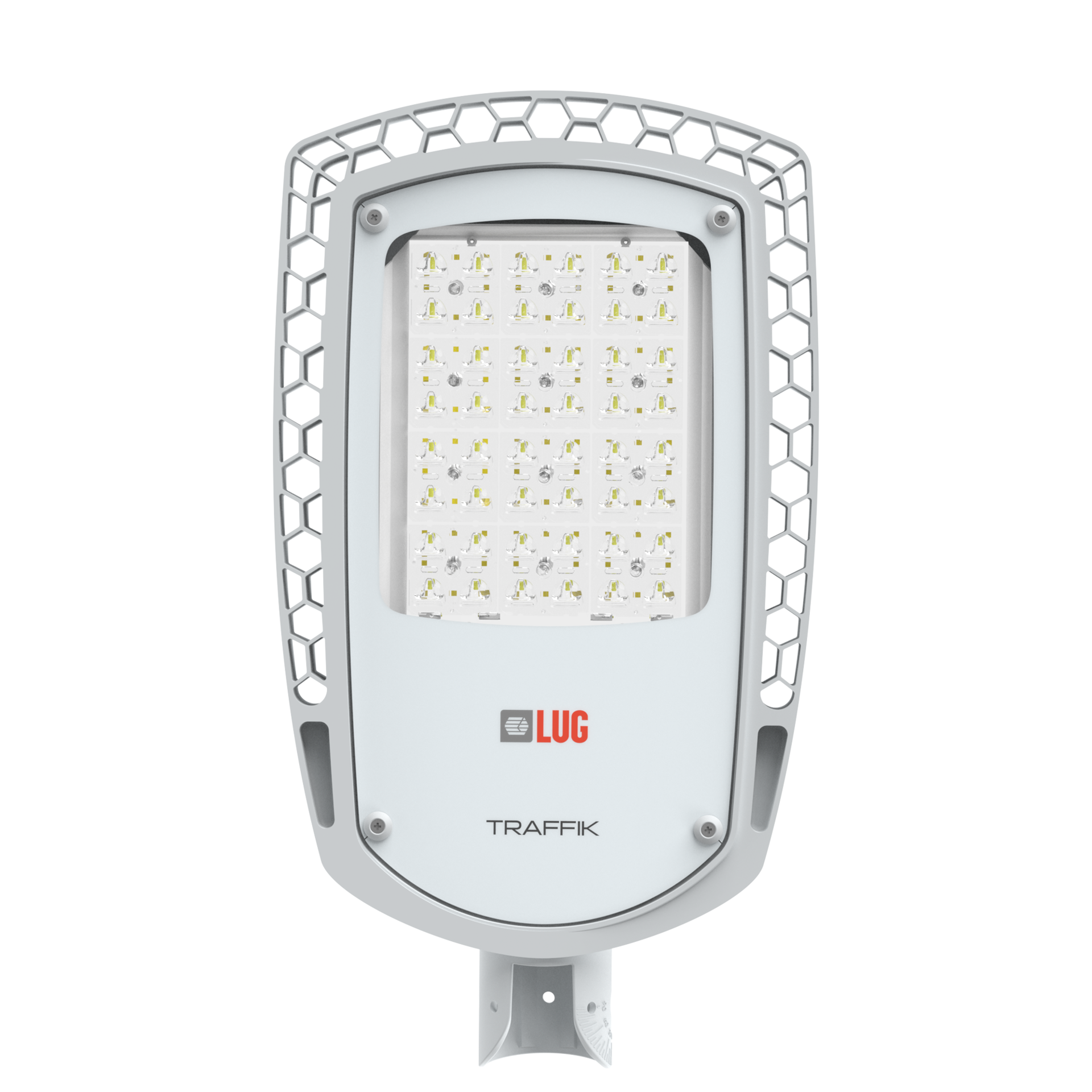

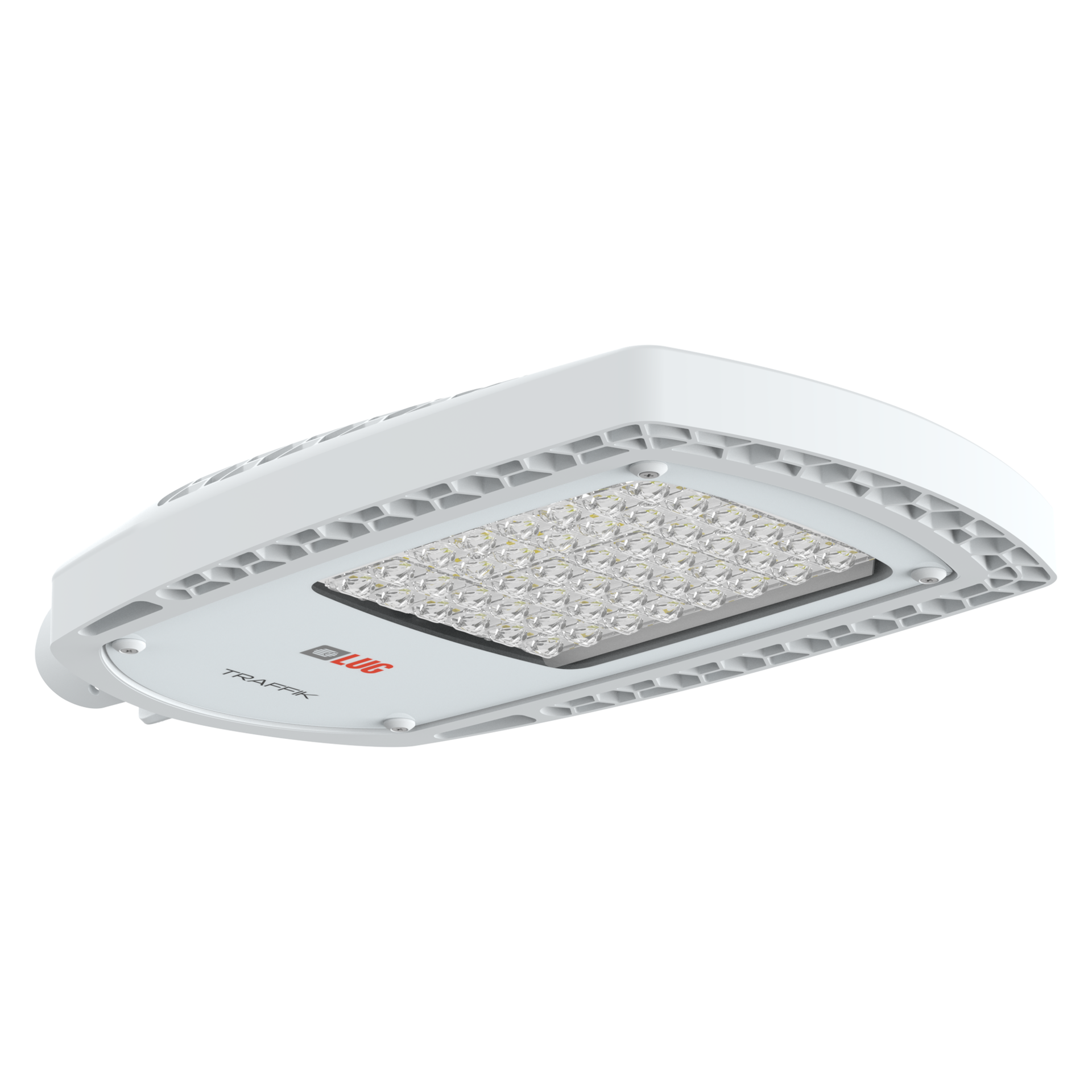

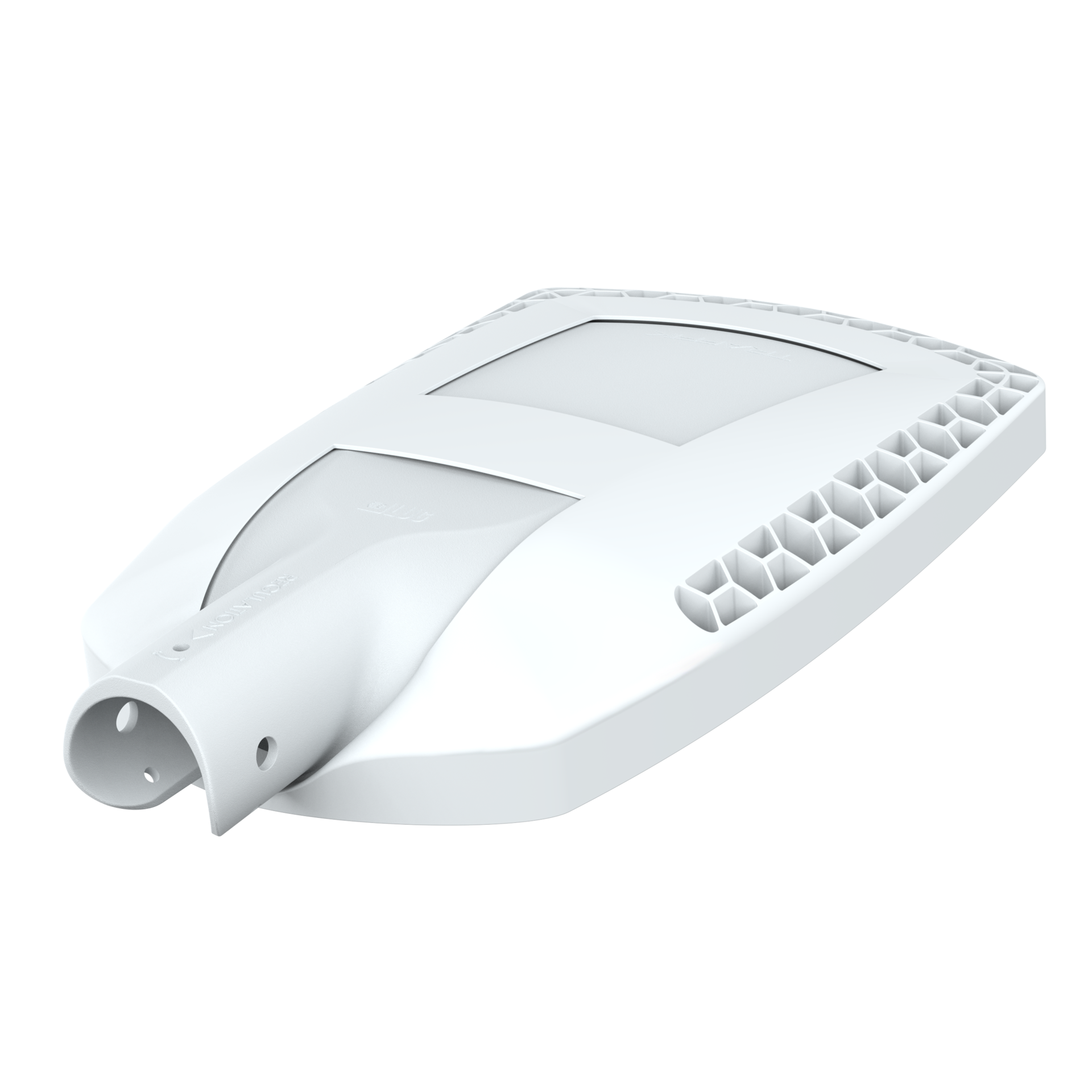

TRAFFIK BPO LED

A state-of-the-art energy-efficient street luminaire that reduces the risk of injury to road users in road traffic incidents and minimises losses resulting from a direct impact on a lighting point. The luminaire improves safety through the use of an innovative shield and the availability of a wide range of optics to ensure adequate illumination of roads and pedestrian crossings.

High efficacy to 156 lm/W

Possible illuminance control

Modern design

Luminaire body made of aluminum

Application

area lighting, avenues, express roads, local roads, parking areas, promenade, residential area roads, town roads

Available on request

CLO, extension of the warranty to 10 years, version with increased corrosion resistance in accordance with class C5

Luminous flux range

3100 - 10200 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting

on outriggers ø48-60mm

Body colour

gray

Detail

white

Operating temperature range

-40 ... +50

RAL

7035

Body

high pressure die-cast aluminum

Lateral Surface Wind Exposed

0.037 m²

Electrical data

Power supply efficiency

≤90%

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

23 - 68

Output current [mA]

450, 700

Type of equipment

DALI, ED

Maximum number of luminaires in the circuit with a 10A fuse (B)

8 - 17

Maximum number of luminaires in the circuit with a 16A fuse (B)

12 - 28

Maximum number of luminaires in the circuit with a 25A fuse (B)

20 - 44

Optical data

Way of lighting

direct

Type of optic

O41, O42, O43, O44L, O44P, O45, O46, O47, O48

Diffuser

tempered glass

Colour temperature [K]

3000, 4000

CRI/Ra

>70

MacAdam's steps

ULOR / DLOR

0% / 100%

Lumen luminaire [lm]

3100 - 10200

Efficacy [lm/W]

135 - 156

Photobiological risk group

RG1

Number of LEDs

General data

Additional information

the standard version of the luminaire is corrosion resistant according to class C4; the luminaire is fitted with a cable which must not be exposed to UV radiation

Lifetime L90B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Pallet quantity	Quantity in package	Net weight [kg]
540x300x90	72	1	4

Code	Type of equipment	Protection Class	Type of optic	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Operating temperature range
130812.3L131.060	DALI	I	O46	23	3450	150	4000	>70	-40 ... +50
130812.3L131.070	DALI	I	O41	23	3350	146	4000	>70	-40 ... +50
130812.3L131.080	DALI	I	O42	23	3400	148	4000	>70	-40 ... +50
130812.3L131.090	DALI	I	O43	23	3400	148	4000	>70	-40 ... +50
130812.3L131.100	DALI	I	O44L	23	3450	150	4000	>70	-40 ... +50
130812.3L131.110	DALI	I	O44P	23	3450	150	4000	>70	-40 ... +50
130812.3L131.120	DALI	I	O45	23	3400	148	4000	>70	-40 ... +50
130812.3L131.130	DALI	I	O47	23	3400	148	4000	>70	-40 ... +50
130812.3L131.140	DALI	I	O48	23	3450	150	4000	>70	-40 ... +50
130812.3L132.060	DALI	II	O46	23	3450	150	4000	>70	-40 ... +50

Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
