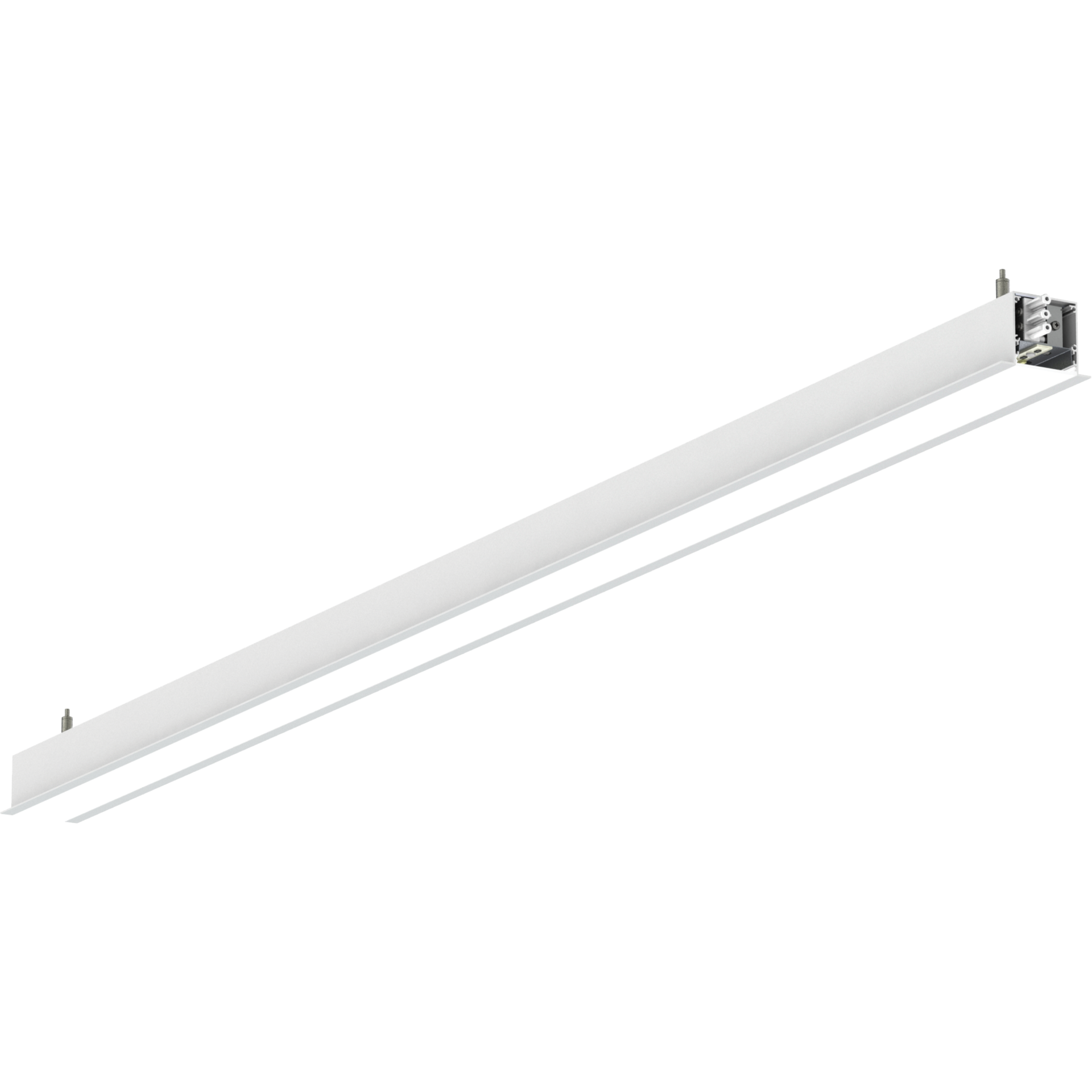

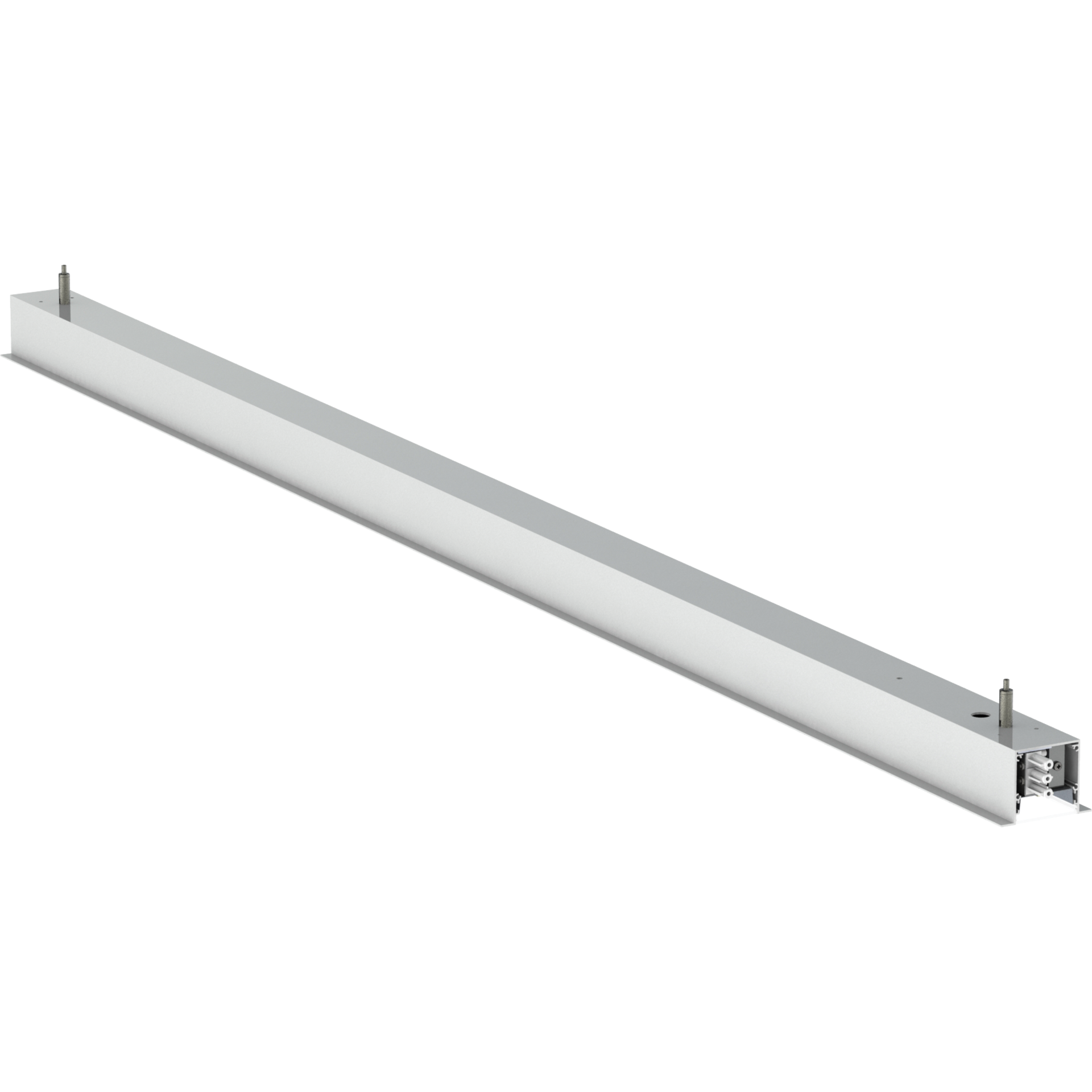

ARGUS ONE LED System g/k OPEN CELL
Decorative system luminaire for LED light sources for plasterboard ceilings. Customize BARWA SYSTEM OPEN CELL Ceiling Luminaires.



Modern design
Luminaire body made of aluminum
Maintenance-free operation
Possible illuminance control

Application

auditorium, boutiques, classrooms, hotels, museums, offices, reception desks

Luminous flux range

1620 - 5400 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
in the ceiling, on wire suspension (on request)
Body colour
white
Operating temperature range
0˚C ... +35˚C
Body
aluminium profile

Electrical data

Power supply efficiency
>90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
17 - 60
Type of equipment
ED

Optical data

Way of lighting
direct
Colour temperature [K]
4000
CRI/Ra
≥80
Lumen luminaire [lm]
1620 - 5400
Efficacy [lm/W]
90 - 98

General data

Additional equipment
plastic end caps
Additional information
The luminaire is not equipped with a diffuser. It is possible to order diffusers with special dimensions, available in the customization process, at an additional cost.
Other remarks
In order to supply luminaire lines with power, an appropriate initial module should be used. Each initial module has a side end cap (included)
Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxHxD Quantity in package
900x70x50x800 1
1200x70x50x1100 1
1500x70x50x1400 1
1800x70x50x1700 1
2400x70x50x2000 1
3000x70x50x2600 1
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
900010.00563 17 1620 95 4000 ≥80
900010.00564 22 2160 98 4000 ≥80
900010.00565 28 2700 96 4000 ≥80
900010.00566 36 3240 90 4000 ≥80
900010.00567 48 4320 90 4000 ≥80
900010.00568 60 5400 90 4000 ≥80
Compare selected
Luminous flux tolerance +/- 10%.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150031.00882

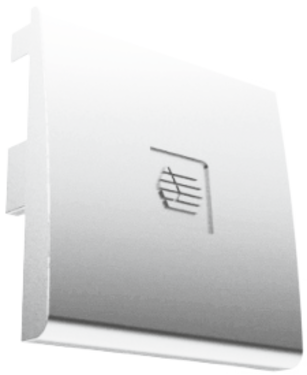

Module end caps for ARGUS ONE SYSTEM (set of 2 pcs) white
