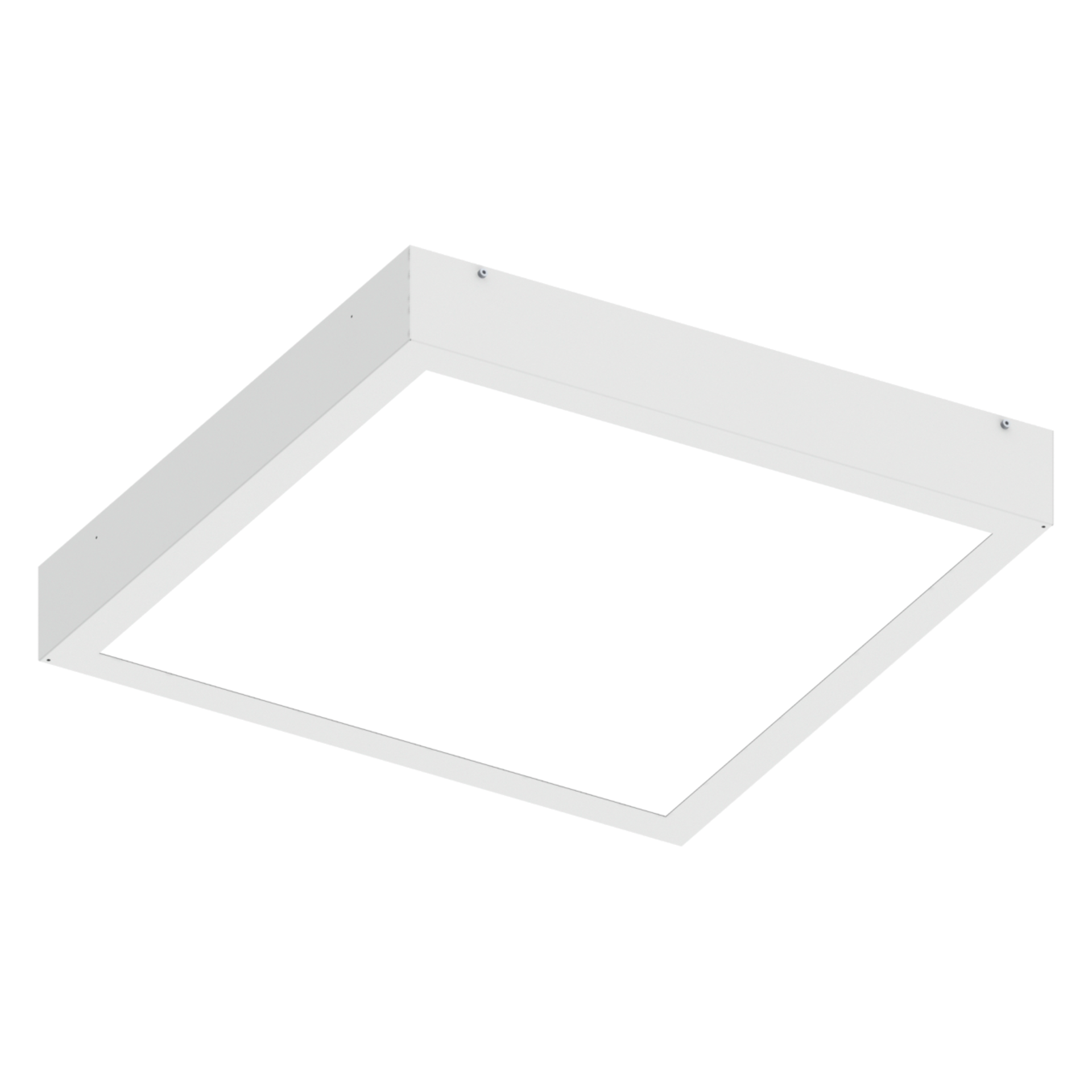

LUGCLASSIC LB LED n/t IP44
Modern surface mounted luminaire for LED light sources, emitting entire surface of the lens. Adaptation of the LUGCLASSIC LB LED luminaire for surface mounting and increasing the degree of tightness to IP44.



High efficacy to 132 lm/W
Maintenance-free operation
Universal design

Application

auditorium, classrooms, conference rooms, hotels, offices, public utility facilities

Luminous flux range

5000 - 6600 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
directly on the ceiling
Body colour
white
Operating temperature range
0˚C ... +35˚C
RAL
9003
Body
powder-painted steel sheet
Do not cover with insulating material
yes

Electrical data

Electrical connection
max 3x2,5 mm² wire
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
43 - 50
Type of equipment
ED
Light source / lamp
LED

Optical data

Light distribution
rotationally-symmetric
Way of lighting
direct
Diffuser
acrylic (PMMA)
Colour temperature [K]
4000
CRI/Ra
≥80
UGR
<19
Lumen luminaire [lm]
5000 - 6600
Efficacy [lm/W]
116 - 132
Photobiological risk group
RG0
SVM
≤0,4
PstLM
≤1

General data

Lifetime L70B50
60 000 h
Lifetime L80B10
50 000 h
Lifetime L90B10
30 000 h
Warranty
3 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package
583x583x86 40 1
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra UGR
903061.01000 ED 50 6600 132 4000 ≥80 <19
903061.01093 ED 43 5000 116 4000 ≥80 <19
Compare selected
Luminous flux tolerance +/- 10%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Colour temperature tolerance +/- 5%.
