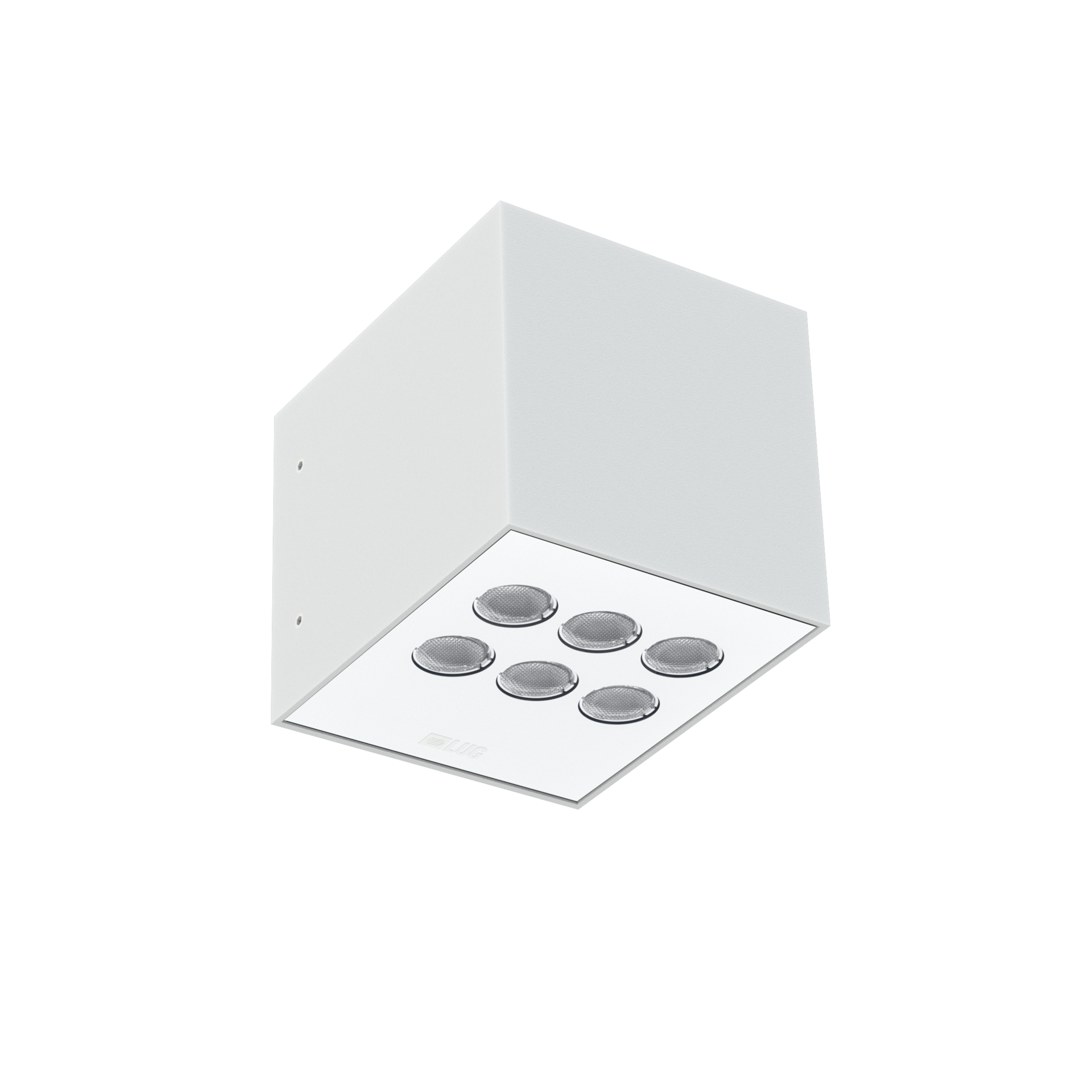

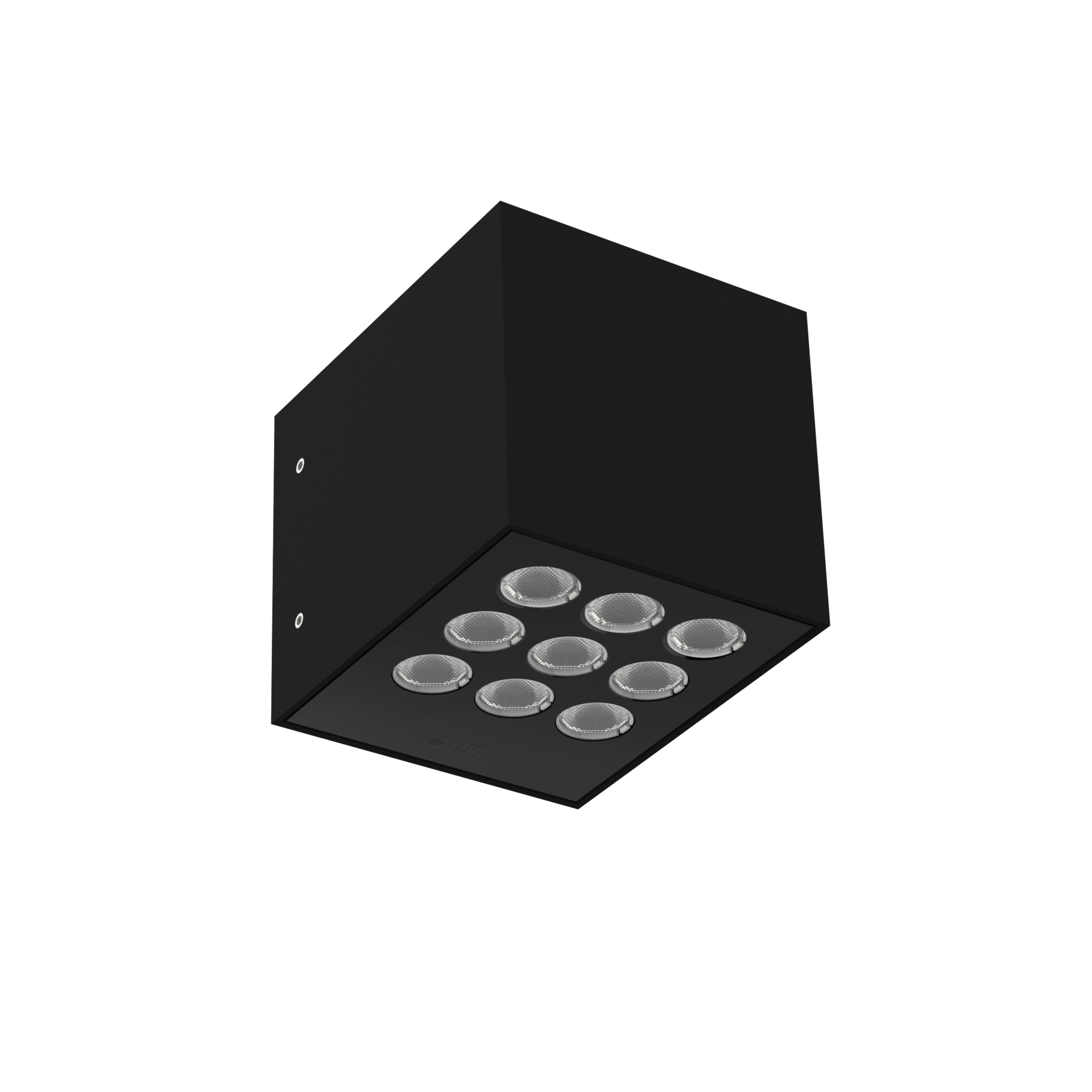

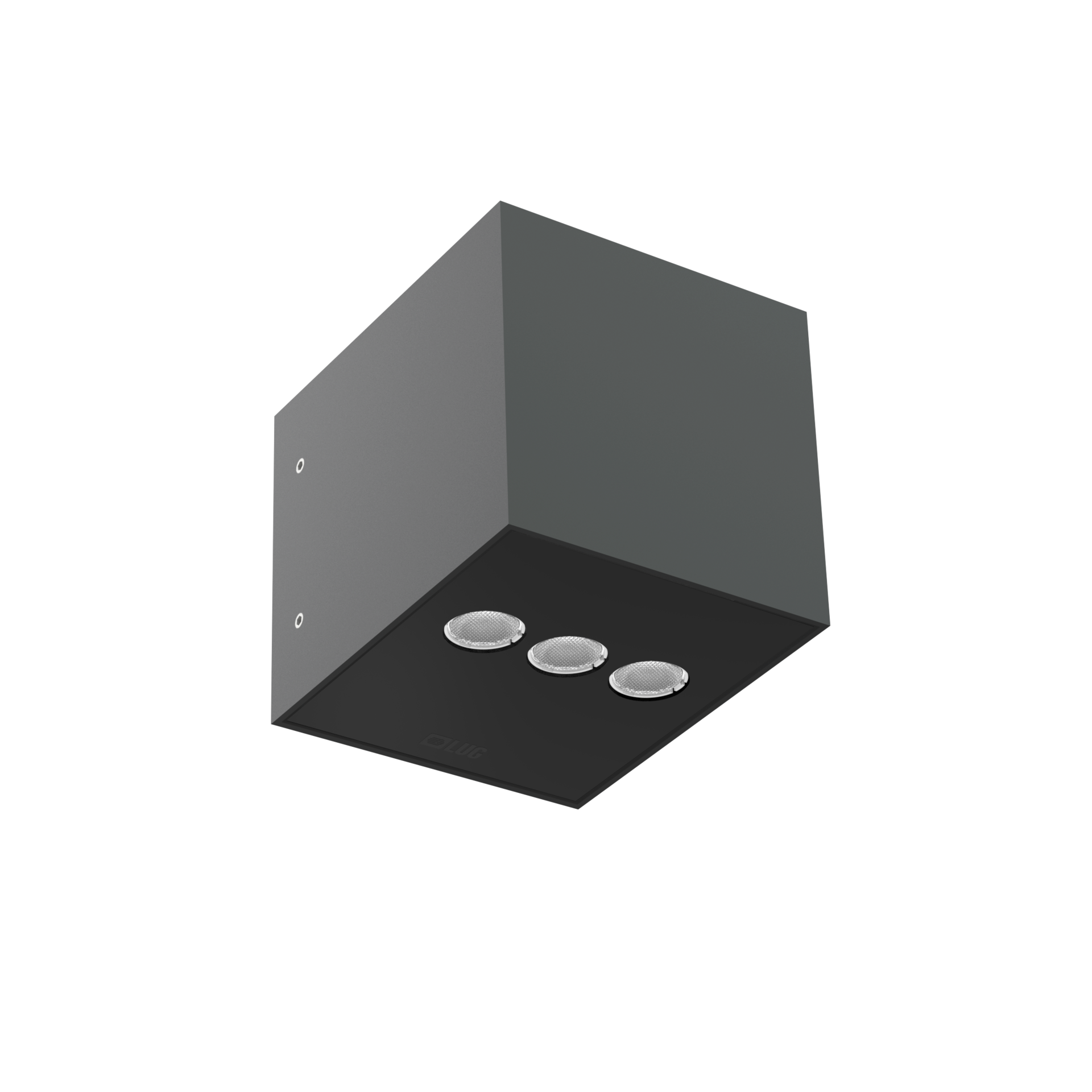

ICE CUBE 2.0 WALL
External architectural luminaire for installation on walls and facades in the form of a decorative wall lamp. The luminaire is available in two optical systems allowing for direct or indirect lighting. The carefully considered minimalist design and a wide range of beam angles allow for a broad application in external façade architecture.



Wide range of colors
Luminaire body made of aluminum
Modern design
Perfect lighting for highlighting the architectural values of buildings

Application

building facades, facades

Luminous flux range

280 - 1400 [lm]

Variable color temperature

2700 - red [K]

Mechanical data

Mounting
directly on the wall, directly on the wall, directly on the wall
Body colour
black, gray, white
Surface finish
gloss
Detail
black
Operating temperature range
-20 ... +45, -20 ... +50
RAL
7024, 9003, 9005
Body
high pressure die-cast aluminum
Type
direct - indirect, 3+3 lenses, direct, 6 lenses, direct, 9 lenses

Electrical data

Power supply efficiency
≤79%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
8 - 11.1
Output current [mA]
250, 350, 500
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
50
Maximum number of luminaires in the circuit with a 16A fuse (B)
78

Optical data

Way of lighting
direct, direct-indirect
Type of optic
lens
Diffuser
tempered glass
Colour temperature [K]
2700, 3000, 4000, 5700, blue, green, red
Beam angle
10°, 15°, 19°x52°, 30°, 52°x19°, 58°
CRI/Ra
≥80
MacAdam's steps
5
ULOR / DLOR
100/100, 50/50
Lumen luminaire [lm]
280 - 1400
Efficacy [lm/W]
26 - 128
Photobiological risk group
RG1
Number of LEDs
6, 9

General data

Additional information
Safe power supply with low voltage SELV
Lifetime L90B10
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
100x120x100 100x120x100 1078 1 1.4
100x120x100 100x120x100 1078 1 1.5
X

Available variants

Code
Colour temperature [K]
2700
3000
4000
5700
blue
green
red
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Beam angle
10°
15°
19°x52°
30°
52°x19°
58°
Body colour
black
gray
white
Clear Filters
Compare Code Body colour Type of equipment Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
140671.3L01.6001 white DALI 10° 10,6 1000 94 2700 ≥80 -20 ... +50
140671.3L01.6002 white DALI 15° 10,6 1100 104 2700 ≥80 -20 ... +50
140671.3L01.6003 white DALI 30° 10,6 1000 94 2700 ≥80 -20 ... +50
140671.3L01.6004 white DALI 58° 10,6 950 90 2700 ≥80 -20 ... +50
140671.3L01.6005 white DALI 19°x52° 10,6 950 90 2700 ≥80 -20 ... +50
140671.3L01.6006 white DALI 52°x19° 10,6 950 90 2700 ≥80 -20 ... +50
140671.3L02.6001 white DALI 10° 10,6 1150 108 3000 ≥80 -20 ... +50
140671.3L02.6002 white DALI 15° 10,6 1250 118 3000 ≥80 -20 ... +50
140671.3L02.6003 white DALI 30° 10,6 1150 108 3000 ≥80 -20 ... +50
140671.3L02.6004 white DALI 58° 10,6 1100 104 3000 ≥80 -20 ... +50
Compare selected
Shown 10 / 756
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
