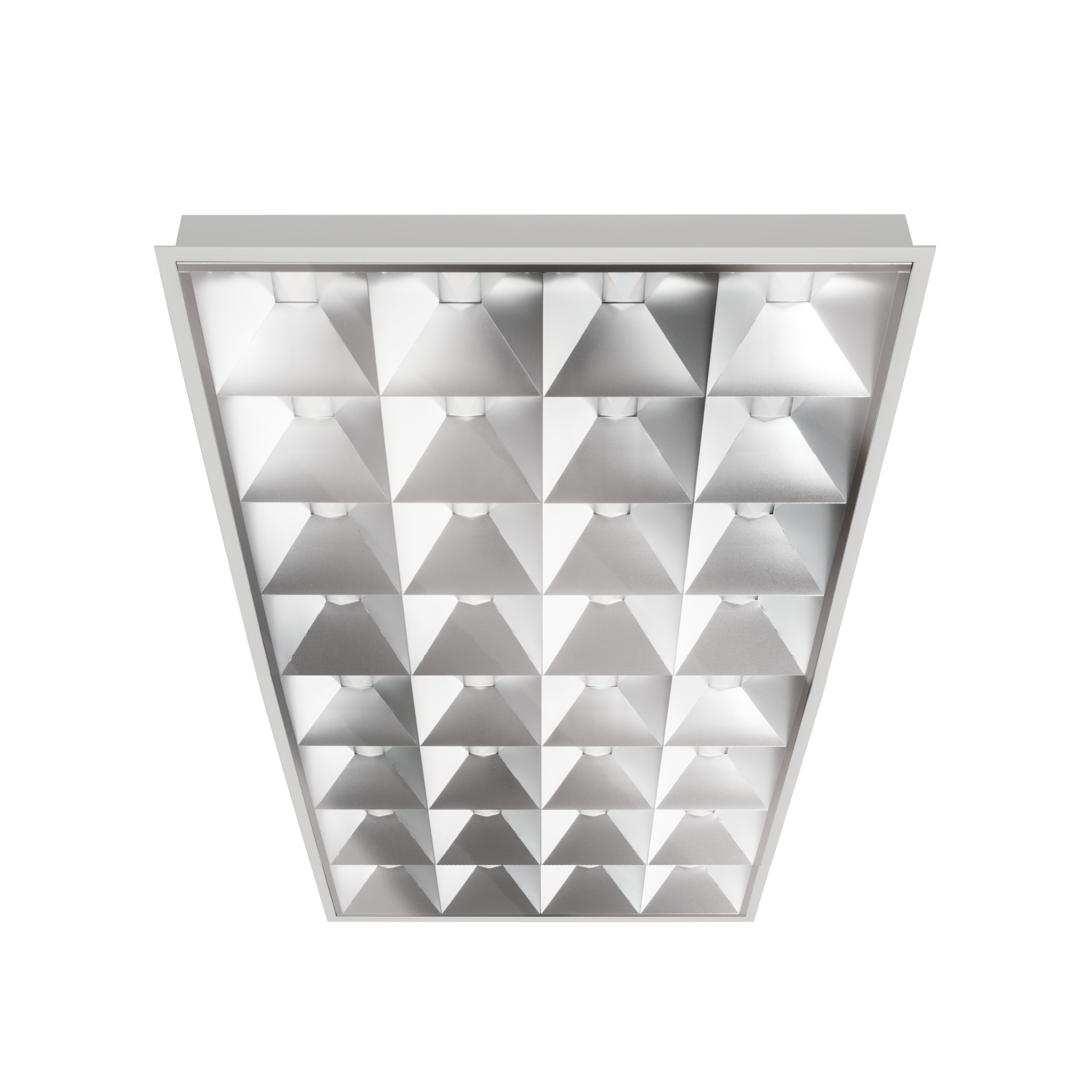

MEDICA 1 LED 1200x600 p/t
Modern recessed luminaire for modular suspended ceilings for LED light sources. Implementation of the luminaire in 1200x600 version.



High efficacy to 100 lm/W
Maintenance-free operation
Universal design
Glare minimizing optics

Application

clinics, hospitals, laboratories

Luminous flux range

4800 - 7150 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
directly in the ceiling construction
Body colour
white
Operating temperature range
0˚C ... +35˚C
Body
powder-painted steel sheet

Electrical data

Power supply efficiency
>90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
48 - 74
Type of equipment
ED

Optical data

Way of lighting
direct
Diffuser
glass
Colour temperature [K]
4000
CRI/Ra
≥80
Lumen luminaire [lm]
4800 - 7150
Efficacy [lm/W]
97 - 100

General data

Additional information
additional hooks for mounting on wire suspension (included)
Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxW Pallet quantity Quantity in package Net weight [kg]
1195x595x65 1200x600 22 1 15
1195x595x95 1200x600 10 1 15
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra UGR
900070.00262 48 4800 100 4000 ≥80
900070.00263 74 7150 97 4000 ≥80
Compare selected
Luminous flux tolerance +/- 10%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Colour temperature tolerance +/- 5%.
