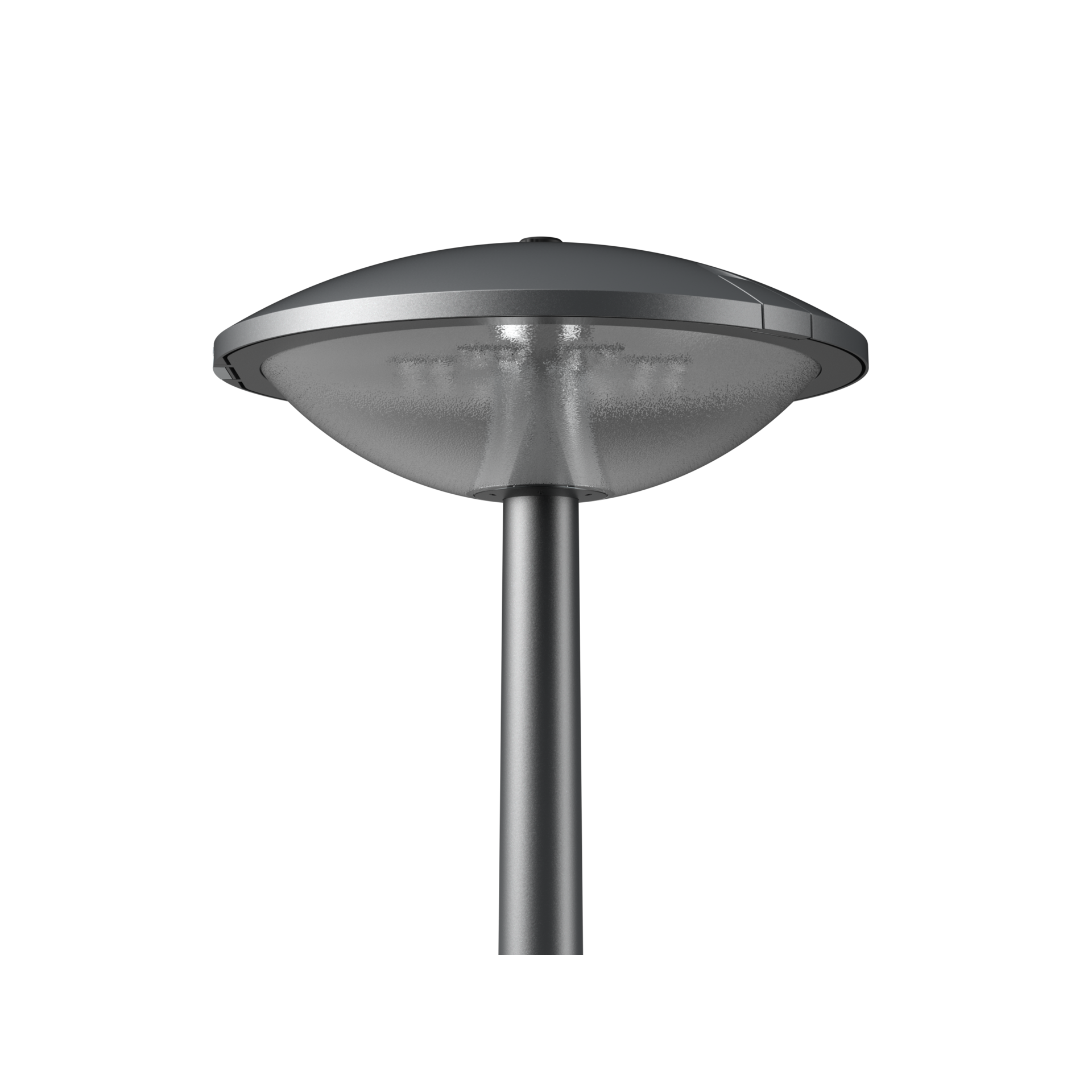

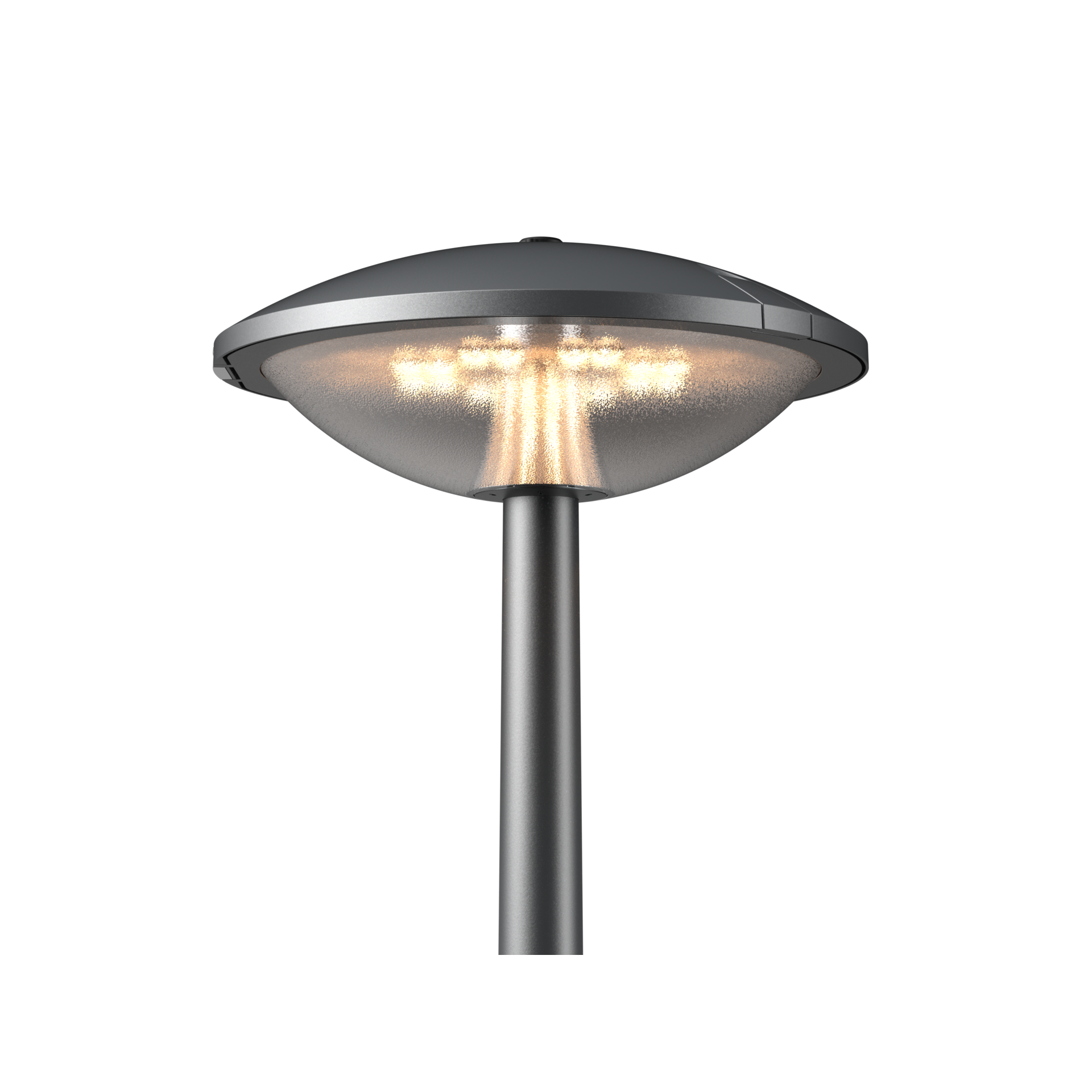

LIORA
P version

Modular street luminaire in two body sizes with increased serviceability, enabling tool-free replacement of the light module and power supply. Designed for professional lighting of various urban application spaces.

Possible illuminance control

Modern design

Reliability

High efficacy to 158 lm/W

Application

Railway stations, area lighting, avenues, local roads, parking areas, playgrounds, promenade, public spaces, residential area roads, roads, town roads

Available on request

10kV surge protection, CLO, D4i, DALI, DIM 1..10V, NTC, ZHAGA connector

Luminous flux range

1150 - 14100 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting

on pillar ø60mm

Body colour

gray

Detail

white

Operating temperature range

-40 ... +55

RAL

7035

Body

high pressure die-cast aluminum

Lateral Surface Wind Exposed

0.078 m²

Corrosion class

Electrical data

Electrical connection

max 3x1,5 mm² wire

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

8 - 105

Output current [mA]

150, 500, 1050

Type of equipment

Light source / lamp

LED

Maximum number of luminaires in the circuit with a 10A fuse (B)

7 - 18

Maximum number of luminaires in the circuit with a 16A fuse (B)

12 - 30

Optical data

Light distribution

asymmetric

Way of lighting

direct

Type of optic

O1 - for road lighting

Reflector

white

Diffuser

polycarbonate

Colour temperature [K]

4000

CRI/Ra

MacAdam's steps

Lumen luminaire [lm]

1150 - 14100

Efficacy [lm/W]

134 - 158

Photobiological risk group

RG1

SVM

≤0,4

PstLM

≤1

Number of LEDs

General data

Other remarks

the pole and boom are not part of the luminaire

Lifetime L90B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] WxHxD2	Mounting dimensions [mm] ØS	Pallet quantity	Quantity in package	Net weight [kg]
550x210x227	60	18	1	8.5

Available variants

Code	Protection Class	Type of optic	Type of equipment	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Operating temperature range
131032.5L051.010	I	O1 - for road lighting	ED	8	1150	144	4000	70	-40 ... +55
131032.5L101.010	I	O1 - for road lighting	ED	24	3800	158	4000	70	-40 ... +55
131035.5L251.010	I	O1 - for road lighting	ED	105	14100	134	4000	70	-40 ... +55

Compare selected

Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.
Please note that the standard luminaire is not intended for use in an environment with an increased corrosivity category. The use of the luminaire for work in an environment for which additional corrosion protection is necessary requires the use of an index with the extension .985 (on request).
In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
