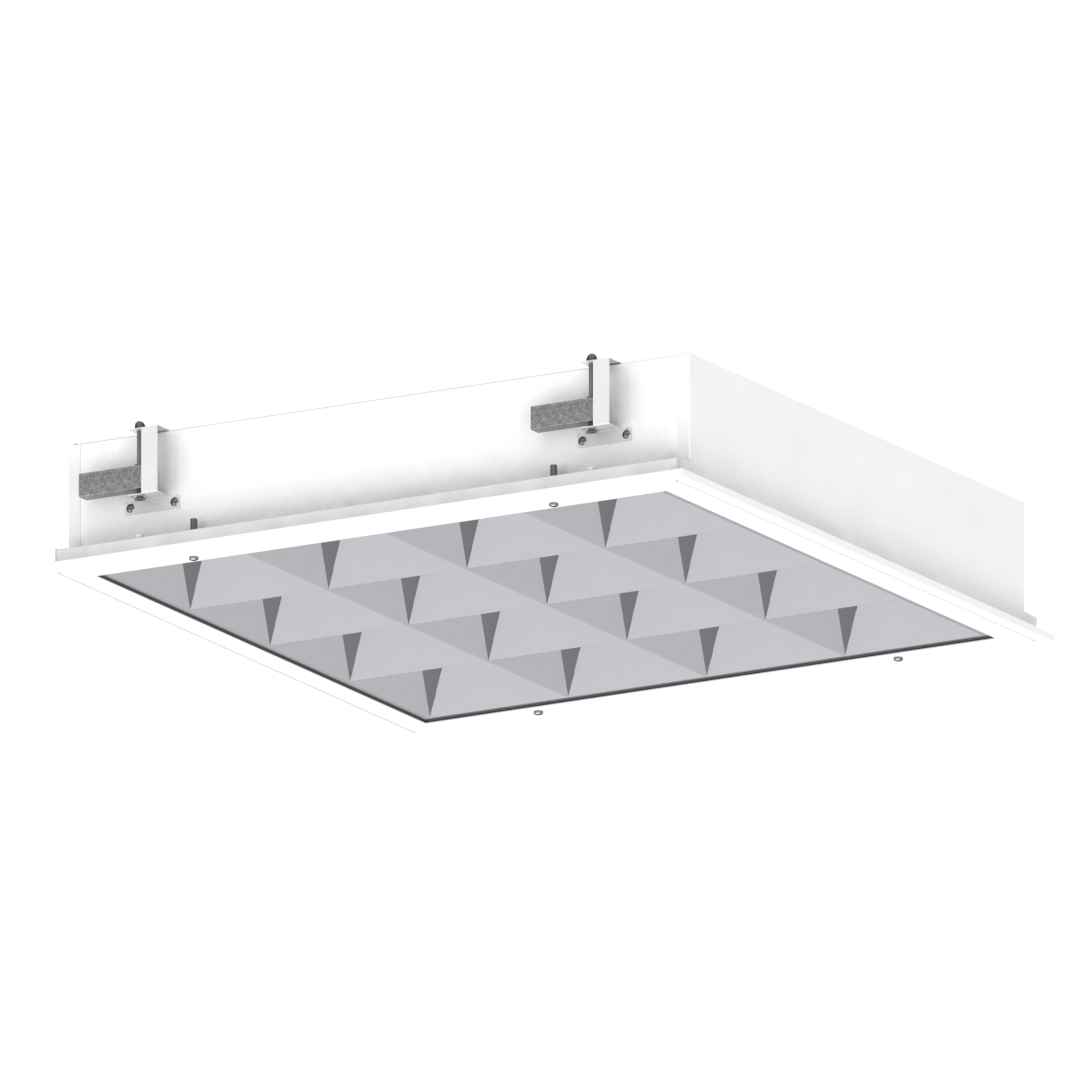

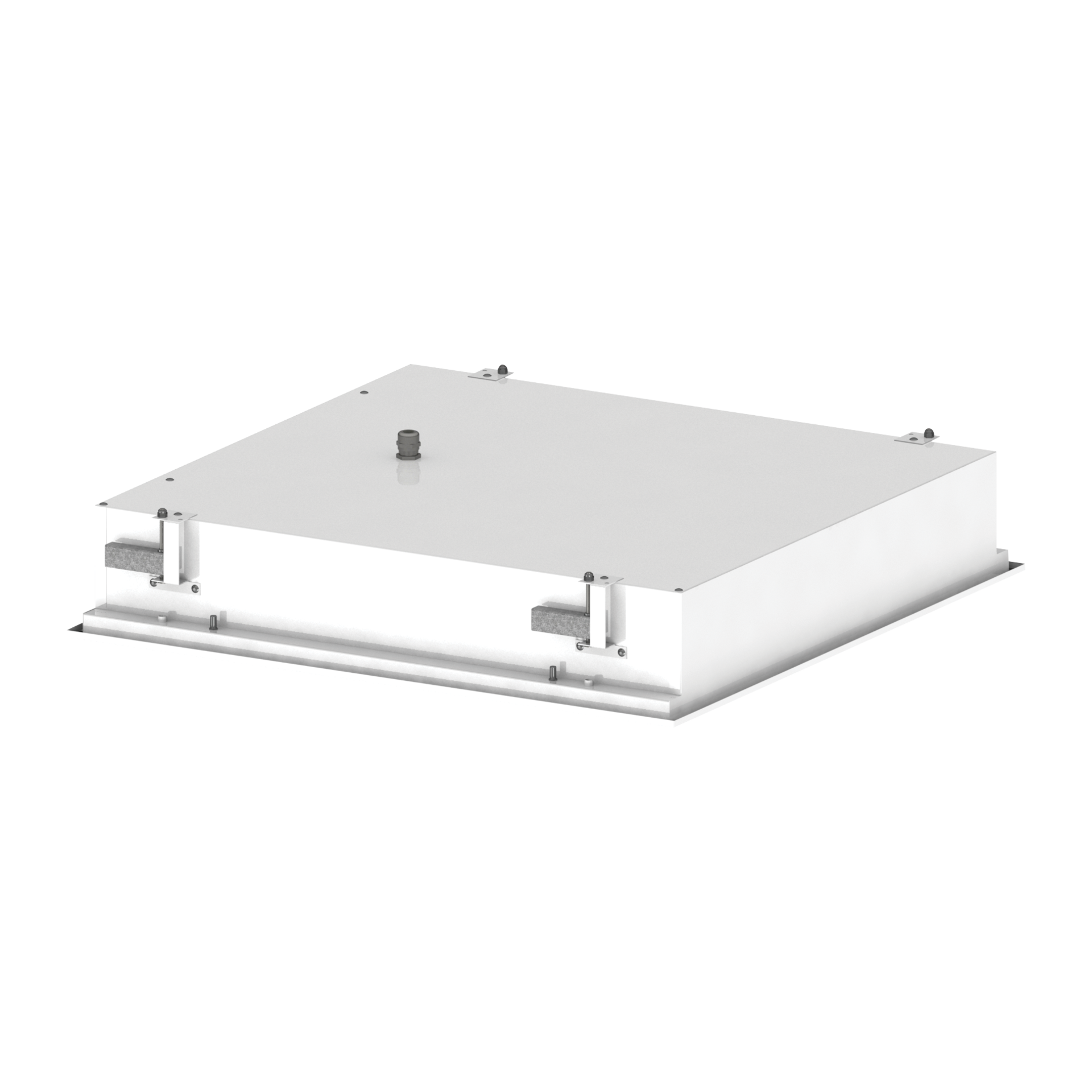

MEDICA 1 LED g/k SANDWICH 60mm
Modern recessed luminaire for modular suspended ceilings for LED light sources. Implementation of luminiaire for the Sandwich 60mm type ceilings.



High efficacy to 100 lm/W
Maintenance-free operation
Universal design
Possible illuminance control

Application

clinics, hospitals, laboratories

Luminous flux range

3900 - 5450 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
in the ceiling, with mounting brackets (included)
Body colour
white
Operating temperature range
0˚C ... +30˚C
Body
powder-painted steel sheet

Electrical data

Power supply efficiency
>90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
39 - 58
Type of equipment
ED

Optical data

Way of lighting
direct
Diffuser
glass
Colour temperature [K]
4000
CRI/Ra
≥80
UGR
<17
Lumen luminaire [lm]
3900 - 5450
Efficacy [lm/W]
94 - 100

General data

Other remarks
Sealing the space between the ceiling and the luminaire on the client side.
Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxW Pallet quantity Quantity in package Net weight [kg]
645x645x130 625x625 20 1 8
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Diffuser Louver
900070.00279 39 3900 100 4000 ≥80 glass polished aluminum
900070.00280 58 5450 94 4000 ≥80 glass polished aluminum
Compare selected
Luminous flux tolerance +/- 10%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Colour temperature tolerance +/- 5%.
