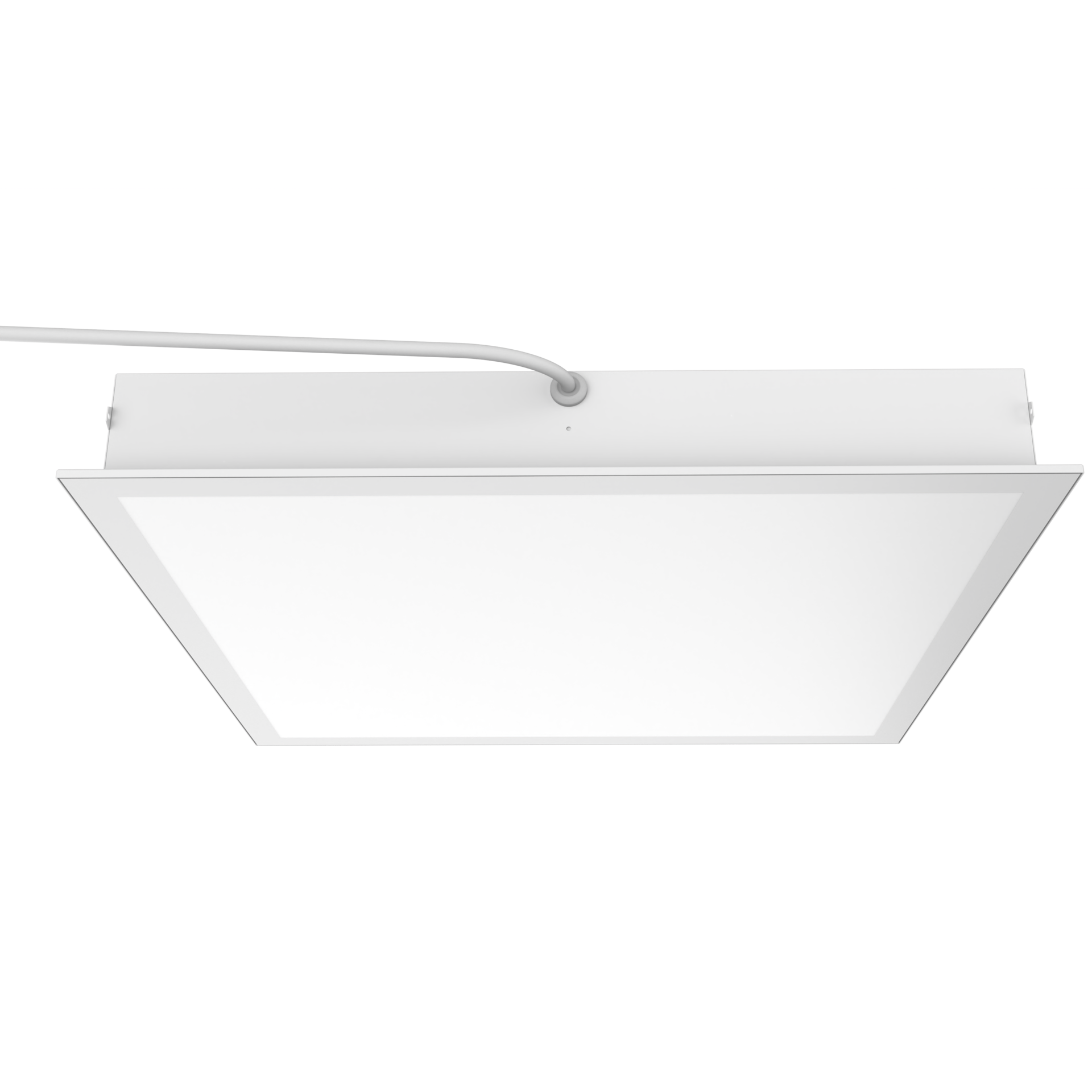

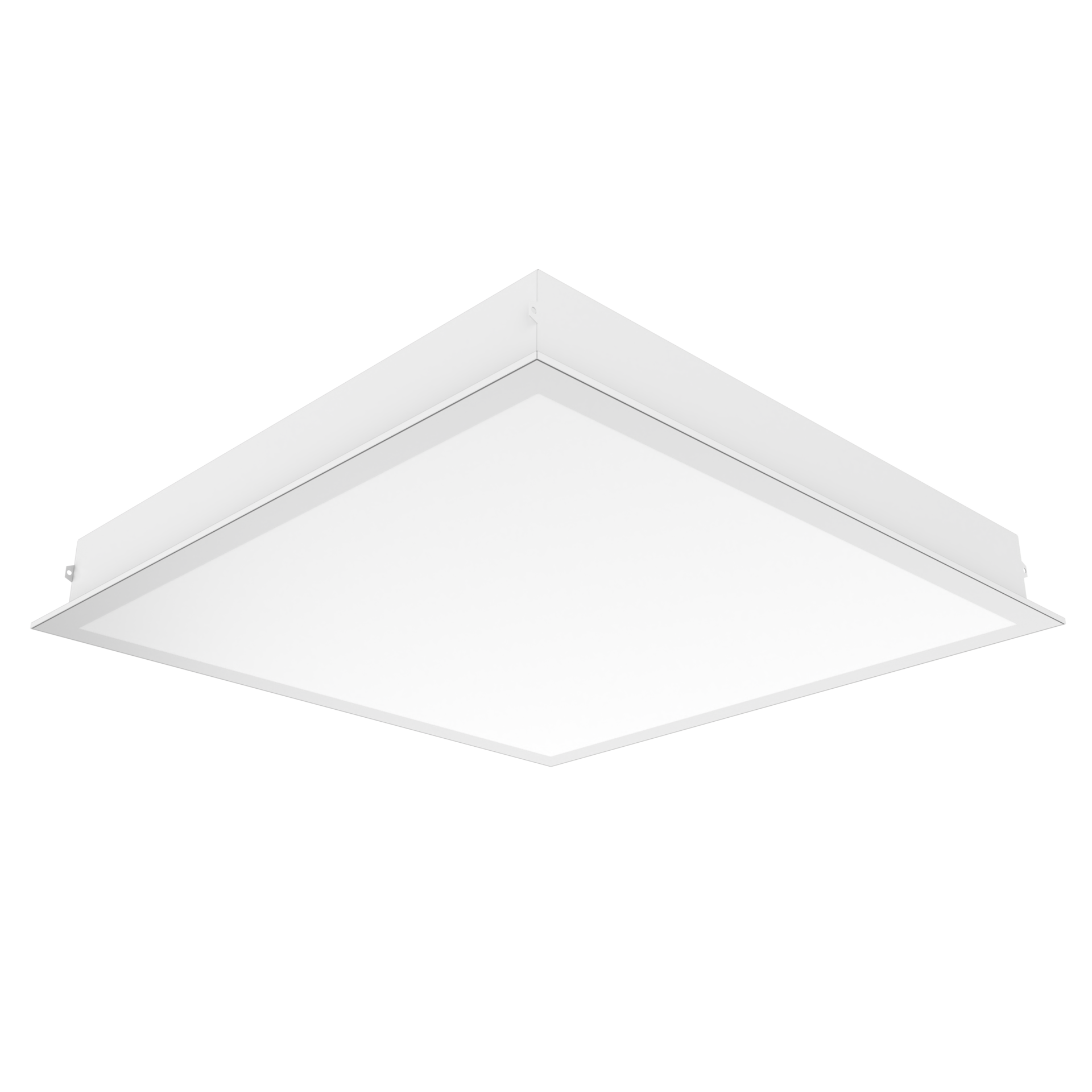

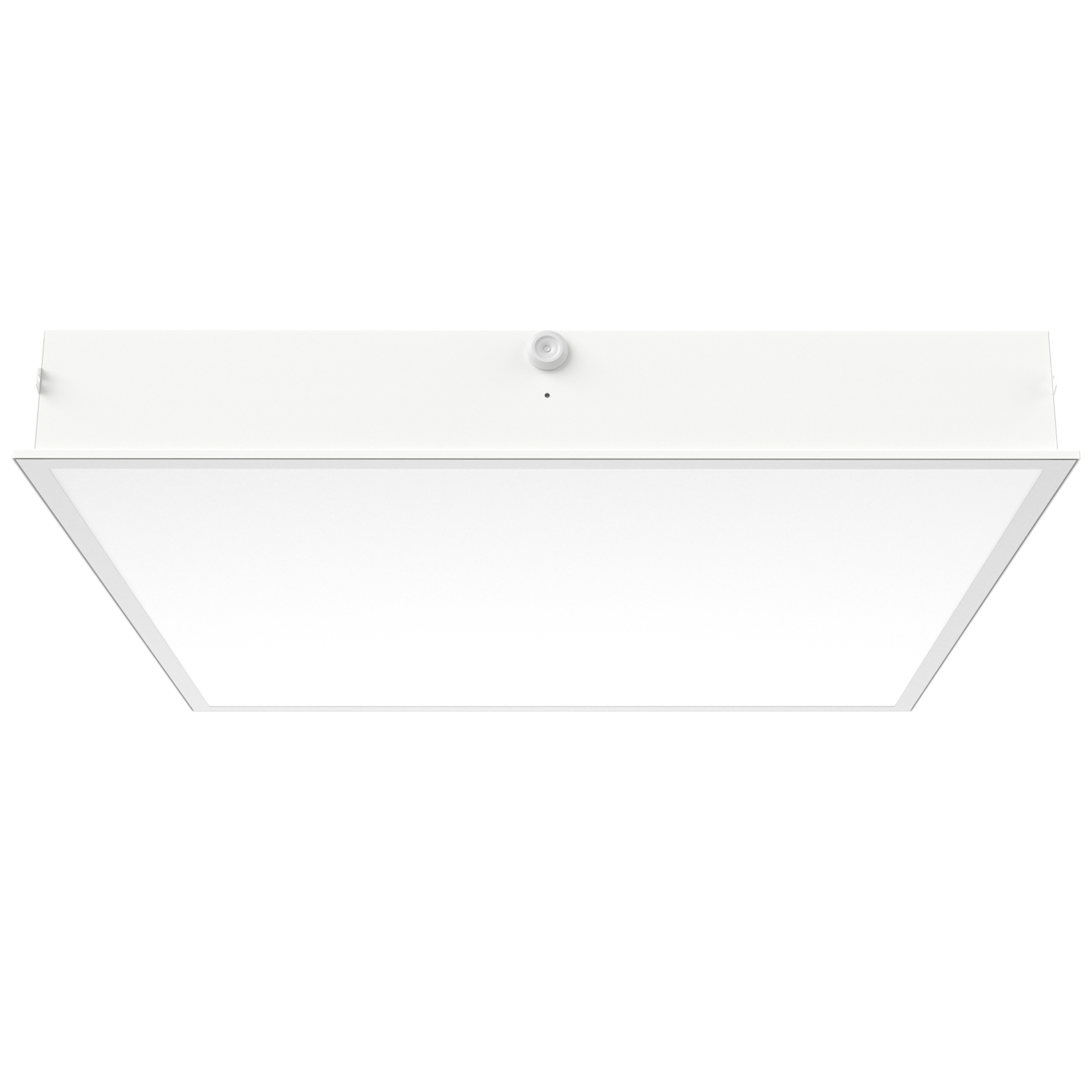

MEDICA 2.0 HE 625x625 p/t
Modern low luminaire for modular suspended ceilings for LED light sources with high degree of water and dust-proof and mechanical resistance.



High efficacy to 142 lm/W
Maintenance-free operation
Universal design
Possible illuminance control

Application

clinics, hospitals, laboratories

Luminous flux range

2700 - 5200 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
directly in the ceiling construction
Body colour
white
Operating temperature range
0 ... +35
RAL
9016
Body
powder-painted steel sheet
Type
625x625

Electrical data

Power supply efficiency
≤90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
19 - 38
Output current [mA]
50, 80, 100
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
17 - 19
Maximum number of luminaires in the circuit with a 16A fuse (B)
28 - 30

Optical data

Way of lighting
direct
Type of optic
diffuser
Diffuser
tempered glass, opal plexiglass (PLX)
Colour temperature [K]
3000, 4000
CRI/Ra
90
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
2700 - 5200
Efficacy [lm/W]
137 - 142
Photobiological risk group
RG0
Number of LEDs
120

General data

Lifetime L80B10
78 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxW Pallet quantity Quantity in package Net weight [kg]
620x620x83 625x625 36 1 10.8
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
070191.3L01.321 DALI 19 2700 142 3000 90 0 ... +35
070191.3L02.321 DALI 19 2700 142 4000 90 0 ... +35
070191.3L03.321 DALI 30 4200 140 3000 90 0 ... +35
070191.3L04.321 DALI 30 4200 140 4000 90 0 ... +35
070191.3L05.321 DALI 38 5200 137 3000 90 0 ... +35
070191.3L06.321 DALI 38 5200 137 4000 90 0 ... +35
070191.5L01.321 ED 19 2700 142 3000 90 0 ... +35
070191.5L02.321 ED 19 2700 142 4000 90 0 ... +35
070191.5L03.321 ED 30 4200 140 3000 90 0 ... +35
070191.5L04.321 ED 30 4200 140 4000 90 0 ... +35
Compare selected
Shown 10 / 12
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
