Download image
HUBIoT 1
An intermediary device for wireless communication between the lighting controllers fitted in LED luminaires and the IT monitoring and control system.



2.4 GHz secure Thread protocol communication with controllers
two independent Thread communication paths
with possibility of communication with information system through 2G/3G/4G mobile phone network or WAN wired interface

Mechanical data

Mounting

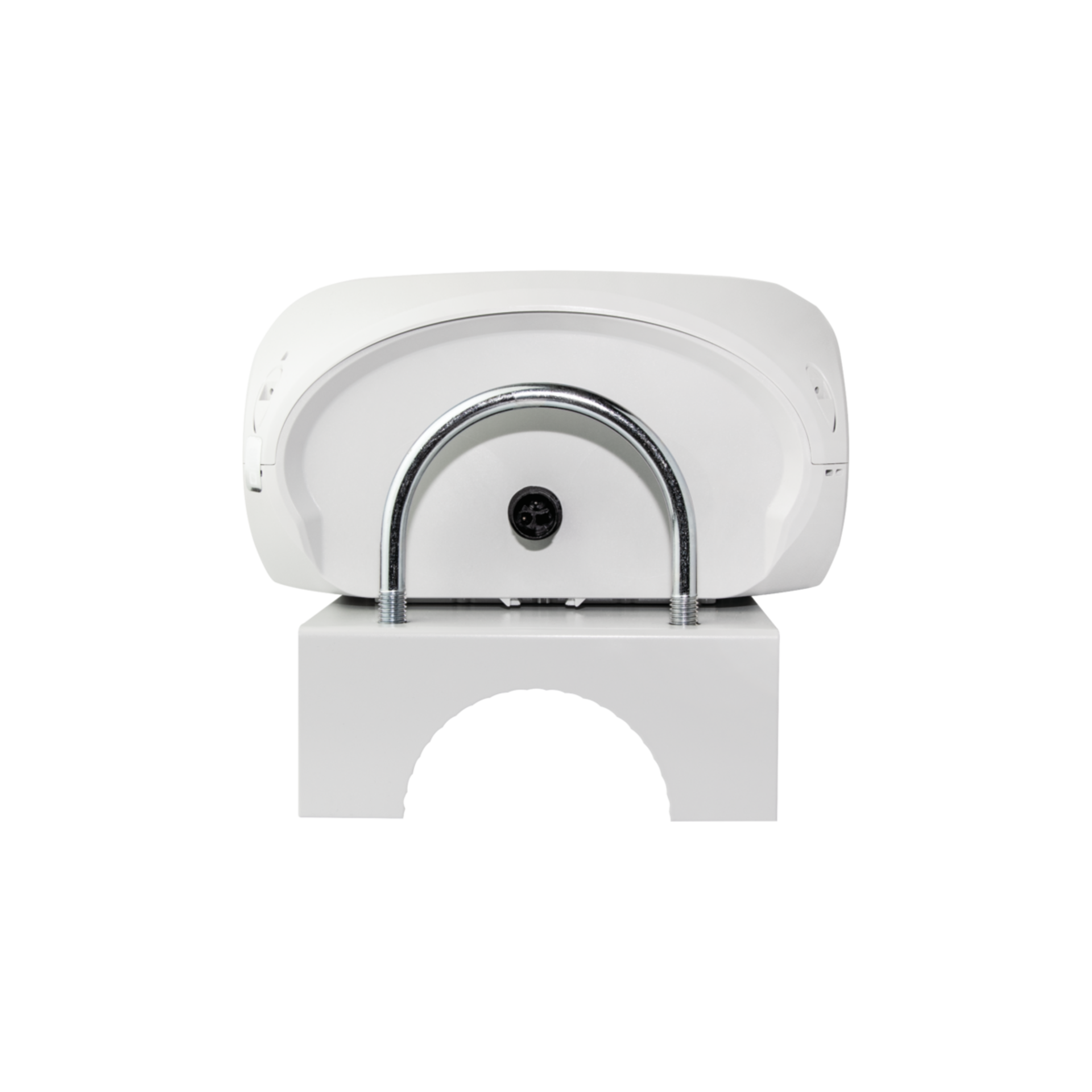

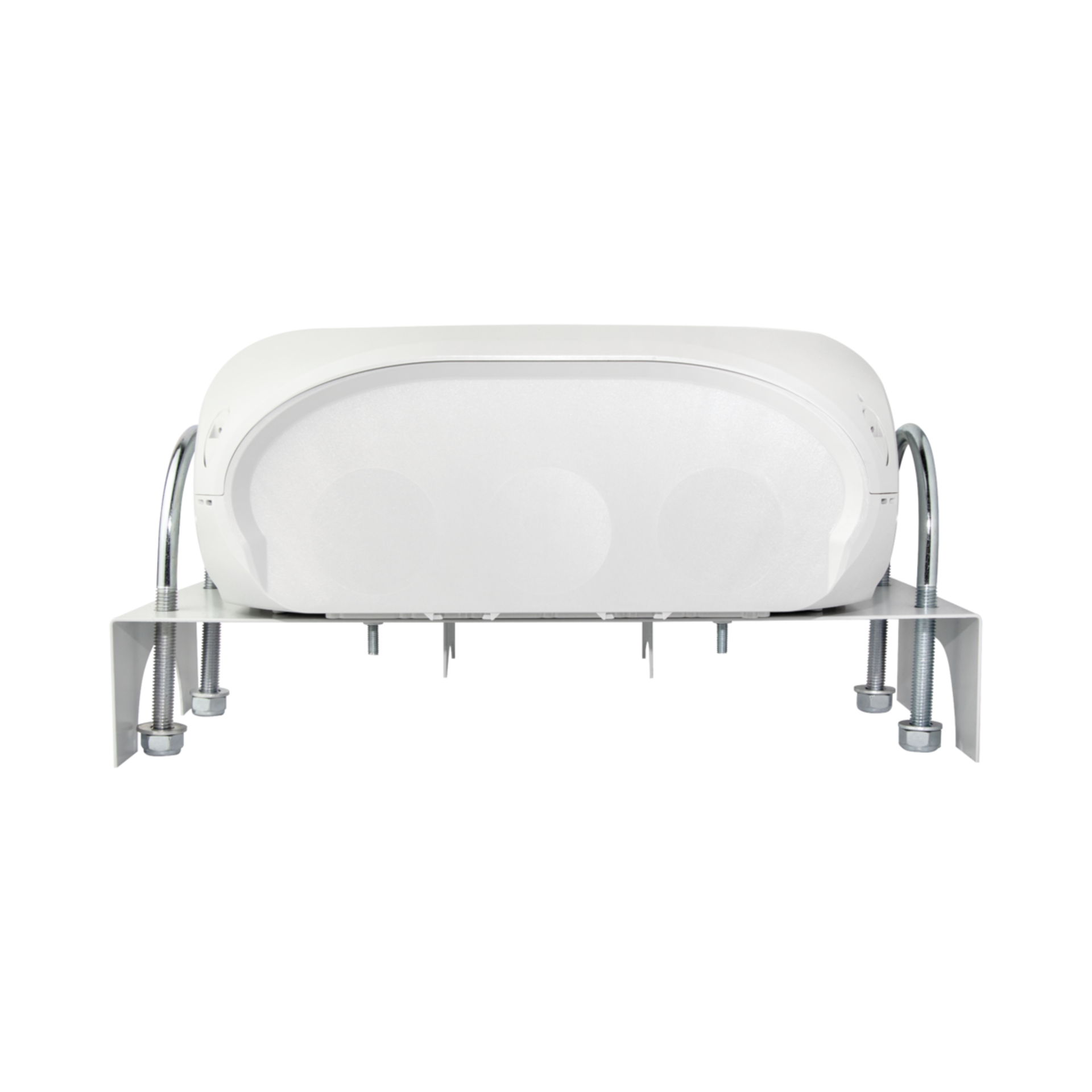

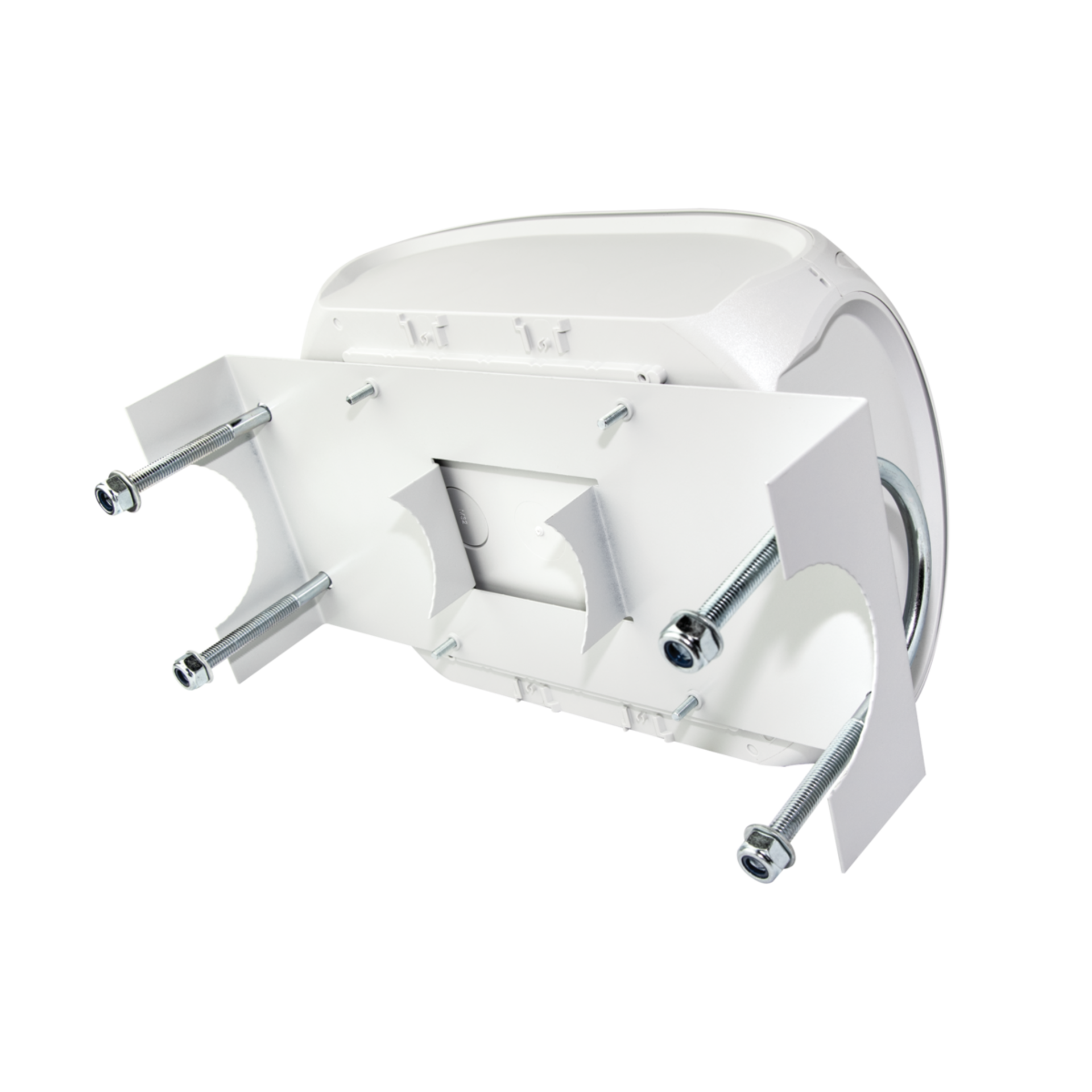

pole and wall mounted version
Operating temperature range
-25 ... +55
Body
polycarbonate (PC)
Type
pole mounting, surface mounting

Electrical data

Power
220-240V 50Hz
Includes light source
no

General data

Additional information
intermediary device for communication between the network of "radio-mesh" lighting controllers and the IT monitoring and control system
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH
225x122x295
X

Available variants

Code
Other remarks
Type
montaż na słupie
montaż natynkowy
Clear Filters
Compare Code Other remarks Type Wireless communication standard Wired communication standard Power supply via safety transformer Operating temperature range
790013.101 Global version pole mounting IEEE 802.15.4, Thread, 2,4 GHz, 2G/3G/4G yes -25 ... +55
790013.102 Global version surface mounting IEEE 802.15.4, Thread, 2,4 GHz, 2G/3G/4G yes -25 ... +55
790013.103 Global version pole mounting IEEE 802.15.4, Thread, 2,4 GHz, 2G/3G/4G Ethernet yes -25 ... +55
790013.104 Global version surface mounting IEEE 802.15.4, Thread, 2,4 GHz, 2G/3G/4G Ethernet yes -25 ... +55
Compare selected
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
