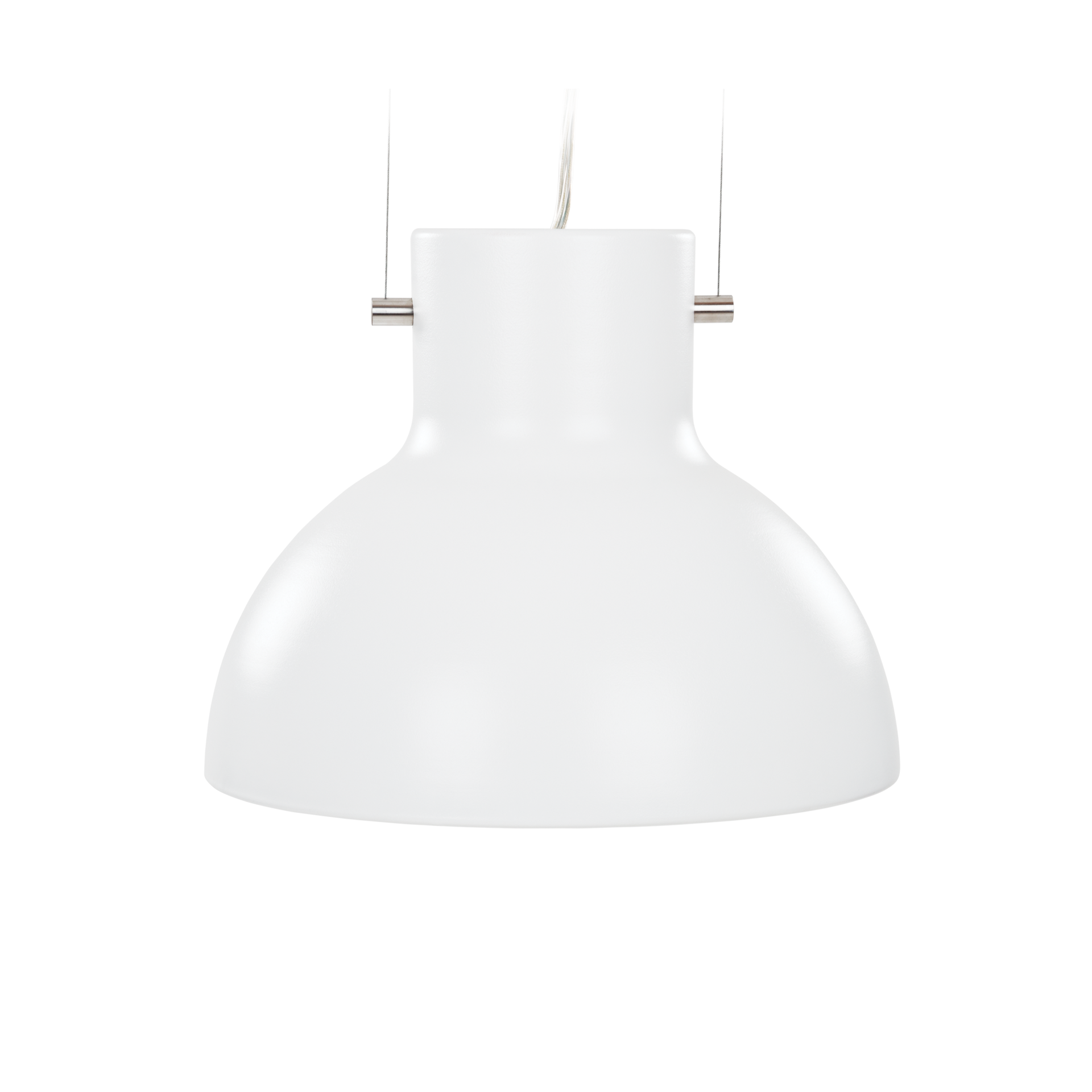

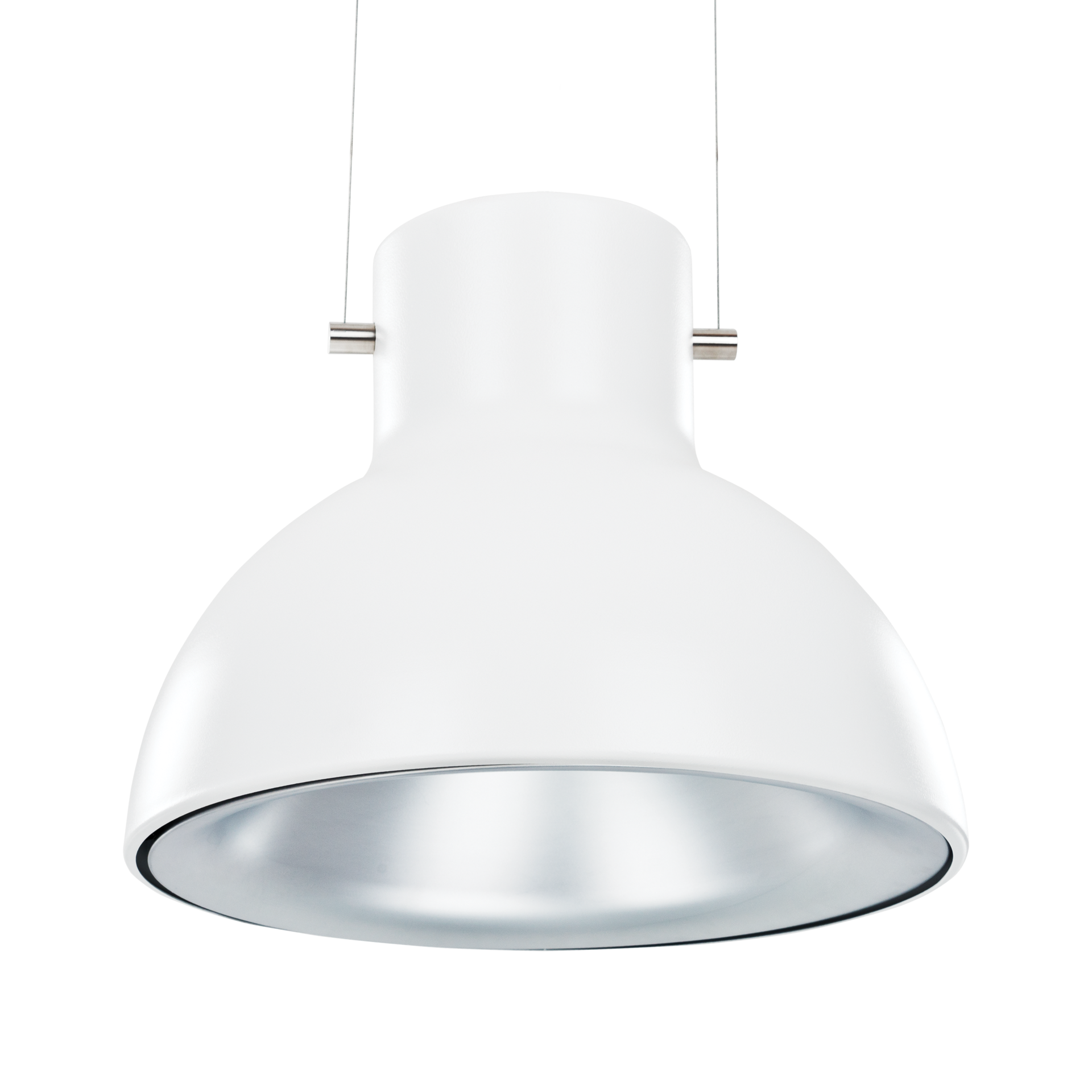

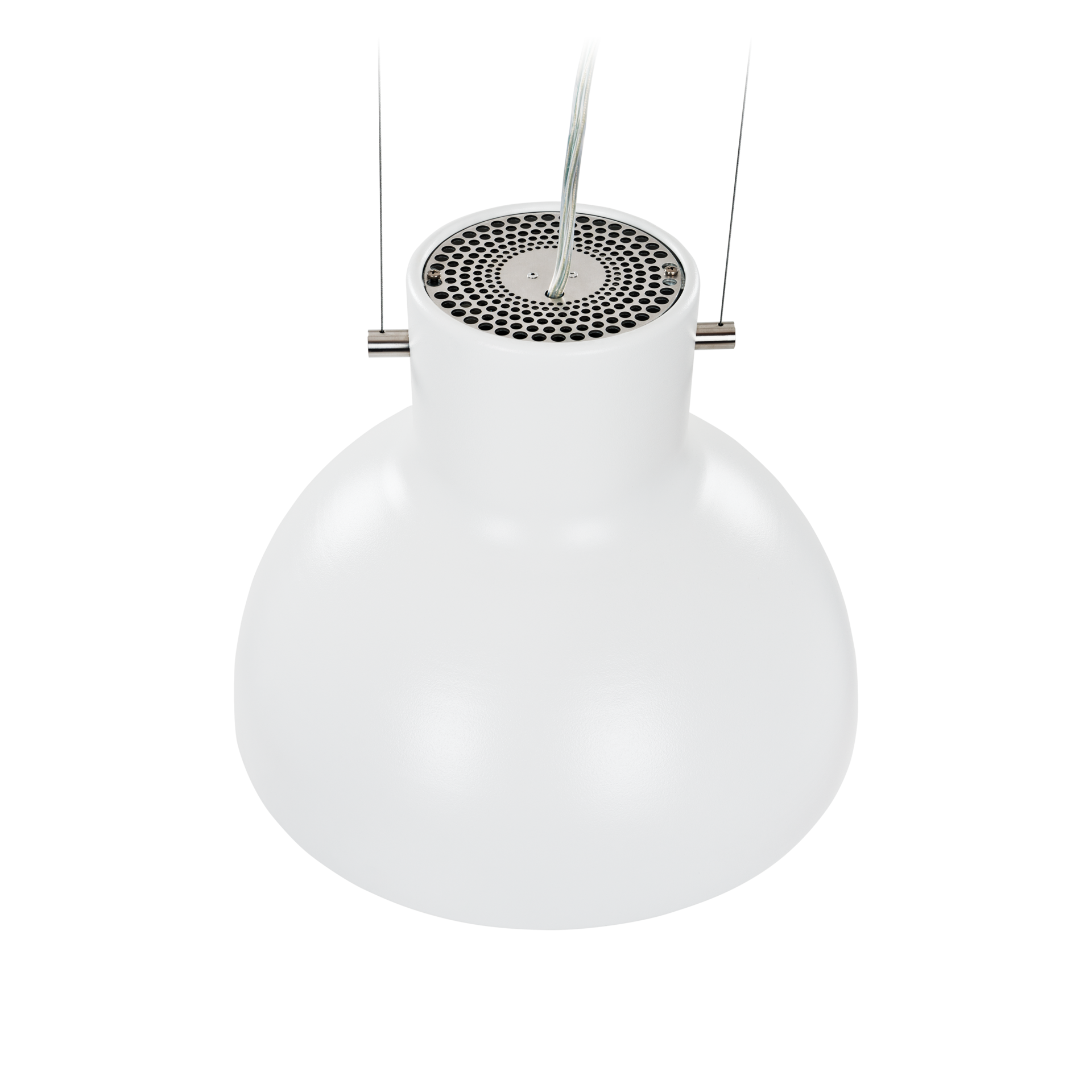

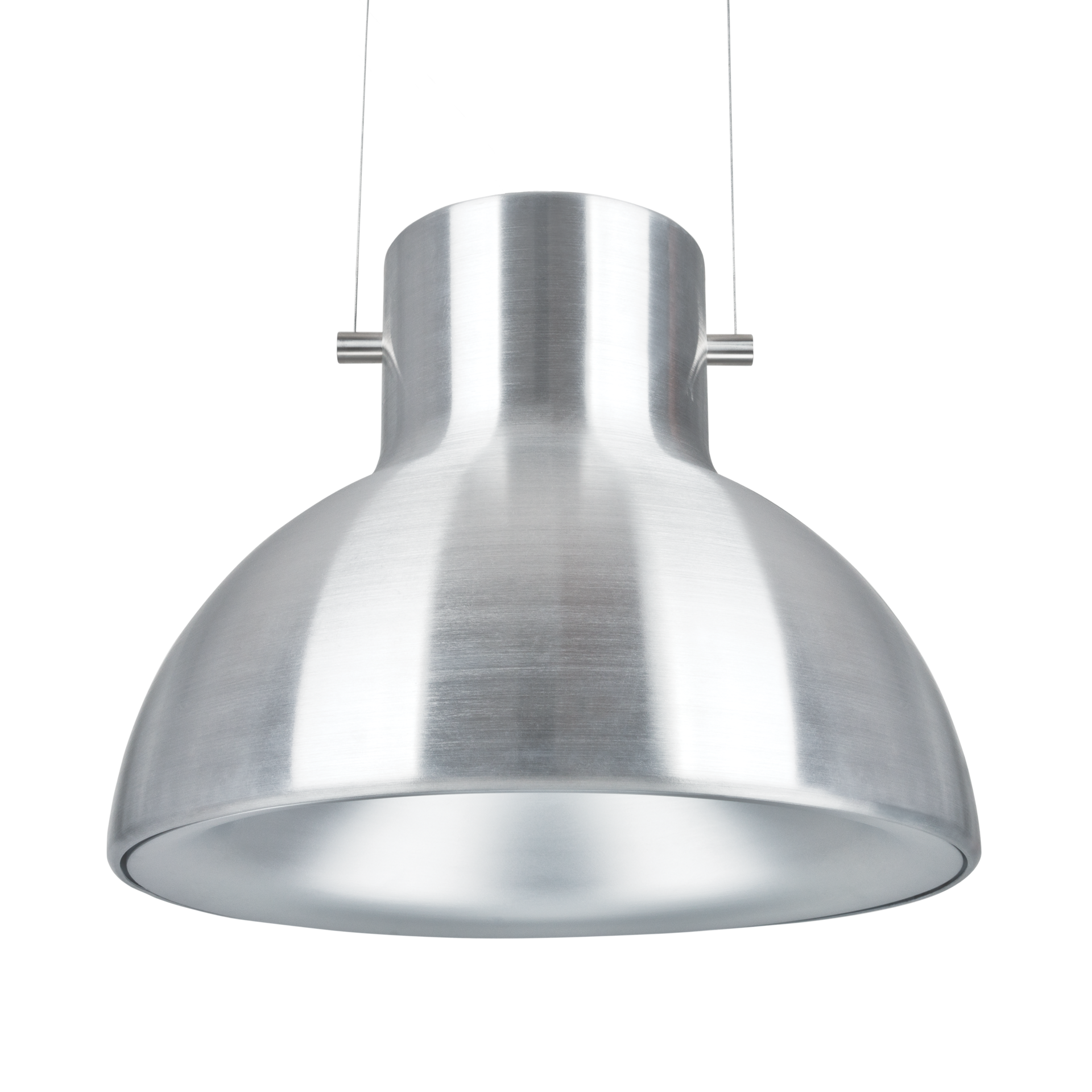

ARCHEO
Decorative lamp on modern LED light sources with decorative backlighting around the reflector.



Synergy of design and technology
Modern design
Luminaire body made of aluminum

Application

boutiques, conference rooms, galleries, museums, offices, reception desks, shopping centers

Luminous flux range

2450 - 4500 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
suspended, on wire suspension (included)
Body colour
silver, white
Operating temperature range
0˚C ... +35˚C
RAL
9003
Body
top quality aluminum

Electrical data

Power supply efficiency
≤90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
23 - 41
Output current [mA]
600, 1050
Type of equipment
DALI, ED

Optical data

Way of lighting
direct
Colour temperature [K]
3000, 4000
Beam angle
100°, 26°
CRI/Ra
≥80
ULOR / DLOR
0/100
Lumen luminaire [lm]
2450 - 4500
Efficacy [lm/W]
100 - 117
Photobiological risk group
RG0

General data

Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxH Mounting dimensions [mm] L Pallet quantity Quantity in package Net weight [kg]
403x312 247 6 1 4
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Body colour
silver
white
Clear Filters
Compare Code Type of equipment Body colour Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
200111.3L01.110 DALI white 23 2550 111 3000 ≥80
200111.3L02.110 DALI white 23 2700 117 4000 ≥80
200111.3L03.110 DALI white 41 4300 105 3000 ≥80
200111.3L04.110 DALI white 41 4500 110 4000 ≥80
200111.5L01.110 ED white 23 2550 111 3000 ≥80
200111.5L02.110 ED white 23 2700 117 4000 ≥80
200111.5L03.110 ED white 41 4250 104 3000 ≥80
200111.5L04.110 ED white 41 4500 110 4000 ≥80
200116.3L01.110 DALI silver 23 2450 107 3000 ≥80
200116.3L02.110 DALI silver 23 2600 113 4000 ≥80
Compare selected
Shown 10 / 16
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
