DAGALI TABLE LED

Product description

Technical parameters

To download

Explore services Customisation Support and contact
Other parameters available View variants

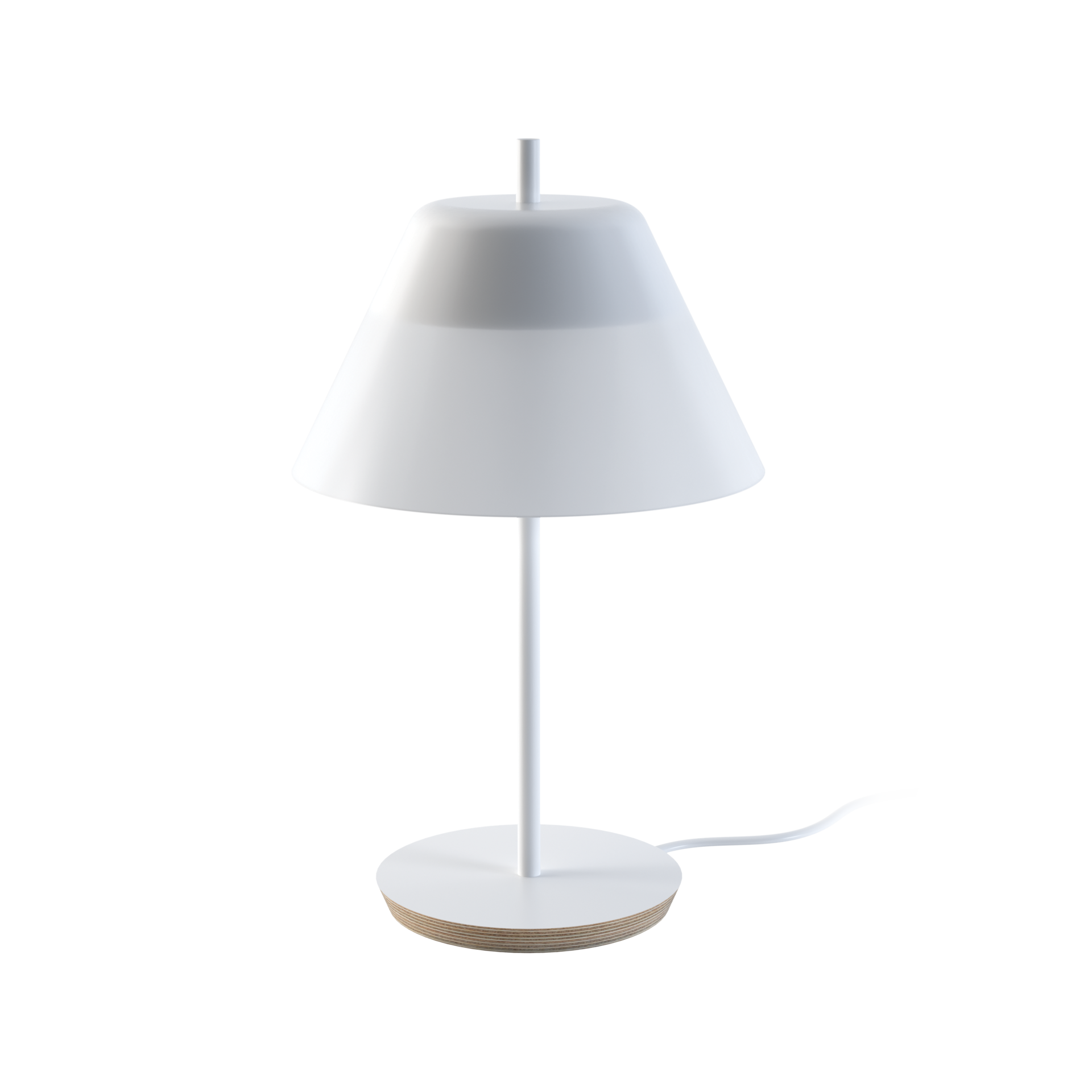

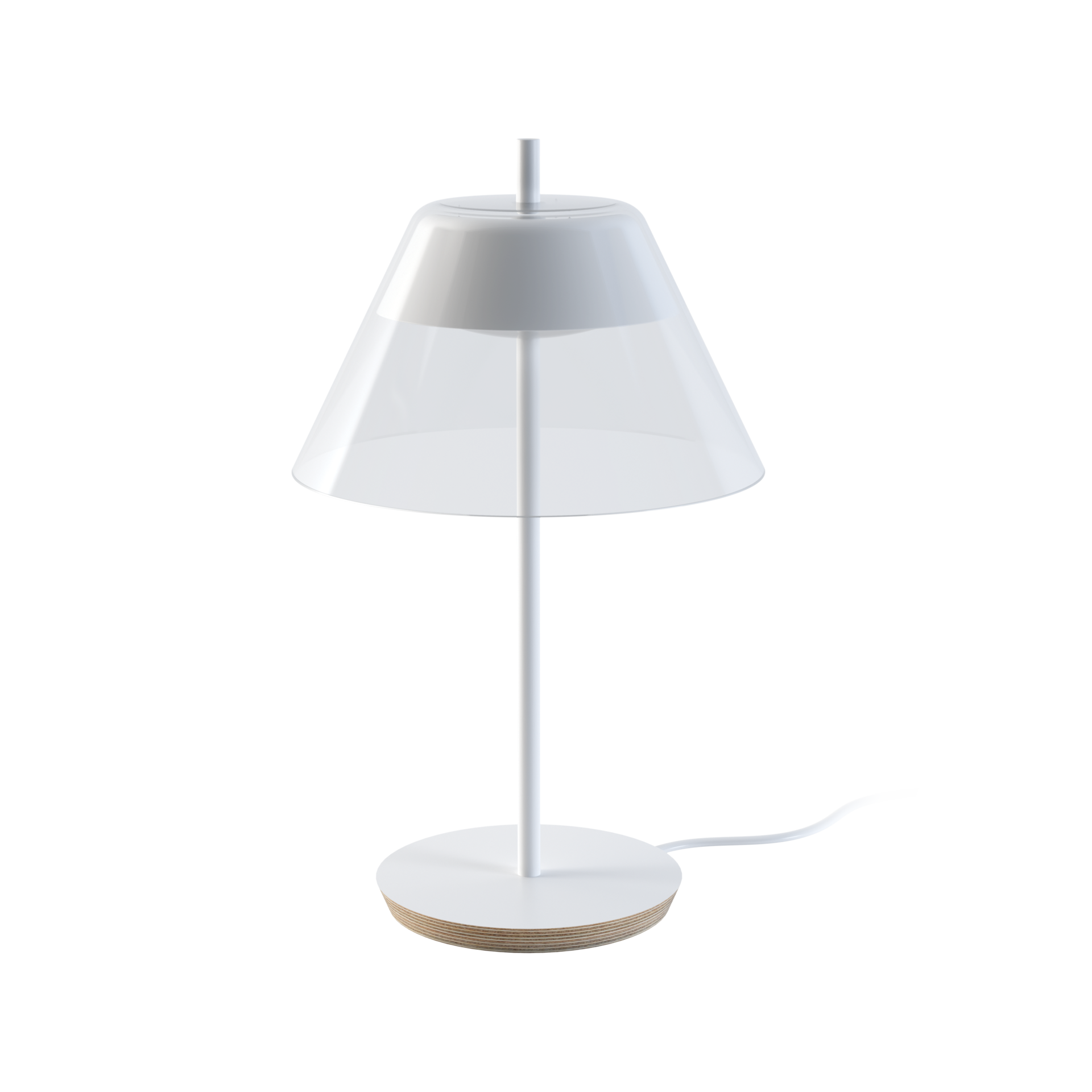

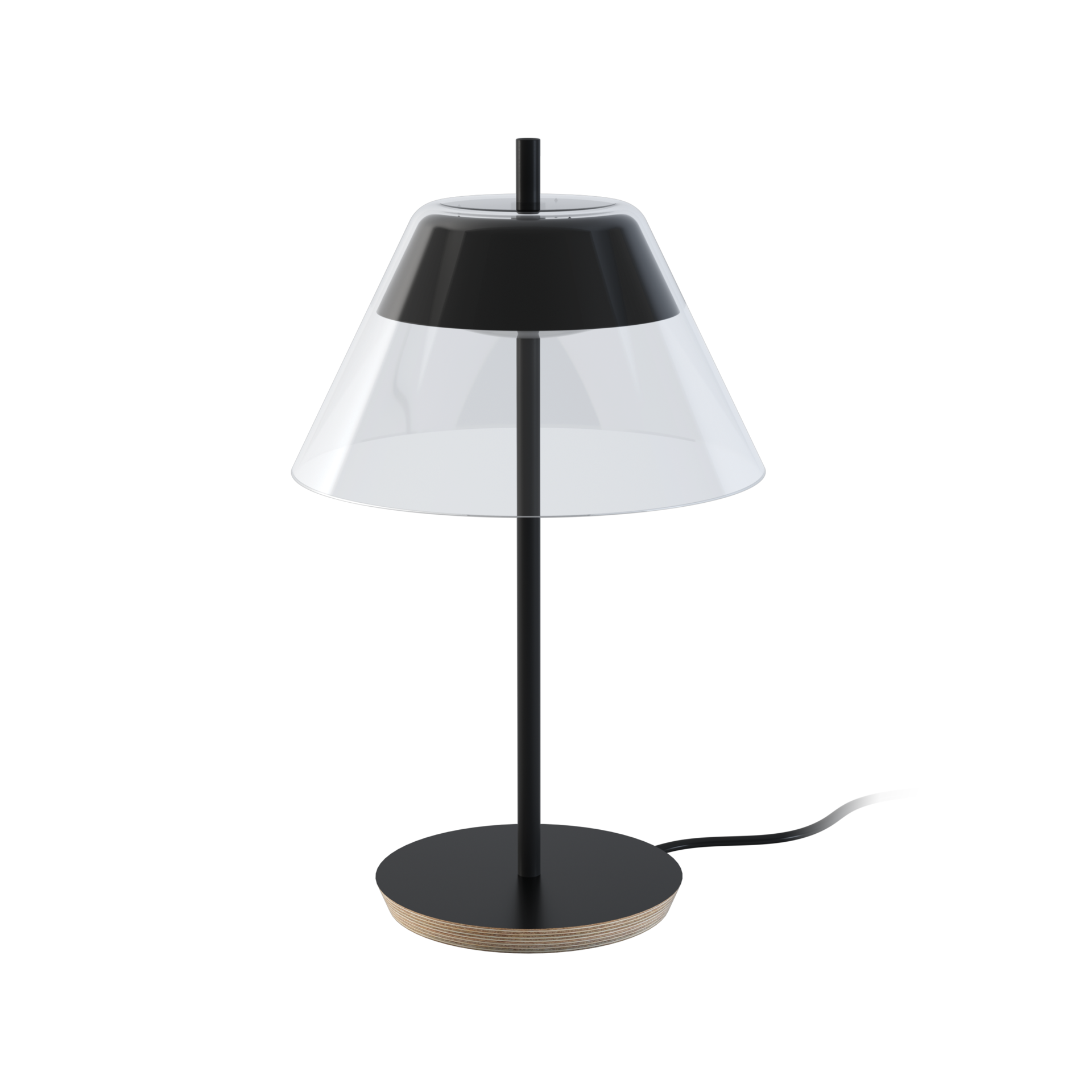

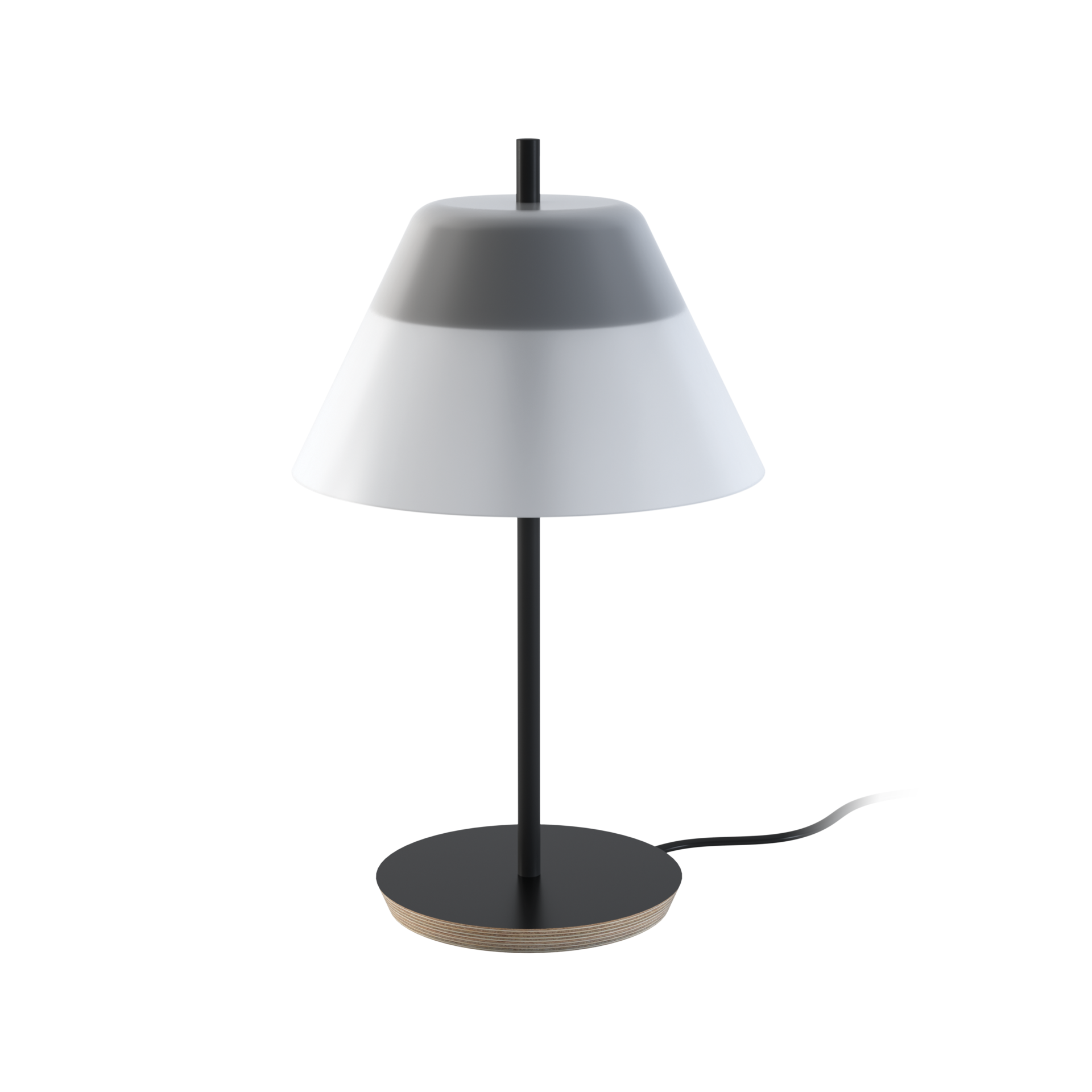

DAGALI TABLE LED
Decorative lighting luminaire for LED light sources.



Perfect combination of aesthetics and ergonomics
Classic elegance
The latest LED solutions closed in the traditional shape of a lampshade
Soft, diffused light

Application

hotels, interiors, offices, residences

Luminous flux range

640 - 740 [lm]

Variable color temperature

2700 - 4000 [K]

Mechanical data

Mounting
stand-alone
Body colour
black, white
Surface finish
gloss
Operating temperature range
0 ... +35
RAL
9003, 9005
Body
steel sheet, powder coated aluminum, plastic, wood
Type
Ø 280

Electrical data

Power supply efficiency
≤80%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
6
Output current [mA]
150
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
36
Maximum number of luminaires in the circuit with a 16A fuse (B)
60

Optical data

Way of lighting
direct
Diffuser
opal matt (PMMA), transparent (PMMA)
Colour temperature [K]
2700, 3000, 4000
CRI/Ra
80
Lumen luminaire [lm]
640 - 740
Efficacy [lm/W]
107 - 123

General data

Additional information
A perfect combination of aesthetics and ergonomics, classic elegance.
Lifetime L80B10
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxH Pallet quantity Quantity in package Net weight [kg]
280x450 24 1 1.4
X

Available variants

Code
Colour temperature [K]
2700
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Body colour
black
white
Diffuser
opal matt (PMMA)
transparent (PMMA)
Clear Filters
Compare Code Type of equipment Body colour Diffuser Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K]
260081.5L01.201 ED white transparent (PMMA) 6 640 107 2700
260081.5L01.202 ED white opal matt (PMMA) 6 640 107 2700
260081.5L02.201 ED white transparent (PMMA) 6 710 118 3000
260081.5L02.202 ED white opal matt (PMMA) 6 710 118 3000
260081.5L03.201 ED white transparent (PMMA) 6 740 123 4000
260081.5L03.202 ED white opal matt (PMMA) 6 740 123 4000
260083.5L01.201 ED black transparent (PMMA) 6 640 107 2700
260083.5L01.202 ED black opal matt (PMMA) 6 640 107 2700
260083.5L02.201 ED black transparent (PMMA) 6 710 118 3000
260083.5L02.202 ED black opal matt (PMMA) 6 710 118 3000
Compare selected
Shown 10 / 12
Show all
Designed by LUG Design Team
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info available on our website www.flashdq.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
