HB 886

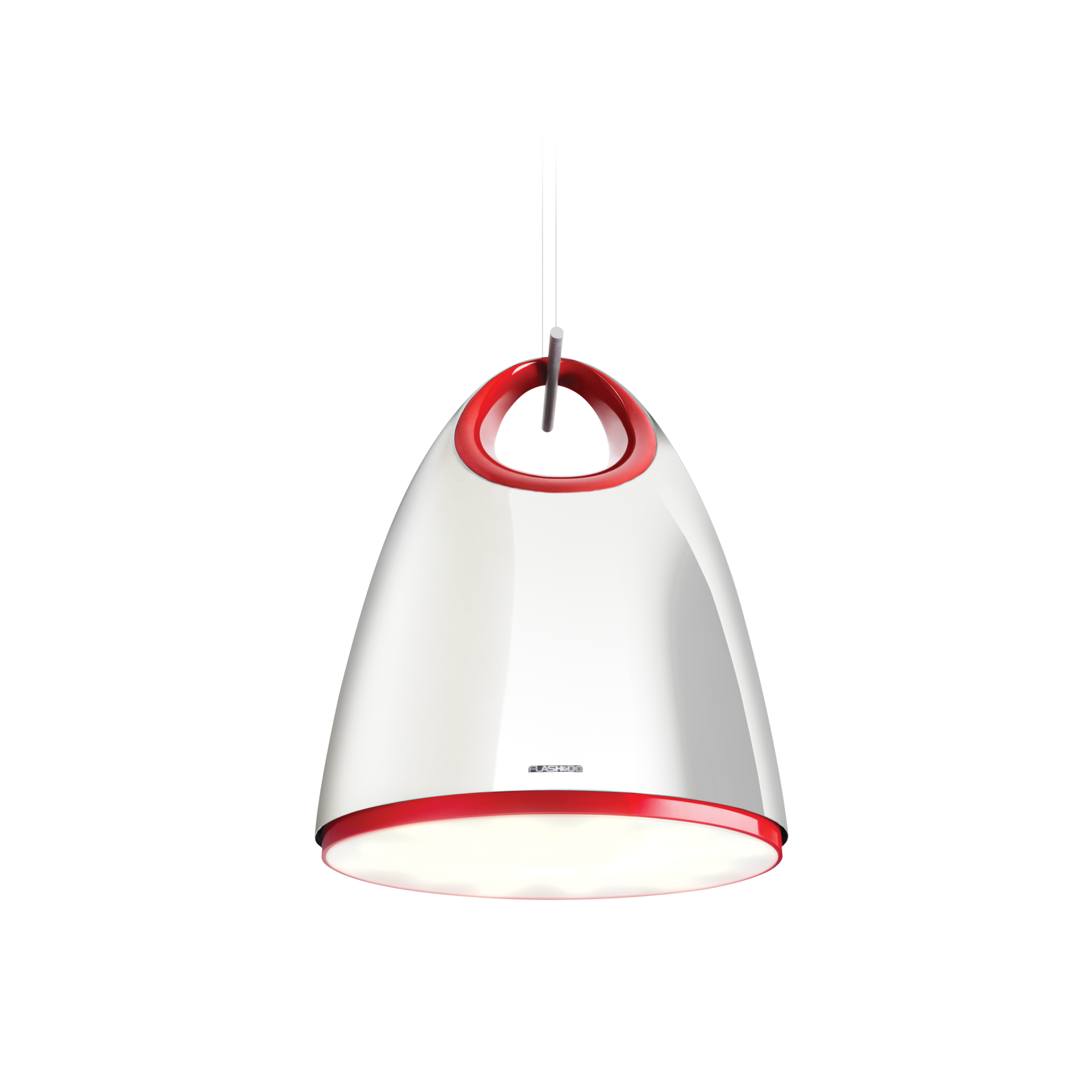

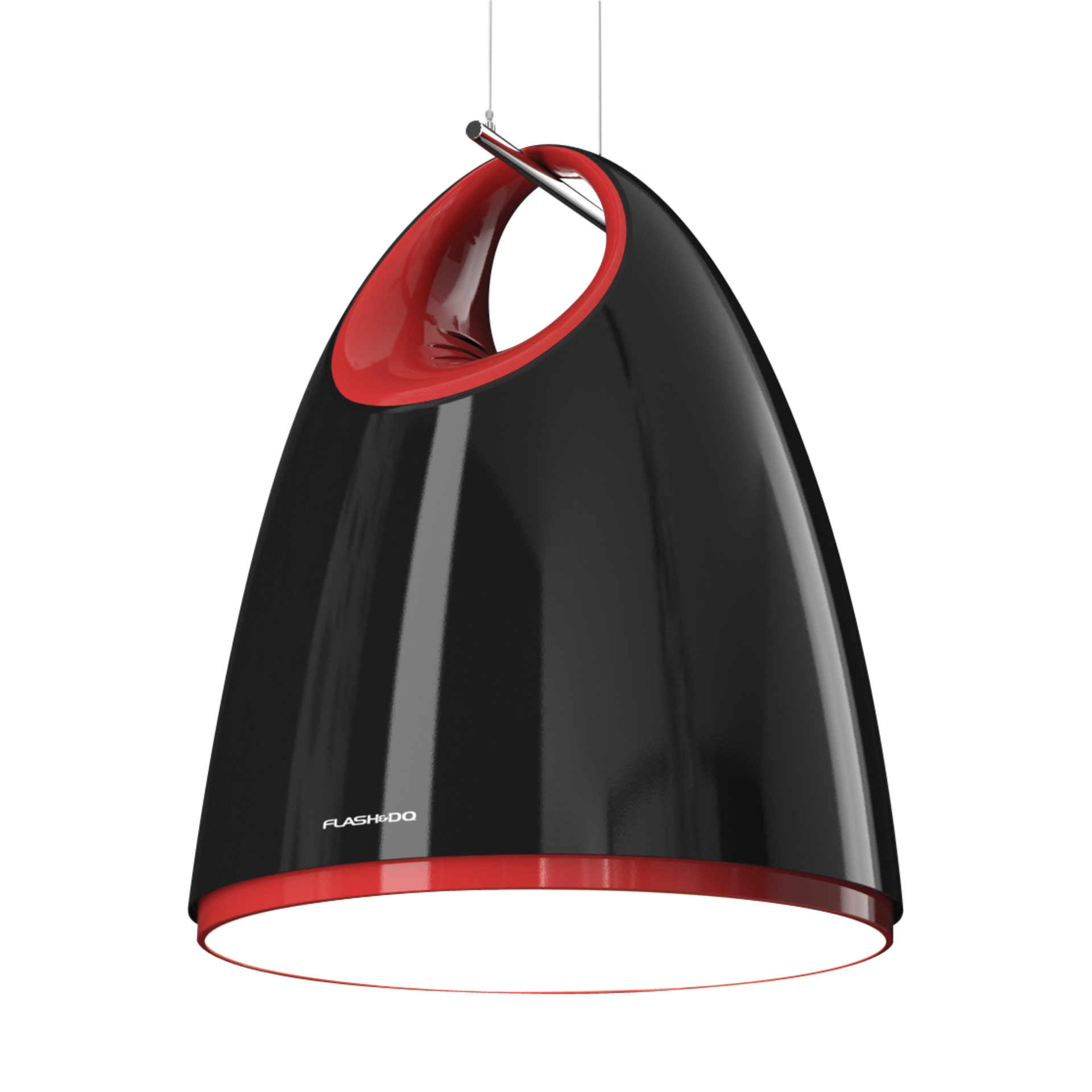

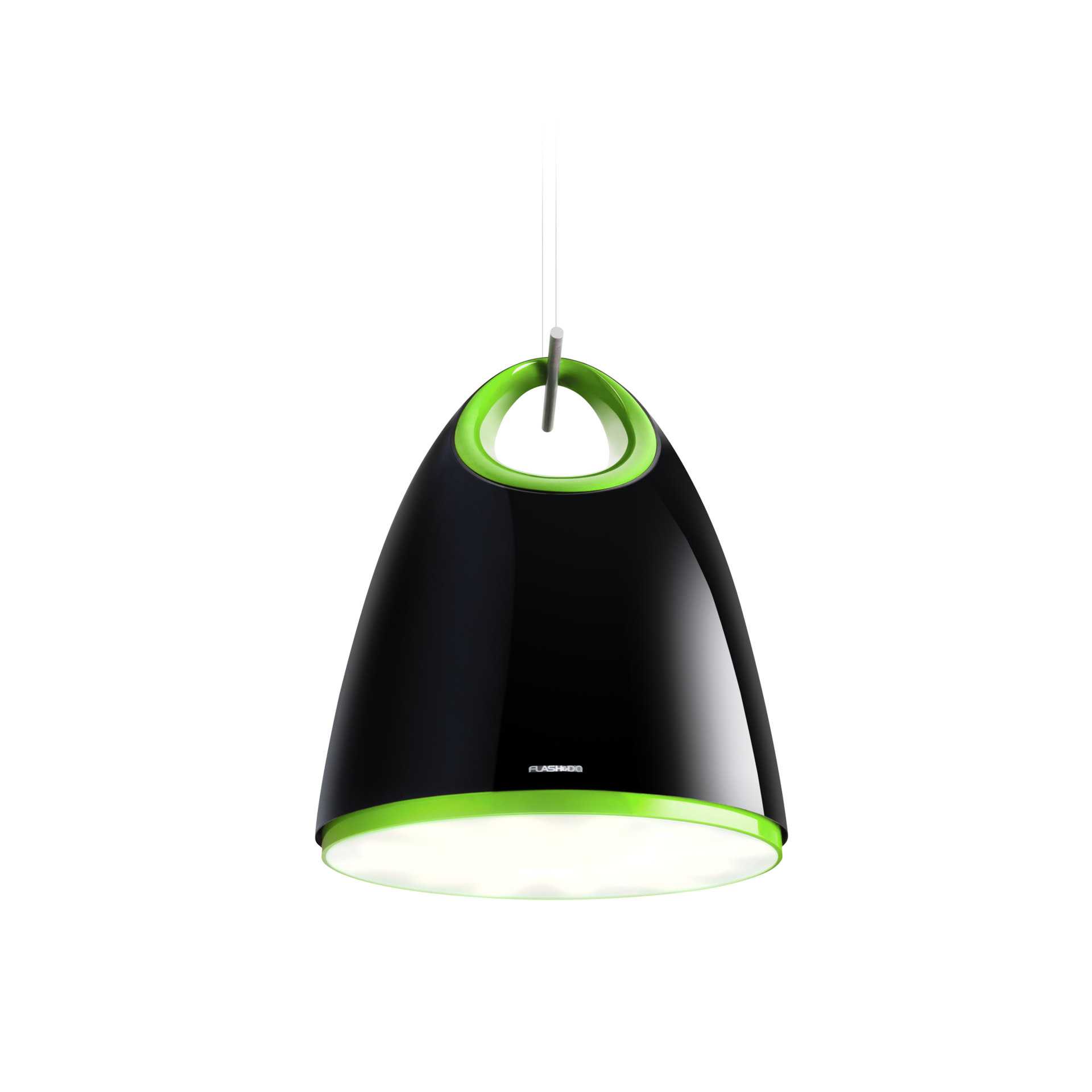

Suspended decorative luminaire for LED light sources.



Unique design
Synergy of design and technology

Application

boutiques, car showrooms, conference rooms, offices, reception desks, shopping centers

Available on request

DALI, DIM 1..10V, opal diffuser

Luminous flux range

11900 - 12850 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
suspended, on wire suspension (included)
Body colour
black, white
Detail
black, blue, green, pink, red, white, yellow
Body
plastic polyester reinforced with fiberglass

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
109
Output current [mA]
700
Type of equipment
ED

Optical data

Way of lighting
direct
Diffuser
microprismatic diffuser (MPRM), opal plexiglass (PLX)
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
Lumen luminaire [lm]
11900 - 12850
Efficacy [lm/W]
109 - 118

General data

Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxD Pallet quantity Quantity in package Net weight [kg]
886x886x1060 400x80 1 1 21
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Body colour
black
white
Detail
black
blue
green
pink
red
white
yellow
Clear Filters
Compare Code Type of equipment Body colour Detail Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
200021.5L01.111 ED white pink 109 12300 113 4000 ≥80
200021.5L01.112 ED white pink 109 12850 118 4000 ≥80
200021.5L01.121 ED white red 109 12300 113 4000 ≥80
200021.5L01.122 ED white red 109 12850 118 4000 ≥80
200021.5L01.131 ED white green 109 12300 113 4000 ≥80
200021.5L01.132 ED white green 109 12850 118 4000 ≥80
200021.5L01.141 ED white blue 109 12300 113 4000 ≥80
200021.5L01.142 ED white blue 109 12850 118 4000 ≥80
200021.5L01.151 ED white yellow 109 12300 113 4000 ≥80
200021.5L01.152 ED white yellow 109 12850 118 4000 ≥80
Compare selected
Shown 10 / 56
Show all
Designed by LUG Design Team
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info available on our website www.flashdq.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
