NOISE CORNER

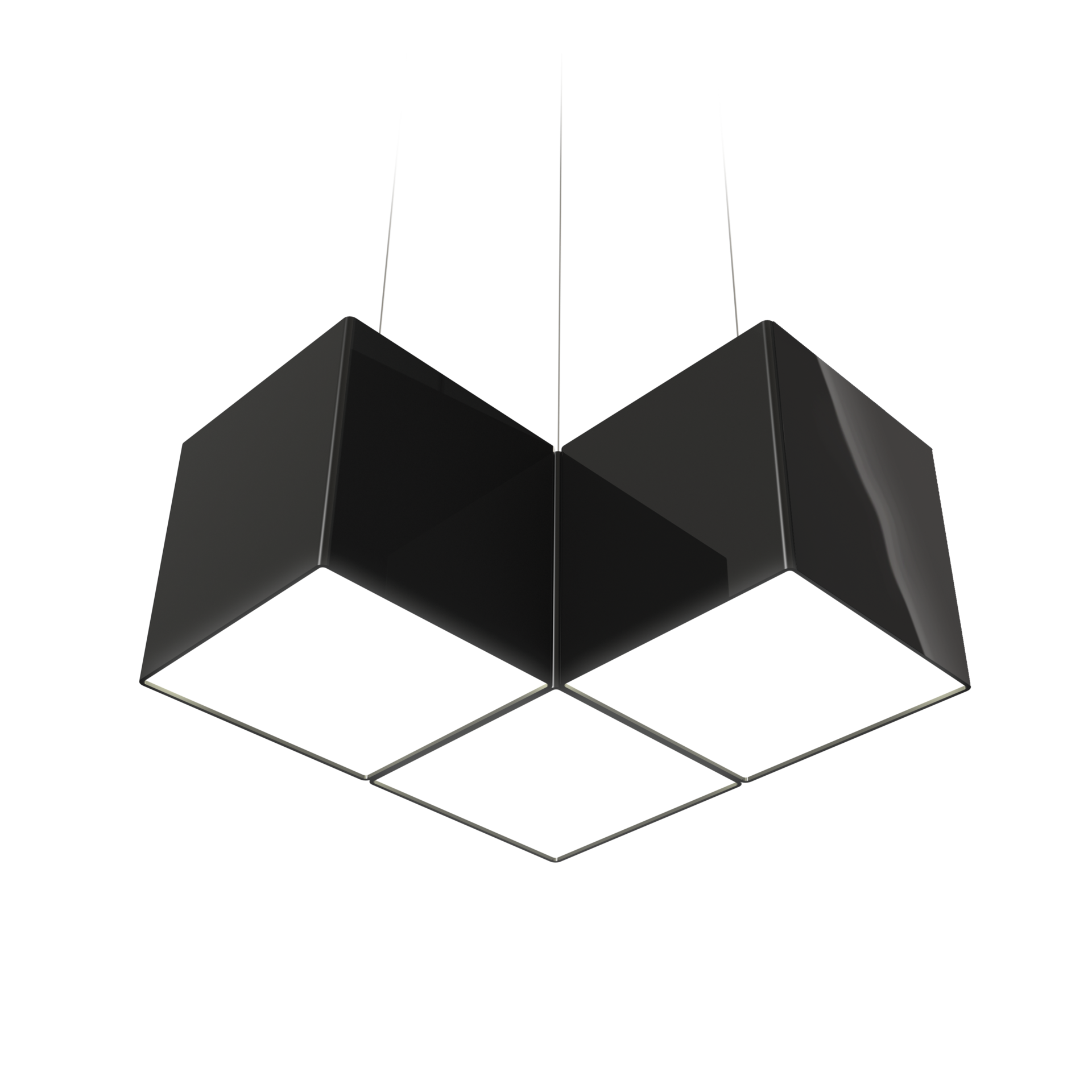

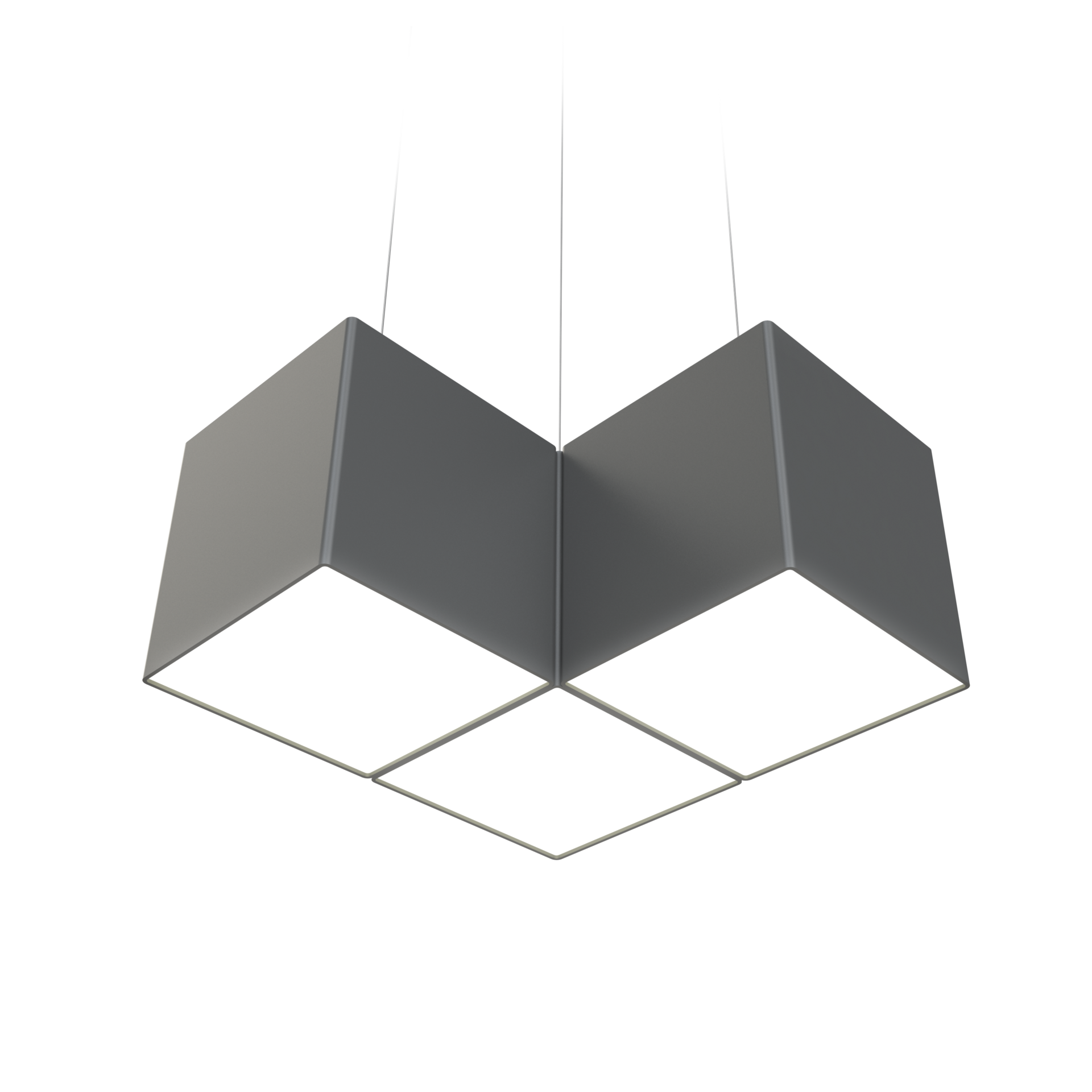

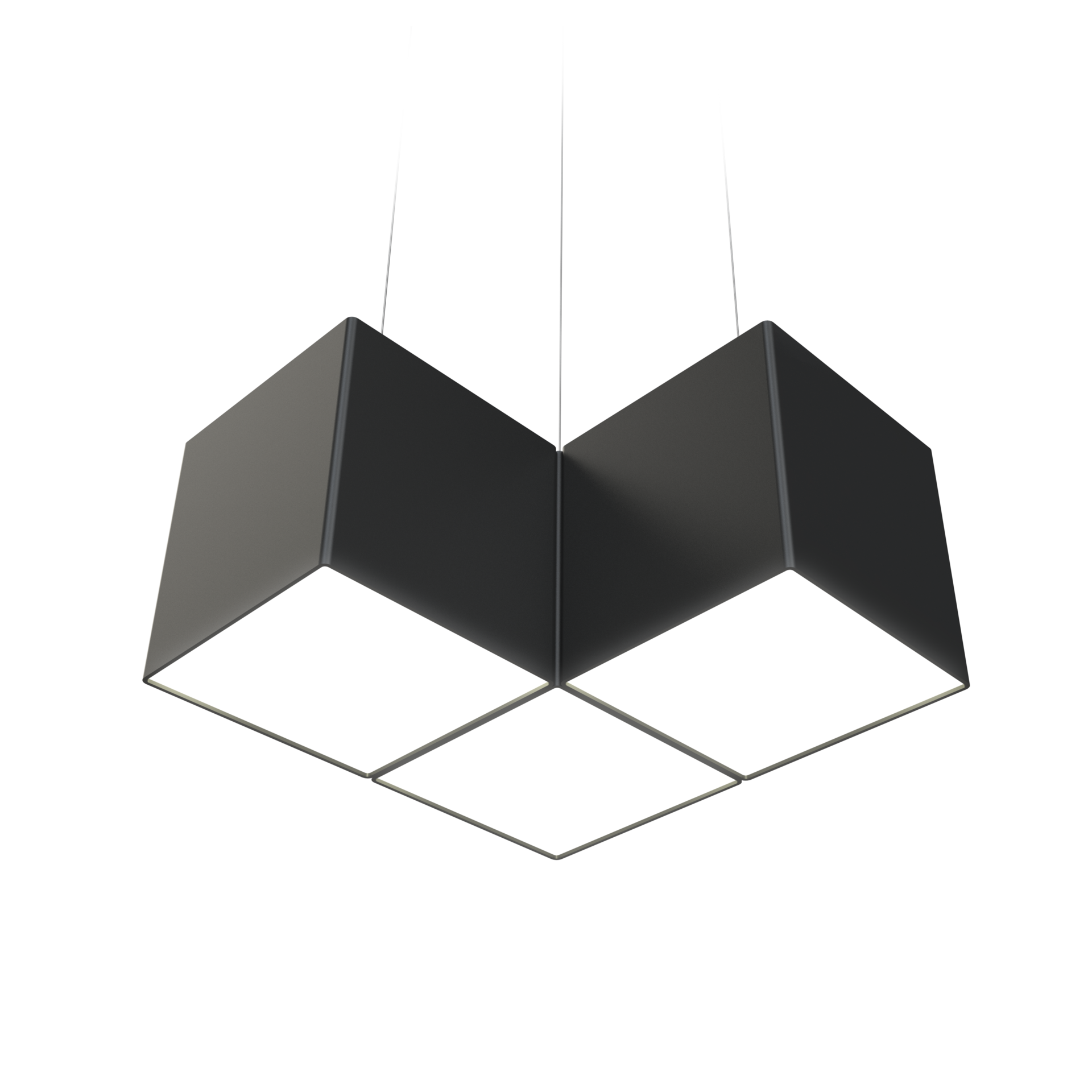

Suspended decorative luminaire for LED light sources. The luminaire consists of 3 cubes, appearing in 2 colors with a different surface finish.



Perfect combination of aesthetics and ergonomics
Universal design
Possible illuminance control

Application

airports, boutiques, car showrooms, conference rooms, offices, reception desks, shopping centers

Luminous flux range

1000 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
suspended, on wire suspension (included)
Body colour
black, dark gray
Surface finish
gloss, matt
Operating temperature range
0 … +35
Body
plastic

Electrical data

Power supply efficiency
≤84%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
13
Output current [mA]
300
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
38 - 80
Maximum number of luminaires in the circuit with a 16A fuse (B)
60 - 130
Maximum number of luminaires in the circuit with a 25A fuse (B)
90

Optical data

Way of lighting
direct
Diffuser
opal plexiglass (PLX)
Colour temperature [K]
3000, 4000
Beam angle
110°
CRI/Ra
80
Lumen luminaire [lm]
1000
Efficacy [lm/W]
77

General data

Lifetime L70B50
65 000 h
Lifetime L80B10
40 000 h
Lifetime L90B10
20 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Net weight [kg]
227x227x140 2.6
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Body colour
black
dark gray
Clear Filters
Compare Code Body colour Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
200183.3L01.111 black DALI 13 1000 77 3000 80 0 … +35
200183.3L01.122 black DALI 13 1000 77 3000 80 0 … +35
200183.3L02.111 black DALI 13 1000 77 4000 80 0 … +35
200183.3L02.122 black DALI 13 1000 77 4000 80 0 … +35
200183.5L01.111 black ED 13 1000 77 3000 80 0 … +35
200183.5L01.122 black ED 13 1000 77 3000 80 0 … +35
200183.5L02.111 black ED 13 1000 77 4000 80 0 … +35
200183.5L02.122 black ED 13 1000 77 4000 80 0 … +35
200189.3L01.111 dark gray DALI 13 1000 77 3000 80 0 … +35
200189.3L02.111 dark gray DALI 13 1000 77 4000 80 0 … +35
Compare selected
Shown 10 / 12
Show all
Designed by LUG Design Team
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info available on our website www.flashdq.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
