TLON 2.0 TUNABLE WHITE n/t

Product description

Technical parameters

To download

Explore services Customisation Support and contact
Other parameters available View variants

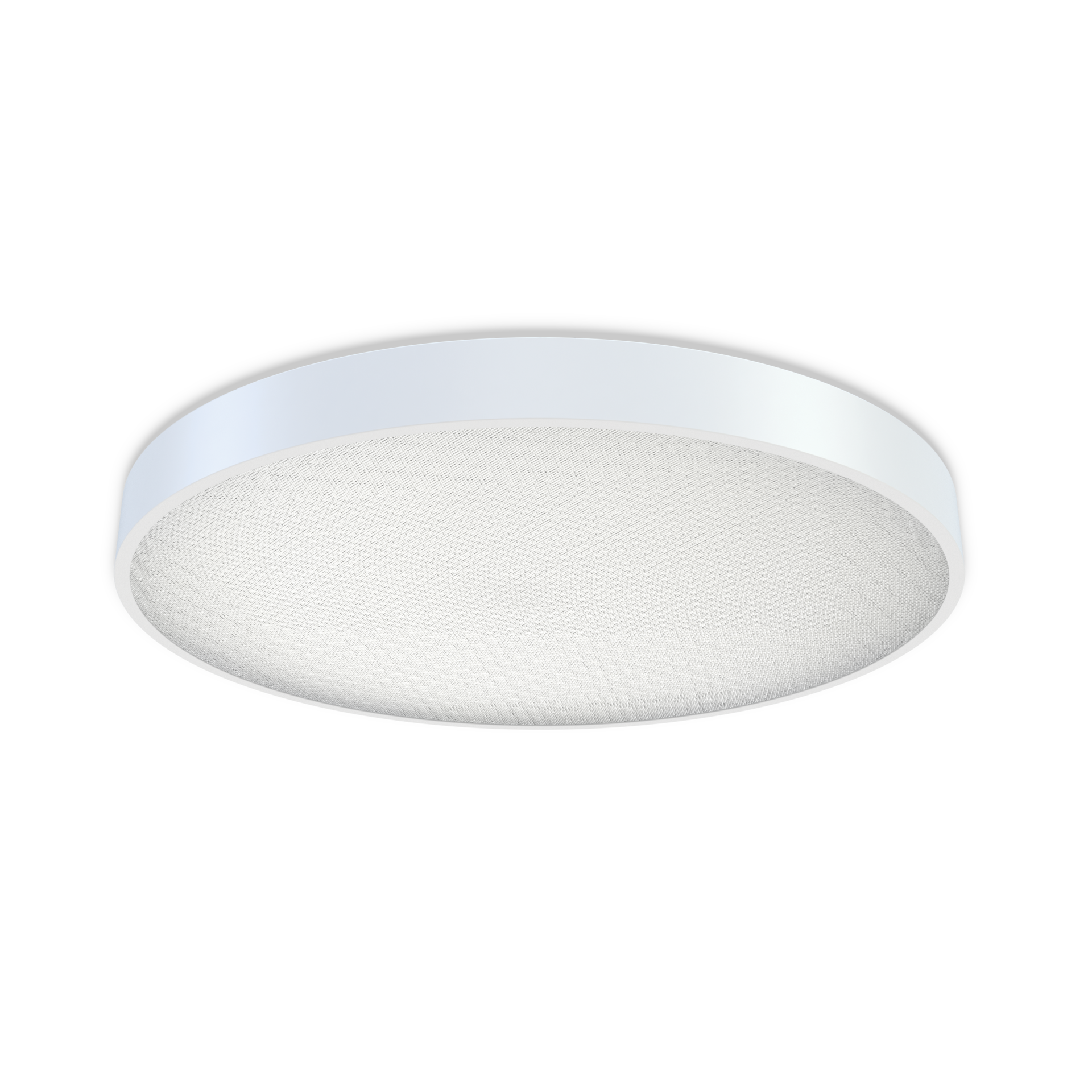

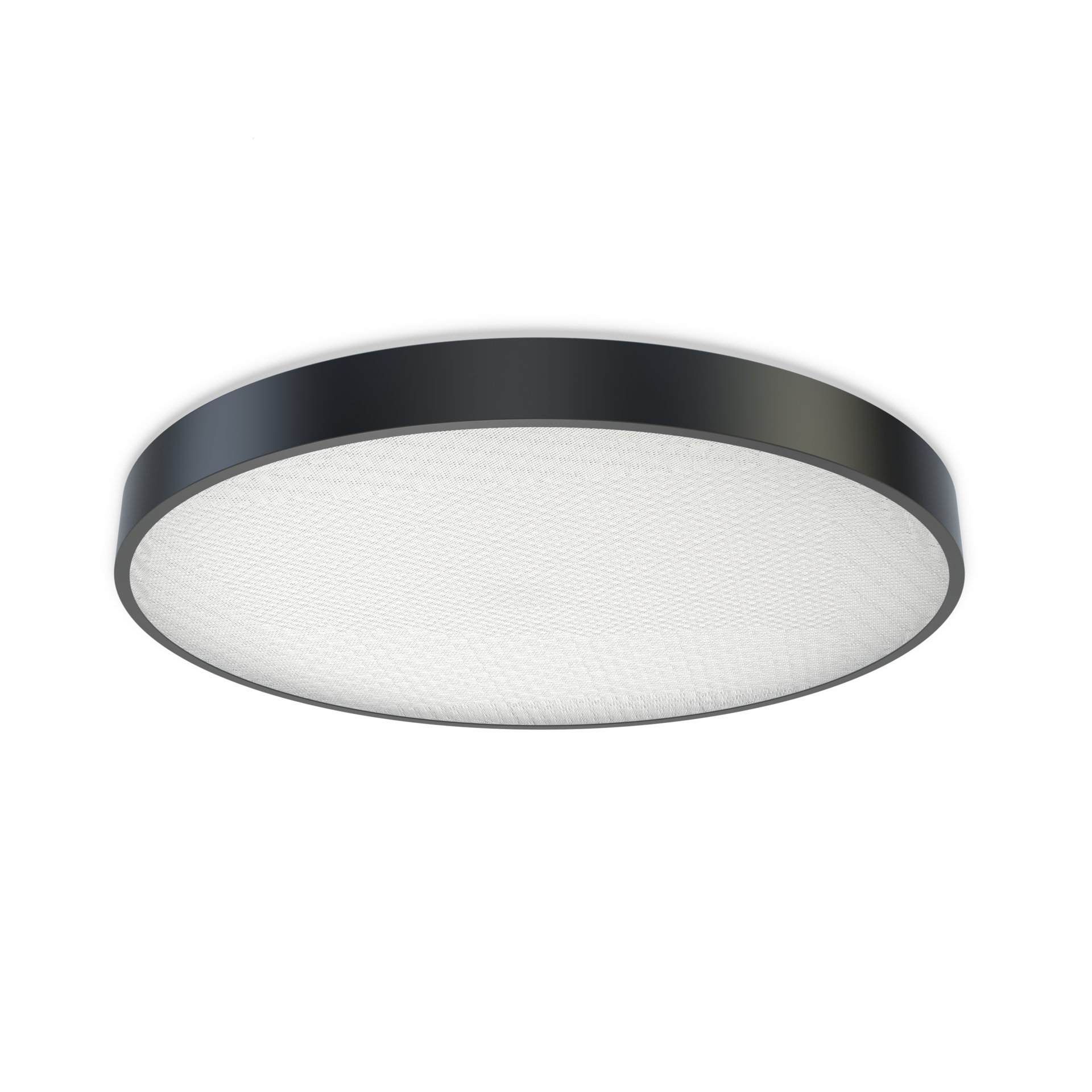

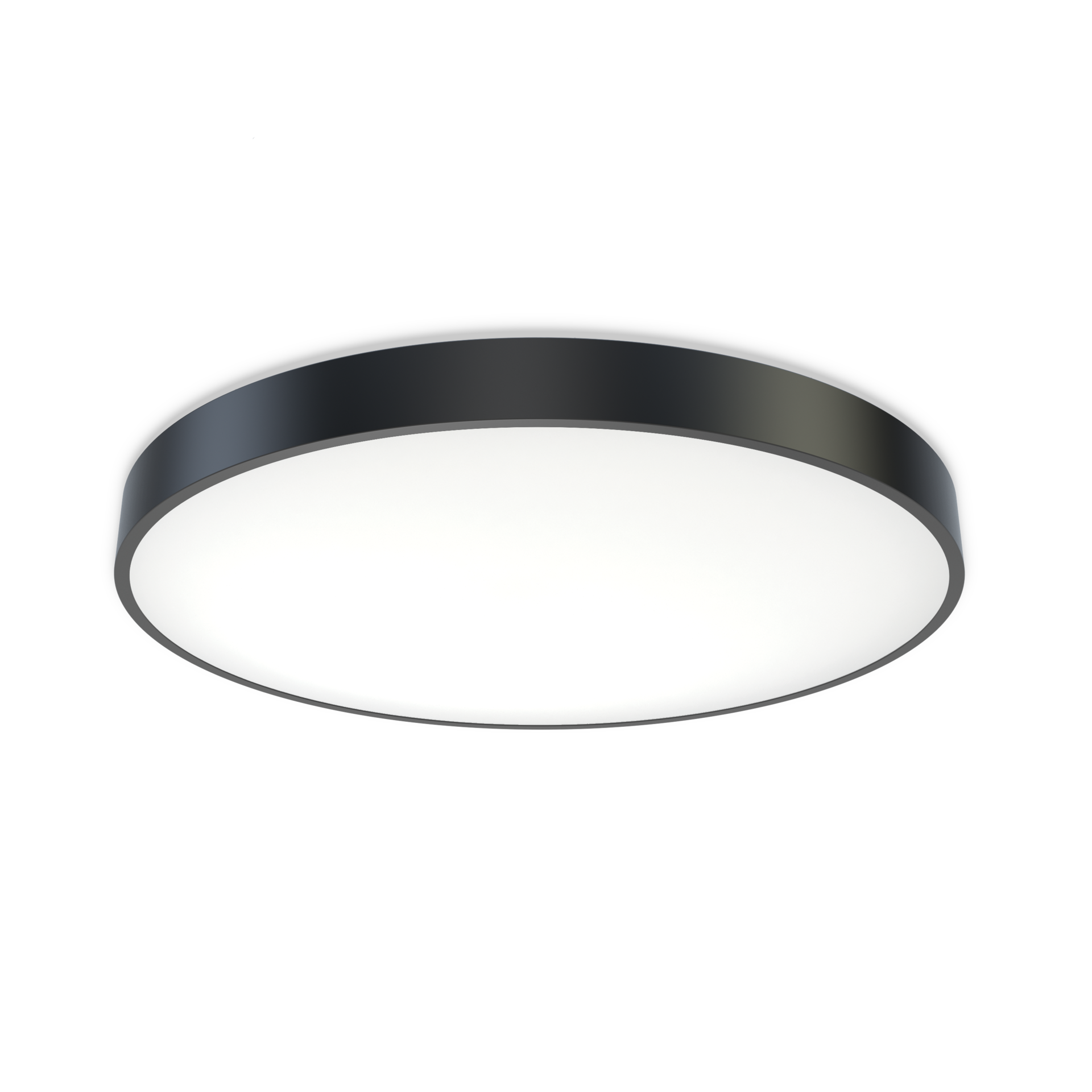

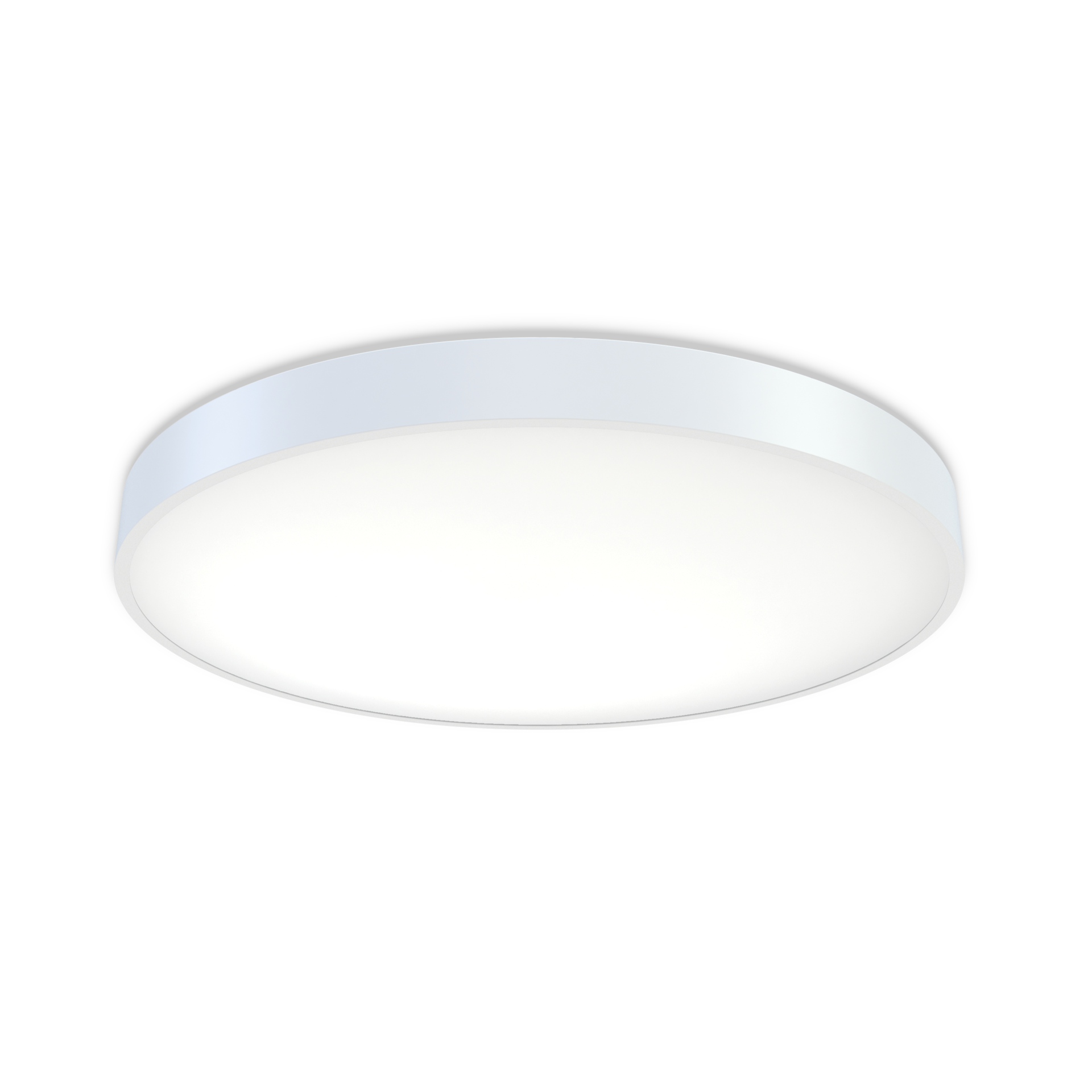

TLON 2.0 TUNABLE WHITE n/t
A luminaire with an LED source using Tunable White technology, which allows the colour temperature to be adjusted from warm to cold white light. The colour temperature adjusted to people's diurnal rhythm together with the right light intensity improves our mood and affects our efficiency.



Dedicated LED light sources
Colour temperature control system available
Modern design
High efficacy to 150 lm/W

Application

boutiques, car showrooms, conference rooms, delicatessen, galleries, halls, reception desks, shopping centers

Luminous flux range

5100 - 10800 [lm]

Variable color temperature

2700 - 6500 [K]

Mechanical data

Mounting
surface mounted
Body colour
black, white
Surface finish
matt
Operating temperature range
0 ... +35
RAL
9003, 9005
Body
formed aluminum profile, plastic, steel sheet

Electrical data

Power supply efficiency
≤90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
38 - 76
Output current [mA]
180, 350
Type of equipment
DALI
Maximum number of luminaires in the circuit with a 10A fuse (B)
13 - 19
Maximum number of luminaires in the circuit with a 16A fuse (B)
19 - 28

Optical data

Way of lighting
direct
Type of optic
diffuser
Diffuser
microprismatic diffuser (MPRM), opal plexiglass (PLX)
Colour temperature [K]
2700 - 6500
CRI/Ra
90
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
5100 - 10800
Photobiological risk group
RG0
Number of LEDs
1184

General data

Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxHxD Pallet quantity Quantity in package Net weight [kg]
900x80x7 15 1 11.4
X

Available variants

Code
Luminaire power [W]
Body colour
black
white
Diffuser
microprismatic diffuser (MPRM)
opal plexiglass (PLX)
Clear Filters
Compare Code Type of equipment Body colour Beam angle Luminaire power [W] Lumen luminaire [lm] Colour temperature [K] CRI/Ra Diffuser
200281.3L01.241 DALI white 38 5450-5700 2700 - 6500 90 opal plexiglass (PLX)
200281.3L01.242 DALI white 38 5100-5300 2700 - 6500 90 microprismatic diffuser (MPRM)
200281.3L02.241 DALI white 76 10400-10800 2700 - 6500 90 opal plexiglass (PLX)
200281.3L02.242 DALI white 76 9700-10100 2700 - 6500 90 microprismatic diffuser (MPRM)
200283.3L01.241 DALI black 38 5450-5700 2700 - 6500 90 opal plexiglass (PLX)
200283.3L01.242 DALI black 38 5100-5300 2700 - 6500 90 microprismatic diffuser (MPRM)
200283.3L02.241 DALI black 76 10400-10800 2700 - 6500 90 opal plexiglass (PLX)
200283.3L02.242 DALI black 76 9700-10100 2700 - 6500 90 microprismatic diffuser (MPRM)
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
Mounting instruction
Download selected
