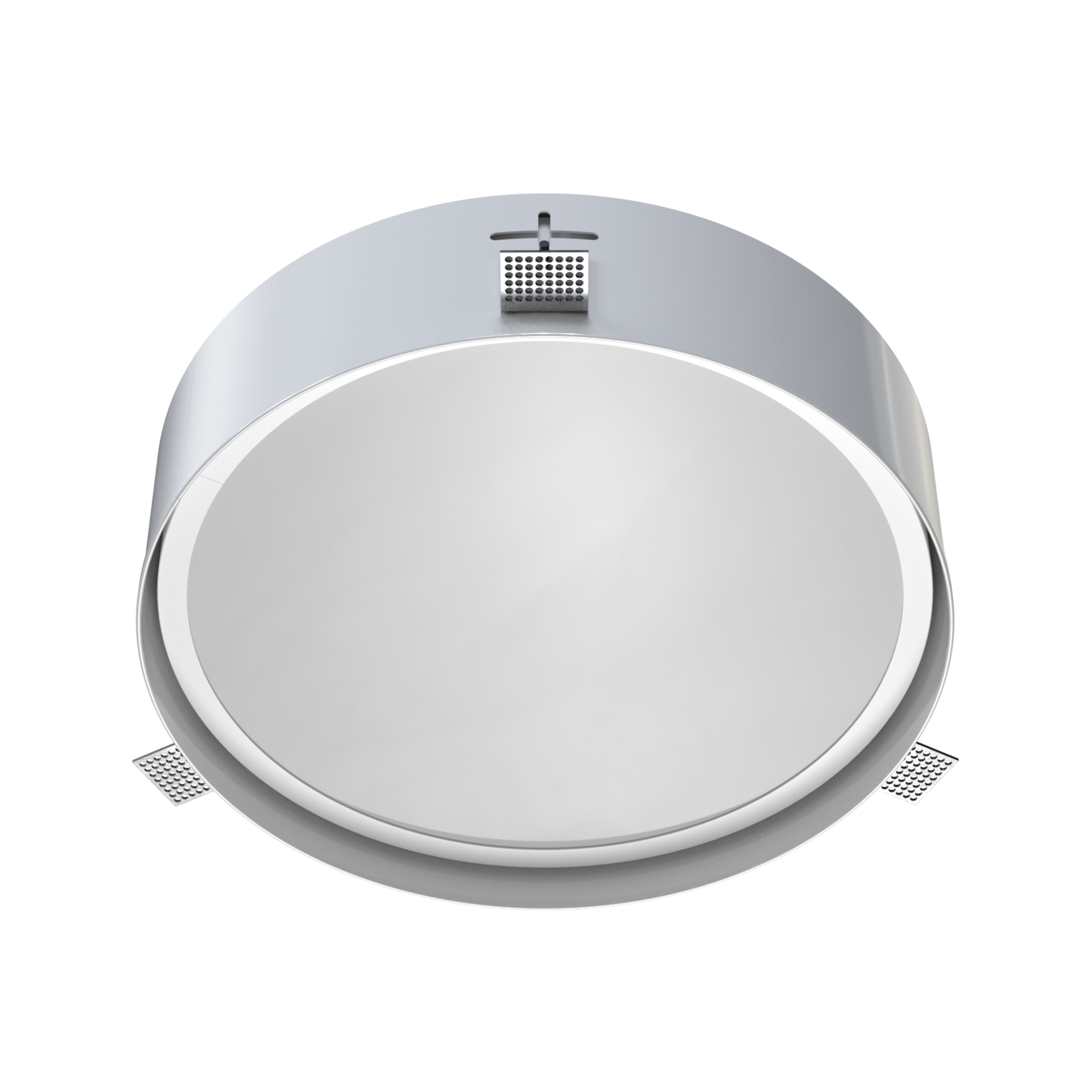

TLON TRIMLESS

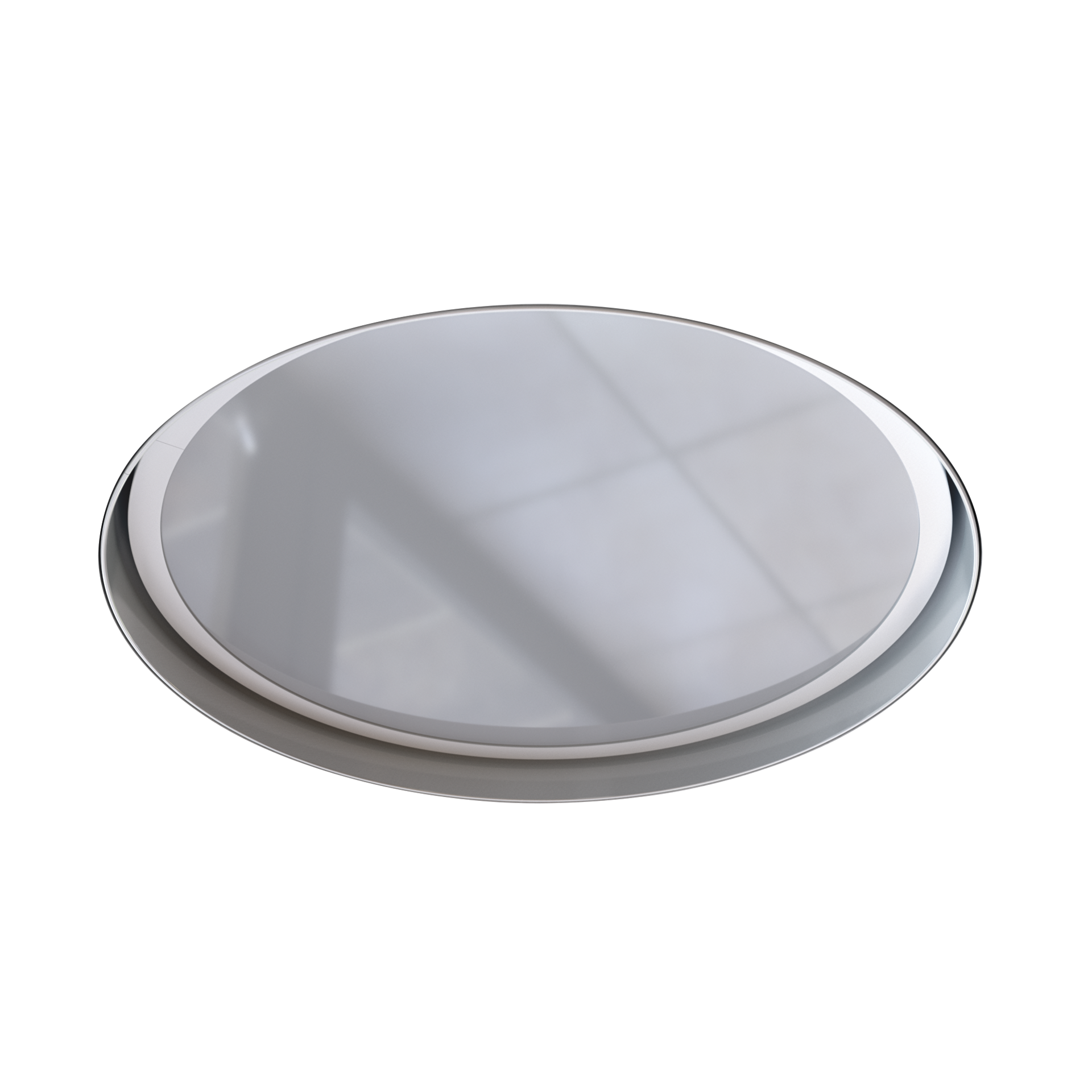

Decorative lighting fixture made in trimless version, with the effect of a recessed lampshade.



Perfect combination of aesthetics and ergonomics
Universal design
Fast and easy mounting

Application

airports, boutiques, car showrooms, conference rooms, offices, reception desks, shopping centers

Available on request

luminaire in other sizes

Luminous flux range

3200 - 5200 [lm]

Variable color temperature

3000 [K]

Mechanical data

Mounting
directly in the ceiling construction, with mounting brackets (on request)
Body colour
white
Surface finish
matt
Operating temperature range
0 ... +30
RAL
9016
Body
aluminum sheet

Electrical data

Power supply efficiency
≥90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
30 - 50
Output current [mA]
630, 925
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
12 - 33
Maximum number of luminaires in the circuit with a 16A fuse (B)
20 - 55
Maximum number of luminaires in the circuit with a 25A fuse (B)
42

Optical data

Way of lighting
direct
Diffuser
acrylic (PMMA)
Colour temperature [K]
3000
CRI/Ra
80
Lumen luminaire [lm]
3200 - 5200
Efficacy [lm/W]
104 - 107

General data

Other remarks
safe power supply with low voltage SELV
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxHxD Mounting dimensions [mm] W Pallet quantity Quantity in package Net weight [kg]
355x95x130 360 6 1 4
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Clear Filters
Compare Code Type of equipment Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
200271.3L01.011 DALI 30 3200 107 3000 80
200271.3L02.011 DALI 50 5200 104 3000 80
200271.5L01.011 ED 30 3200 107 3000 80
200271.5L02.011 ED 50 5200 104 3000 80
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
