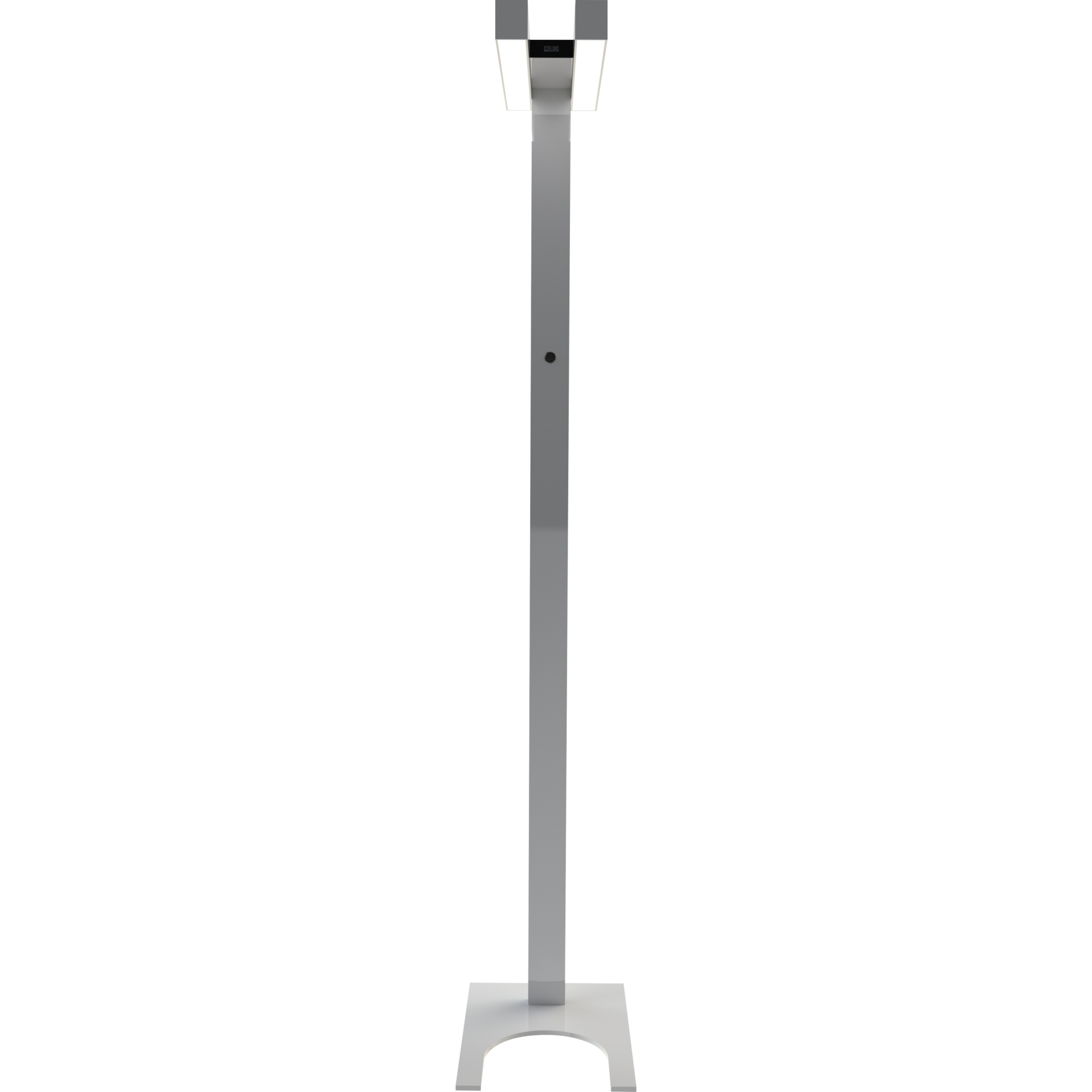

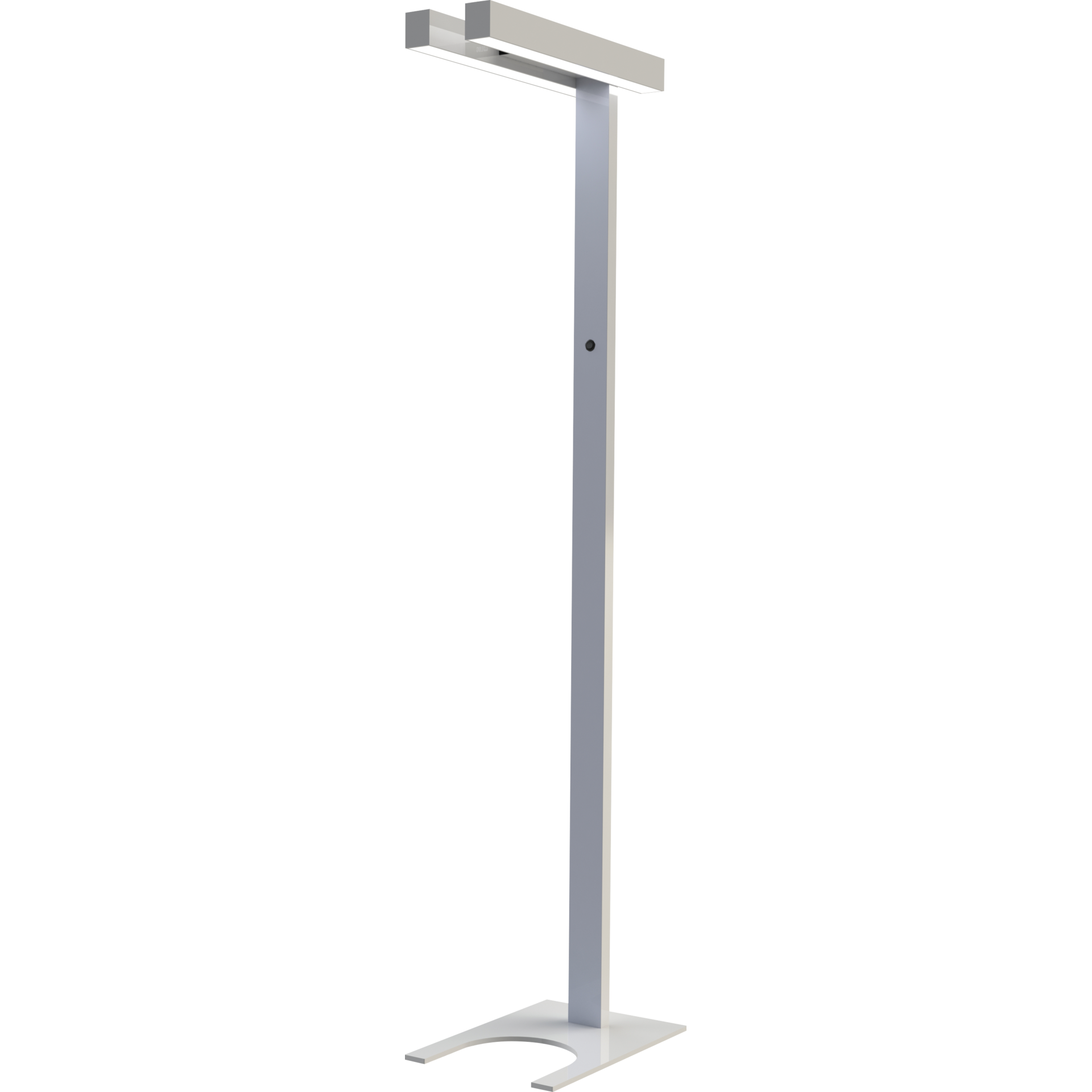

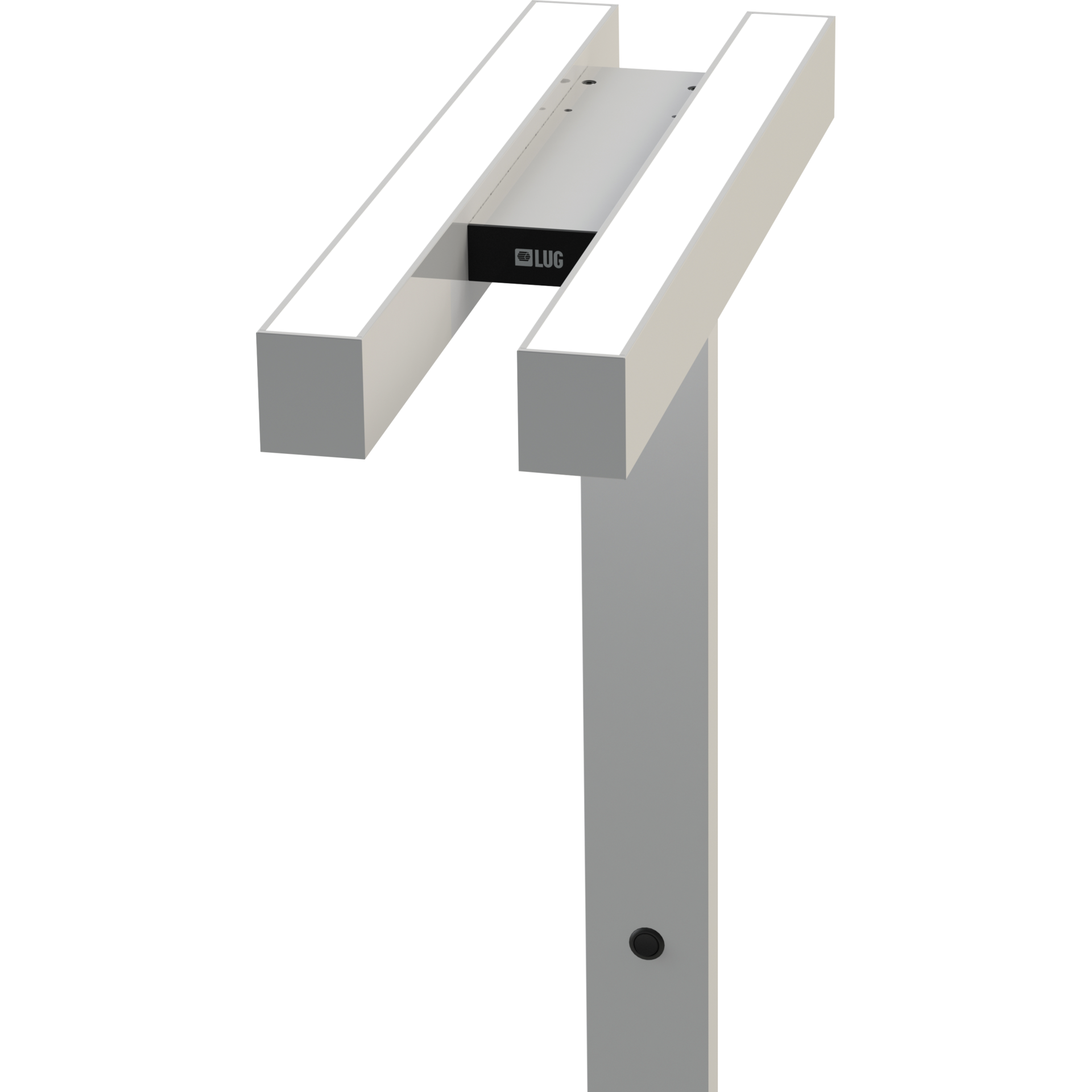

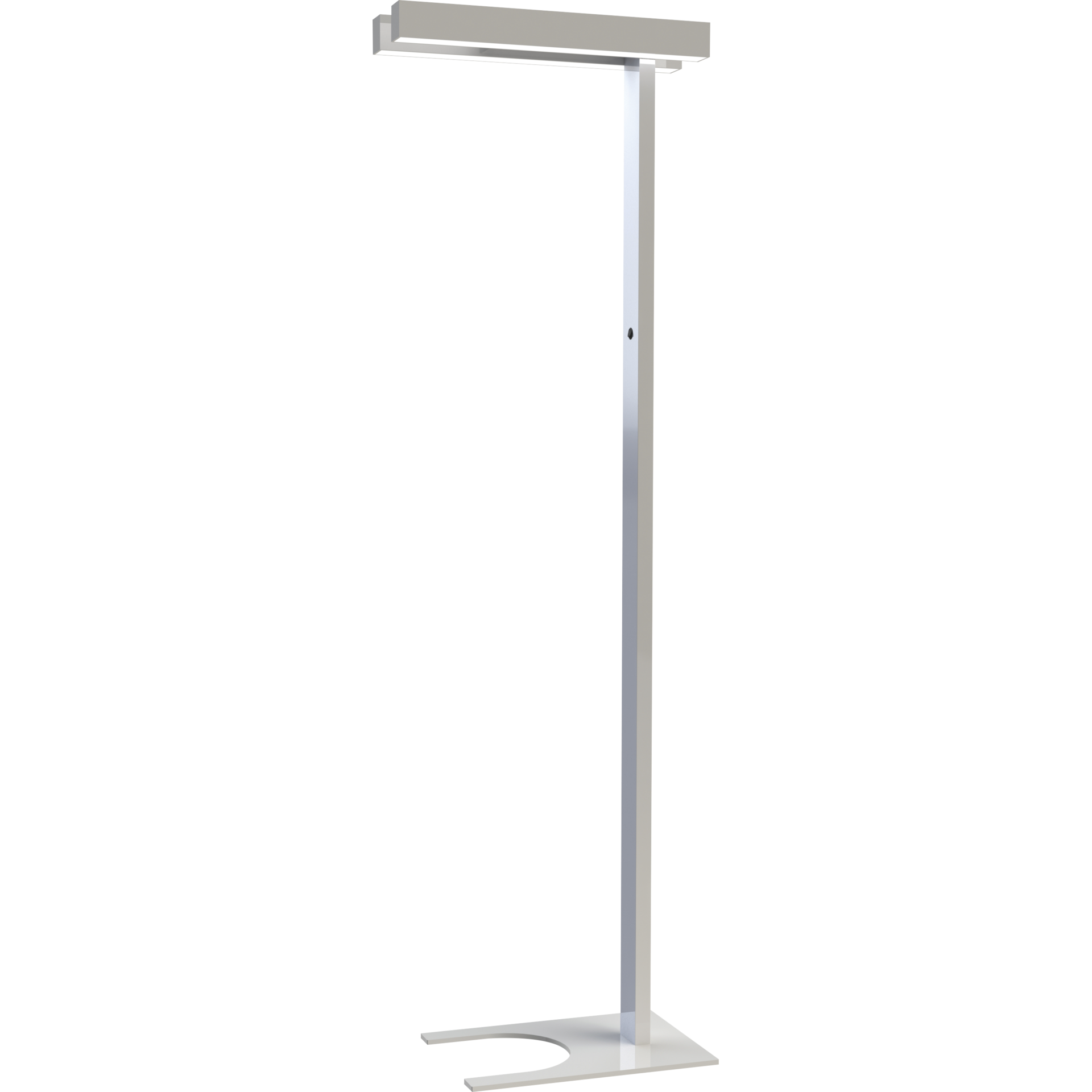

VERTICA LED
Modern floor lamp with LED light sources.



Modern design
Luminaire body made of anodized aluminum
Maintenance-free operation

Application

auditorium, boutiques, classrooms, hotels, museums, offices, reception desks

Luminous flux range

6640 - 6900 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
standing
Body colour
gray
Operating temperature range
0˚C ... +30˚C
Body
anodized aluminum profile
Type
DALI, DALI, presence and light sensor, IR receiver from remote control, Standard ON/OFF

Electrical data

Power supply efficiency
≤86%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
70
Output current [mA]
700
Type of equipment
DALI, ED, IR receiver from remote control, motion detector, twilight sensor

Optical data

Way of lighting
direct-indirect
Diffuser
microprismatic diffuser (MPRM)
Colour temperature [K]
3000, 4000
Beam angle
100°/70°
CRI/Ra
≥80
UGR
19,5
Lumen luminaire [lm]
6640 - 6900
Efficacy [lm/W]
95 - 99

General data

Additional information
Available accessories: SIMPLE version remote control, which allows to control a group of luminaires or MASTER version remote control, allowing for individual control and programming of settings.
Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxHxDxD1 Pallet quantity Quantity in package Net weight [kg]
615x193x2000x500x350 3 1 16.5
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
IR receiver from remote control
motion detector
twilight sensor
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Colour temperature [K] CRI/Ra
010352.3L03.952 DALI 70 6640 3000 ≥80
010352.3L03.952.975 DALI, motion detector, twilight sensor, IR receiver from remote control 70 6640 3000 ≥80
010352.3L04.952 DALI 70 6900 4000 ≥80
010352.3L04.952.975 DALI, motion detector, twilight sensor, IR receiver from remote control 70 6900 4000 ≥80
010352.5L03.952 ED 70 6640 3000 ≥80
010352.5L04.952 ED 70 6900 4000 ≥80
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories

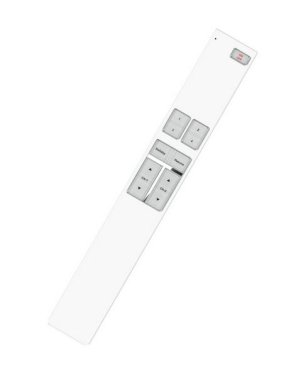

150220.00947
Remote control for DALIeco lighting control system (SIMPLE) for indexes with IR sensor

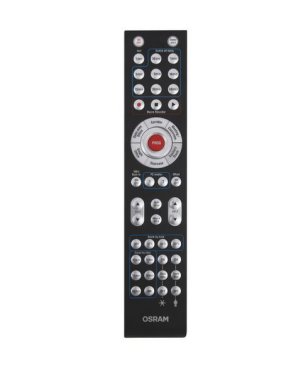

150220.00948
DALIeco Remote PC KIT (MASTER) for indexes with IR sensor
