FIREFLY LED

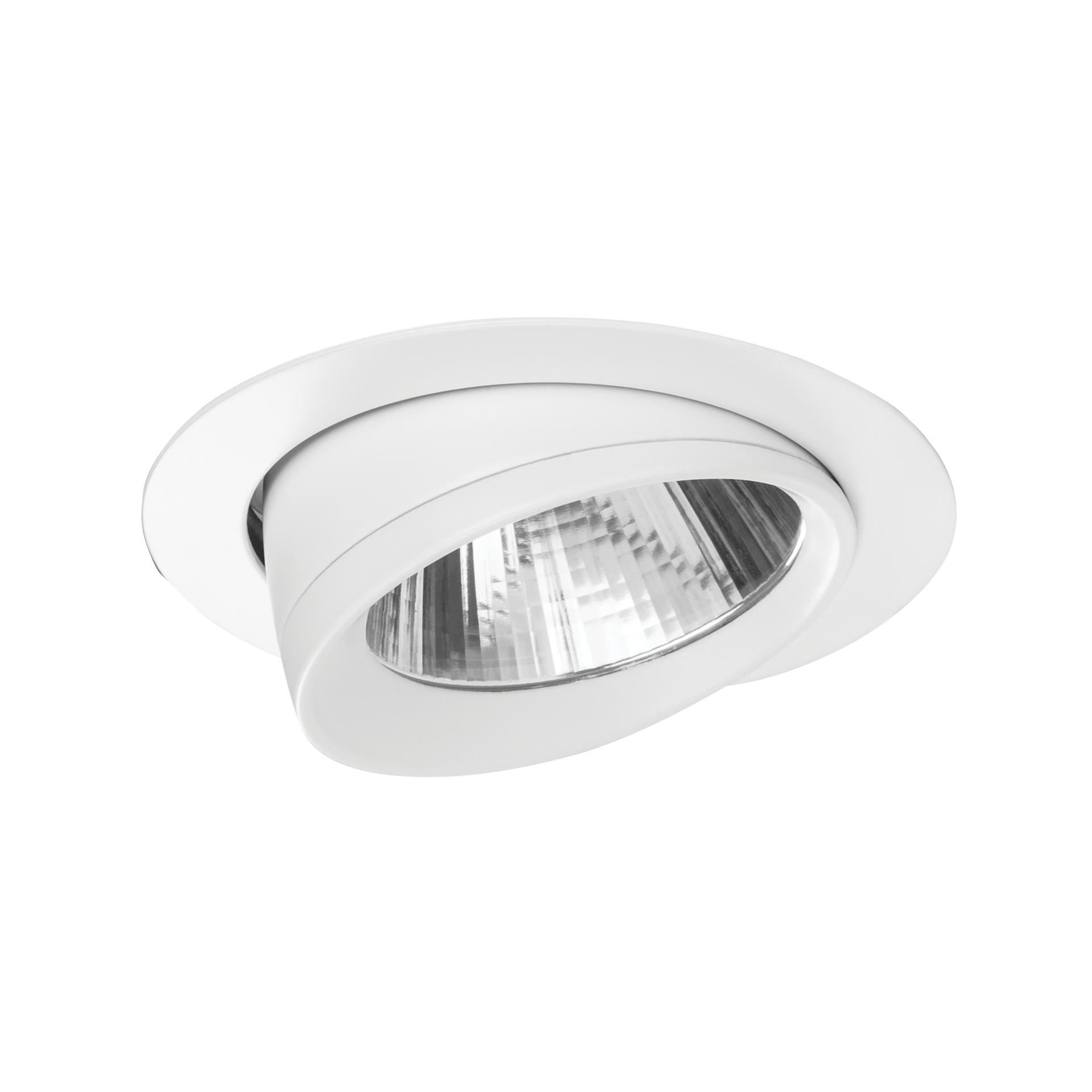

Recessed modern downlight, for LED light sources, for suspended ceilings with adjustable optics.



High efficacy to 100 lm/W

Application

boutiques, delicatessen, jeweler, museums, reception desks, restaurants, supermarkets

Available on request

DALI

Luminous flux range

2250 - 2300 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
in the ceiling, with mounting brackets (included)
Body colour
white
Operating temperature range
0˚C ... +30˚C
Body
high pressure die-cast aluminum

Electrical data

Power supply efficiency
≤86%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
23 - 27
Output current [mA]
600
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
15
Maximum number of luminaires in the circuit with a 16A fuse (B)
25

Optical data

Way of lighting
direct
Colour temperature [K]
3000, 4000
Beam angle
20°, 38°
CRI/Ra
≥80
Lumen luminaire [lm]
2250 - 2300
Efficacy [lm/W]
83 - 100

General data

Lifetime L80B10
40 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxH Mounting dimensions [mm] W Pallet quantity Quantity in package Net weight [kg]
119x125 110 385 1 1
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Beam angle
20°
38°
Clear Filters
Compare Code Type of equipment Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
030381.5L01.31 ED 20° 27 2250 83 3000 ≥80
030381.5L01.32 ED 38° 27 2250 83 3000 ≥80
030381.5L02.31 ED 20° 23 2300 100 4000 ≥80
030381.5L02.32 ED 38° 23 2300 100 4000 ≥80
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
