INTO R160 LED TRIMLESS

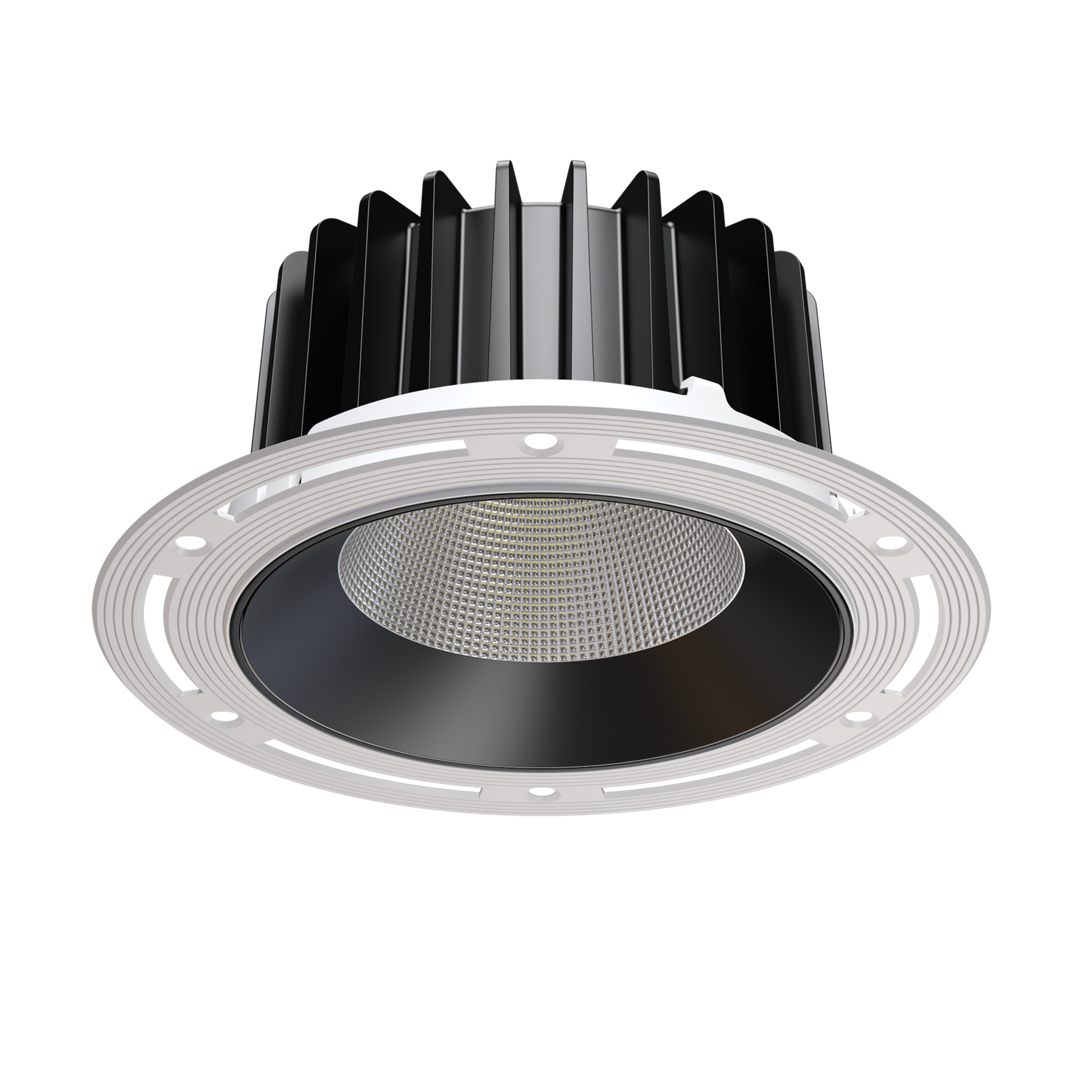

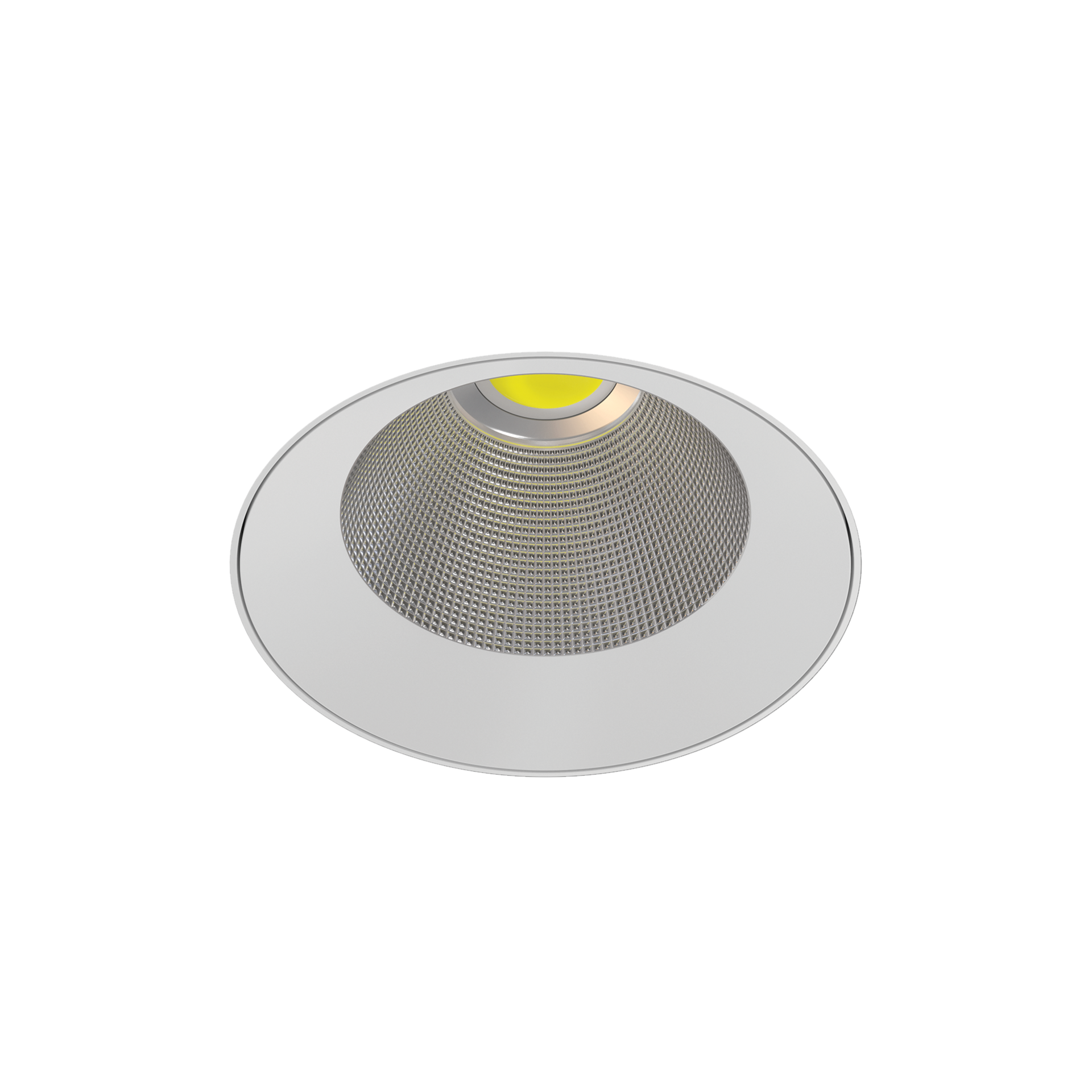

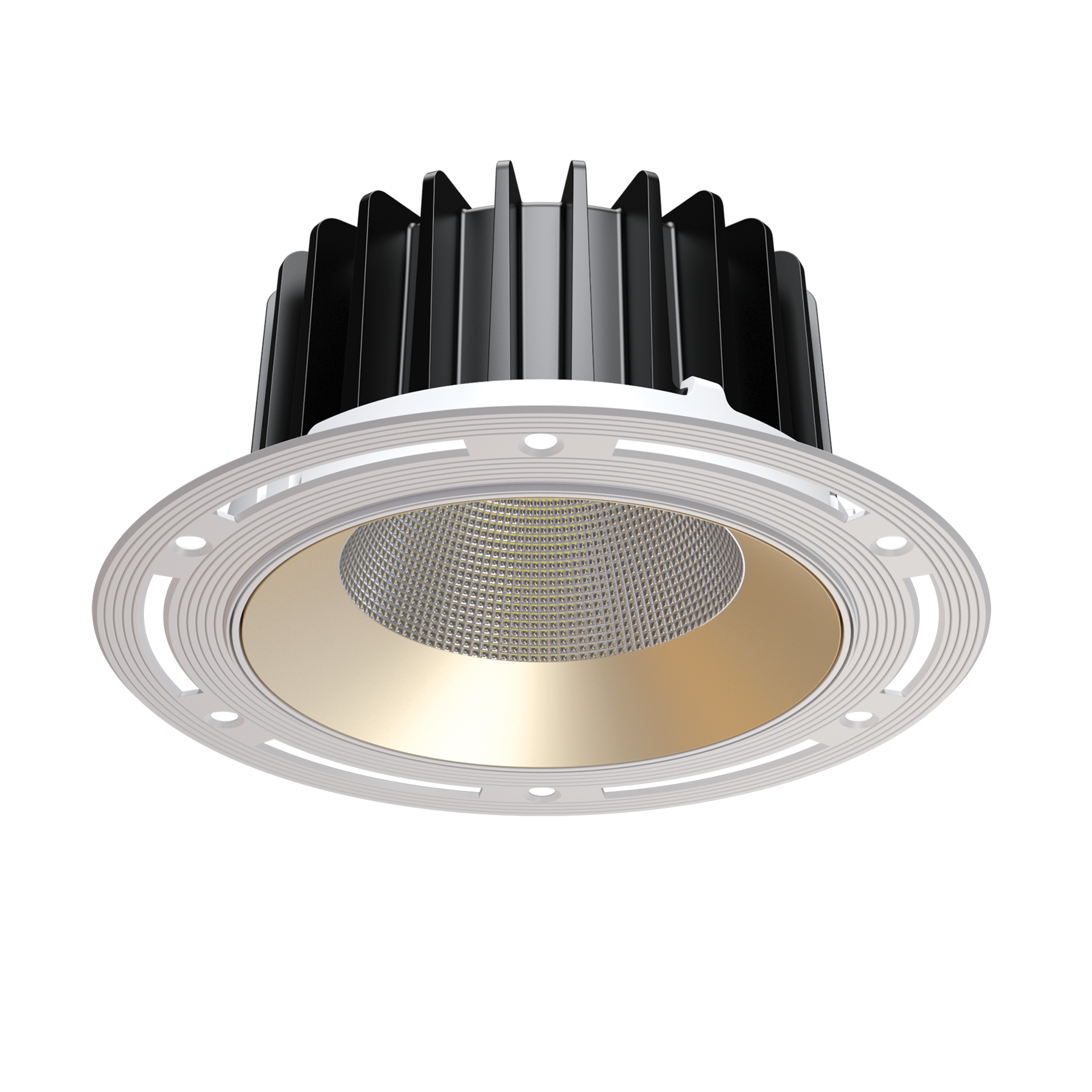

Downlight luminaire suitable for installation in plasterboard ceilings. The luminaire is available in a round version with different angles of light distribution.



High efficacy to 104 lm/W
Passive cooling system
Modern design
Fast and easy mounting
Luminaire body made of aluminum

Application

car showrooms, classrooms, corridors, delicatessen, flats, halls, offices, pathways, public utility facilities, shopping centers, supermarkets

Luminous flux range

2600 - 3550 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting

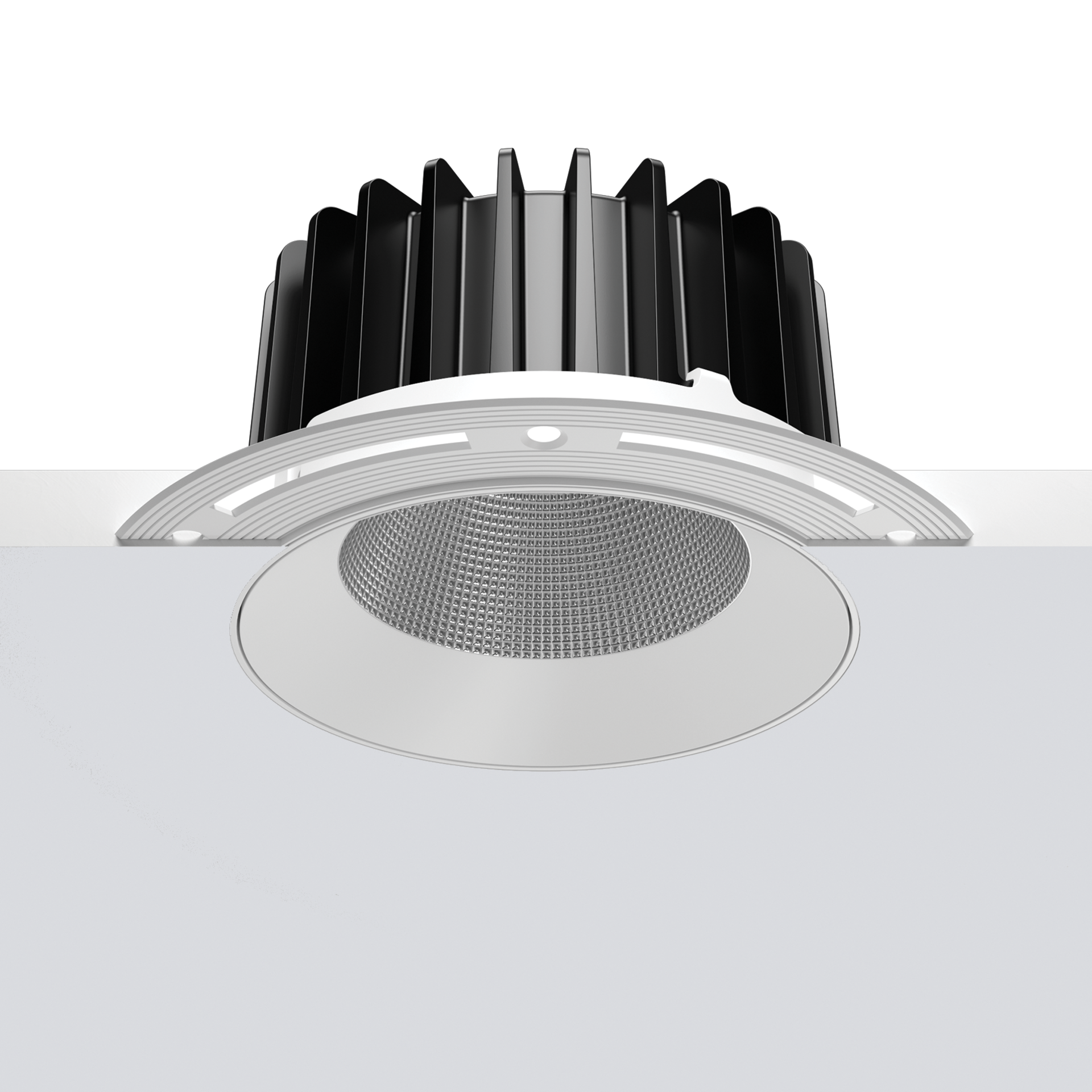

in the ceiling, with mounting frame (included)
Body colour
black, white
Detail
black, gold, silver, white
Operating temperature range
0 ... +35
Body
aluminum

Electrical data

Power supply efficiency
≤92%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
23 - 30
Output current [mA]
700, 900
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
16
Maximum number of luminaires in the circuit with a 16A fuse (B)
25

Optical data

Way of lighting
direct
Colour temperature [K]
3000, 4000
Beam angle
15°, 22°, 45°, 63°
CRI/Ra
≥80
ULOR / DLOR
0/100
Lumen luminaire [lm]
2600 - 3550
Efficacy [lm/W]
112 - 120

General data

Lifetime L80B10
60 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] ØS Pallet quantity Quantity in package Net weight [kg]
135x200x88 147 360 1 0.9
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Beam angle
15°
22°
45°
63°
Detail
black
gold
silver
white
Body colour
black
white
Clear Filters
Compare Code Type of equipment Body colour Detail Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
030561.5L01.411 ED white white 15° 23 2600 113 3000 ≥80 0 ... +35
030561.5L01.413 ED white black 15° 23 2600 113 3000 ≥80 0 ... +35
030561.5L01.414 ED white silver 15° 23 2600 113 3000 ≥80 0 ... +35
030561.5L01.415 ED white gold 15° 23 2600 113 3000 ≥80 0 ... +35
030561.5L01.421 ED white white 22° 23 2600 113 3000 ≥80 0 ... +35
030561.5L01.423 ED white black 22° 23 2600 113 3000 ≥80 0 ... +35
030561.5L01.424 ED white silver 22° 23 2600 113 3000 ≥80 0 ... +35
030561.5L01.425 ED white gold 22° 23 2600 113 3000 ≥80 0 ... +35
030561.5L01.431 ED white white 45° 23 2600 113 3000 ≥80 0 ... +35
030561.5L01.433 ED white black 45° 23 2600 113 3000 ≥80 0 ... +35
Compare selected
Shown 10 / 128
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
