INTO R55 LED
Decorative downlight luminaire, adapted for tool-free assembly, for suspended ceilings, for LED light sources. The luminaire in round version with different angles of light distribution.



High efficacy to 120 lm/W
Passive cooling system
Modern design
Fast and easy mounting

Application

car showrooms, classrooms, corridors, delicatessen, flats, halls, offices, pathways, public utility facilities, shopping centers, supermarkets

Luminous flux range

640 - 720 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
in the ceiling, with mounting brackets (included)
Body colour
black, white
Detail
black, gold, silver, white
Operating temperature range
0 ... +45
Body
aluminum
Type
IP20, IP20/54, IK06

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
6
Output current [mA]
150, 300
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
36
Maximum number of luminaires in the circuit with a 16A fuse (B)
60
Maximum number of luminaires in the circuit with a 25A fuse (B)
100

Optical data

Way of lighting
direct
Diffuser
polycarbonate
Colour temperature [K]
3000, 4000
Beam angle
34°, 45°, 60°
CRI/Ra
≥80
MacAdam's steps
3
Lumen luminaire [lm]
640 - 720
Efficacy [lm/W]
107 - 120
Photobiological risk group
RG1

General data

Additional information
Safe power supply with low voltage SELV
Lifetime L80B10
60 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxH Mounting dimensions [mm] ØS Marking Pallet quantity Quantity in package Net weight [kg]
55x47 48 - 770 1 0.15
60x53 48 IP20/54 770 1 0.16
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Beam angle
34°
45°
60°
Detail
black
gold
silver
white
Body colour
black
white
Degree of water and dust protection
IP20
IP20/54
Clear Filters
Compare Code Degree of water and dust protection Type of equipment Body colour Detail Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K]
030601.3L01.311 IP20 DALI white white 34° 6 700 117 3000
030601.3L01.313 IP20 DALI white black 34° 6 700 117 3000
030601.3L01.314 IP20 DALI white silver 34° 6 700 117 3000
030601.3L01.315 IP20 DALI white gold 34° 6 700 117 3000
030601.3L01.321 IP20 DALI white white 45° 6 720 120 3000
030601.3L01.323 IP20 DALI white black 45° 6 720 120 3000
030601.3L01.324 IP20 DALI white silver 45° 6 720 120 3000
030601.3L01.325 IP20 DALI white gold 45° 6 720 120 3000
030601.3L01.331 IP20 DALI white white 60° 6 720 120 3000
030601.3L01.333 IP20 DALI white black 60° 6 720 120 3000
Compare selected
Shown 10 / 192
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Custom Products

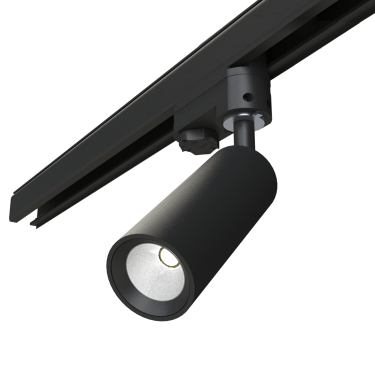

INTO P 55 LED
