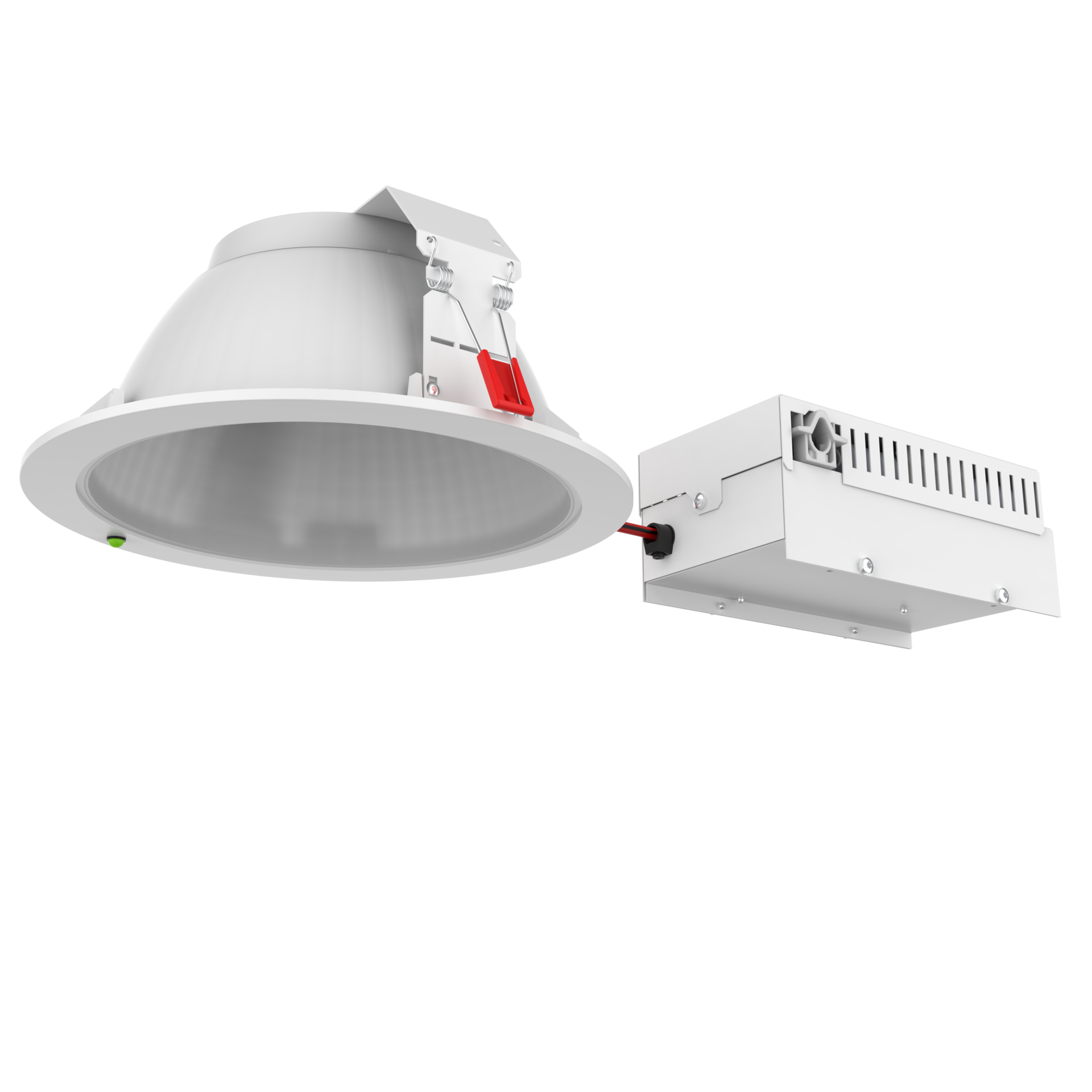

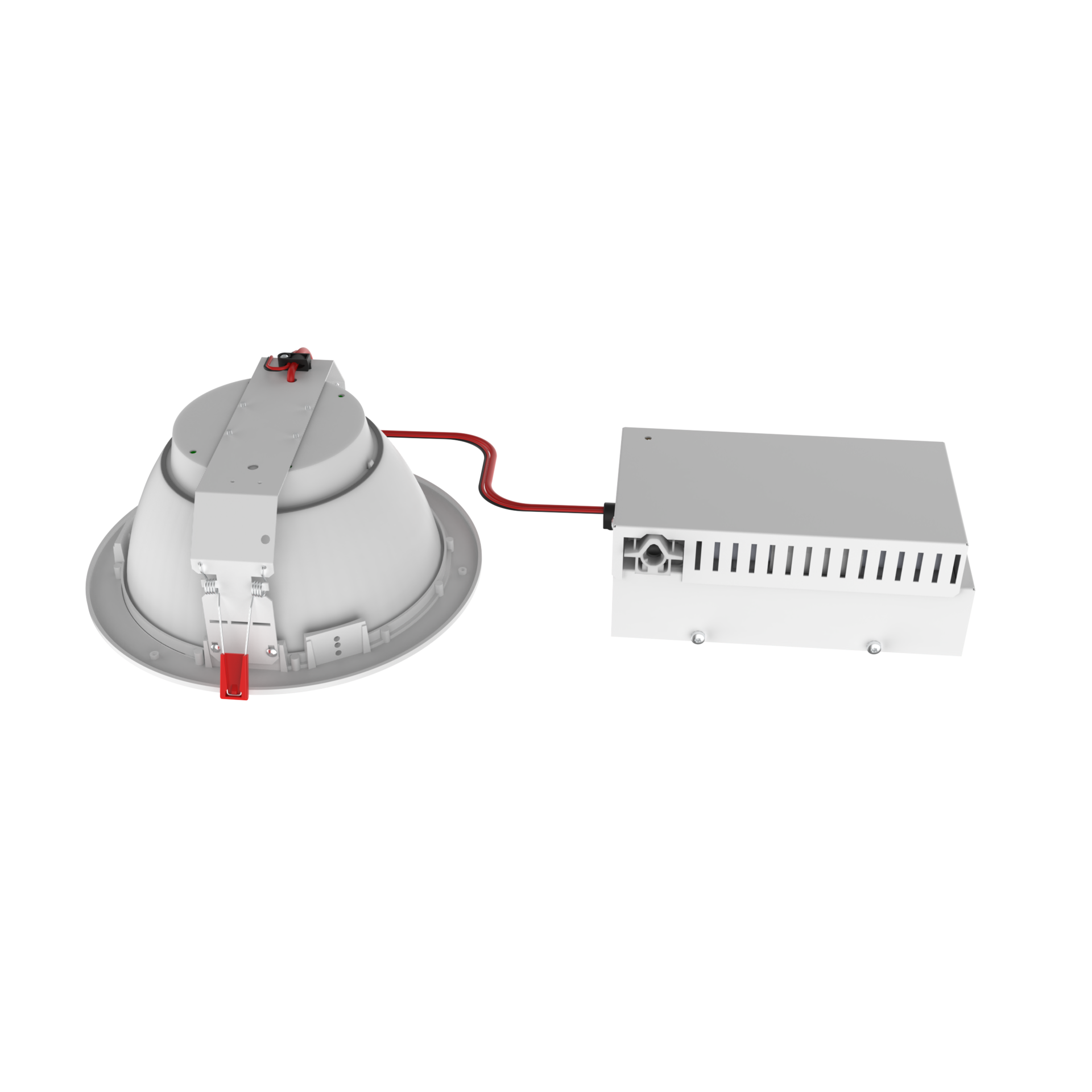

LUGSTAR 3.0
Decorative downlight luminaire for installation in suspended ceilings with IP44 protection level for LED light sources.



High efficacy to 141 lm/W
Fast and easy mounting

Application

galleries, hotels, museums, offices, public utility facilities, shopping centers

Available on request

emergency module

Luminous flux range

1500 - 2650 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
in the ceiling
Body colour
white
Surface finish
matt
Detail
white
Operating temperature range
0 … +35, 0˚C ... +35˚C
RAL
9010
Body
high pressure die-cast aluminum
Type
DALI, ED, EM 3h

Electrical data

Power supply efficiency
≤88%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
11 - 23
Output current [mA]
250, 350, 450
Type of equipment
DALI, ED, EM 3h
Maximum number of luminaires in the circuit with a 10A fuse (B)
38 - 50
Maximum number of luminaires in the circuit with a 16A fuse (B)
60 - 80
Maximum number of luminaires in the circuit with a 25A fuse (B)
91

Optical data

Way of lighting
direct
Type of optic
reflector
Diffuser
opal smooth (PLX)
Colour temperature [K]
3000, 4000
Beam angle
79°
CRI/Ra
≥80
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
1500 - 2650
Efficacy [lm/W]
111 - 141
Photobiological risk group
RG0
Number of LEDs
90

General data

Additional information
Safe power supply with low voltage SELV
Lifetime L80B10
100 000 h
Warranty
ED, DALI - 5 years; EM - 3 years

Dimensions

Dimensions [mm] WxH Mounting dimensions [mm] W Pallet quantity Quantity in package Net weight [kg]
240x110 215 132 1 0.615
240x110 215 104 1 2
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
EM 3h
Protection Class
I
II
Clear Filters
Compare Code Type of equipment Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Light output in emergency mode [lm] Colour temperature [K] Protection Class CRI/Ra Operating temperature range
030751.3L01.30 DALI 79° 11 1500 136 3000 II ≥80 0 … +35
030751.3L02.30 DALI 79° 11 1550 141 4000 II ≥80 0 … +35
030751.3L03.30 DALI 79° 16 2000 125 3000 II ≥80 0 … +35
030751.3L04.30 DALI 79° 16 2100 131 4000 II ≥80 0 … +35
030751.3L05.30 DALI 79° 21 2550 121 3000 II ≥80 0 … +35
030751.3L06.30 DALI 79° 21 2650 126 4000 II ≥80 0 … +35
030751.5L01.30 ED 79° 11 1500 136 3000 II ≥80 0 … +35
030751.5L01B.30 EM 3h 79° 13 1500 115 325 3000 I ≥80 0˚C ... +35˚C
030751.5L02.30 ED 79° 11 1550 141 4000 II ≥80 0 … +35
030751.5L02B.30 EM 3h 79° 13 1550 119 325 4000 I ≥80 0˚C ... +35˚C
Compare selected
Shown 10 / 18
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
