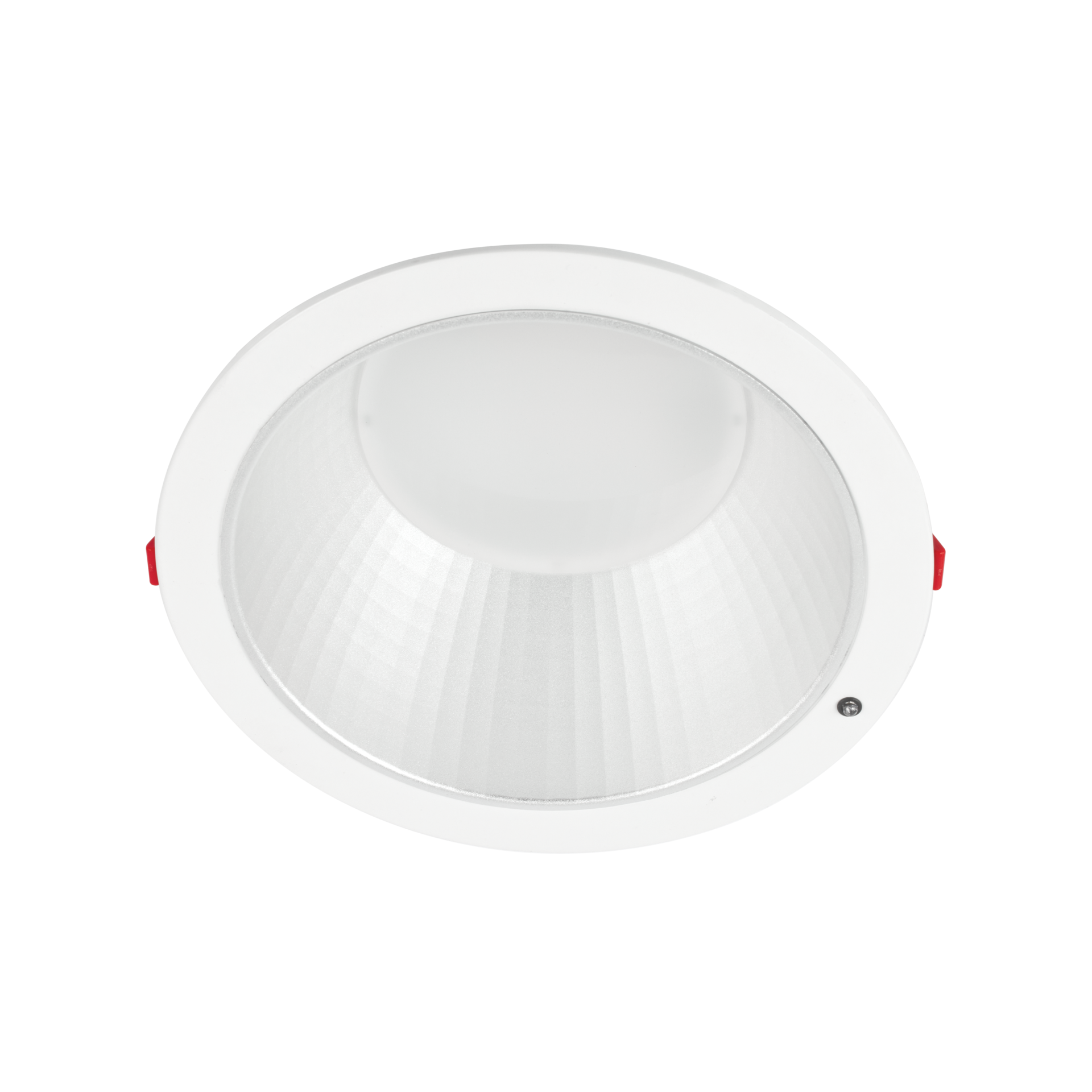

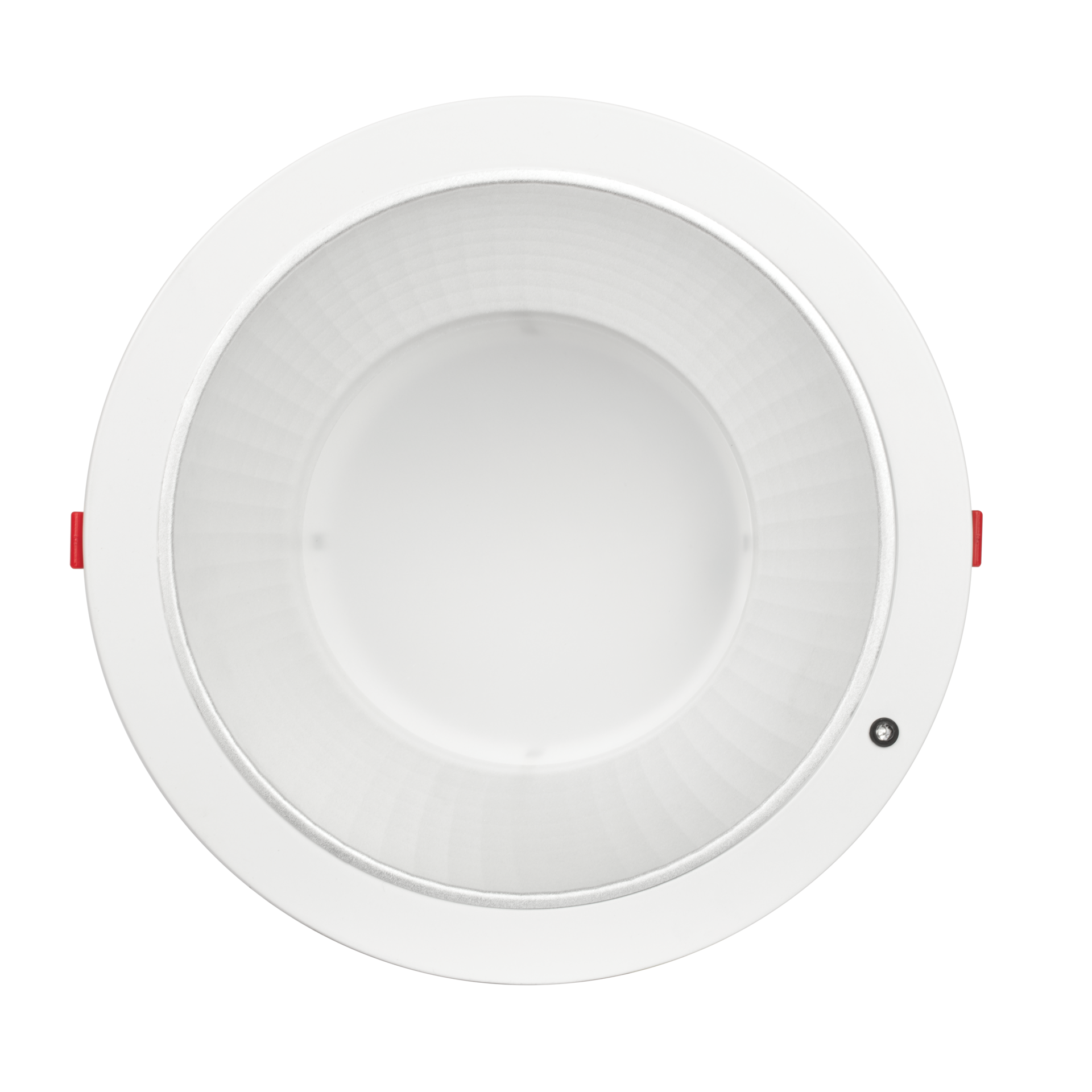

LUGSTAR LB LED AW 3h
Decorative downlight luminaire for suspended ceilings, degree of water and dust-proof IP20 and IP44, for LED light sources, UGR<19 (selected models).



High efficacy to 106 lm/W
Perfect combination of aesthetics and ergonomics
Universal design
Fast and easy mounting
Maintenance-free operation

Application

exhibitions, exhibitions, flats, galleries, hotels, museums, offices, public utility facilities, shopping centers

Luminous flux range

2050 - 2700 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
in the ceiling, with mounting brackets (included)
Body colour
white
Operating temperature range
0˚C ... +35˚C
RAL
9010
Body
aluminum

Electrical data

Power supply efficiency
≤89%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
20 - 26
Output current [mA]
200, 220
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
50
Maximum number of luminaires in the circuit with a 16A fuse (B)
90

Optical data

Way of lighting
direct
Colour temperature [K]
3000, 4000
Beam angle
70°
CRI/Ra
≥80
Lumen luminaire [lm]
2050 - 2700
Efficacy [lm/W]
103 - 104

General data

Other remarks
3h emergency module
Lifetime L80B10
50 000 h
Warranty
3 years

Dimensions

Dimensions [mm] WxH Mounting dimensions [mm] W Pallet quantity Quantity in package Net weight [kg]
240x110 215 104 1 2
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Type of equipment Replacement of conventional technology [W] Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Emergency operating time Light output in emergency mode [lm]
300031.00025B ED 2x18W (48W) 20 2050 103 3000 ≥80 3h 300
300031.00026B ED 2x18W (48W) 20 2050 103 4000 ≥80 3h 300
300031.00027B ED 2x26W (64W) 26 2700 104 3000 ≥80 3h 300
300031.00028B ED 2x26W (64W) 26 2700 104 4000 ≥80 3h 300
300031.00029B ED 2x18W (48W) 20 2050 103 3000 ≥80 3h 300
300031.00030B ED 2x18W (48W) 20 2050 103 4000 ≥80 3h 300
300031.00031B ED 2x26W (64W) 26 2700 104 3000 ≥80 3h 300
300031.00032B ED 2x26W (64W) 26 2700 104 4000 ≥80 3h 300
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
