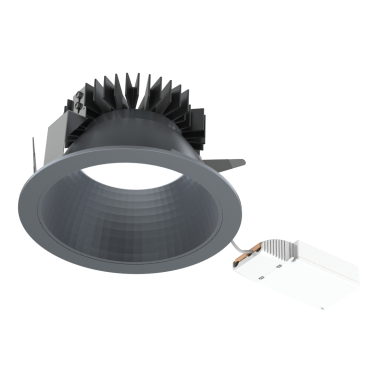

LUGSTAR LB LED DALI

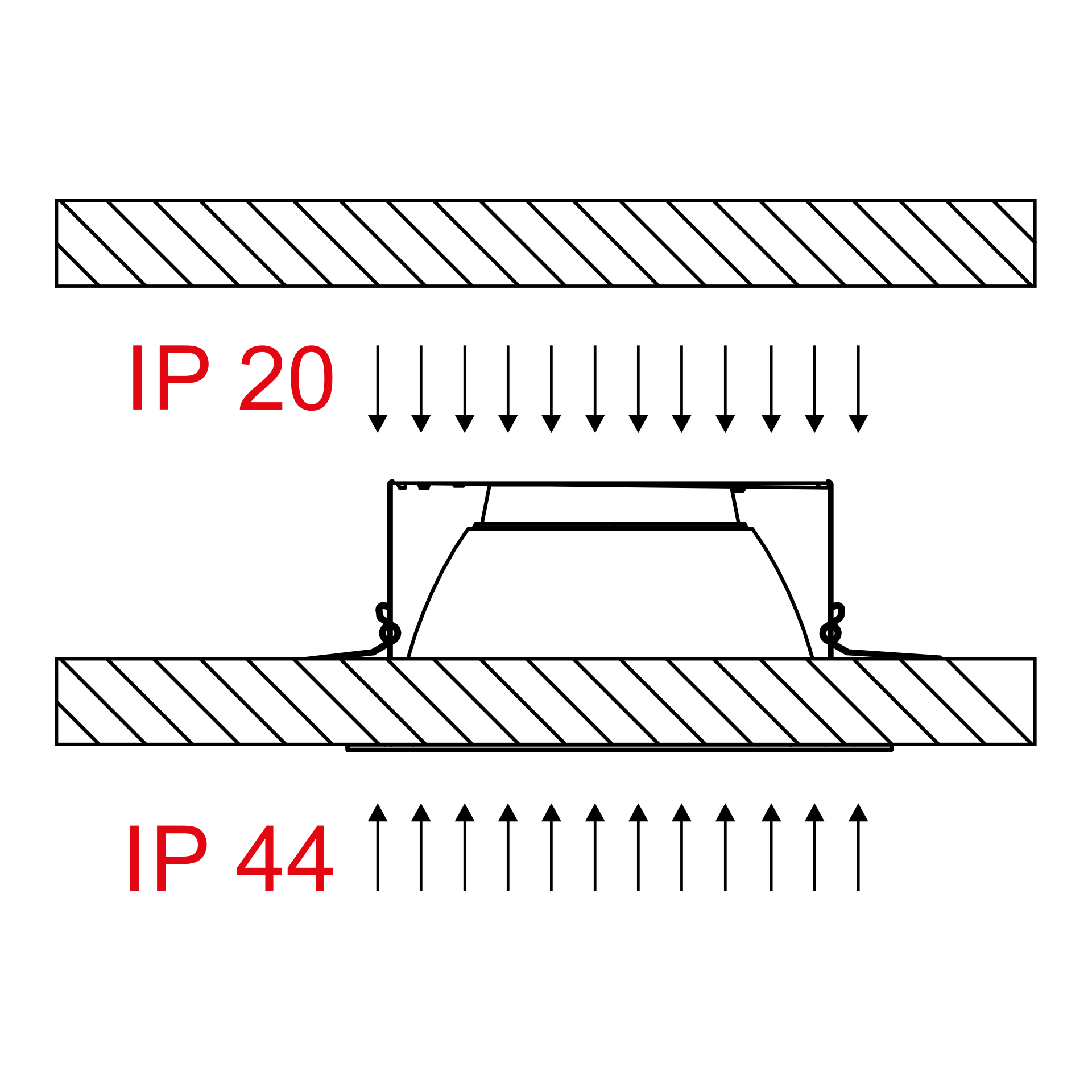

Decorative downlight luminaire for suspended ceilings, degree of water and dust-proof IP20 and IP44, for LED light sources, UGR<19 (selected models).

High efficacy to 104 lm/W

Perfect combination of aesthetics and ergonomics

Universal design

Fast and easy mounting

Maintenance-free operation

Application

exhibitions, exhibitions, flats, galleries, hotels, museums, offices, public utility facilities, shopping centers

Luminous flux range

2050 - 2900 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting

in the ceiling, with mounting brackets (included)

Body colour

white

Operating temperature range

0˚C ... +45˚C

RAL

9010

Body

aluminum

Electrical data

Power supply efficiency

≤89%

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

18 - 26

Output current [mA]

700

Type of equipment

DALI

Maximum number of luminaires in the circuit with a 10A fuse (B)

Maximum number of luminaires in the circuit with a 16A fuse (B)

Optical data

Way of lighting

direct

Colour temperature [K]

3000, 4000

Beam angle

70°

CRI/Ra

≥80

Lumen luminaire [lm]

2050 - 2900

Efficacy [lm/W]

112 - 114

General data

Lifetime L80B10

50 000 h

Warranty

3 years

Dimensions

Dimensions [mm] WxH	Mounting dimensions [mm] W	Pallet quantity	Quantity in package	Net weight [kg]
240x105	215	132	1	0.7

Available variants

Code	Type of equipment	Replacement of conventional technology [W]	Degree of water and dust protection	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra
300031.00033	DALI	2x18W (48W)	IP20	18	2050	114	3000	≥80
300031.00034	DALI	2x18W (48W)	IP20	18	2050	114	4000	≥80
300031.00035	DALI	2x26W (64W)	IP20	26	2900	112	3000	≥80
300031.00036	DALI	2x26W (64W)	IP20	26	2900	112	4000	≥80
300031.00037	DALI	2x18W (48W)	IP20/44	18	2050	114	3000	≥80
300031.00038	DALI	2x18W (48W)	IP20/44	18	2050	114	4000	≥80
300031.00039	DALI	2x26W (64W)	IP20/44	26	2900	112	3000	≥80
300031.00040	DALI	2x26W (64W)	IP20/44	26	2900	112	4000	≥80

Compare selected

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
