LUGSTAR LB LED GEN.2 p/t 5000K

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact
Other parameters available View variants

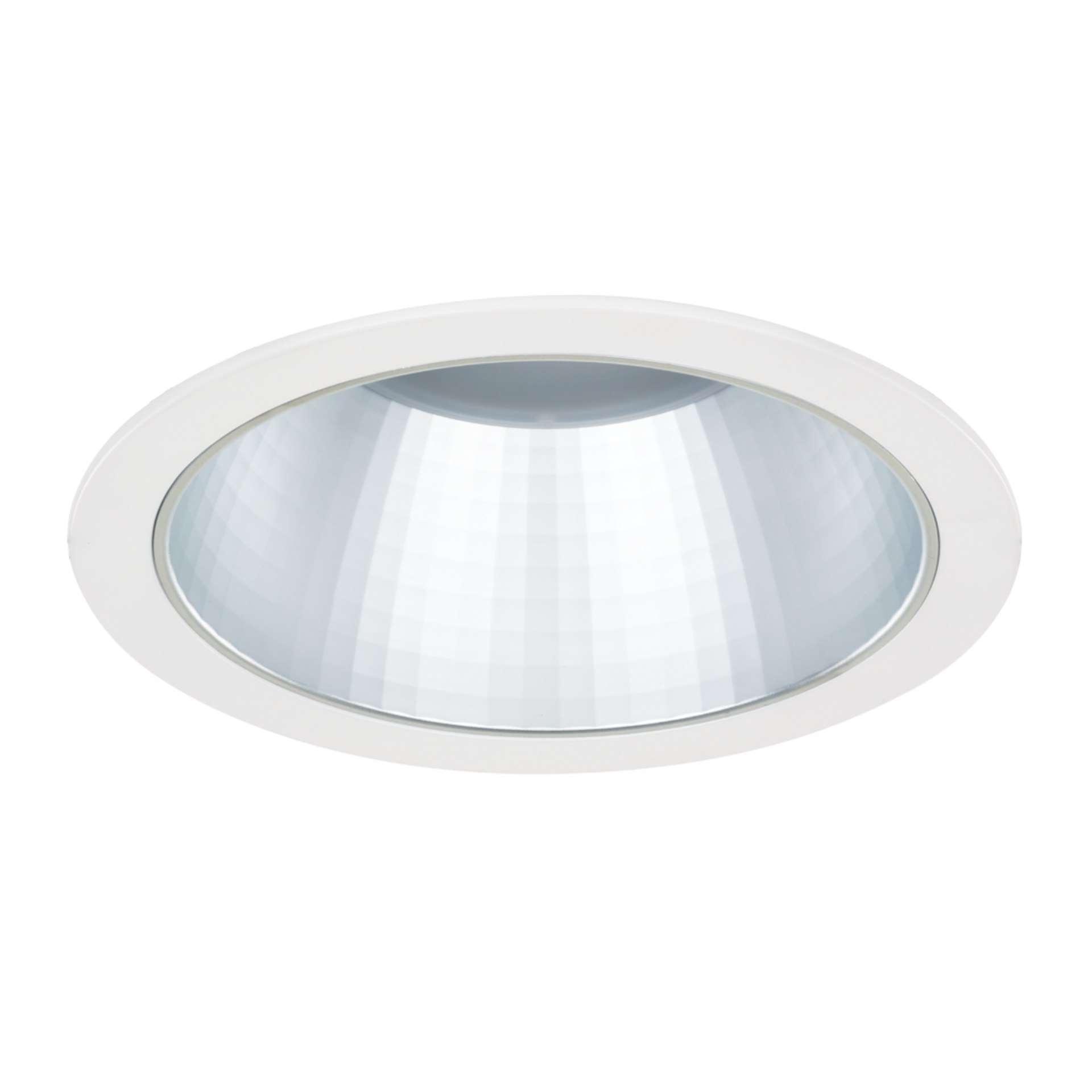

LUGSTAR LB LED GEN.2 p/t 5000K
Decorative downlight luminaire for suspended ceilings, degree of water and dust-proof IP20, for LED light sources. Luminaire with mat glass, without mounting screws. Modification to color temperature 5000K.



Perfect combination of aesthetics and ergonomics
Universal design
Fast and easy mounting
Maintenance-free operation

Application

exhibitions, exhibitions, galleries, hotels, museums, offices, public utility facilities, shopping centers

Luminous flux range

2500 - 4100 [lm]

Variable color temperature

5000 [K]

Mechanical data

Mounting
in the ceiling, with mounting brackets (included)
Body colour
white
Operating temperature range
0 … +35
Body
aluminum

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
24 - 44
Output current [mA]
200, 900
Type of equipment
ED

Optical data

Way of lighting
direct
Diffuser
polycarbonate
Colour temperature [K]
5000
Beam angle
70°
CRI/Ra
≥80
Lumen luminaire [lm]
2500 - 4100
Efficacy [lm/W]
93 - 104

General data

Additional information
diffuser - transparent polycarbonate
Lifetime L70B50
50 000 h
Warranty
3 years

Dimensions

Dimensions [mm] WxH Mounting dimensions [mm] W Pallet quantity Quantity in package Net weight [kg]
240x136 215 132 1 1
240x140 215 132 1 0.7
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Protection Class
I
II
Clear Filters
Compare Code Replacement of conventional technology [W] Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Degree of water and dust protection IK
903031.00170 2x42W (102W) 44 4100 93 5000 ≥80 IP20 IK07
903031.00173 2x26W (64W) 24 2500 104 5000 ≥80 IP20 IK07
Compare selected
Luminous flux tolerance +/- 10%.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150100.00921
Mounting plate for ceilings with low mechanical durability
