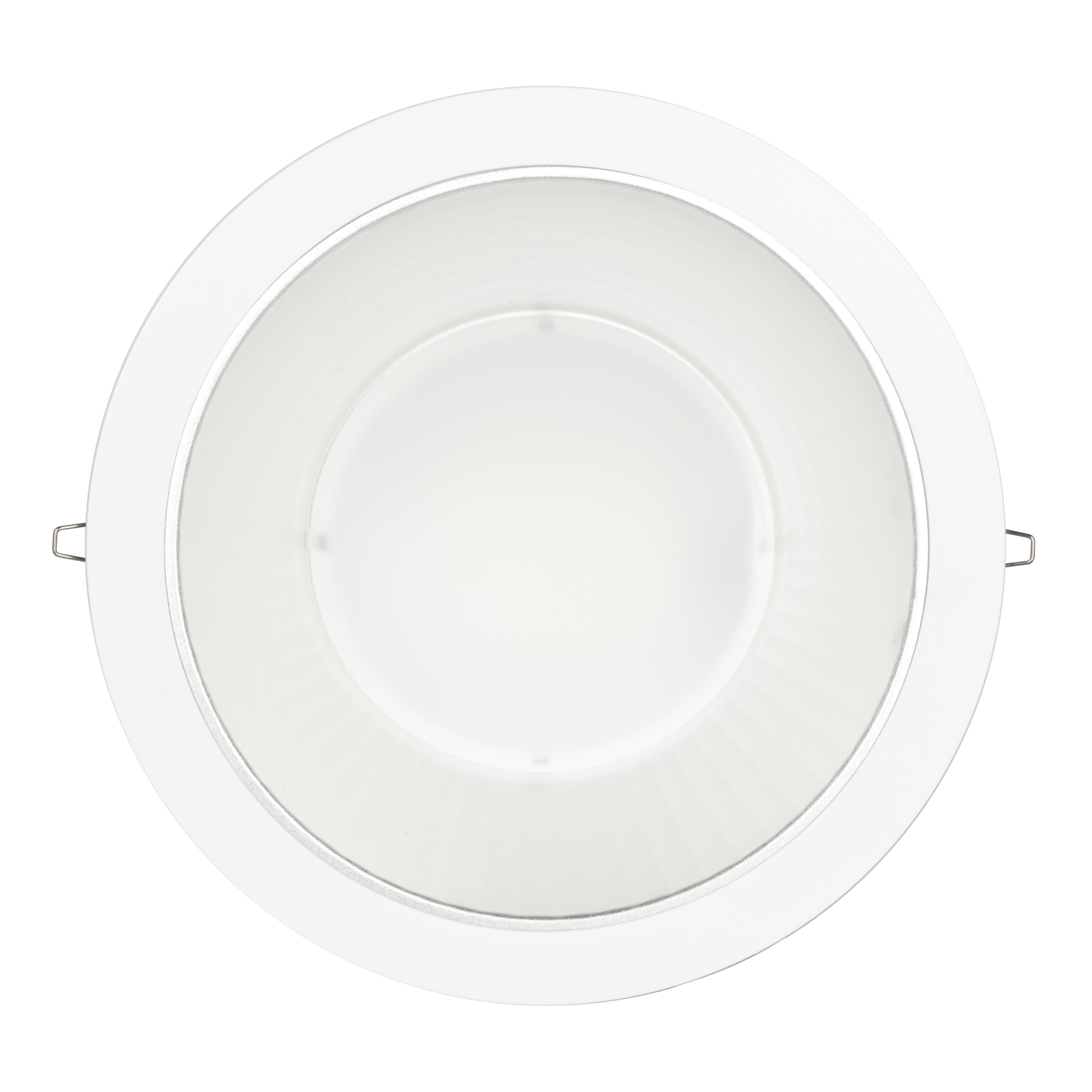

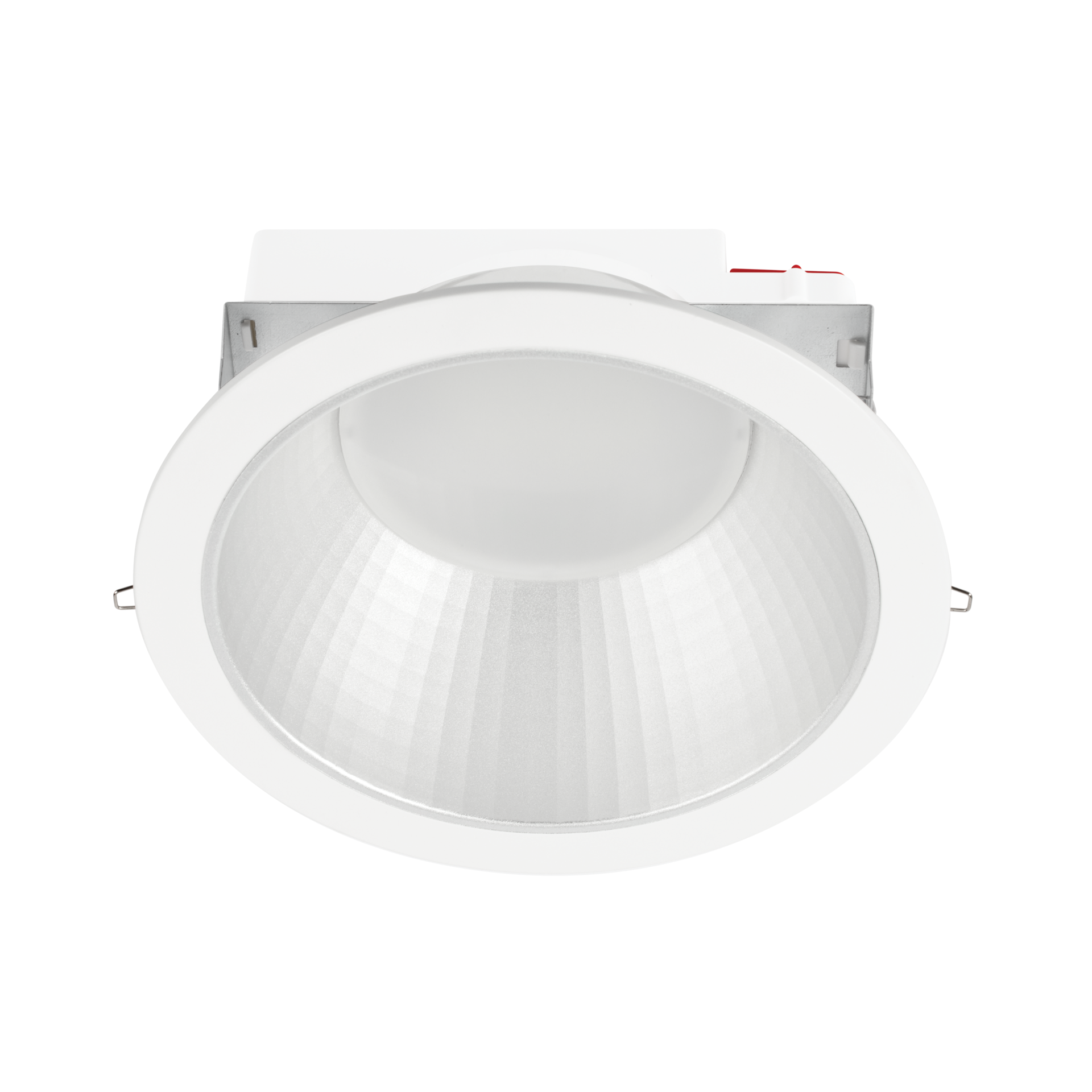

LUGSTAR LB LED GEN.2 p/t REDUCED FLUX

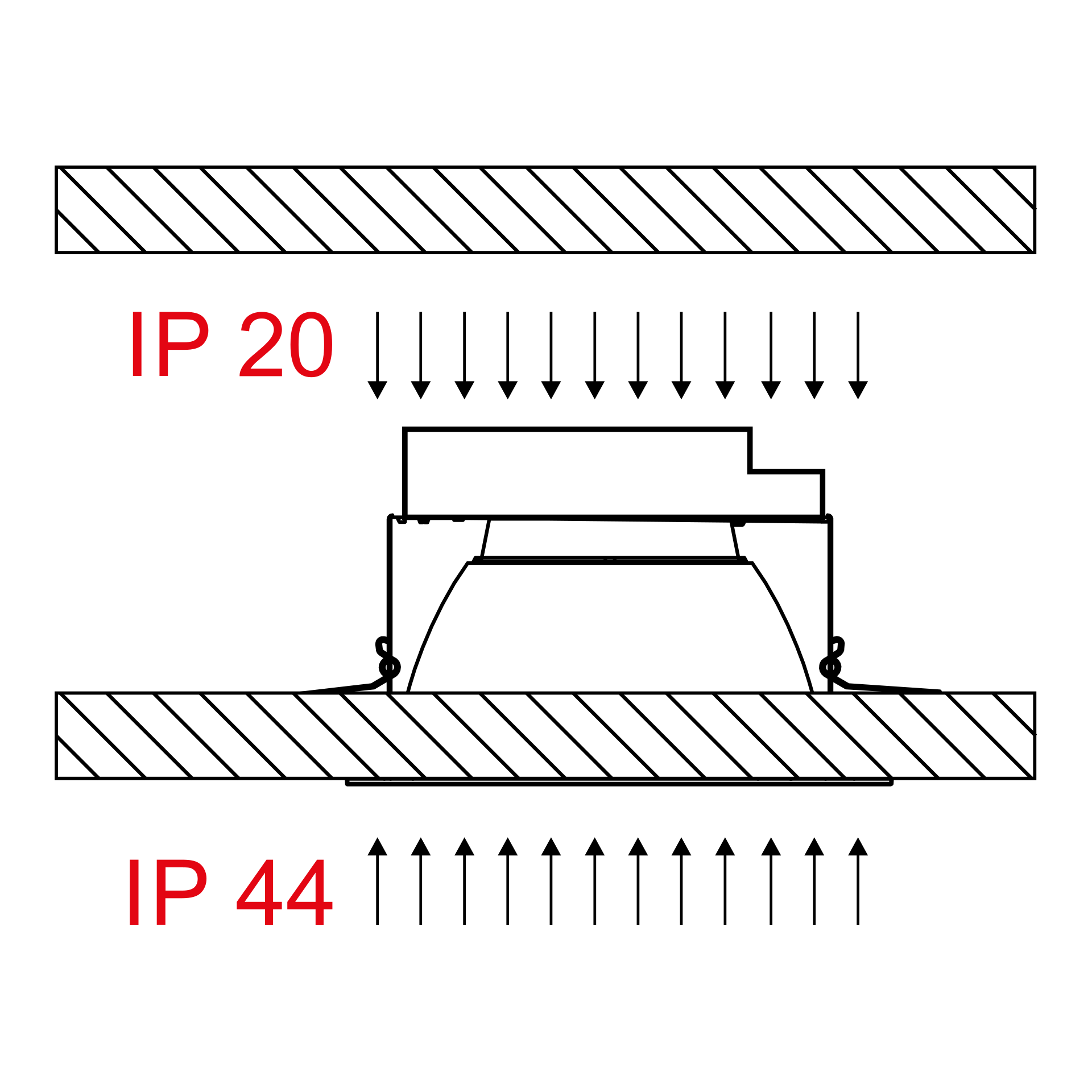

Decorative downlight luminaire for suspended ceilings, degree of water and dust-proof IP20 and IP44. The subject of modification is a luminaire with a reduced luminous flux.

Perfect combination of aesthetics and ergonomics

Universal design

Fast and easy mounting

Maintenance-free operation

Application

exhibitions, exhibitions, galleries, hotels, museums, offices, public utility facilities, shopping centers

Luminous flux range

900 - 1020 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting

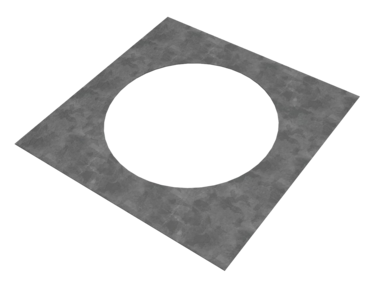

in the ceiling, with mounting brackets (included)

Body colour

white

Operating temperature range

0 … +35

RAL

9010

Body

aluminum

Electrical data

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

10 - 14

Type of equipment

Optical data

Way of lighting

direct

Colour temperature [K]

3000, 4000

Beam angle

70°

CRI/Ra

≥80

Lumen luminaire [lm]

900 - 1020

Efficacy [lm/W]

64 - 100

General data

Lifetime L80B10

50 000 h

Warranty

3 years

Dimensions

Dimensions [mm] WxH	Mounting dimensions [mm] W	Pallet quantity	Quantity in package	Net weight [kg]
240x140	215	132	1	0.7

Available variants

Code	Degree of water and dust protection	Beam angle	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Operating temperature range	Electrical connection
903031.00140	IP44	70°	14	900	64	4000	≥80	0 … +35	max 3x2,5 mm² wire
903031.00231	IP44	70°	10	1000	100	3000	≥80	0 … +35	WIELAND white GST18i3 plug
903031.00245	IP20/44	70°	12	1020	85	3000	≥80	0 … +35	WIELAND white GST18i3 plug
903031.00294	IP20	70°	11	950	86	3000	≥80	0 … +35	WIELAND white GST18i3 plug

Compare selected

Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.

Download Materials

Select and download the materials you are interested in

Product sheet

PDF (498.0KB)

Declarations and certificates

ZIP (976.3KB)

Download selected
