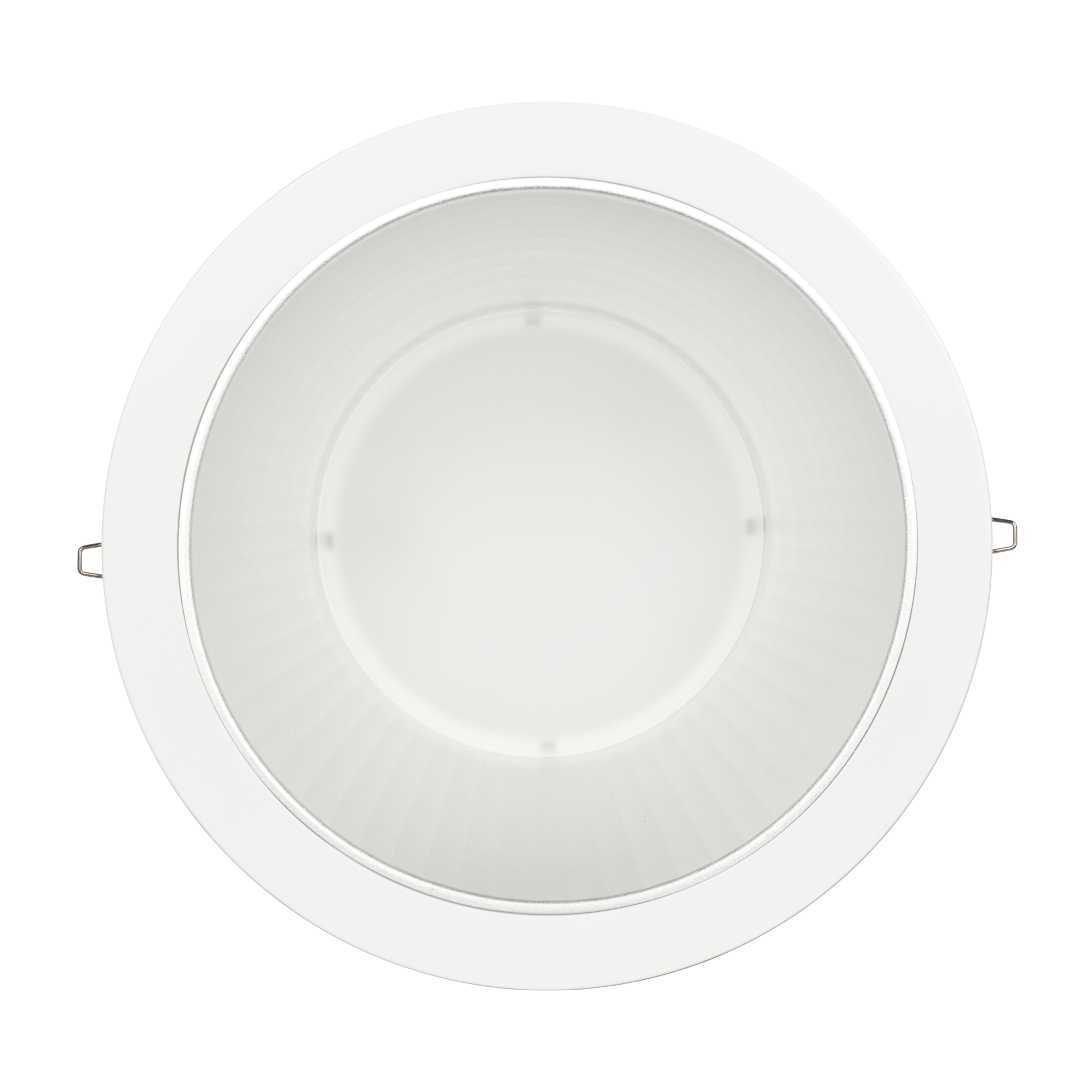

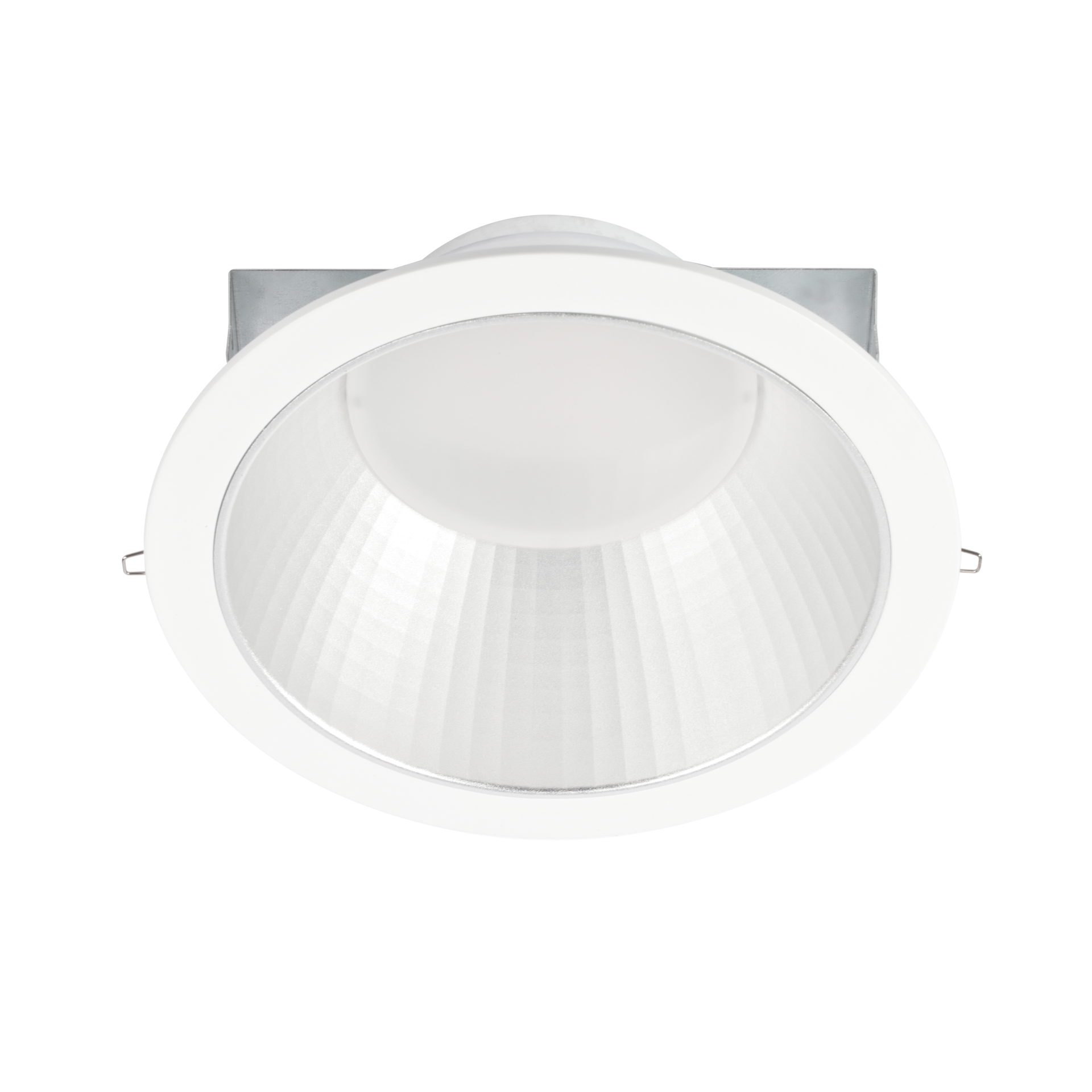

LUGSTAR LB LED RAL 9010 MAT
Decorative downlight luminaire for suspended ceilings, degree of water and dust-proof IP20 and IP44, for LED light sources, UGR<19 (selected models). The subject of the modification is the execution of the luminaire in RAL 9010 MAT.



High efficacy to 106 lm/W
Perfect combination of aesthetics and ergonomics
Universal design
Fast and easy mounting
Maintenance-free operation

Application

exhibitions, exhibitions, galleries, hotels, museums, offices, public utility facilities, shopping centers

Luminous flux range

1900 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
in the ceiling, with mounting brackets (included)
Body colour
white
Operating temperature range
0 ... +28, 0 ... +45
RAL
9010
Body
aluminum

Electrical data

Power supply efficiency
>89%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
18
Type of equipment
DALI, ED

Optical data

Way of lighting
direct
Diffuser
polycarbonate
Colour temperature [K]
4000
Beam angle
70°
CRI/Ra
≥80
Lumen luminaire [lm]
1900
Efficacy [lm/W]
106

General data

Additional information
The maximum number of luminaires in the circuit for the fuse 10A (B): 45 (DALI) / 50 (ED). The maximum number of luminaires in the circuit for the fuse 16A (B): 80 (DALI) / 90 (ED)
Lifetime L70B50
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxH Mounting dimensions [mm] W Pallet quantity Quantity in package Net weight [kg]
240x105 215 132 1 0.7
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
Protection Class
I
II
Degree of water and dust protection
IP20
IP20/44
Clear Filters
Compare Code Replacement of conventional technology [W] Degree of water and dust protection Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
300030.00163 2x18W (48W) IP20 DALI 18 1900 106 4000 ≥80 0 ... +45
300030.00164 2x18W (48W) IP20/44 ED 18 1900 106 4000 ≥80 0 ... +28
Compare selected
Luminous flux tolerance +/- 10%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Colour temperature tolerance +/- 5%.
