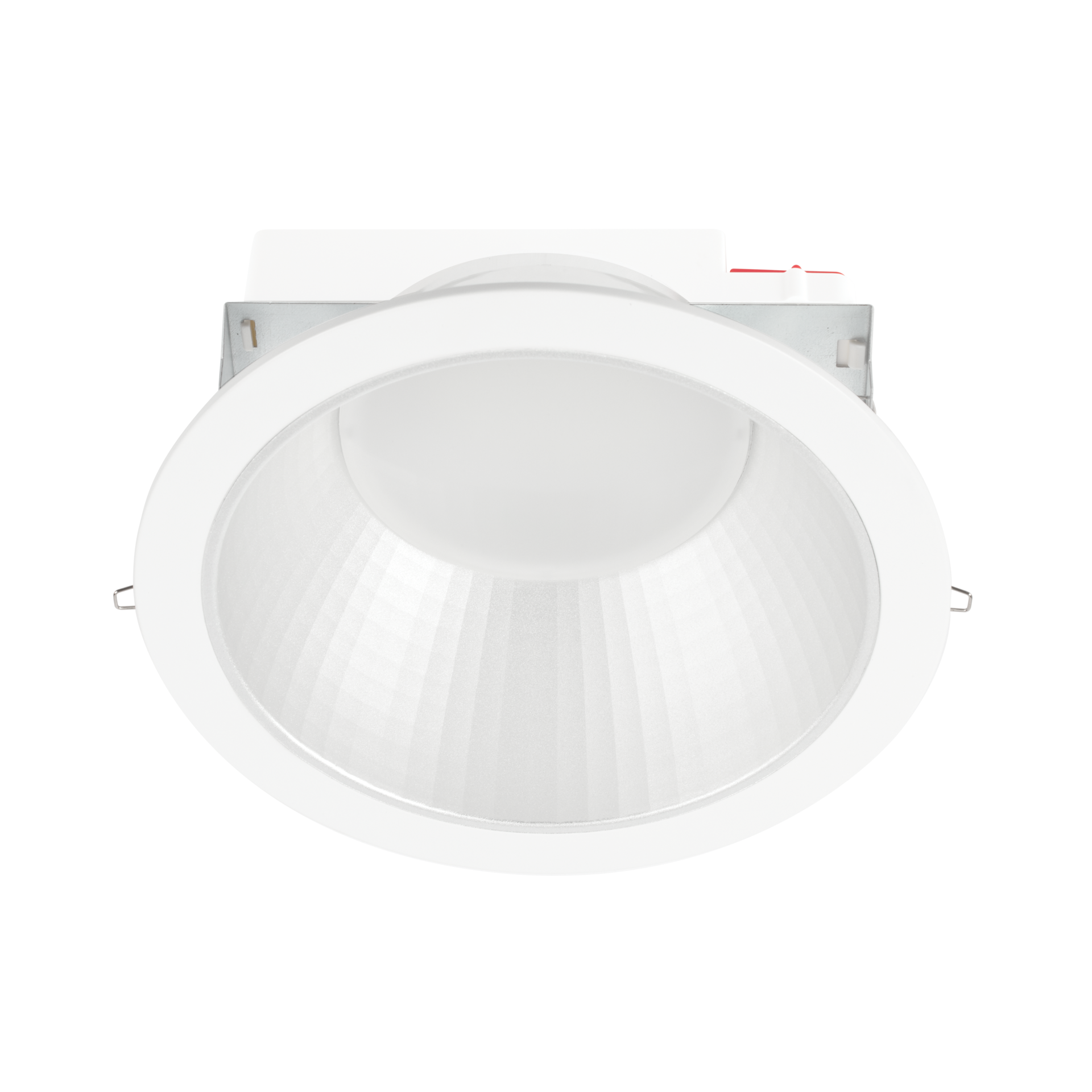

LUGSTAR LB LED WIELAND
Decorative downlight luminaire for suspended ceilings, degree of water and dust-proof IP20 and IP44, for LED light sources, UGR<19 (selected models), featuring Wieland plug.



High efficacy to 106 lm/W
Perfect combination of aesthetics and ergonomics
Universal design
Fast and easy mounting
Maintenance-free operation

Application

exhibitions, exhibitions, flats, galleries, hotels, museums, offices, public utility facilities, shopping centers

Available on request

LED emergency module

Luminous flux range

2050 - 2700 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
in the ceiling, with mounting brackets (included)
Body colour
white
Operating temperature range
0 … +35
RAL
9010
Body
aluminum

Electrical data

Power supply efficiency
≤89%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
18 - 24
Output current [mA]
200, 220
Type of equipment
WIELAND connector
Maximum number of luminaires in the circuit with a 10A fuse (B)
50
Maximum number of luminaires in the circuit with a 16A fuse (B)
90

Optical data

Way of lighting
direct
Colour temperature [K]
3000, 4000
Beam angle
70°
CRI/Ra
≥80
Lumen luminaire [lm]
2050 - 2700
Efficacy [lm/W]
113 - 114

General data

Lifetime L80B10
50 000 h
Warranty
3 years

Dimensions

Dimensions [mm] WxH Mounting dimensions [mm] W Pallet quantity Quantity in package Net weight [kg]
240x140 215 132 1 0.7
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Type of equipment Replacement of conventional technology [W] Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range IK
300031.00017 WIELAND connector 2x18W (48W) 18 2050 114 3000 ≥80 0 … +35 IK07
300031.00018 WIELAND connector 2x18W (48W) 18 2050 114 4000 ≥80 0 … +35 IK07
300031.00019 WIELAND connector 2x26W (64W) 24 2700 113 3000 ≥80 0 … +35 IK07
300031.00020 WIELAND connector 2x26W (64W) 24 2700 113 4000 ≥80 0 … +35 IK07
300031.00021 WIELAND connector 2x18W (48W) 18 2050 114 3000 ≥80 0 … +35 IK07
300031.00022 WIELAND connector 2x18W (48W) 18 2050 114 4000 ≥80 0 … +35 IK07
300031.00023 WIELAND connector 2x26W (64W) 24 2700 113 3000 ≥80 0 … +35 IK07
300031.00024 WIELAND connector 2x26W (64W) 24 2700 113 4000 ≥80 0 … +35 IK07
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
