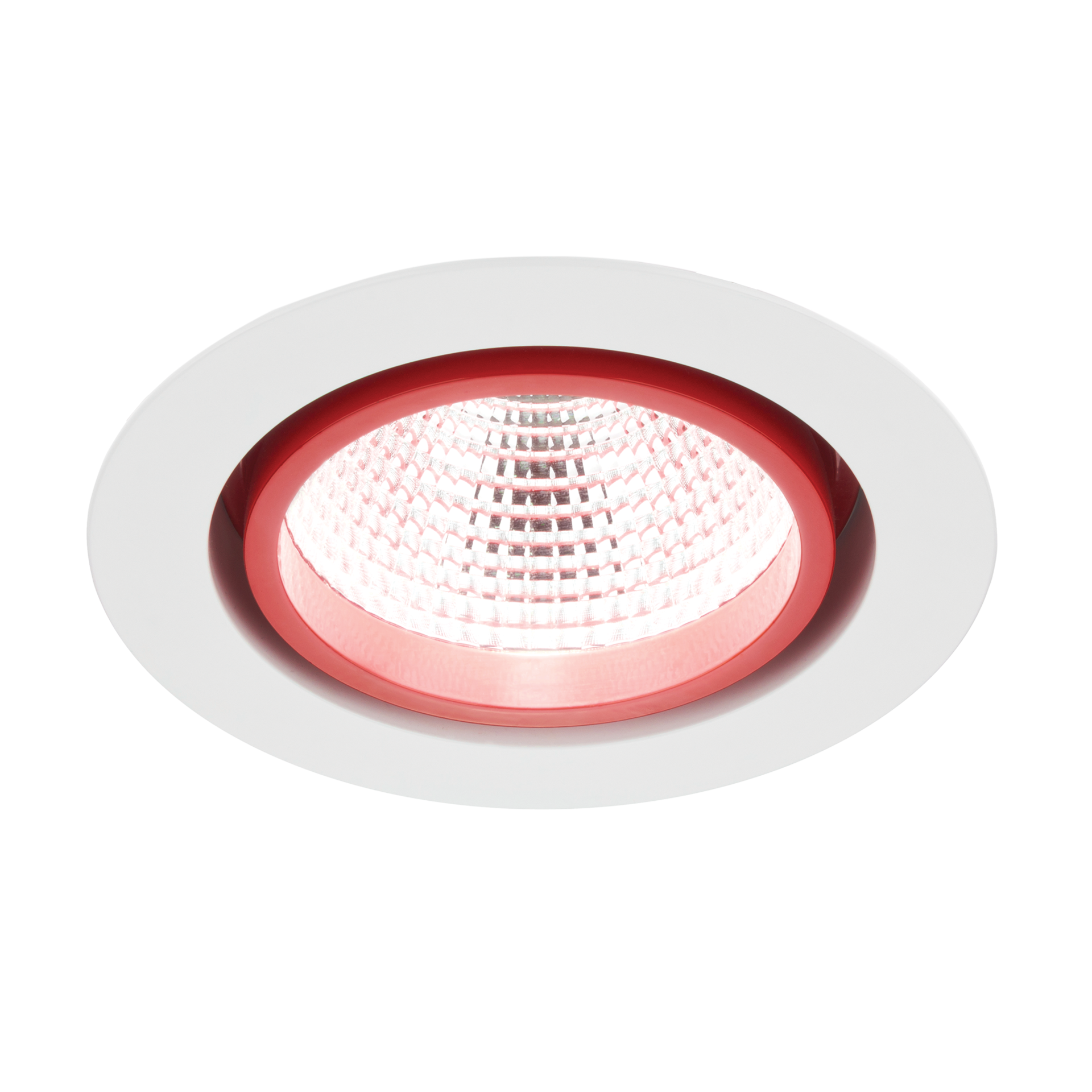

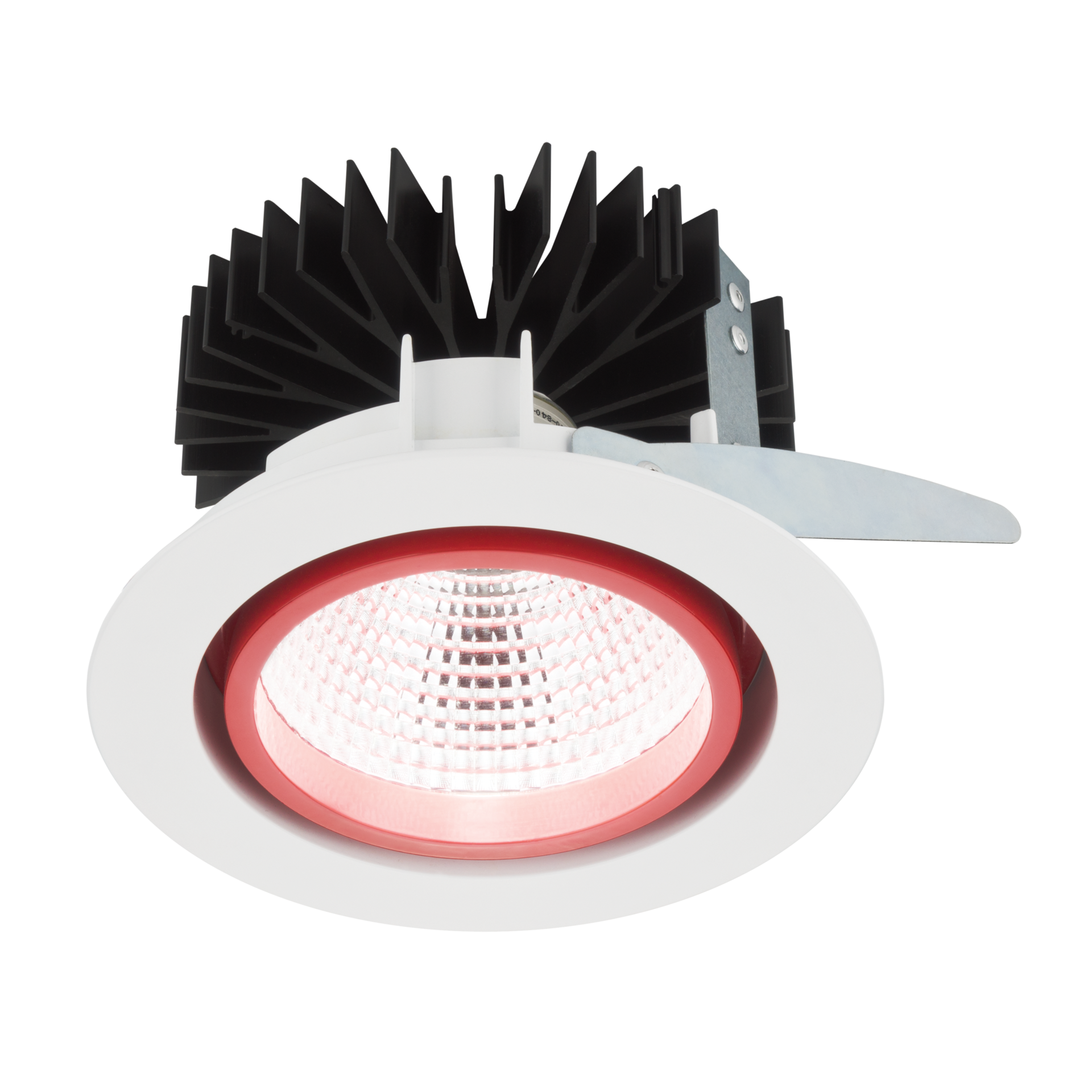

LUGSTAR PREMIUM LED

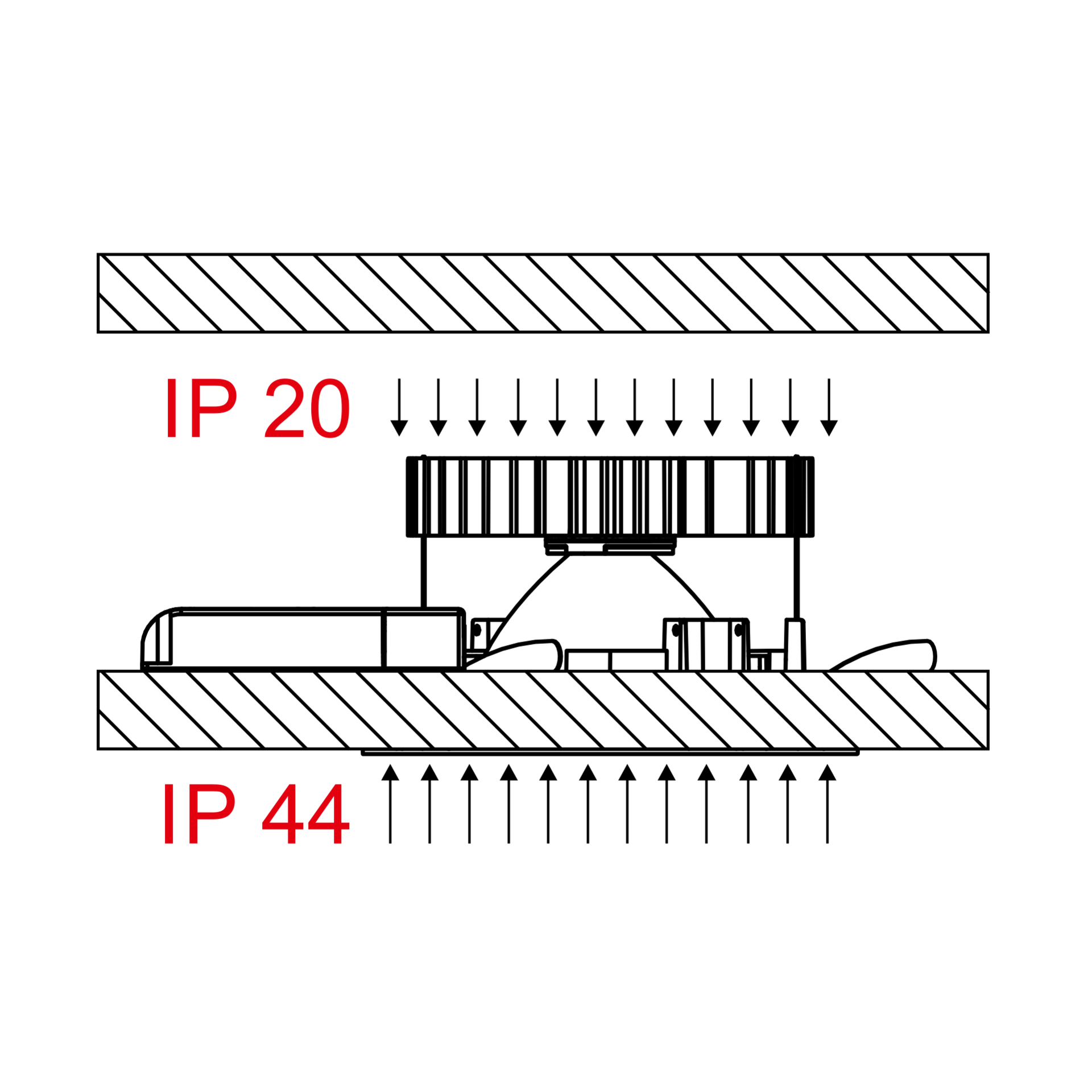

Decorative downlight luminaire for suspended ceilings, degree of water and dust-proof IP20 and IP44, for LED light sources.



High efficacy to 125 lm/W

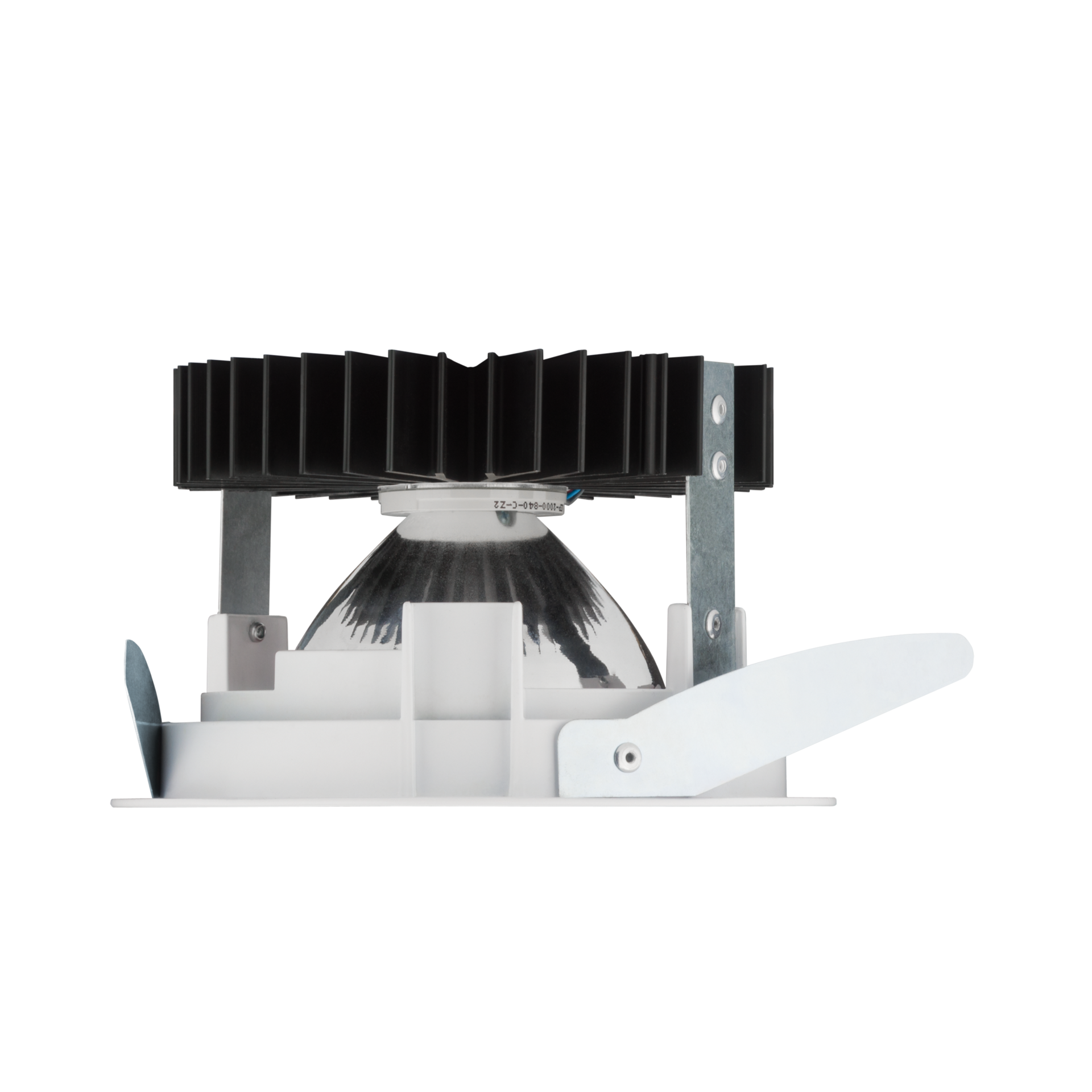

Passive cooling system
Modern design
Fast and easy mounting
Possible illuminance control

Application

boutiques, delicatessen, jeweler, museums, shopping centers, supermarkets

Available on request

DALI, LED emergency module

Luminous flux range

1200 - 4250 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
in the ceiling, with mounting brackets (included)
Body colour
white
Detail
black, blue, green, red, white
Operating temperature range
0 ... +40
RAL
9003
Body
aluminum

Electrical data

Power supply efficiency
≤86%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
10 - 41
Output current [mA]
290, 420, 500, 600, 925
Type of equipment
ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
15 - 30
Maximum number of luminaires in the circuit with a 16A fuse (B)
25 - 50

Optical data

Way of lighting
direct
Colour temperature [K]
3000, 4000
Beam angle
30°, 72°
CRI/Ra
≥80
Lumen luminaire [lm]
1200 - 4250
Efficacy [lm/W]
99 - 125

General data

Other remarks
Flux of luminaire depends of the colour of the luminaire ring; claimed flux is appropriate for downlight luminaire in colour RAL9003
Lifetime L80B10
60 000 h
Warranty
5 years

Dimensions

Dimensions [mm] WxH Mounting dimensions [mm] W Pallet quantity Quantity in package Net weight [kg]
192x117 170 240 1 1.1
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Beam angle
30°
72°
Detail
black
blue
green
red
white
Clear Filters
Compare Code Type of equipment Detail Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Beam angle
030241.5L01.311 ED white 10 1200 120 3000 ≥80 30°
030241.5L01.313 ED black 10 1200 120 3000 ≥80 30°
030241.5L01.314 ED red 10 1200 120 3000 ≥80 30°
030241.5L01.315 ED blue 10 1200 120 3000 ≥80 30°
030241.5L01.316 ED green 10 1200 120 3000 ≥80 30°
030241.5L01.321 ED white 10 1200 120 3000 ≥80 72°
030241.5L01.323 ED black 10 1200 120 3000 ≥80 72°
030241.5L01.324 ED red 10 1200 120 3000 ≥80 72°
030241.5L01.325 ED blue 10 1200 120 3000 ≥80 72°
030241.5L01.326 ED green 10 1200 120 3000 ≥80 72°
Compare selected
Shown 10 / 160
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150100.00518
Mounting plate
900150.00008

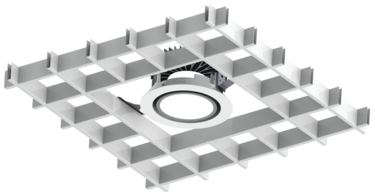

Bracket for OPEN CELL 120x120x40 ceiling
900151.00049

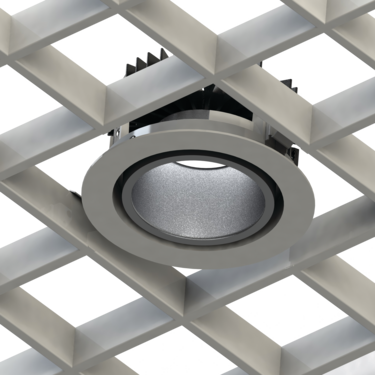

Mount for "Barwa System" ceiling 100x100 H40
