LUGSTAR SPOT LB LED DALI

Product description

Technical parameters

To download

Explore services Customisation Support and contact
Other parameters available View variants

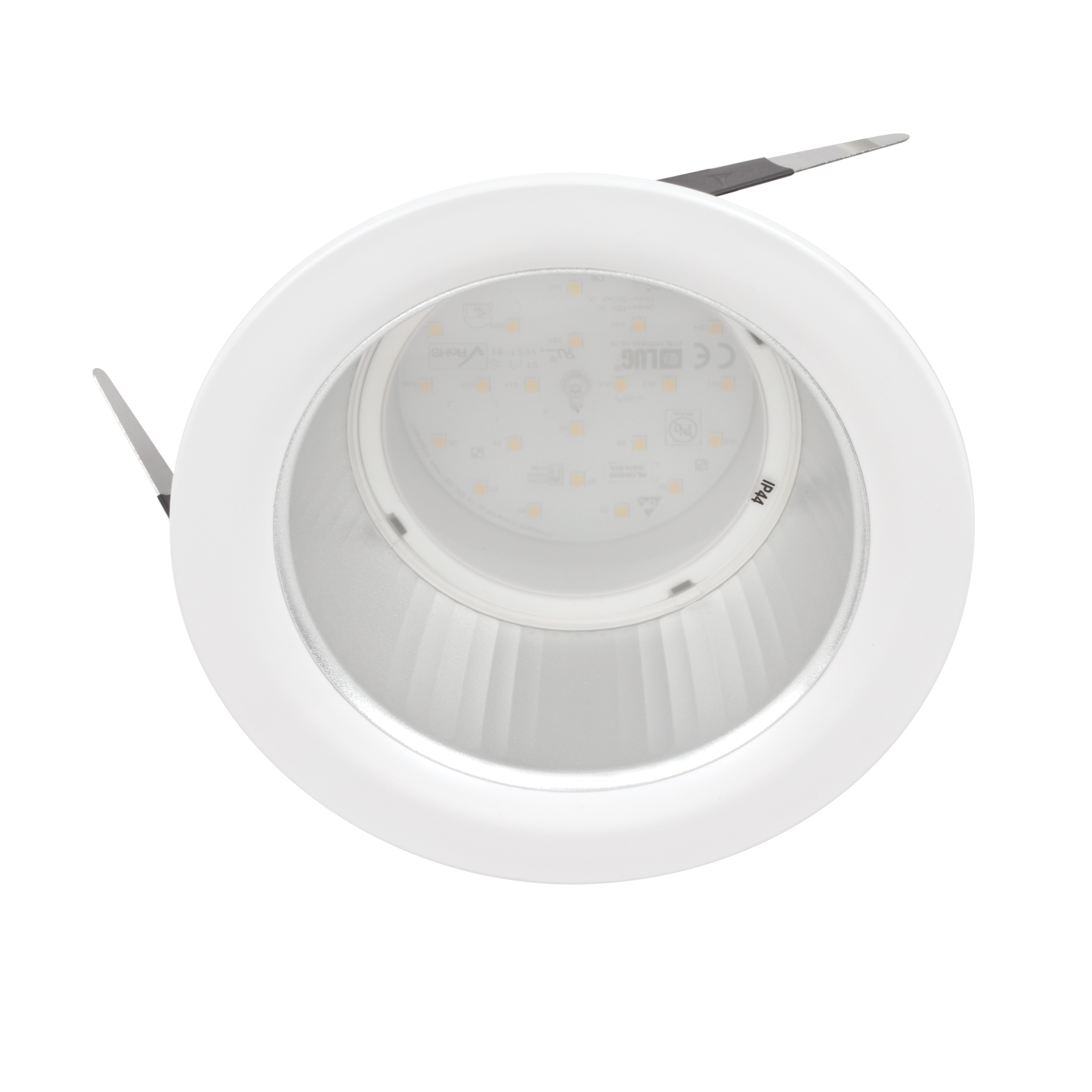

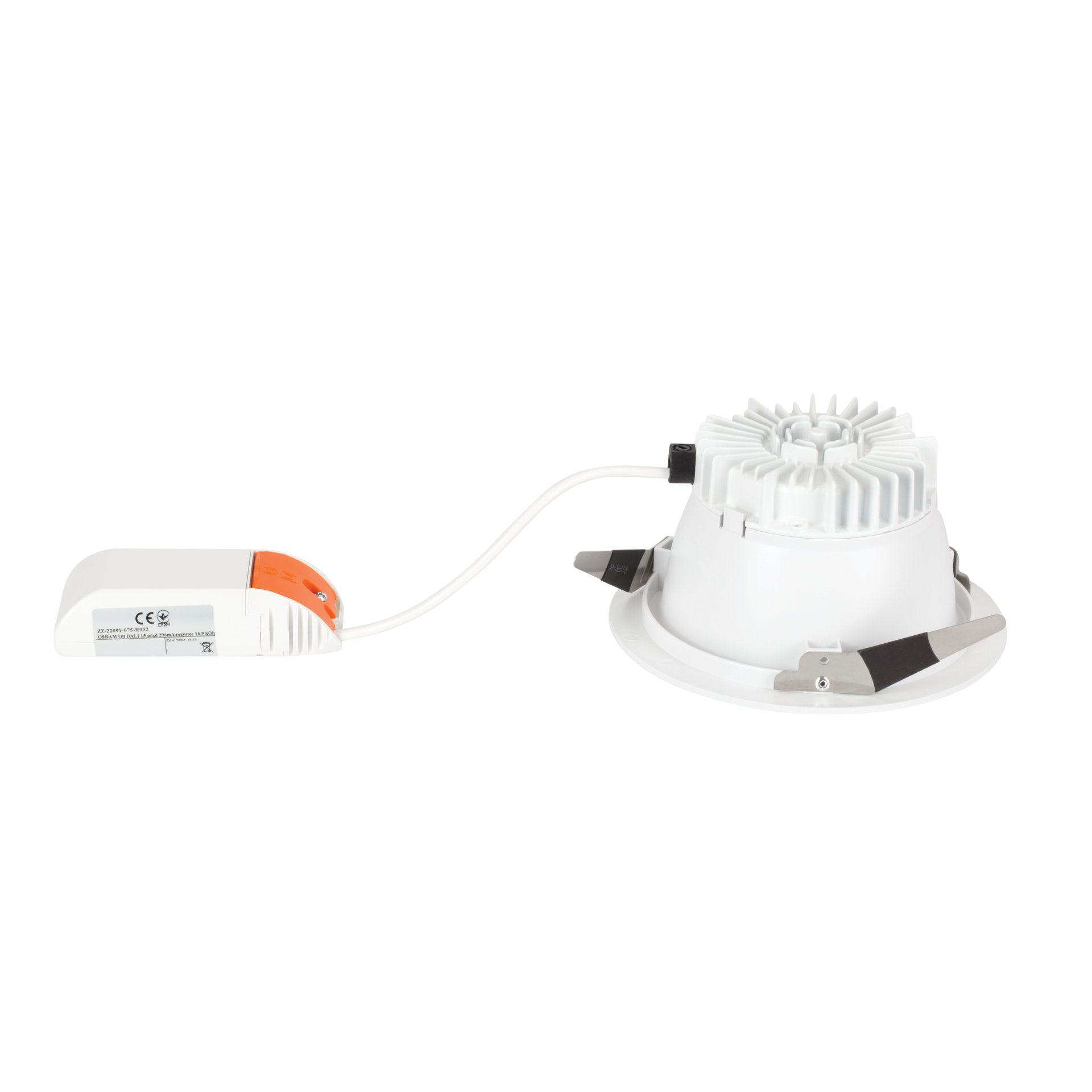

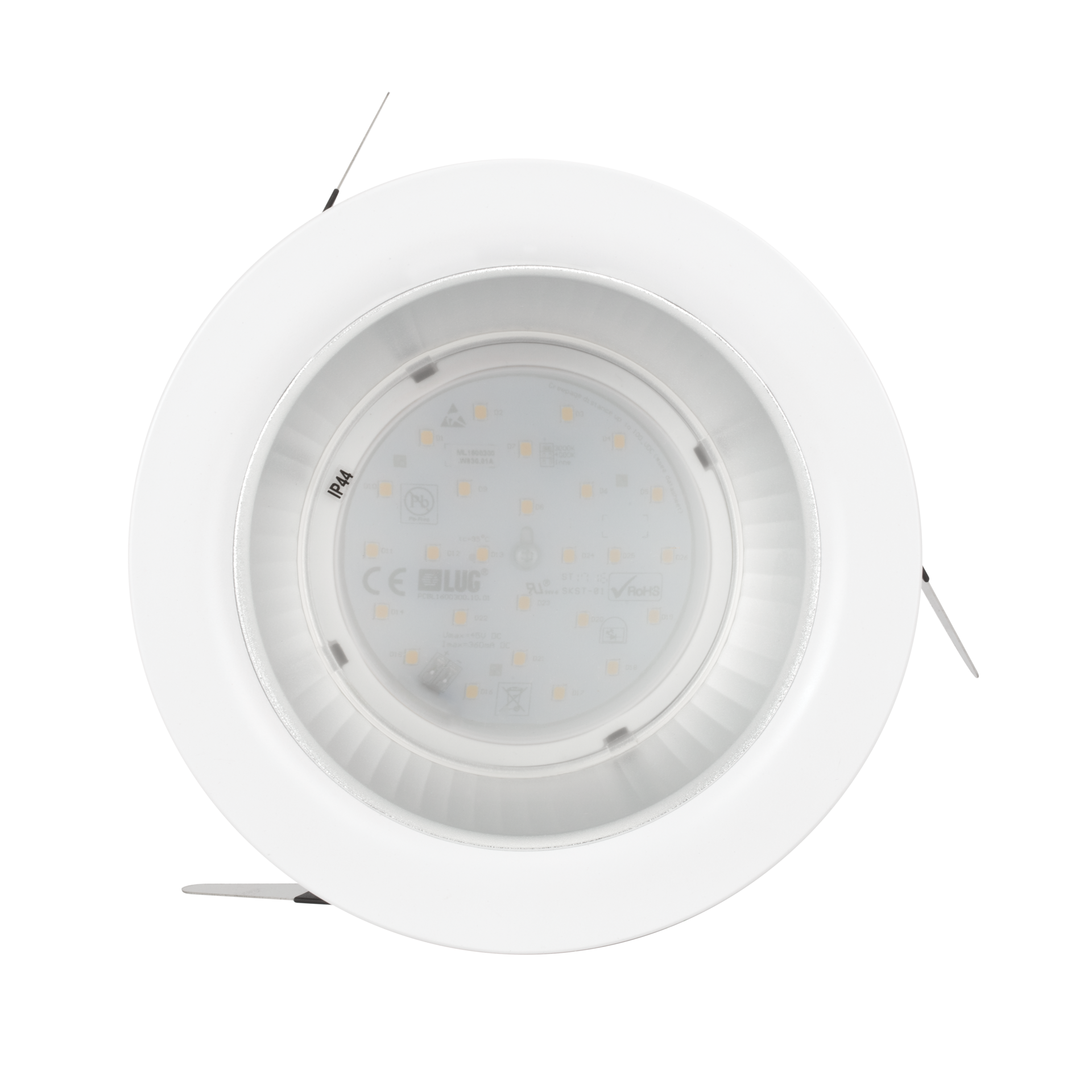

LUGSTAR SPOT LB LED DALI
Decorative downlight luminaire for suspended ceilings, for LED light sources.



Perfect combination of aesthetics and ergonomics
Universal design
Fast and easy mounting
Maintenance-free operation

Application

corridors, exhibitions, exhibitions, flats, galleries, halls, hotels, museums, offices, public utility facilities, shopping centers

Luminous flux range

1000 - 1900 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting

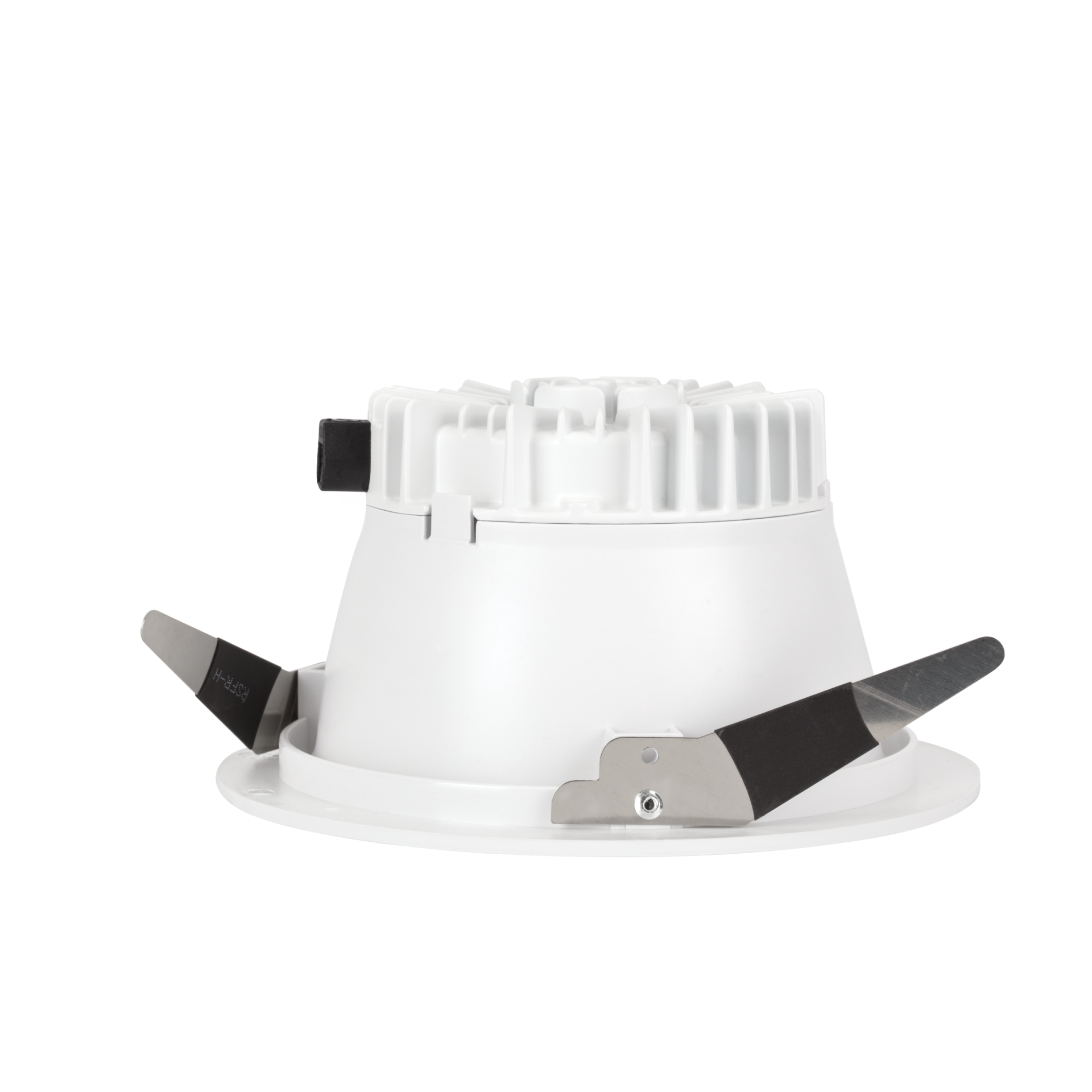

in the ceiling, with mounting brackets (included)
Body colour
white
Operating temperature range
0 ... +35
RAL
9003
Body
plastic

Electrical data

Power supply efficiency
≤86%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
13 - 20
Output current [mA]
300, 350
Type of equipment
DALI
Maximum number of luminaires in the circuit with a 10A fuse (B)
45 - 80
Maximum number of luminaires in the circuit with a 16A fuse (B)
80 - 130

Optical data

Way of lighting
direct
Diffuser
opal plexiglass (PLX)
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
Lumen luminaire [lm]
1000 - 1900
Efficacy [lm/W]
77 - 95

General data

Other remarks

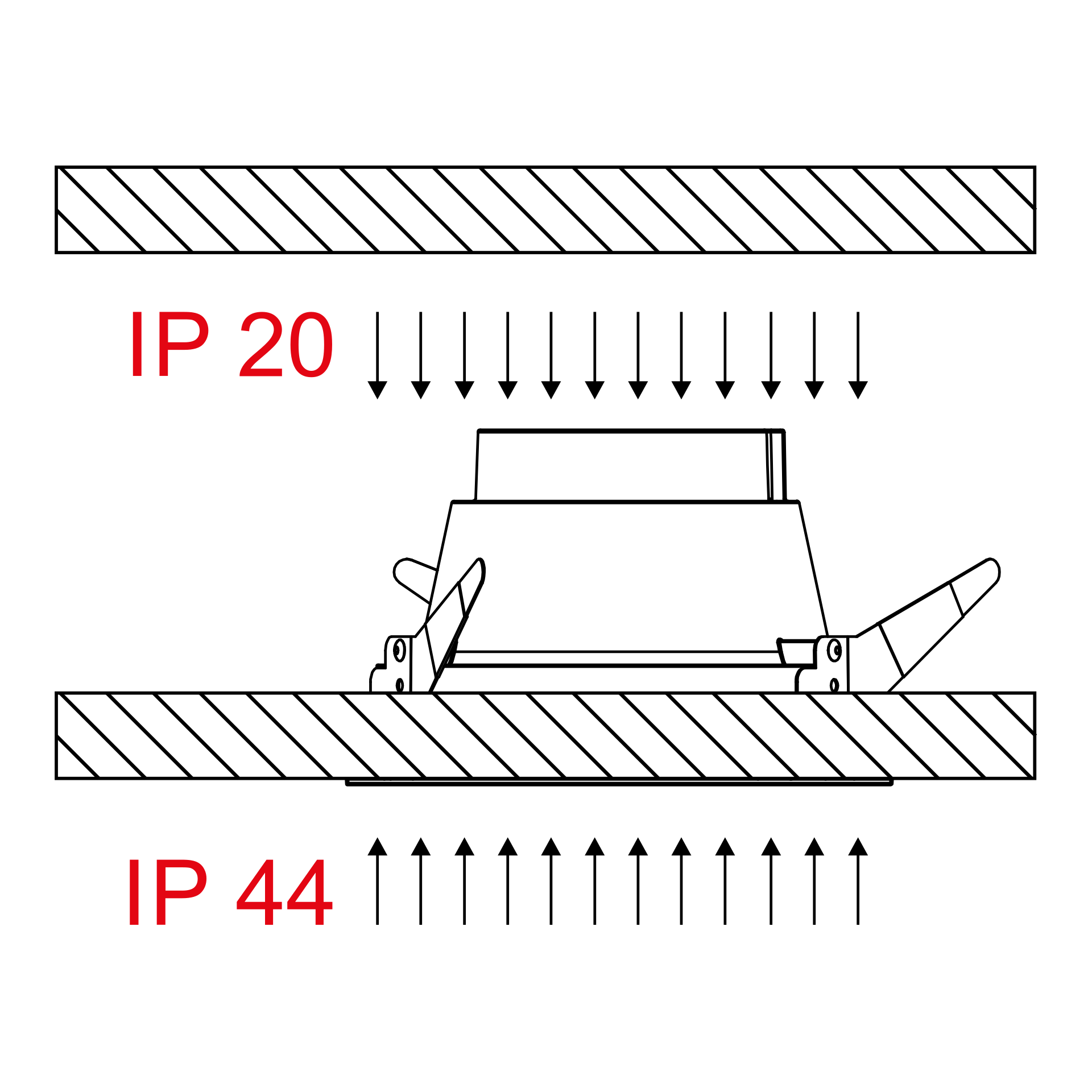

Mounting in ceilings 8-25 mm thick
Lifetime L80B10
50 000 h
Lifetime L90B10
30 000 h
Warranty
3 years

Dimensions

Dimensions [mm] WxH Mounting dimensions [mm] ØS Pallet quantity Quantity in package Net weight [kg]
170x90 155 384 1 0.38
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Type of equipment Replacement of conventional technology [W] Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
300031.00129 DALI 2x18 (48) 20 1750 88 3000 ≥80 0 ... +35
300031.00133 DALI 2x13 (34) 13 1100 85 4000 ≥80 0 ... +35
300031.00137 DALI 2x13 (34) 13 1000 77 3000 ≥80 0 ... +35
300031.00138 DALI 2x18 (48) 20 1850 93 4000 ≥80 0 ... +35
300031.00139 DALI 2x13 (34) 13 1050 81 3000 ≥80 0 ... +35
300031.00140 DALI 2x13 (34) 13 1150 88 4000 ≥80 0 ... +35
300031.00141 DALI 2x18 (48) 20 1800 90 3000 ≥80 0 ... +35
300031.00142 DALI 2x18 (48) 20 1900 95 4000 ≥80 0 ... +35
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
