Moduł awaryjny LED
Emergency module is an emergency electronic power supply for LED light source, it has an LED pointing charging, plastic housing.



Electrical data

Power
220-240V 50Hz
Includes light source
yes

General data

Warranty
1 year

Dimensions

Dimensions [mm] LxWxH Net weight [kg]
160x41x26 0.4
160x42x26 0.4
X

Available variants

Code
Clear Filters
Compare Code Protection Class Battery Emergency operating time I<sub>out</sub> U<sub>out</sub> Test button
810010.00001 II 7,2V 1,8Ah Ni-Cd Typ-A 3h 66 42 -
810010.00002 II 7,2V 1,8Ah Ni-Cd Typ-A 3h 66 42 +
810010.00003 II 7,2V 1,8Ah Ni-Cd Typ-S 3h 66 42 -
810010.00004 II 7,2V 1,8Ah Ni-Cd Typ-S 3h 66 42 +
810010.00005 II 7,2V 1,8Ah Ni-Cd Typ-A 3h 46 60 -
810010.00006 II 7,2V 1,8Ah Ni-Cd Typ-A 3h 46 60 +
810010.00007 II 7,2V 1,8Ah Ni-Cd Typ-S 3h 46 60 -
810010.00008 II 7,2V 1,8Ah Ni-Cd Typ-S 3h 46 60 +
810010.00009 II 7,2V 1,8Ah Ni-Cd Typ-A 3h 24 120 -
810010.00010 II 7,2V 1,8Ah Ni-Cd Typ-A 3h 24 120 +
Compare selected
Shown 10 / 24
Show all
The parameters in the data sheet are given for Ta=25°C.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
800010.00017
Battery 4,8V 2,5Ah Ni-Cd HT A type 230x25x25x215 (LxWxHxD)
800010.00018

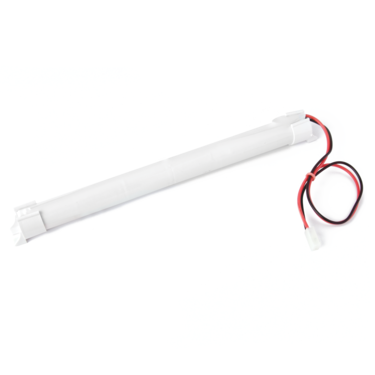

Battery 7,2V 1,8Ah Ni-Cd HT A type 278x22x22x263 (LxWxHxD)
800010.00021
Battery 4,8V 2,5Ah Ni-Cd HT S type 100x50x25 (LxWxHxD)
800010.00024
Battery 7,2V 1,8Ah Ni-Cd HT S type 127x44x22 (LxWxHxD)
800010.00020
LED with the test button
800010.00019
LED without the test button
