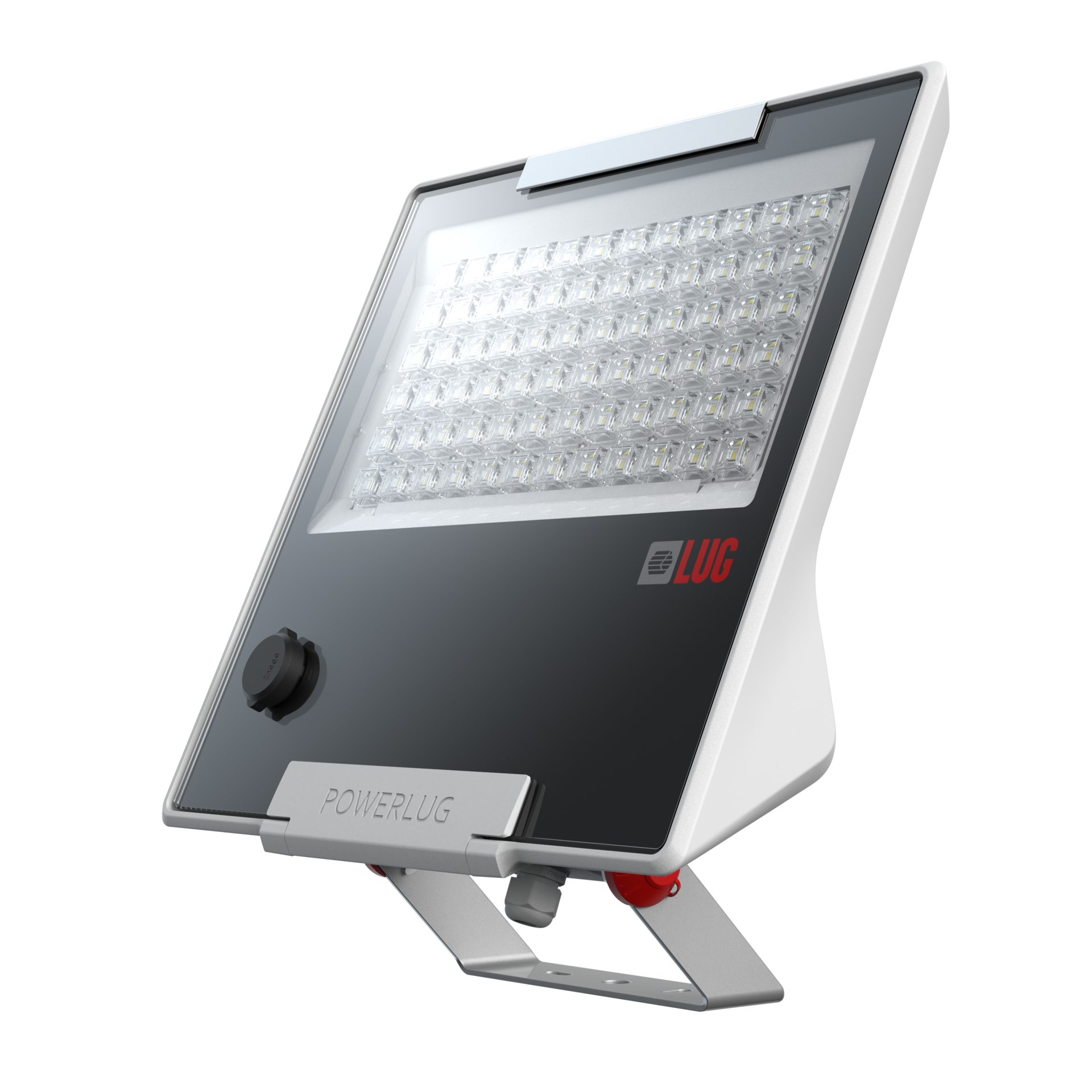

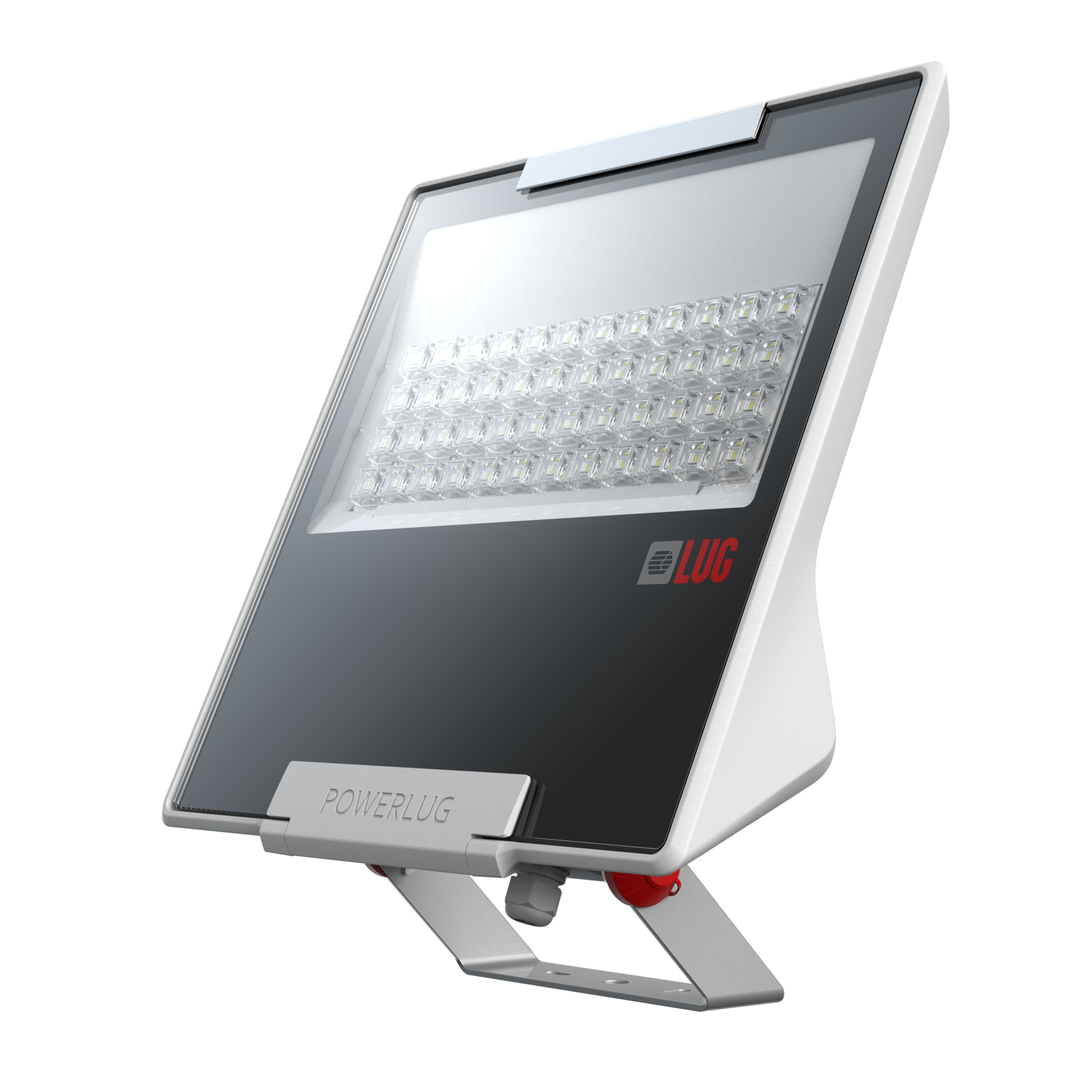

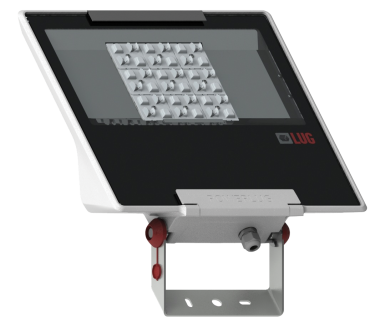

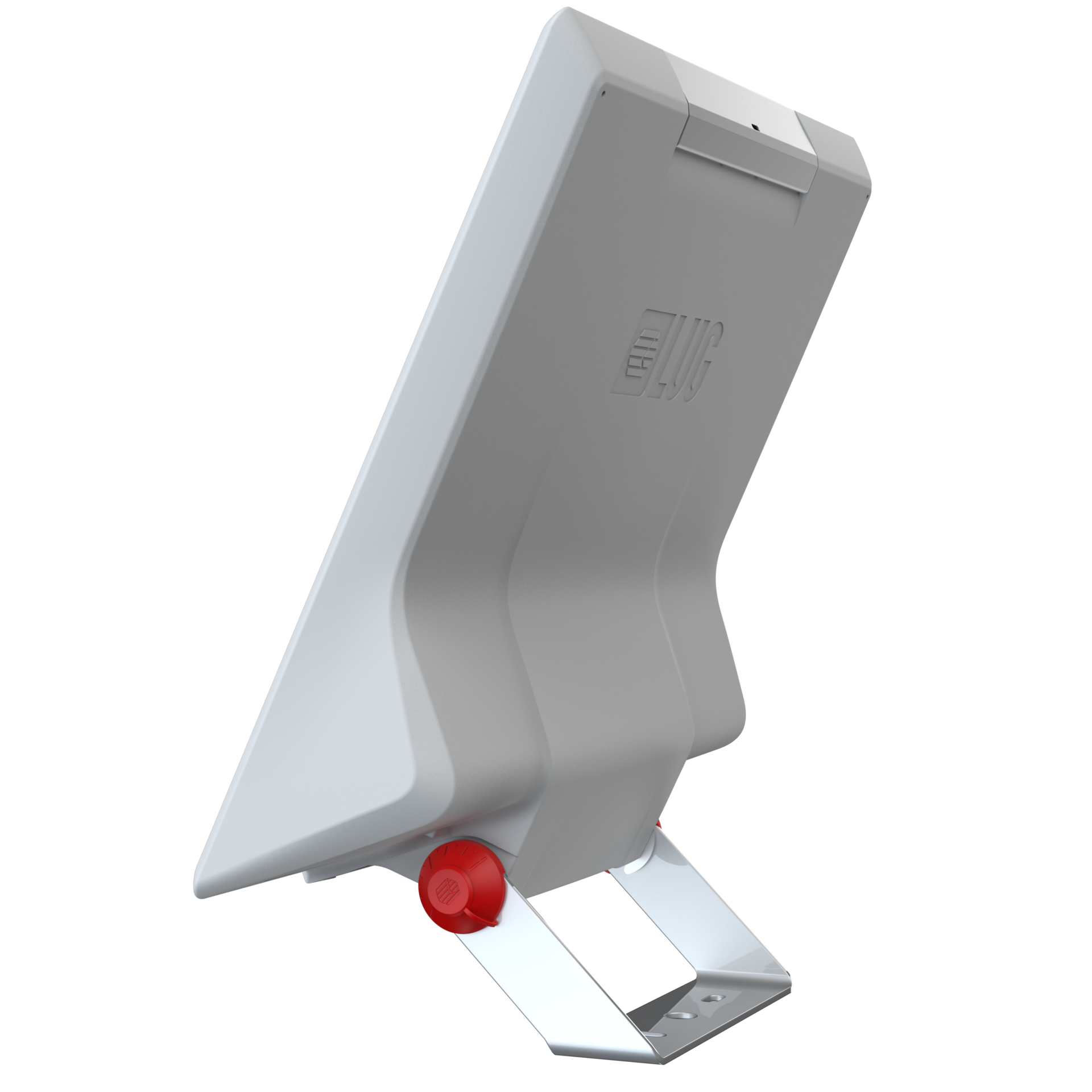

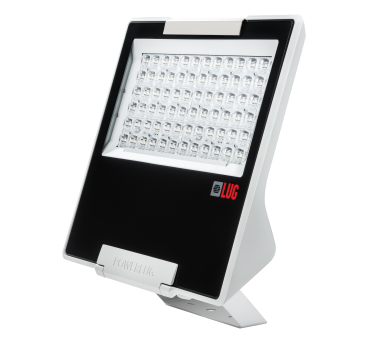

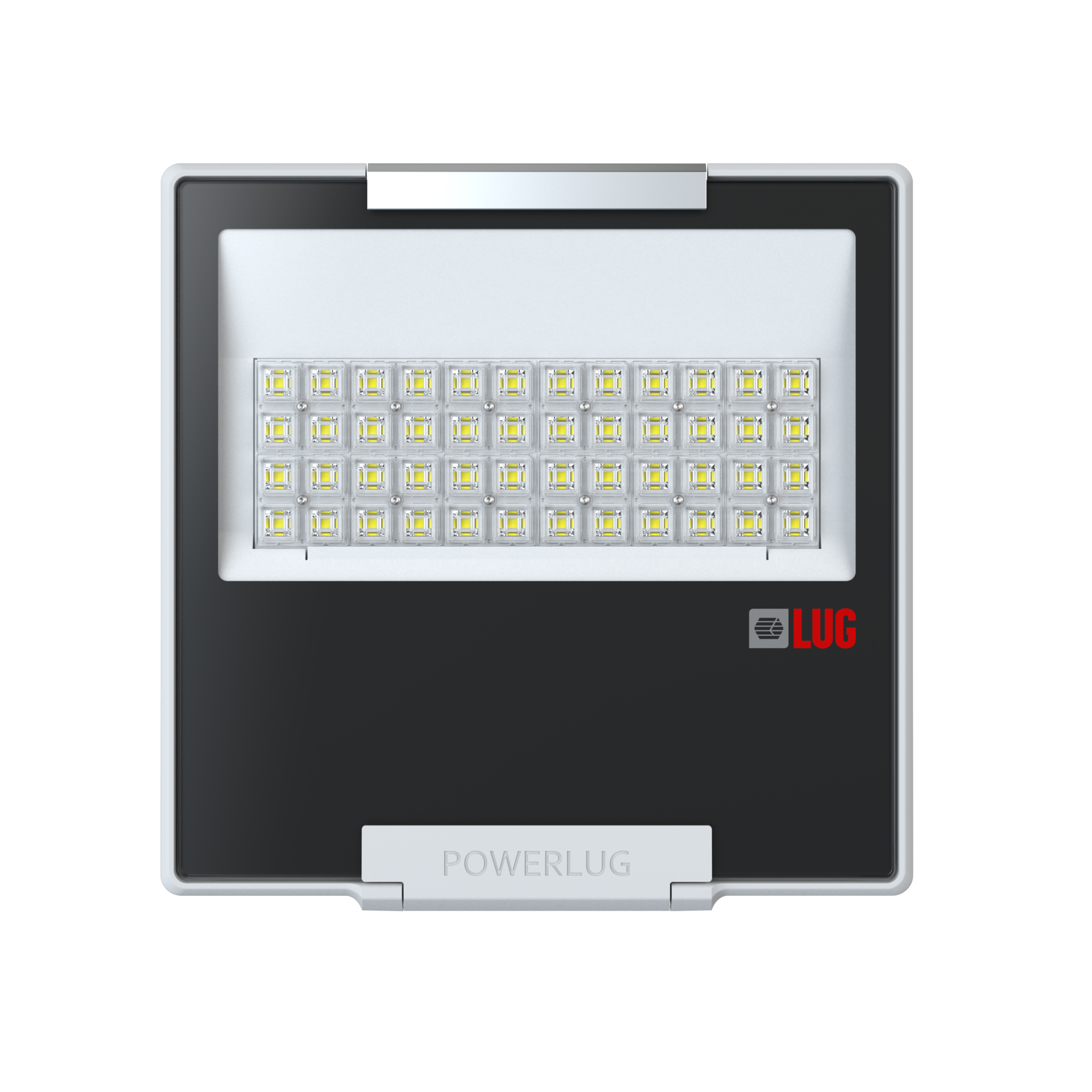

POWERLUG LED
Modern floodlight for LED light source.



Passive cooling system
Modern design
Simple one person mounting
Reliability
High efficacy to 178 lm/W

Application

facades, industrial facilities, metro, parking areas, roads, warehouses

Available on request

CLO, DIM 1..10V

Luminous flux range

12200 - 25100 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
on the adjustable holder, on the substrate
Body colour
gray
Operating temperature range
-40 ... +35, -40... +35 (-40... +45)*, -40... +45 (-40... +55)*
RAL
7035
Body
high pressure die-cast aluminum
Lateral Surface Wind Exposed
0.163 m²
Type

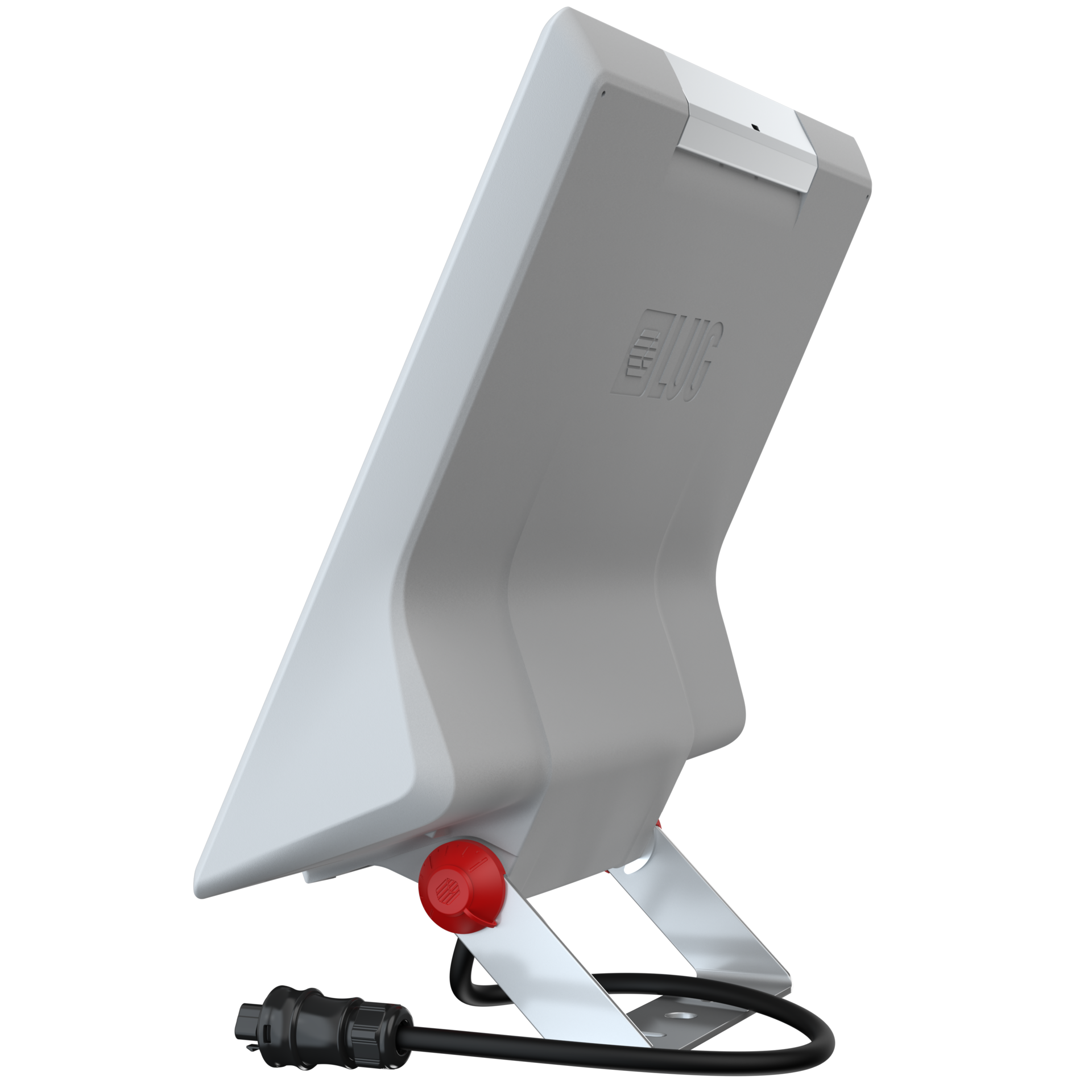

Easy Connect, Standard luminaire

Electrical data

Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
72 - 155
Output current [mA]
500, 700
Type of equipment
DALI, ED, ZHAGA D4i
Maximum number of luminaires in the circuit with a 10A fuse (B)
4 - 12
Maximum number of luminaires in the circuit with a 16A fuse (B)
7 - 20
Maximum number of luminaires in the circuit with a 25A fuse (B)
16 - 19

Optical data

Way of lighting
direct
Type of optic
lens
Diffuser
tempered glass
Colour temperature [K]
3000, 4000
Beam angle
25°, 50°, asymmetric-narrow, asymmetric-very wide, asymmetric-wide
CRI/Ra
>70
MacAdam's steps
5
ULOR / DLOR
0/100
Lumen luminaire [lm]
12200 - 25100
Efficacy [lm/W]
123 - 178
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1
Number of LEDs
48, 72

General data

Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Marking Pallet quantity Quantity in package Net weight [kg]
403x405x95 ED, DALI 36 3 8.8

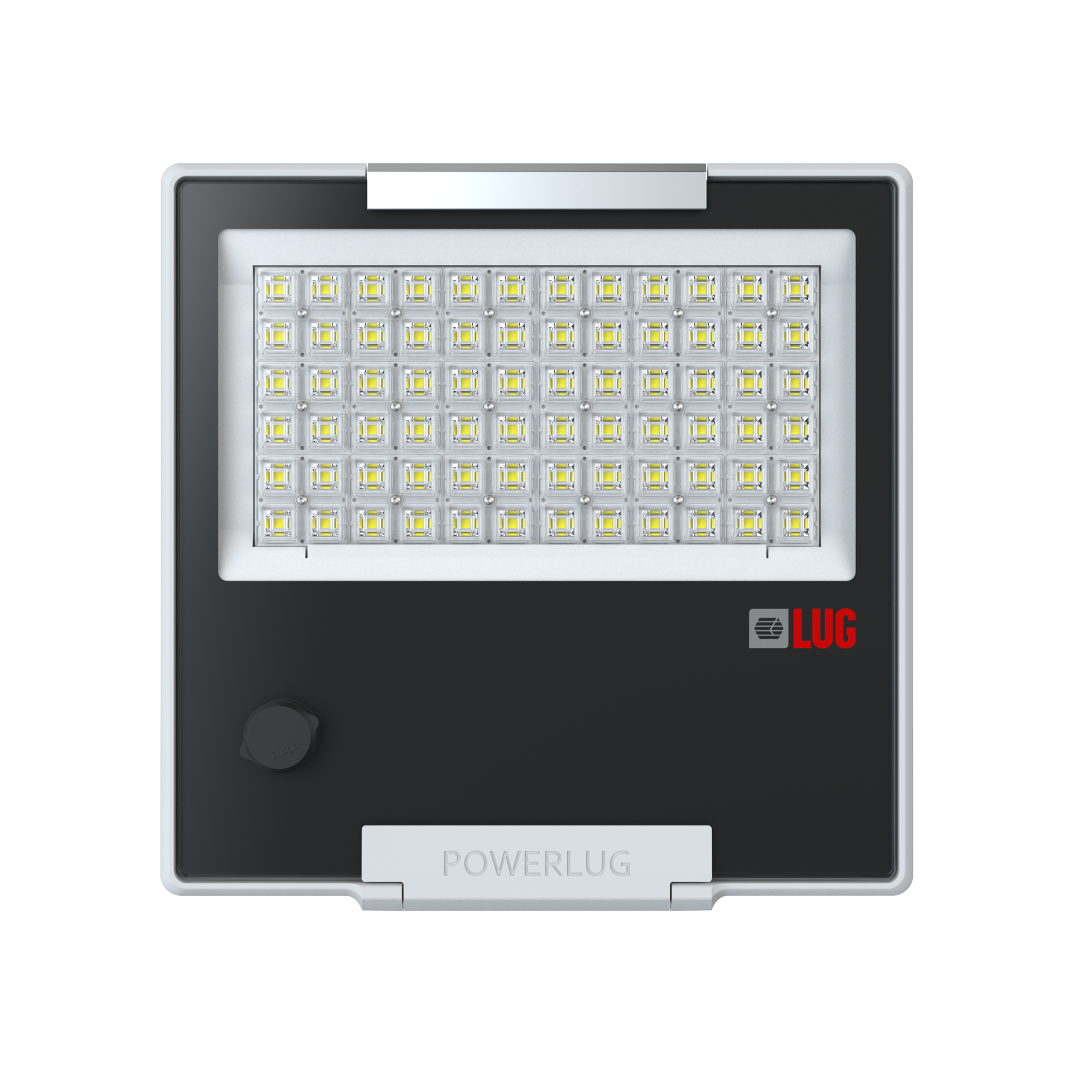

403x405x102 ZHAGA D4i 36 3 8.8
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
ZHAGA D4i
Beam angle
25°
50°
asymmetric-narrow
asymmetric-very wide
asymmetric-wide
Type
Easy Connect
Oprawa standardowa
Light distribution
asymmetric-narrow
asymmetric-very wide
asymmetric-wide
symmetric
Clear Filters
Compare Code Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range Type of equipment
120202.3L091.11 25° 149 25100 168 4000 >70 -40... +45 (-40... +55)* DALI
120202.3L091.12 25° 149 25100 168 4000 >70 -40... +45 (-40... +55)* DALI
120202.3L091.21 50° 149 25050 168 4000 >70 -40... +45 (-40... +55)* DALI
120202.3L091.22 50° 149 25050 168 4000 >70 -40... +45 (-40... +55)* DALI
120202.3L091.31 asymmetric-narrow 149 25000 168 4000 >70 -40... +45 (-40... +55)* DALI
120202.3L091.32 asymmetric-narrow 149 25000 168 4000 >70 -40... +45 (-40... +55)* DALI
120202.3L091.41 asymmetric-wide 149 24250 163 4000 >70 -40... +45 (-40... +55)* DALI
120202.3L091.42 asymmetric-wide 149 24250 163 4000 >70 -40... +45 (-40... +55)* DALI
120202.3L091.51 asymmetric-very wide 149 23150 155 4000 >70 -40... +45 (-40... +55)* DALI
120202.3L091.52 asymmetric-very wide 149 23150 155 4000 >70 -40... +45 (-40... +55)* DALI
Compare selected
Shown 10 / 90
Show all
* Operating temperature range when using the luminaire outdoors (value in brackets).
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Custom Products
POWERLUG LED 120-277V AS
Modern floodlight for LED light source. Change of lenses from 50° to AS angle, power supply working in the range of 120-277V.
View
POWERLUG LED 120-277V/110-277V
Modern floodlight for LED light source. Luminaire with 25° lenses - driver working in the 120-277V range (index 120202.5L021.11.001). Standard luminaire with 120V driver with 110V approval (120202.5L021.21.001).
View
POWERLUG LED 15°
Modern floodlight for LED light source. The subject of the modification is the change in the beam angle of the luminaire.
View
POWERLUG LED 2700K 10kV/10kA
Modern floodlight for LED light source. 10 year warranty, Surge protection 10kV/10kA w. Ind. LED with indication LED, NTC - LED temp. Protection, Easy Connect,CLO, 2700K
View
POWERLUG LED 3000K
Modern floodlight for LED light source. Change of LEDs on XPG3 and color temperature to 3000K.
View
POWERLUG LED 3000K 0-10V
Luminaire in 3000K colour temperature with 0-10V power supply.
View
POWERLUG LED 3000K 16200lm
Modern floodlight for LED light source. The subject of the modification is the use of color temperature 3000K in the luminaire.
View
POWERLUG LED 3G WIRE
Modern floodlight for LED light source. The subject of modification is a 3G1.5mm2 wire with a length of 10m.
View
POWERLUG LED 6500K
Modern floodlight for LED light source. The subject of the modification is adaptation of the luminaire to a color temperature of 6500K, CRI> 80, XPG3 LEDs, the sign on the cardboard box: "code F1" and a power factor >0.9.
View
POWERLUG LED 8000lm
Modern floodlight for LED light source. Adjusting lumen LED to 8000lm.
View

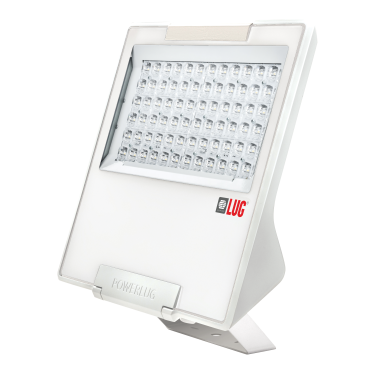

POWERLUG LED white
