SOFT BASIC LED n/t

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact
Other parameters available View variants

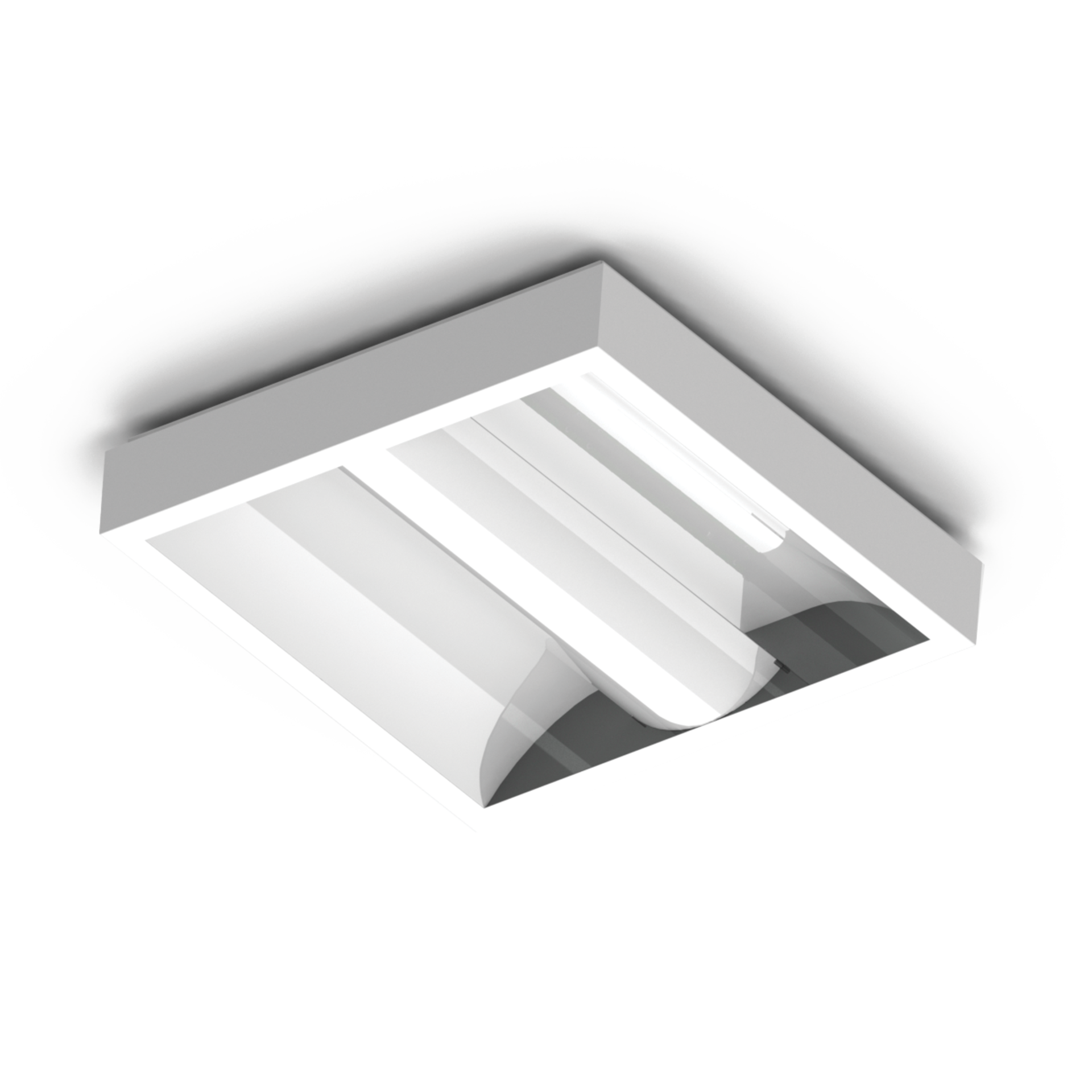

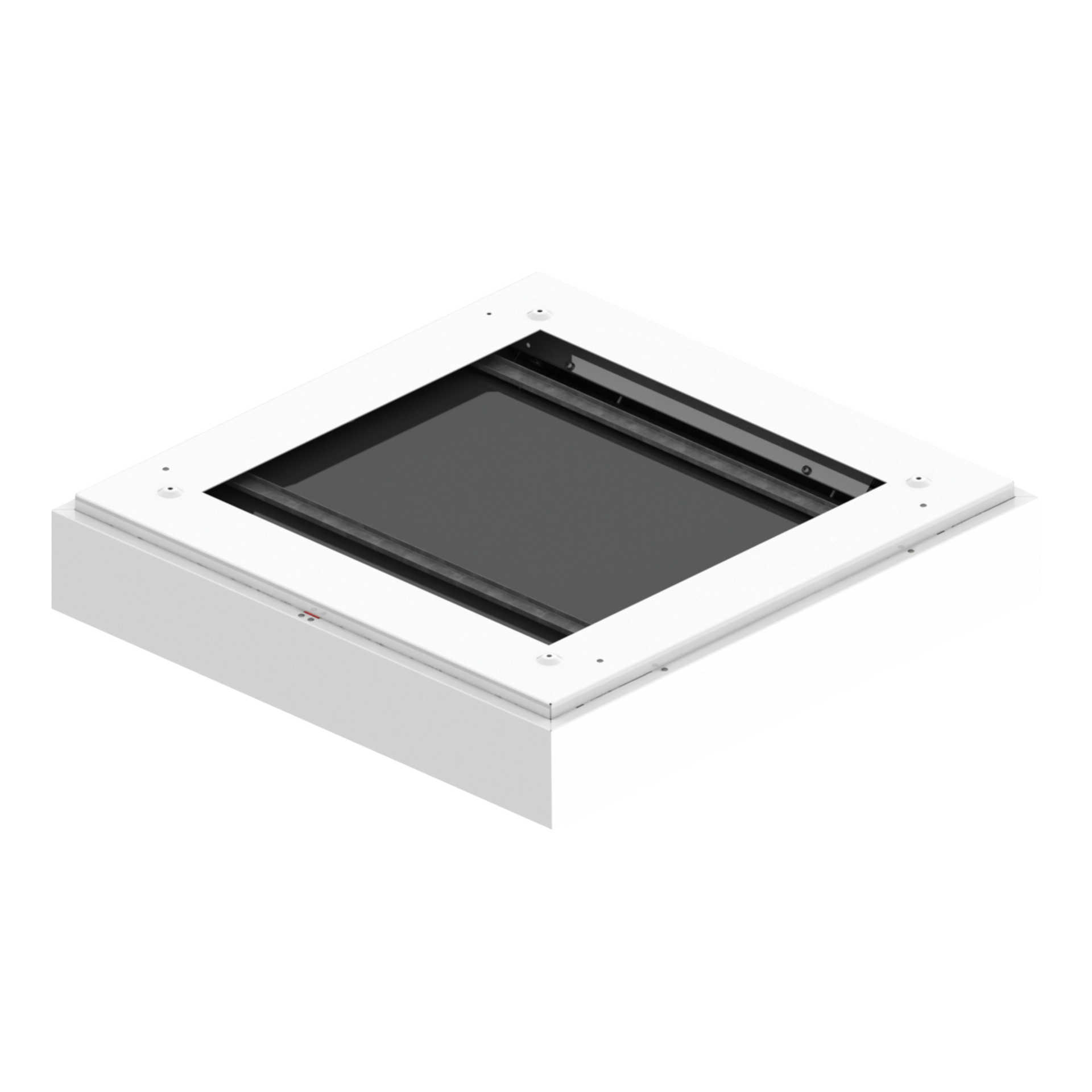

SOFT BASIC LED n/t
Modern, waterproof, surface-mounted luminaire, designed for clean rooms, equipped with LED light sources. The subject of the modification is adapting the luminaire to the surface mounted version.



Universal design

Application

clinics, hospitals, laboratories

Luminous flux range

3900 - 4050 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
directly in the ceiling construction
Body colour
white
Body
powder-painted steel sheet

Electrical data

Power supply efficiency
>90%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
74
Type of equipment
ED

Optical data

Way of lighting
indirect
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
UGR
<19
Lumen luminaire [lm]
3900 - 4050
Efficacy [lm/W]
53 - 55

General data

Lifetime L80B10
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] LxW
634x634x124 480x480
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Clear Filters
Compare Code Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra
900051.00065 74 3900 53 3000 ≥80
900051.00066 74 4050 55 4000 ≥80
Compare selected
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150210.00605
Mounting frame for plasterboard ceilings 595x595 (mounting hole 615x615)
