ATLANTYK LB LED GEN.2 EM 6500K

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact
Other parameters available View variants

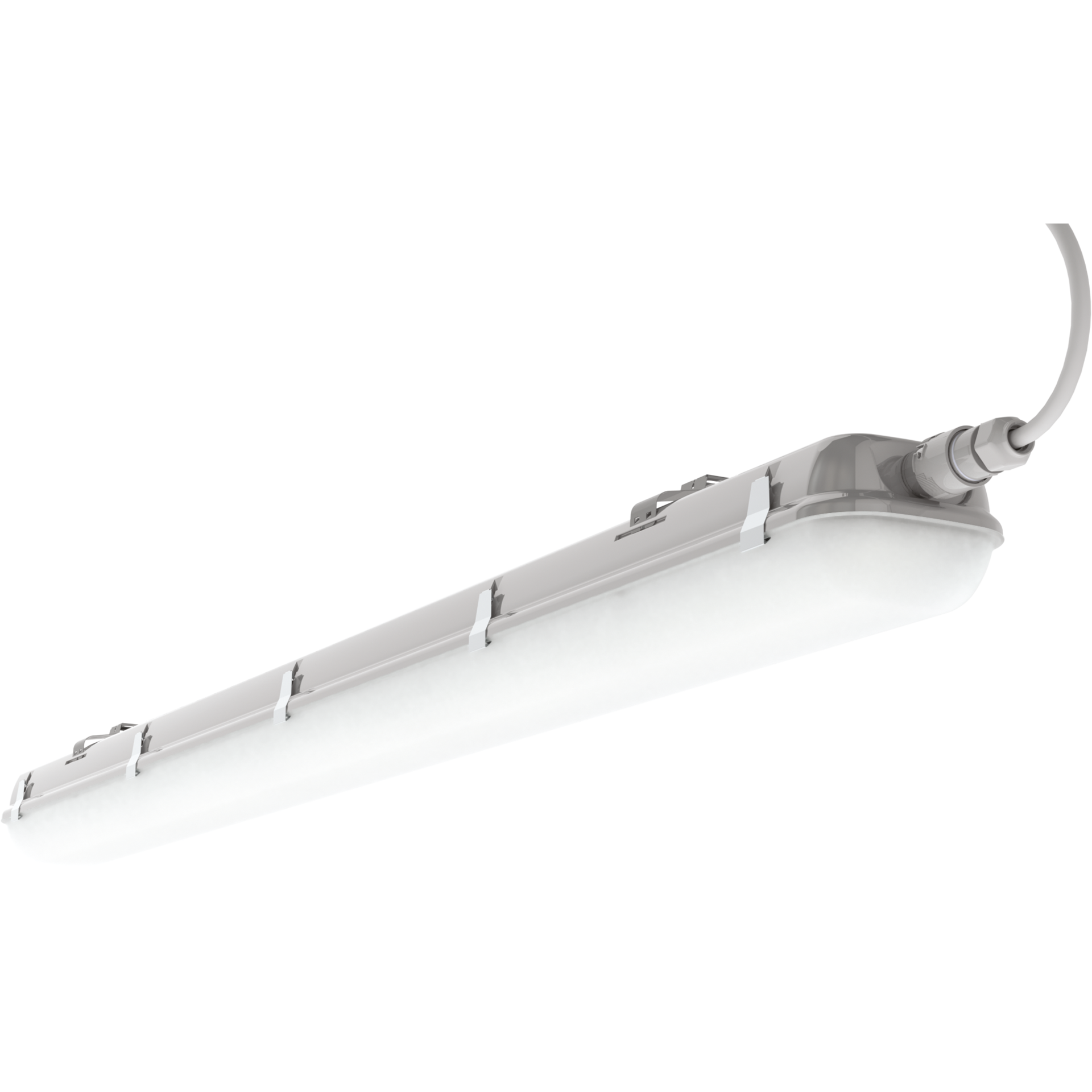

ATLANTYK LB LED GEN.2 EM 6500K
Hermetic LED luminaire, water-jet protected, dedicated to use in industrial environments. Modification of the color temperature to 6500K.



High efficacy to 134 lm/W
Perfect combination of aesthetics and ergonomics
Universal design
Simple one person mounting
Reliability

Application

electricity plants, parking areas, production halls, roofing

Luminous flux range

6050 [lm]

Variable color temperature

6500 [K]

Mechanical data

Mounting
directly on the ceiling, suspended, with mounting brackets (included)
Body colour
gray
Operating temperature range
-20 ... +35
Body
polycarbonate

Electrical data

Power supply efficiency
>91%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
45
Type of equipment
ED, EM 3h

Optical data

Way of lighting
direct
Diffuser
polycarbonate
Colour temperature [K]
6500
CRI/Ra
≥80
Lumen luminaire [lm]
6050
Efficacy [lm/W]
134

General data

Additional equipment
stainless steel clips
Additional information
CRI/Ra ≥80, stainless steel clips included; in order to apply the luminaire in an aggressive environment a consultation with the LUG Technical Preparation of Production Branch is required
Other remarks
outdoor use only under a cover, do not expose to direct sunlight and rain
Lifetime L80B10
60 000 h
Warranty
3 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] D Pallet quantity Quantity in package Net weight [kg]
1650x134x99 800 120 1 2.8
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
ED
EM 3h
Clear Filters
Compare Code Replacement of conventional technology [W] Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range Emergency kit
300090.00108 45 6050 134 6500 ≥80 -20 ... +35 yes
300090.00108B 45 6050 134 6500 ≥80 -20 ... +35 yes
Compare selected
Luminous flux tolerance +/- 10%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories

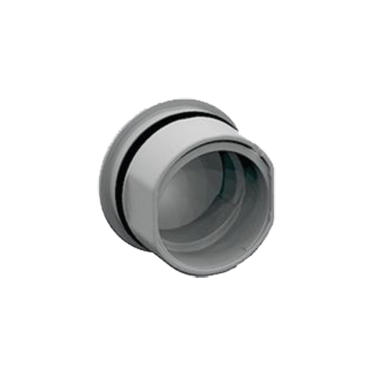

150020.00695
Through wiring luminaire line end cap (STANDARD + TW5x2,5 mm²)
