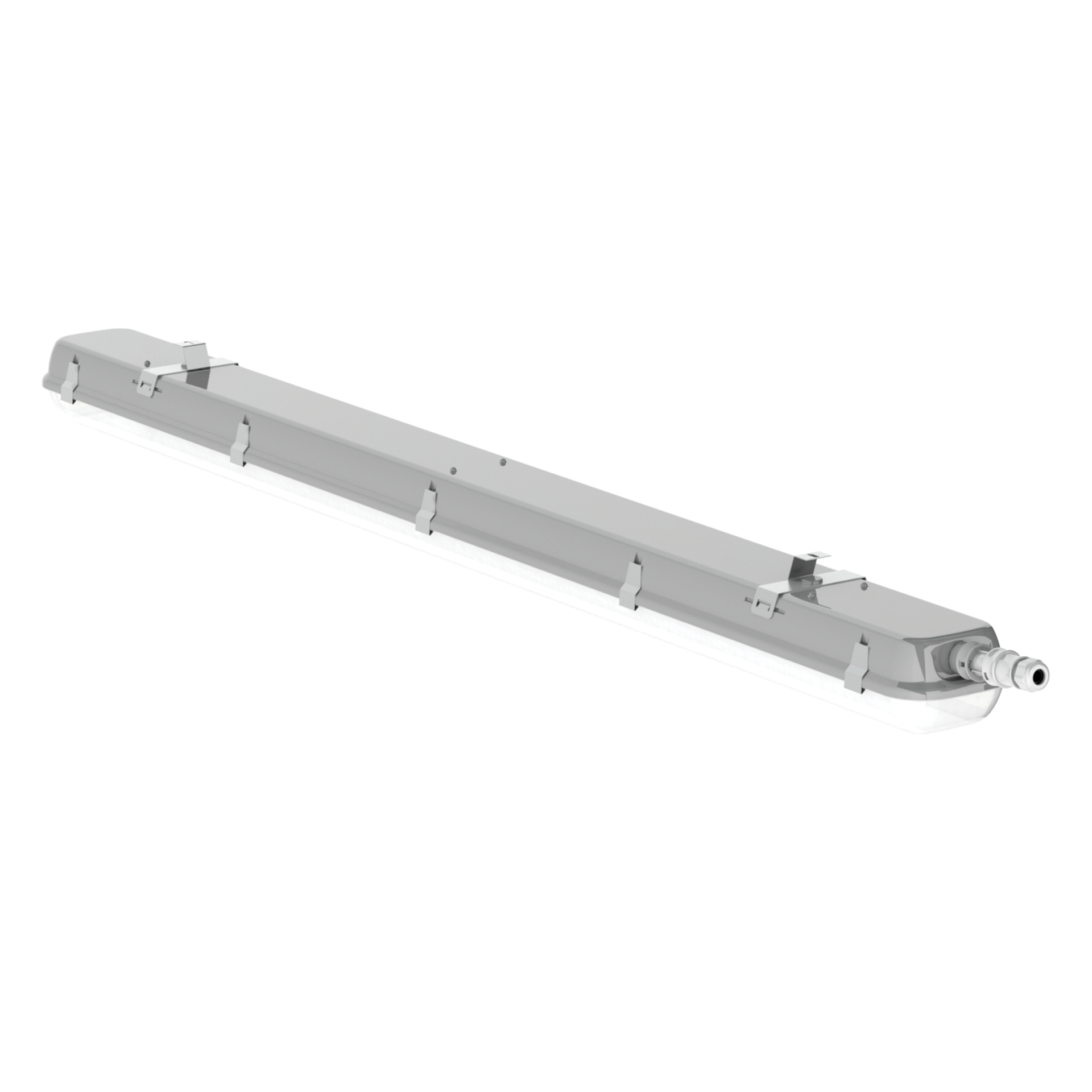

ATLANTYK LB LED GEN.2 IK08
Hermetic LED luminaire, water-jet protected, dedicated to use in industrial environments. The subject of the modification is the reinforced mechanical resistance of the luminaire, raised to the IK08 parameter.



High efficacy to 134 lm/W
Perfect combination of aesthetics and ergonomics
Universal design
Simple one person mounting
Reliability

Application

electricity plants, parking areas, production halls, roofing

Luminous flux range

6050 - 10000 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
directly on the ceiling, suspended, with mounting brackets (included)
Body colour
gray
Operating temperature range
-20 ... +35
Body
plastic

Electrical data

Power supply efficiency
>91%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
45 - 77
Output current [mA]
600
Type of equipment
DALI, STANDARD, STANDARD + TW 5x2,5 mm²

Optical data

Way of lighting
direct
Diffuser
polycarbonate
Colour temperature [K]
4000
CRI/Ra
≥80
Lumen luminaire [lm]
6050 - 10000
Efficacy [lm/W]
130 - 134

General data

Additional information
stainless steel clips included
Other remarks
outdoor use only under a cover, do not expose to direct sunlight and rain
Lifetime L80B10
60 000 h
Warranty
3 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] D Pallet quantity Quantity in package Net weight [kg]
1670x134x122 1100 60 1 2.8
1670x134x122 1100 60 1 3
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
STANDARD
STANDARD + TW 5x2,5 mm²
Clear Filters
Compare Code Replacement of conventional technology [W] Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
300090.00128 2x80W (184W) 77 10000 130 4000 ≥80 -20 ... +35
300090.00129 2x58W (128W) 45 6050 134 4000 ≥80 -20 ... +35
300090.00132 2x80W (184W) 77 10000 130 4000 ≥80 -20 ... +35
300090.00133 2x58W (128W) 45 6050 134 4000 ≥80 -20 ... +35
300090.00136 2x80W (184W) 77 10000 130 4000 ≥80 -20 ... +35
Compare selected
Luminous flux tolerance +/- 10%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories

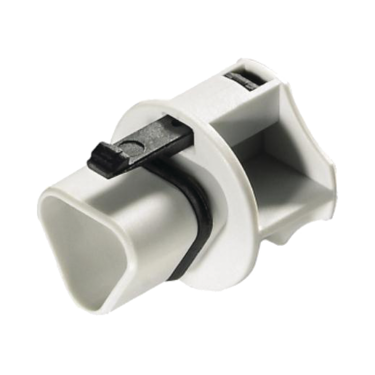

150020.00960
Through wiring luminaire line end cap (STANDARD + TW5x2,5 mm²)
150020.00961
Through wiring luminaire line end cap (STANDARD + TW3x2,5 mm²)
