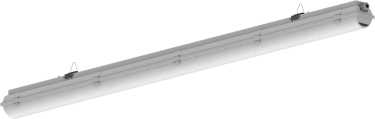

ATLANTYK STRONG LED
Industrial luminaire for LED light sources, water-jet protected with an increased chemical resistance, dedicated to use in extreme environments.



High efficacy to 126 lm/W
The ideal luminaire for tough working conditions
Universal design
Well thought-out installation concept

Application

industrial facilities, laboratories, metro, parking areas, warehouses

Available on request

DALI, DIM 1..10V

Luminous flux range

2650 - 6640 [lm]

Variable color temperature

3000 - 4000 [K]

Mechanical data

Mounting
directly on the ceiling, suspended, with mounting brackets (included)
Body colour
gray
Operating temperature range
'-20˚C ... +25˚C
Body
polyester material reinforced with fibreglass

Electrical data

Power supply efficiency
≤89%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
26 - 54
Output current [mA]
280, 350
Type of equipment
EM 1h, EM 3h, STANDARD, radar motion detector, through wiring
Maximum number of luminaires in the circuit with a 10A fuse (B)
16 - 35
Maximum number of luminaires in the circuit with a 16A fuse (B)
26 - 56

Optical data

Way of lighting
direct
Diffuser
acrylic (PMMA)
Colour temperature [K]
3000, 4000
CRI/Ra
≥80
Lumen luminaire [lm]
2650 - 6640
Efficacy [lm/W]
98 - 126

General data

Additional equipment
stainless steel clips
Other remarks
in order to apply the luminaire in an aggressive environment a consultation with the LUG Technical Preparation of Production Branch is required
Lifetime L80B10
50 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxHxD Pallet quantity Quantity in package Net weight [kg]
1299x85x92x700 152 1 2
1299x85x92x700 152 1 2.1
1299x85x92x700 152 1 2.5
1299x85x92x700 144 1 3
X

Available variants

Code
Colour temperature [K]
3000
4000
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
EM 1h
EM 3h
STANDARD
radar motion detector
through wiring
Emergency operating time
-
1h
3h
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] Emergency operating time
090250.5L01.711 STANDARD 26 3200 123 4000 -
090250.5L01.711.920 radar motion detector 27 3200 119 4000 -
090250.5L01.711.938 through wiring 26 3200 123 4000 -
090250.5L01A.711 EM 1h 27 3200 119 4000 1h
090250.5L01B.711 EM 3h 27 3200 119 4000 3h
090250.5L03.711 STANDARD 31 3900 126 4000 -
090250.5L03.711.920 radar motion detector 32 3900 122 4000 -
090250.5L03.711.938 through wiring 31 3900 126 4000 -
090250.5L04.711 STANDARD 38 4700 124 4000 -
090250.5L04.711.920 radar motion detector 39 4700 121 4000 -
Compare selected
Shown 10 / 32
Show all
In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
