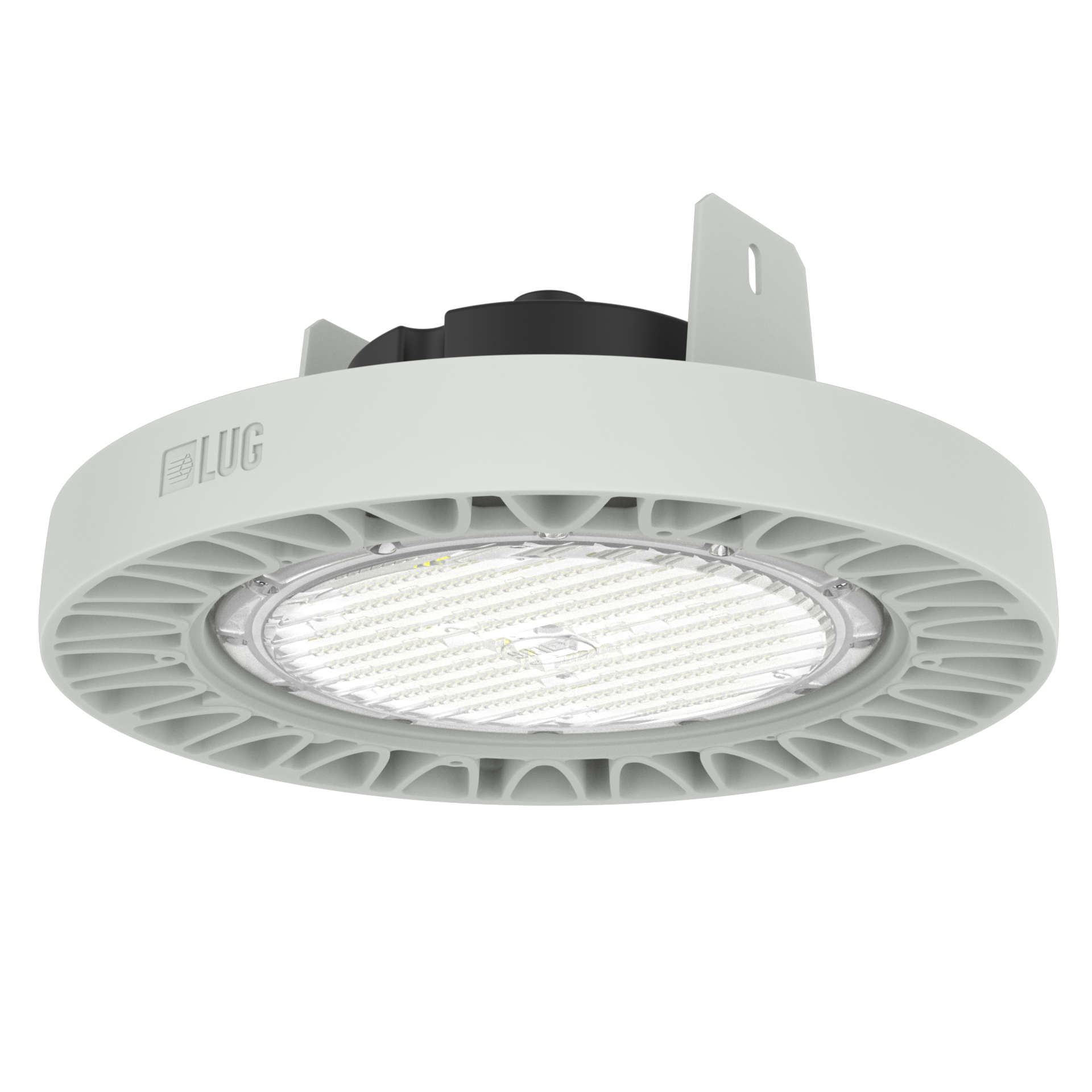

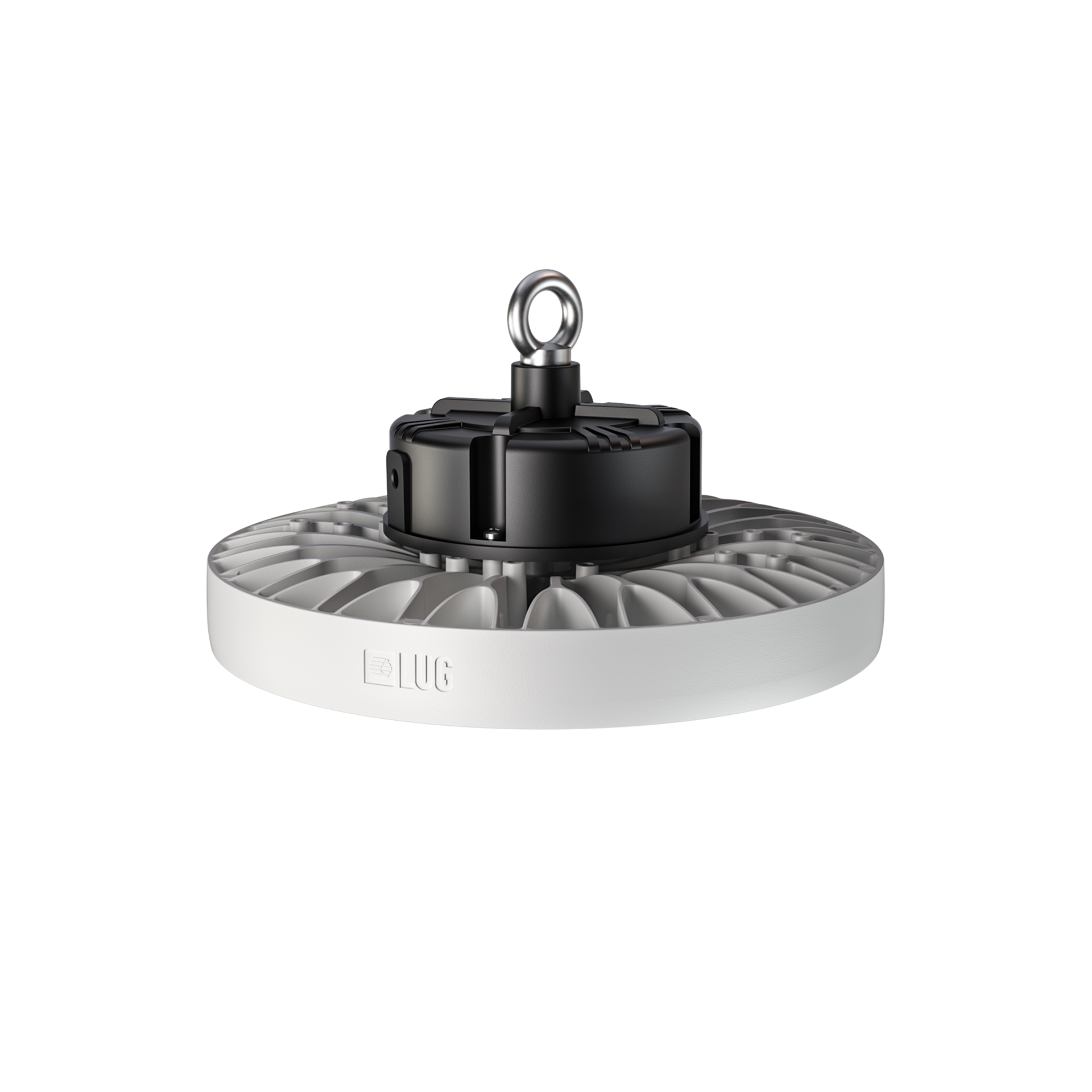

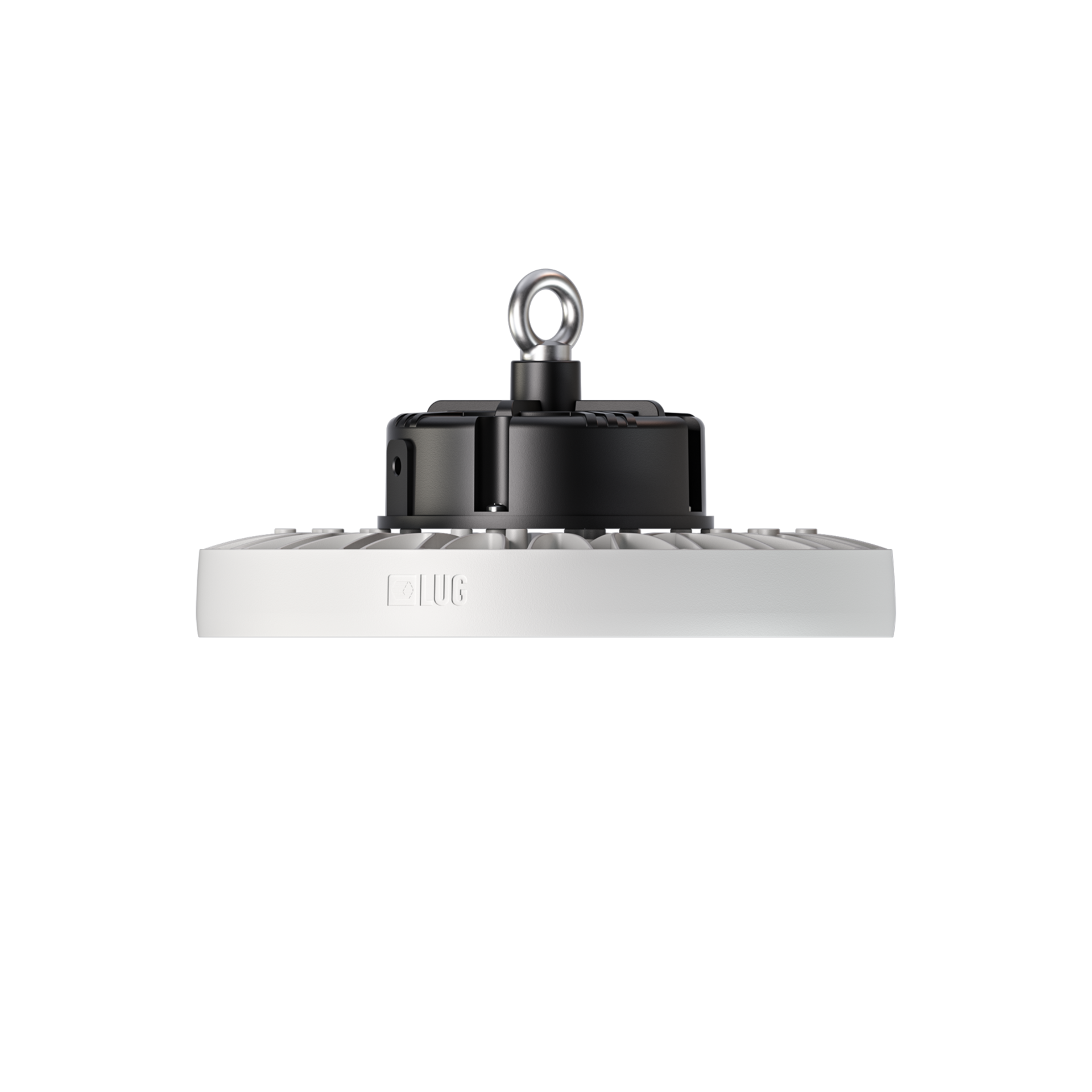

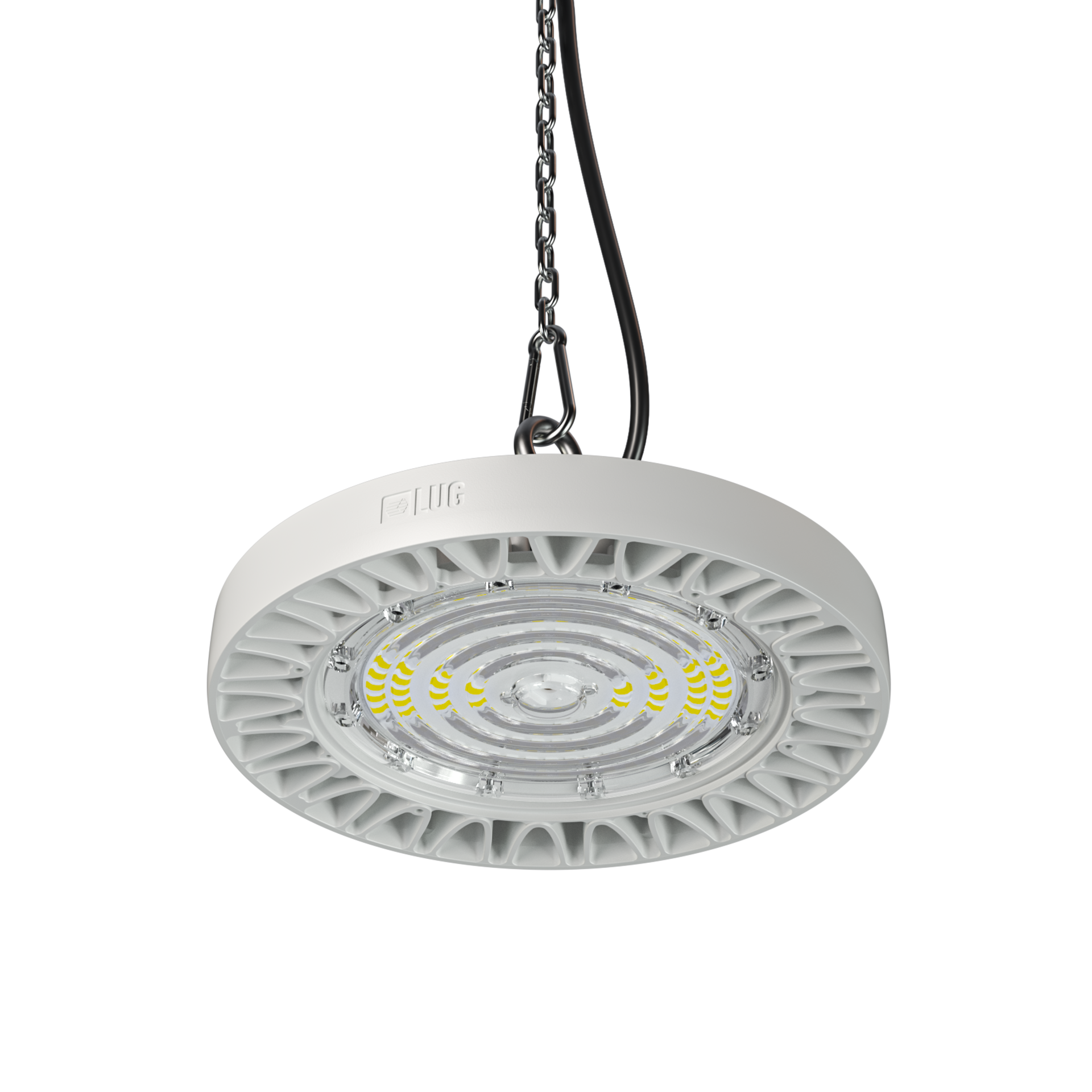

TRITON LED
Industrial luminaire designed to light up large-area objects. It is dedicated to use in applications requiring single pendant mounting.



High efficacy to 168 lm/W
Passive cooling system
Modern design
Reliability

Application

industrial facilities, logistics centers, production halls, warehouses

Luminous flux range

10150 - 20550 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
suspended
Body colour
gray
Operating temperature range
-30 ... +40, -30 ... +50
RAL
7035
Body
high pressure die-cast aluminum, plastic
Type
275mm

Electrical data

Power supply efficiency
≤92%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
61 - 131
Output current [mA]
305, 470, 650, 700, 800, 1050
Type of equipment
DALI, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
6 - 10
Maximum number of luminaires in the circuit with a 16A fuse (B)
9 - 16
Maximum number of luminaires in the circuit with a 25A fuse (B)
17 - 26

Optical data

Way of lighting
direct
Type of optic
polycarbonate lens (PC)
Colour temperature [K]
4000
Beam angle
120°, 30°x100°, 60°, 90°
CRI/Ra
≥70, ≥80
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
10150 - 20550
Efficacy [lm/W]
140 - 168
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1

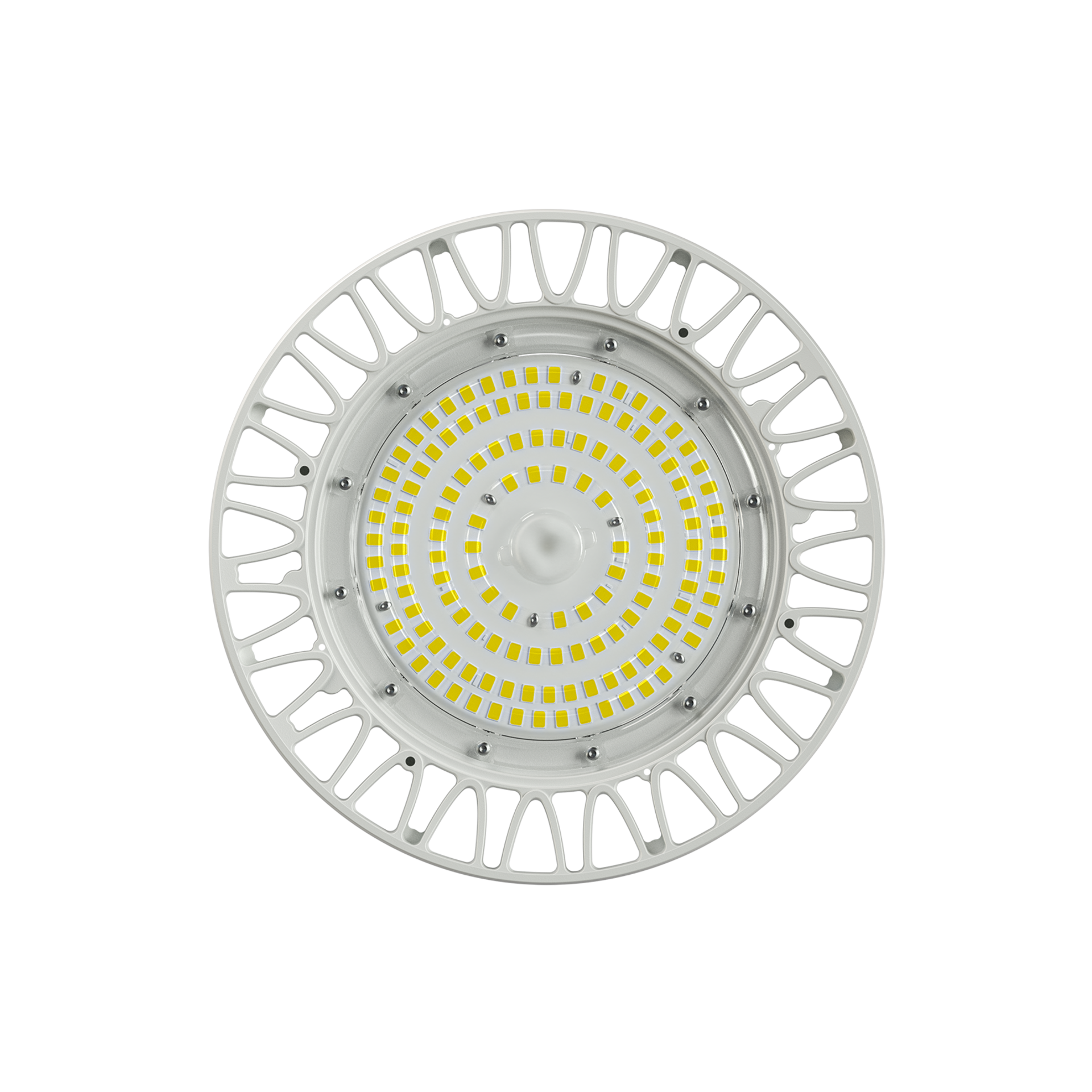

Number of LEDs
272

General data

Additional information
luminaire equipped with a 1,5 m wire
Other remarks
Requires connection 150020.01074; lampshades and adjustable mounting brackets not available with motion detector
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Marking Pallet quantity Quantity in package Net weight [kg]
275x275x110 ED 60 1 3.2
275x275x116 ED/DALI 30°x100° 60 1 3.2
275x275x118 DALI 60 1 3.5
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI
ED
CRI
≥70
≥80
Beam angle
120°
30°x100°
60°
90°
Clear Filters
Compare Code Type of equipment Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
090492.3L01.111 DALI 60° 72 10550 147 4000 ≥80 -30 ... +50
090492.3L01.112 DALI 90° 72 11000 153 4000 ≥80 -30 ... +50
090492.3L01.113 DALI 120° 72 10900 151 4000 ≥80 -30 ... +50
090492.3L01.114 DALI 30°x100° 61 10150 166 4000 ≥80 -30 ... +50
090492.3L02.111 DALI 60° 96 13900 145 4000 ≥80 -30 ... +50
090492.3L02.112 DALI 90° 96 14450 151 4000 ≥80 -30 ... +50
090492.3L02.113 DALI 120° 96 14350 149 4000 ≥80 -30 ... +50
090492.3L02.114 DALI 30°x100° 94 15100 161 4000 ≥80 -30 ... +50
090492.3L03.111 DALI 60° 130 18200 140 4000 ≥80 -30 ... +50
090492.3L03.112 DALI 90° 130 18650 143 4000 ≥80 -30 ... +50
Compare selected
Shown 10 / 42
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Manufacturer does not provide suspension components.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150020.01074
Set of IP66/67 connectors
150020.01071

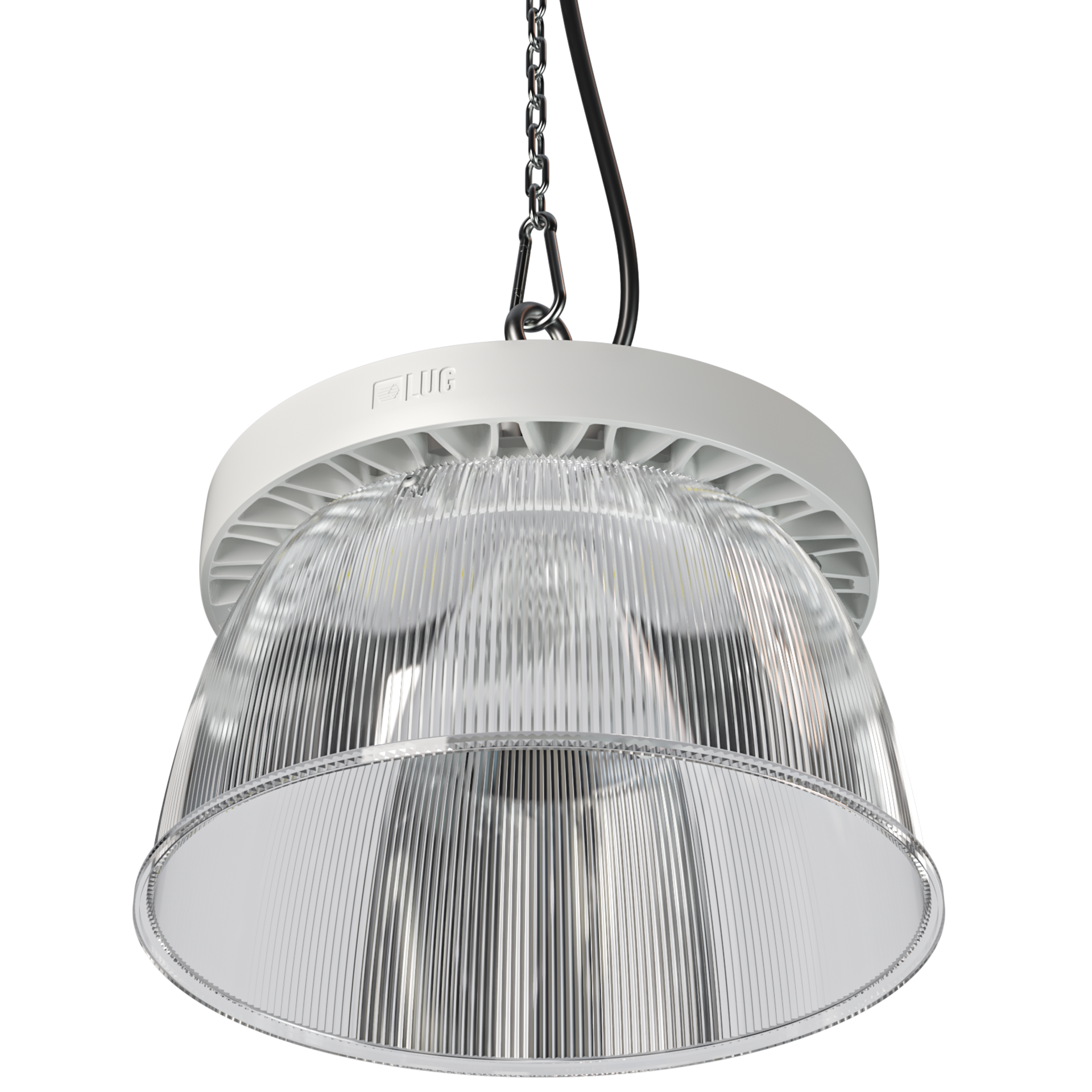

PC lampshade
150020.01072

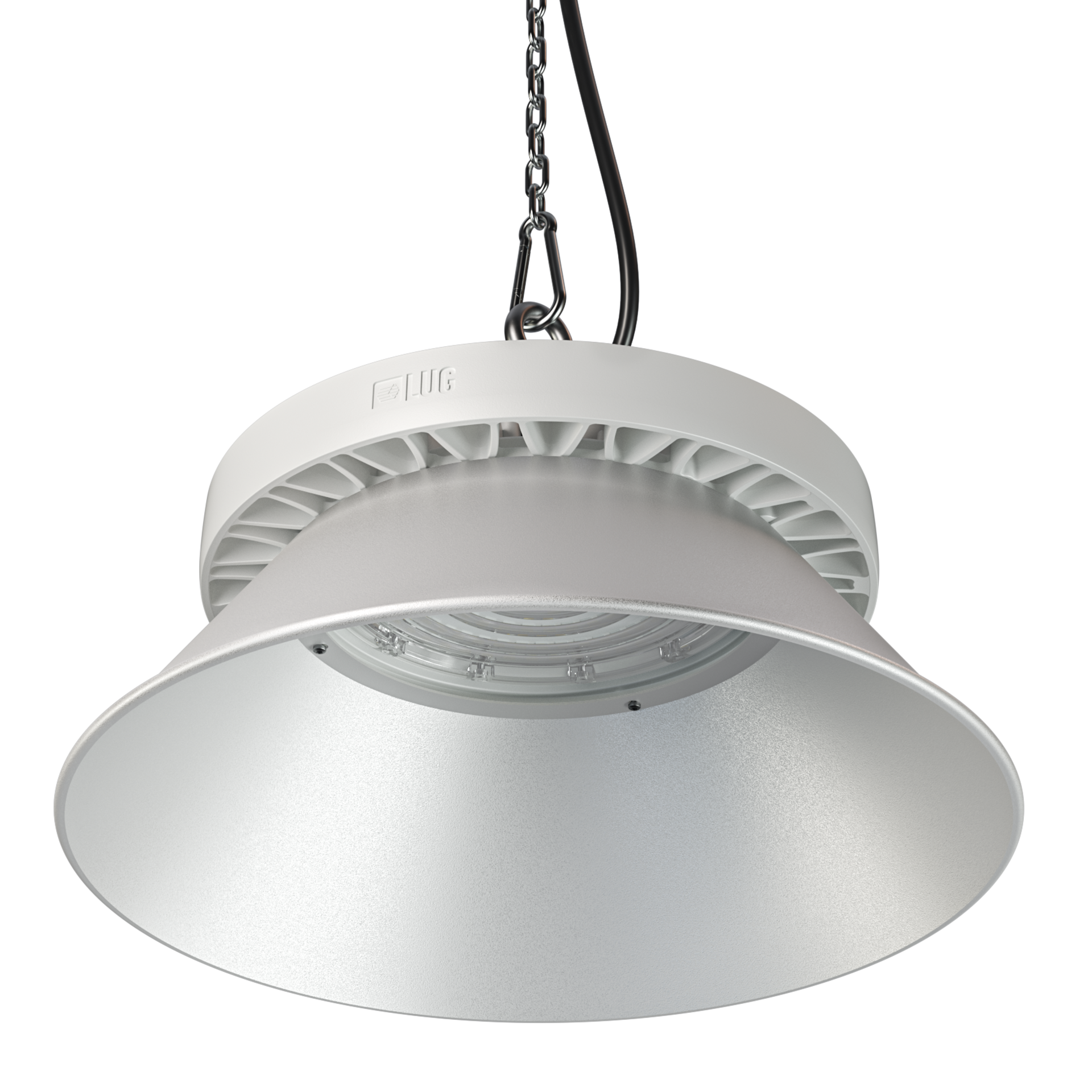

Aluminum lampshade
150022.01112

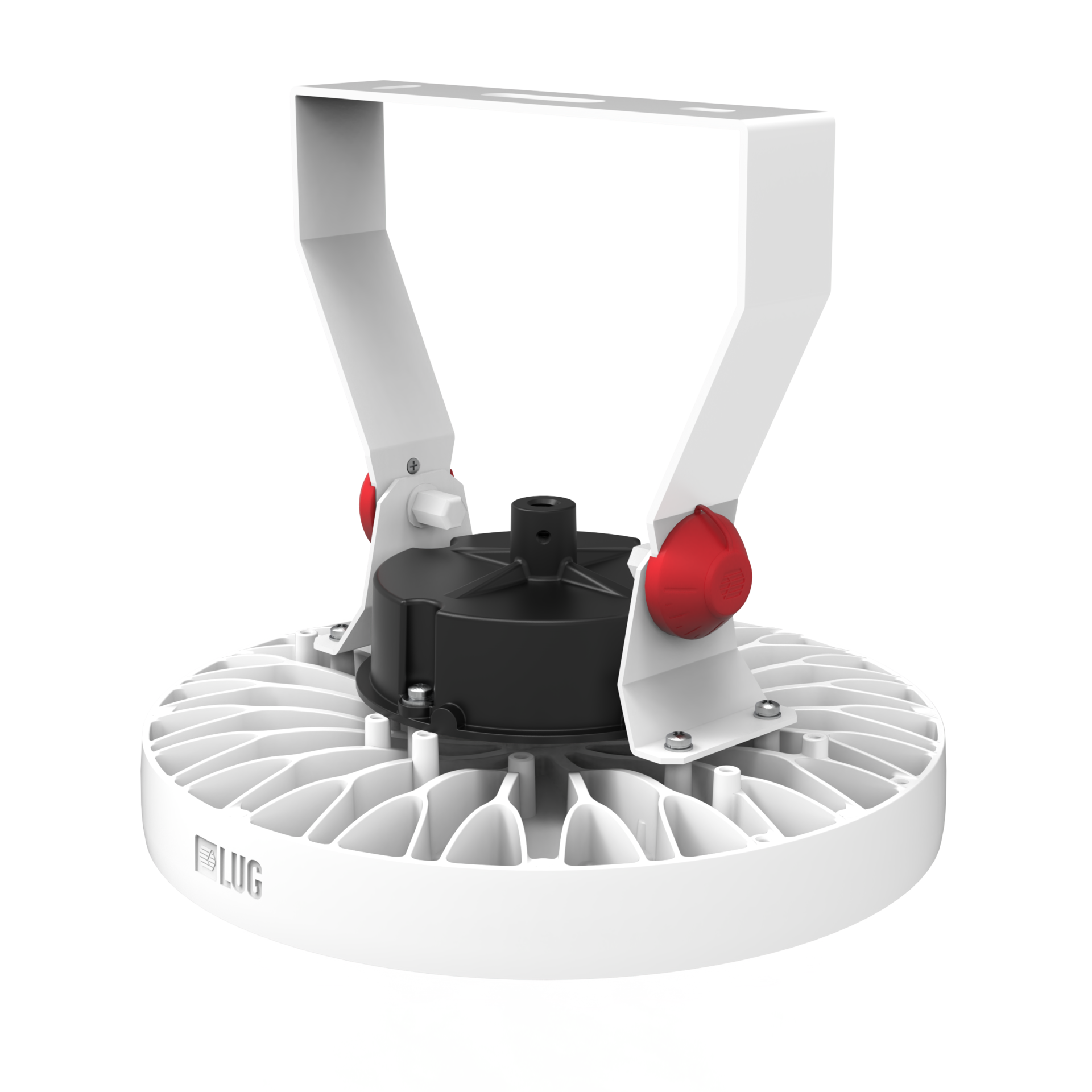

Adjustable mounitng bracket TRITON LED ED
150022.01114
Adjustable mounitng bracket TRITON LED ED / ED DALI
150190.01033
2 field connectors IP68
