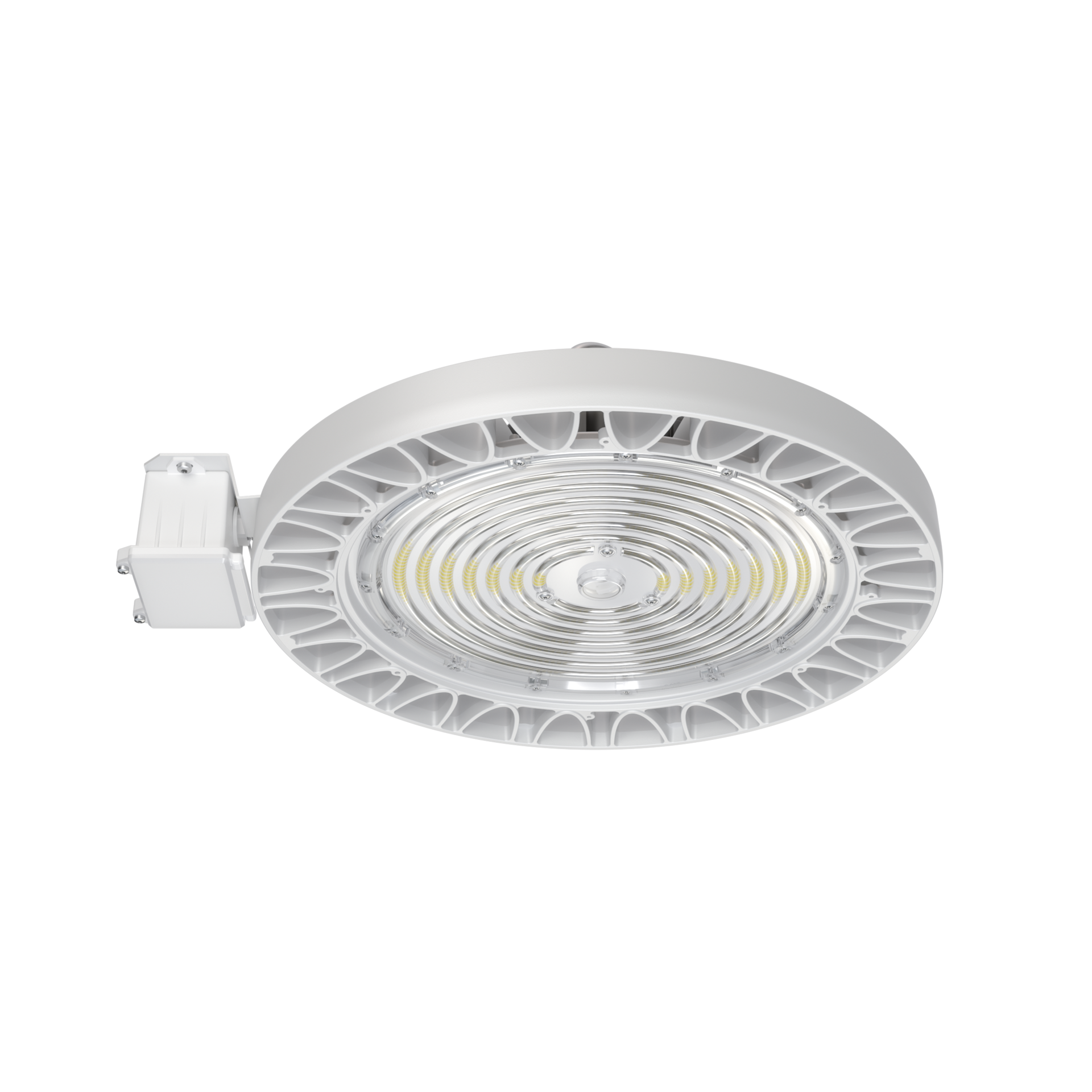

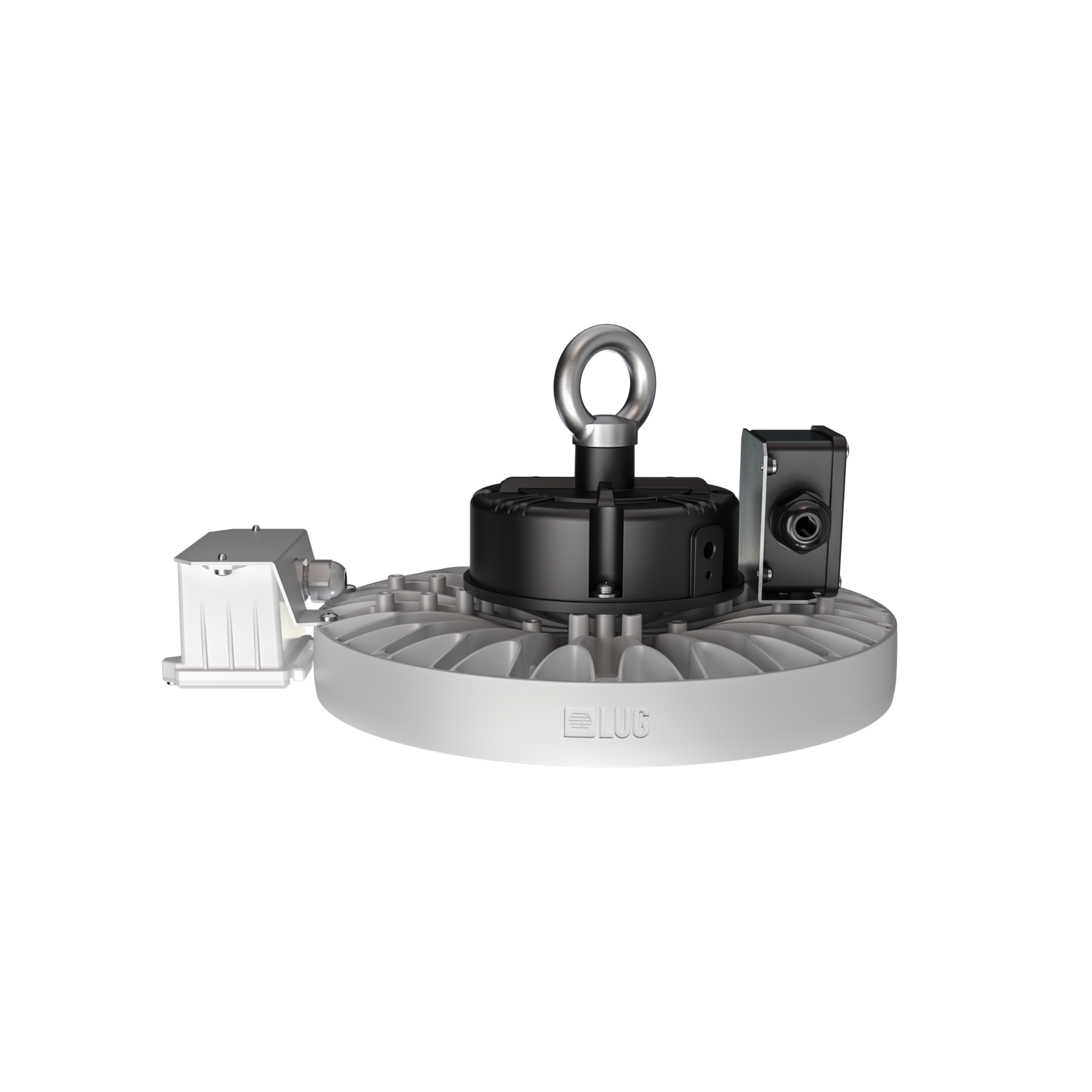

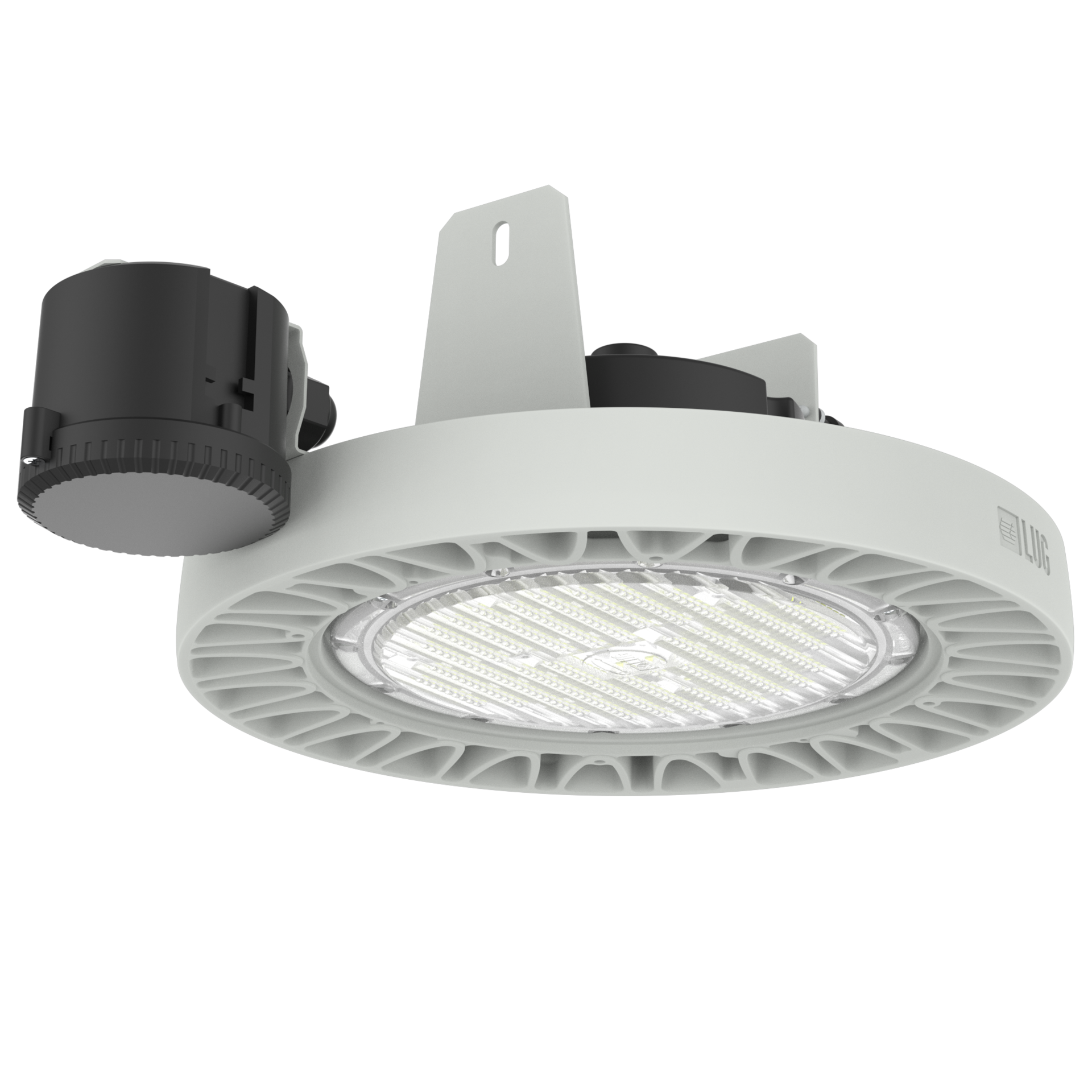

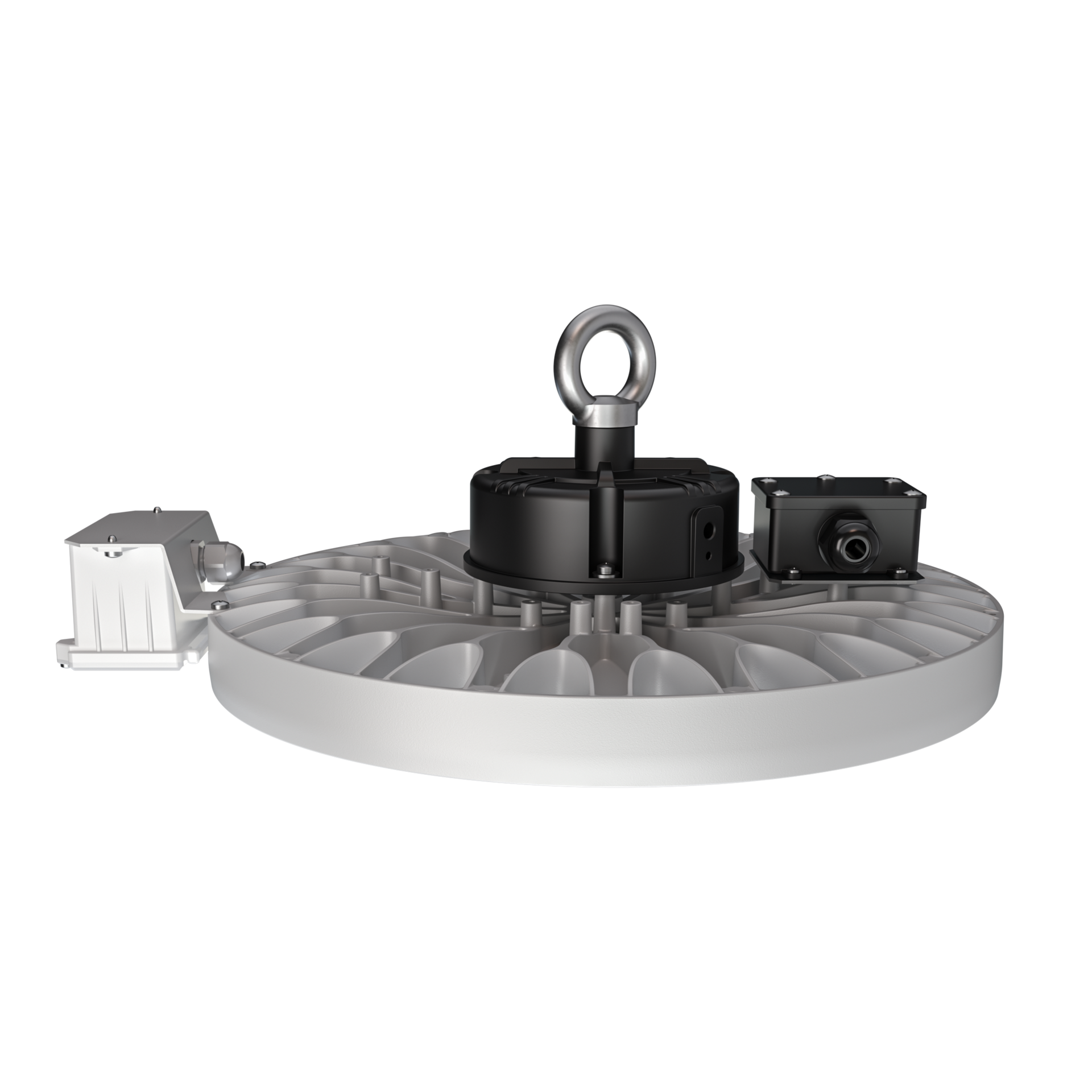

TRITON LED
version with motion detector
Industrial luminaire designed to light up large-area objects. It is dedicated to use in applications requiring single pendant mounting.



High efficacy to 168 lm/W
Passive cooling system
Modern design
Reliability

Application

industrial facilities, logistics centers, production halls, warehouses

Luminous flux range

10150 - 35650 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting
suspended
Body colour
gray
Operating temperature range
-20 ... +40, -20 ... +45, -20 ... +50, -30 ... +40, -30 ... +45, -30 ... +50
RAL
7035
Body
high pressure die-cast aluminum, plastic
Type
275mm - version with motion detector, 370mm - PLUS version with motion detector

Electrical data

Power supply efficiency
≤92%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
61 - 221
Output current [mA]
305, 470, 625, 650, 700, 800, 950, 1050, 1500, 1600, 1900
Type of equipment
ED, radar motion detector
Maximum number of luminaires in the circuit with a 10A fuse (B)
4 - 10
Maximum number of luminaires in the circuit with a 16A fuse (B)
5 - 16
Maximum number of luminaires in the circuit with a 25A fuse (B)
12 - 26

Optical data

Way of lighting
direct
Type of optic
polycarbonate lens (PC)
Colour temperature [K]
4000
Beam angle
120°, 30°x100°, 60°, 90°
CRI/Ra
≥70, ≥80
MacAdam's steps
3
ULOR / DLOR
0/100
Lumen luminaire [lm]
10150 - 35650
Efficacy [lm/W]
140 - 168
Photobiological risk group
RG1
SVM
≤0,4
PstLM
≤1
Number of LEDs
272, 800

General data

Additional information
luminaire equipped with a 1,5 m wire
Other remarks
Requires connection 150020.01074; lampshades and adjustable mounting brackets not available with motion detector
Lifetime L80B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Marking Pallet quantity Quantity in package Net weight [kg]
354x275x120 standard version 60 1 3.4
354x275x136 standard version 30°x100° 60 1 3.5
450x370x112 PLUS version 40 1 4.7
X

Available variants

Code
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
ED
radar motion detector
CRI
≥70
≥80
Beam angle
120°
30°x100°
60°
90°
Type
275mm - wersja z czujnikiem ruchu
370mm - wersja PLUS z czujnikiem ruchu
Clear Filters
Compare Code Type Type of equipment Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
090492.5L01.111.920 275mm - version with motion detector ED, radar motion detector 60° 72 10550 147 4000 ≥80 -20 ... +50
090492.5L01.112.920 275mm - version with motion detector ED, radar motion detector 90° 72 11000 153 4000 ≥80 -20 ... +50
090492.5L01.113.920 275mm - version with motion detector ED, radar motion detector 120° 72 10900 151 4000 ≥80 -20 ... +50
090492.5L01.114.920 275mm - version with motion detector ED, radar motion detector 30°x100° 61 10150 166 4000 ≥80 -30 ... +50
090492.5L02.111.920 275mm - version with motion detector ED, radar motion detector 60° 96 13900 145 4000 ≥80 -20 ... +50
090492.5L02.112.920 275mm - version with motion detector ED, radar motion detector 90° 96 14450 151 4000 ≥80 -20 ... +50
090492.5L02.113.920 275mm - version with motion detector ED, radar motion detector 120° 96 14350 149 4000 ≥80 -20 ... +50
090492.5L02.114.920 275mm - version with motion detector ED, radar motion detector 30°x100° 94 15100 161 4000 ≥80 -30 ... +50
090492.5L03.111.920 275mm - version with motion detector ED, radar motion detector 60° 130 18200 140 4000 ≥80 -20 ... +50
090492.5L03.112.920 275mm - version with motion detector ED, radar motion detector 90° 130 18650 143 4000 ≥80 -20 ... +50
Compare selected
Shown 10 / 33
Show all
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Manufacturer does not provide suspension components.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
Colour temperature tolerance +/- 5%.
