CRUISER 2 PLUS LED 36800lm

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact
Other parameters available View variants

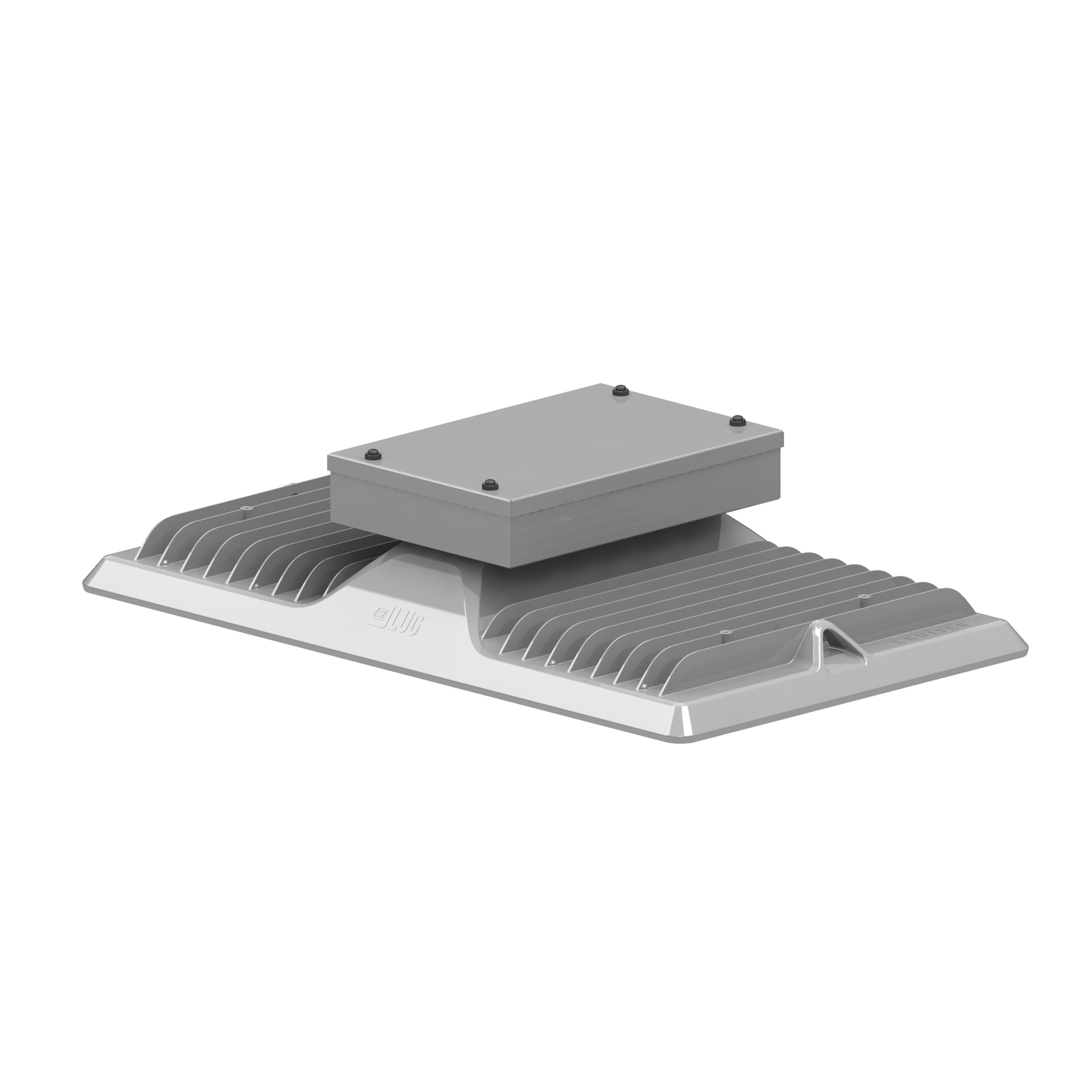

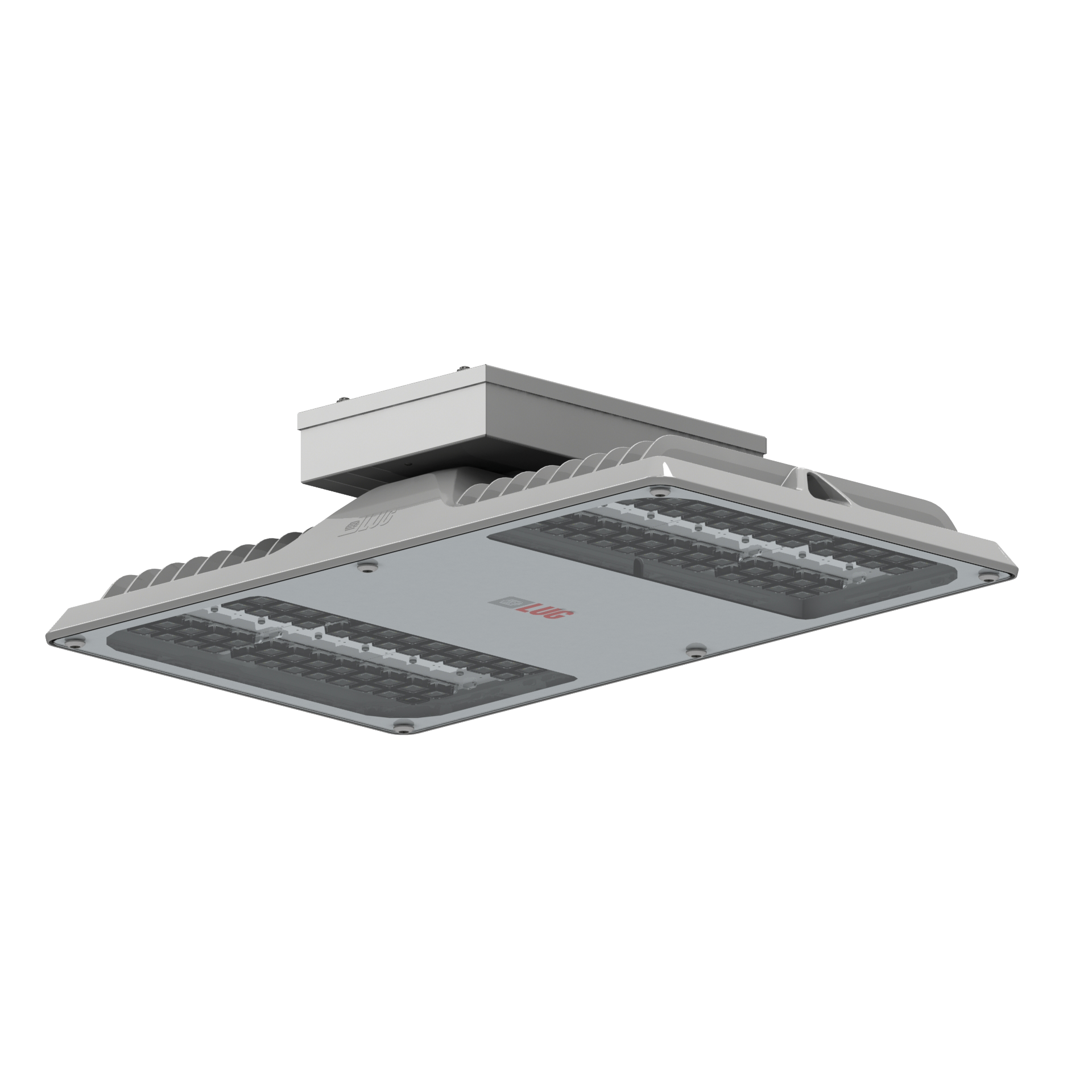

CRUISER 2 PLUS LED 36800lm
Industrial luminaire for LED light sources. Adjusting the luminaire design to the high lumen.



High efficacy to 108 lm/W
Passive cooling system
Modern design
Reliability

Application

industrial facilities, logistics centers, roofing, sport facilities, warehouses

Luminous flux range

34500 - 36800 [lm]

Variable color temperature

4000 - 5700 [K]

Mechanical data

Mounting
suspended, manufacturer does not provide suspension components
Body colour
gray
Operating temperature range
-30 ... +25, -35 ... +25
RAL
7035
Body
high pressure die-cast aluminum

Electrical data

Power supply efficiency
90%
Power
120-270V 50Hz
Includes light source
yes
Luminaire power [W]
340
Output current [mA]
700
Type of equipment
ED

Optical data

Way of lighting
direct
Type of optic
O7 - for area lighting, lens
Diffuser
tempered glass
Colour temperature [K]
4000, 5700
Beam angle
110°, 55°
CRI/Ra
≥70
UGR
>22
Lumen luminaire [lm]
34500 - 36800
Efficacy [lm/W]
101 - 108

General data

Additional information
Ball impact resistance
Lifetime L70B50
100 000 h
Lifetime L80B10
60 000 h
Lifetime L90B10
40 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Mounting dimensions [mm] L Pallet quantity Quantity in package Net weight [kg]
675x398x90 590 30 1 13.7
675x398x148 590 30 1 13.7
X

Available variants

Code
Colour temperature [K]
4000
5700
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Beam angle
110°
55°
Clear Filters
Compare Code Beam angle Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Operating temperature range
900090.00393 55° 340 36800 108 5700 ≥70 -30 ... +25
900090.00394 110° 340 36800 108 5700 ≥70 -30 ... +25
900092.00427 55° 340 34500 101 4000 ≥70 -35 ... +25
Compare selected
Luminous flux tolerance +/- 10%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Colour temperature tolerance +/- 5%.
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Accessories
150020.00823
Adjustable mounitng bracket, 60x705x226
150020.00824
Bracket for surface mounting, 89x205x187 (x2)
