LUG - SAVA - Infrastructural lighting

SAVA
M version

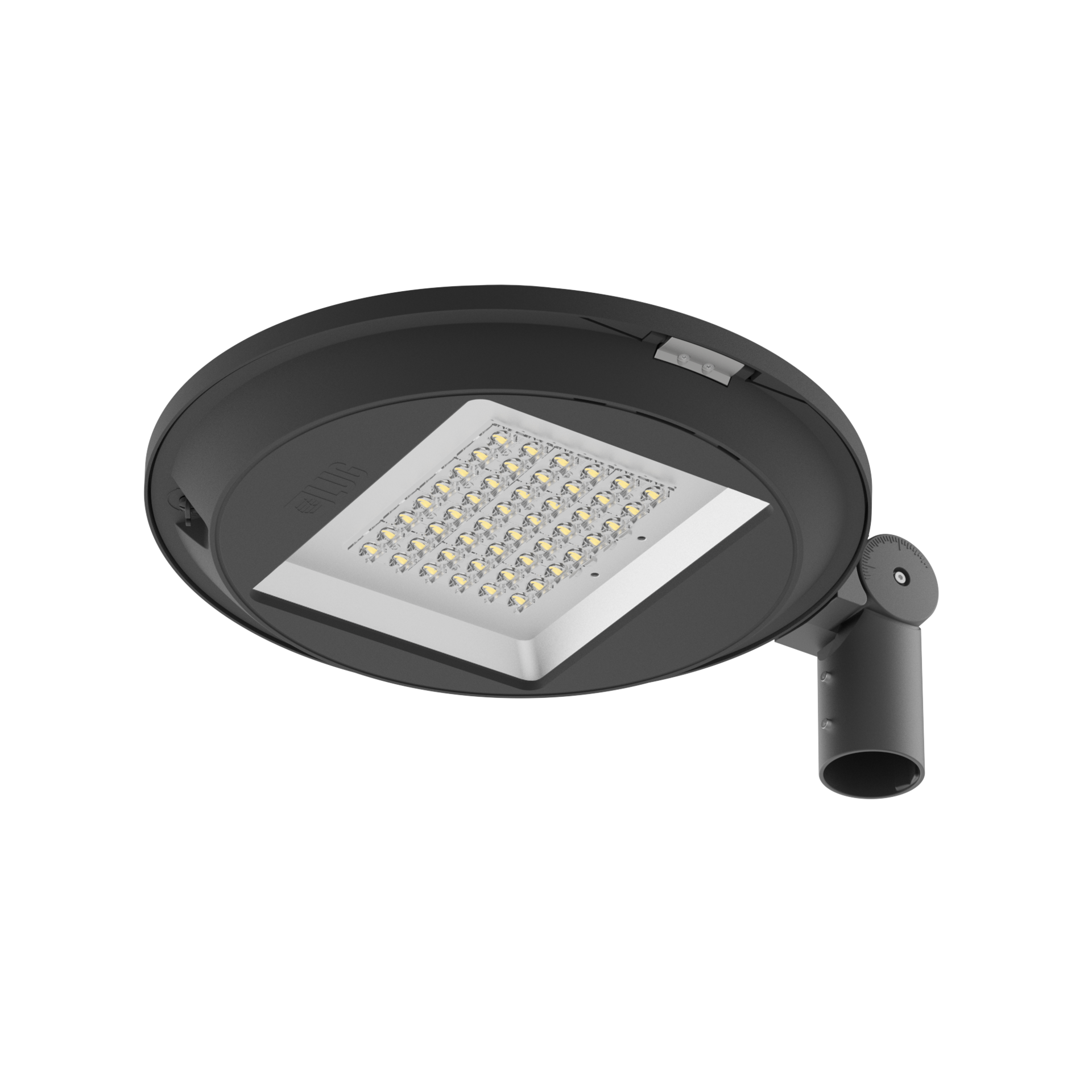

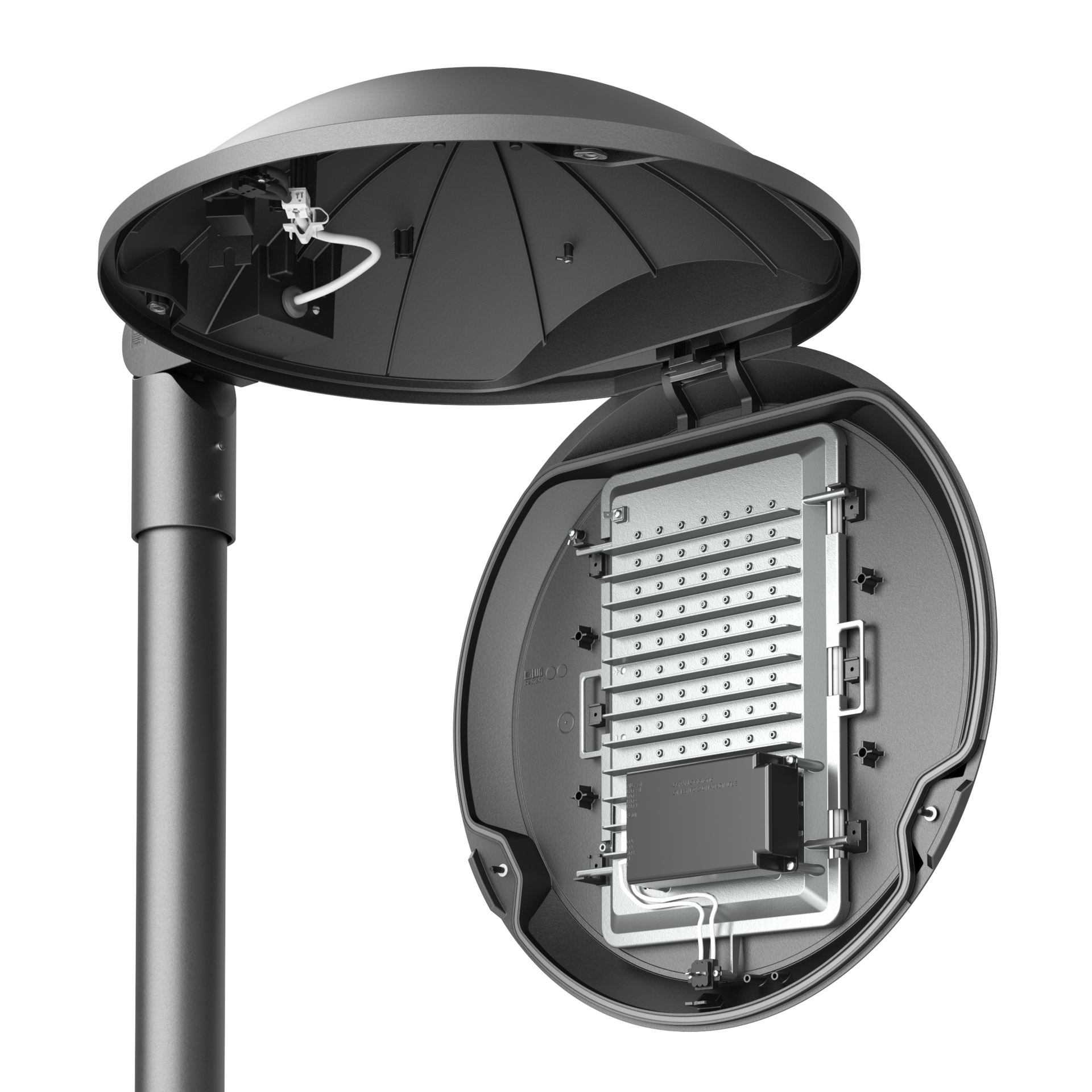

Modular street luminaire in two body sizes with increased serviceability, enabling tool-free replacement of the light module and power supply. Designed for professional lighting of various urban application spaces.

High efficacy to 169 lm/W

Possible illuminance control

Modern design

Reliability

Application

Railway stations, area lighting, avenues, local roads, parking areas, playgrounds, promenade, public spaces, residential area roads, roads, town roads

Available on request

CLO, DIM 1..10V, NEMA connector, NTC, ZHAGA connector, extension of the warranty to 10 years, twilight sensor, version with increased corrosion resistance in accordance with class C5

Luminous flux range

1200 - 15600 [lm]

Variable color temperature

2200 - 4000 [K]

Mechanical data

Mounting

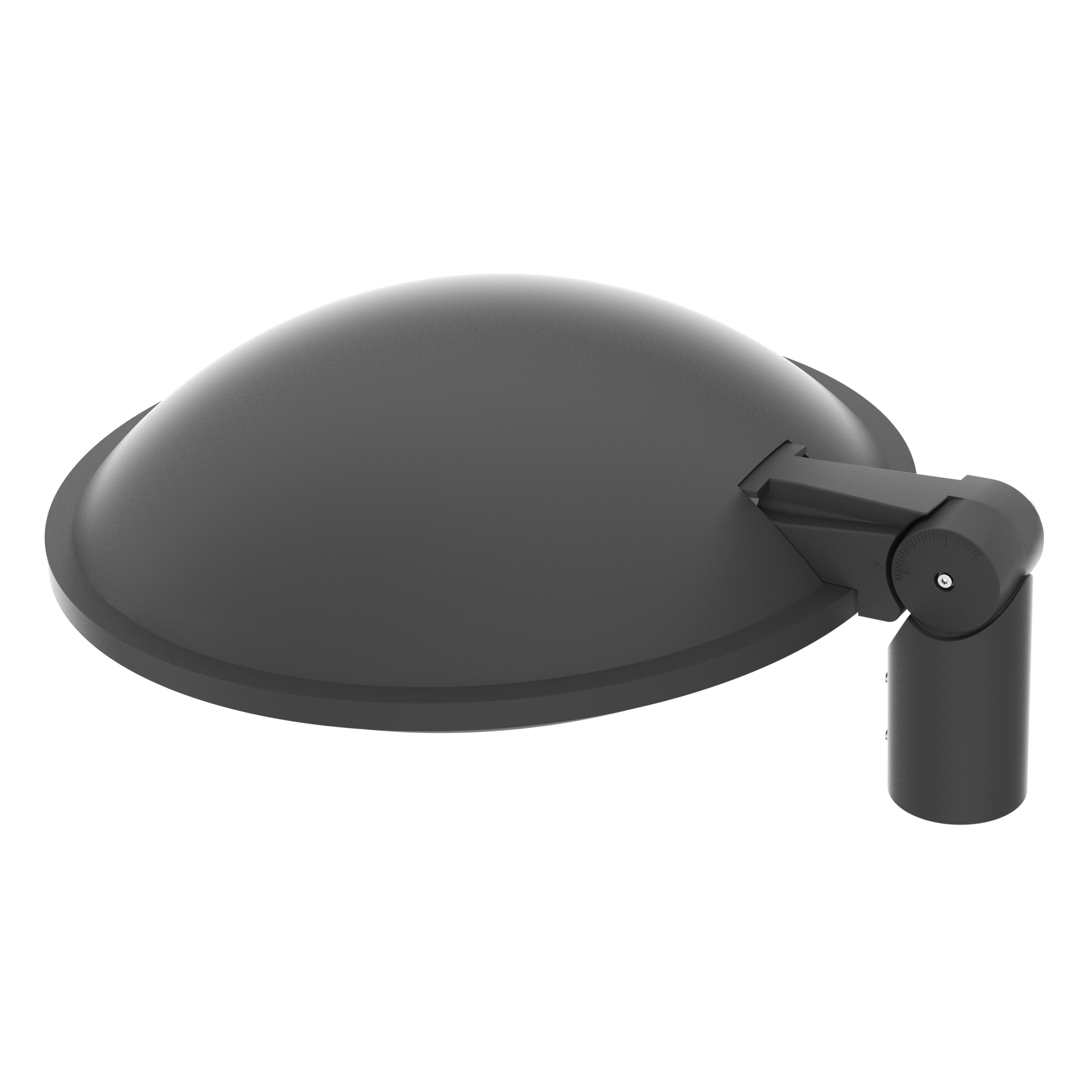

on pillar ø48-76mm, on outriggers ø48-76mm, with mounting brackets (to be ordered seperately)

Body colour

graphite

Operating temperature range

-40 ... +50, -40 ... +55

Body

high pressure die-cast aluminum

Lateral Surface Wind Exposed

0.063 m²

Type

M version - O1, O2, O3, O4, O5, O6, O7 optics, M version - O8, O9, O10, O11, O12, O13, O14, O15, O16, O17, O18, O19 optics

Electrical data

Power supply efficiency

≤93%

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

11 - 102

Output current [mA]

200, 300, 500, 550, 700

Type of equipment

Maximum number of luminaires in the circuit with a 10A fuse (B)

7 - 18

Maximum number of luminaires in the circuit with a 16A fuse (B)

12 - 28

Maximum number of luminaires in the circuit with a 25A fuse (B)

19 - 44

Optical data

Way of lighting

direct

Type of optic

O1 - for road lighting, O10 - for road lighting, O11 - for road lighting, O12 - for road lighting, O13 - for road lighting, O14 - for road lighting, O15 - for road lighting, O16 - for road lighting, O17 - for road lighting, O18 - for road lighting, O19 - for road lighting, O2 - for road lighting, O3 - for road lighting, O4 - for road lighting, O5 - for road lighting, O6 - for road lighting, O7 - for road lighting, O8 - for road lighting, O9 - for road lighting

Diffuser

tempered glass

Colour temperature [K]

2200, 2700, 3000, 4000

CRI/Ra

MacAdam's steps

ULOR / DLOR

0% / 100%

Lumen luminaire [lm]

1200 - 15600

Efficacy [lm/W]

99 - 169

Photobiological risk group

RG0, RG1

Number of LEDs

16, 24, 36, 48

General data

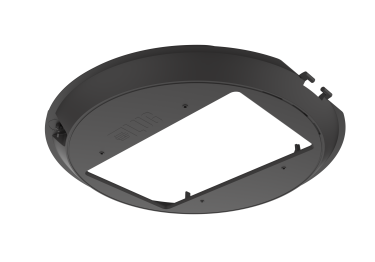

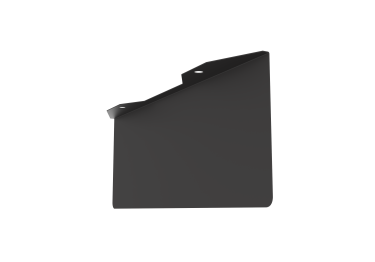

Additional equipment

additional anti-corrosive protection (index extension: .985)

Other remarks

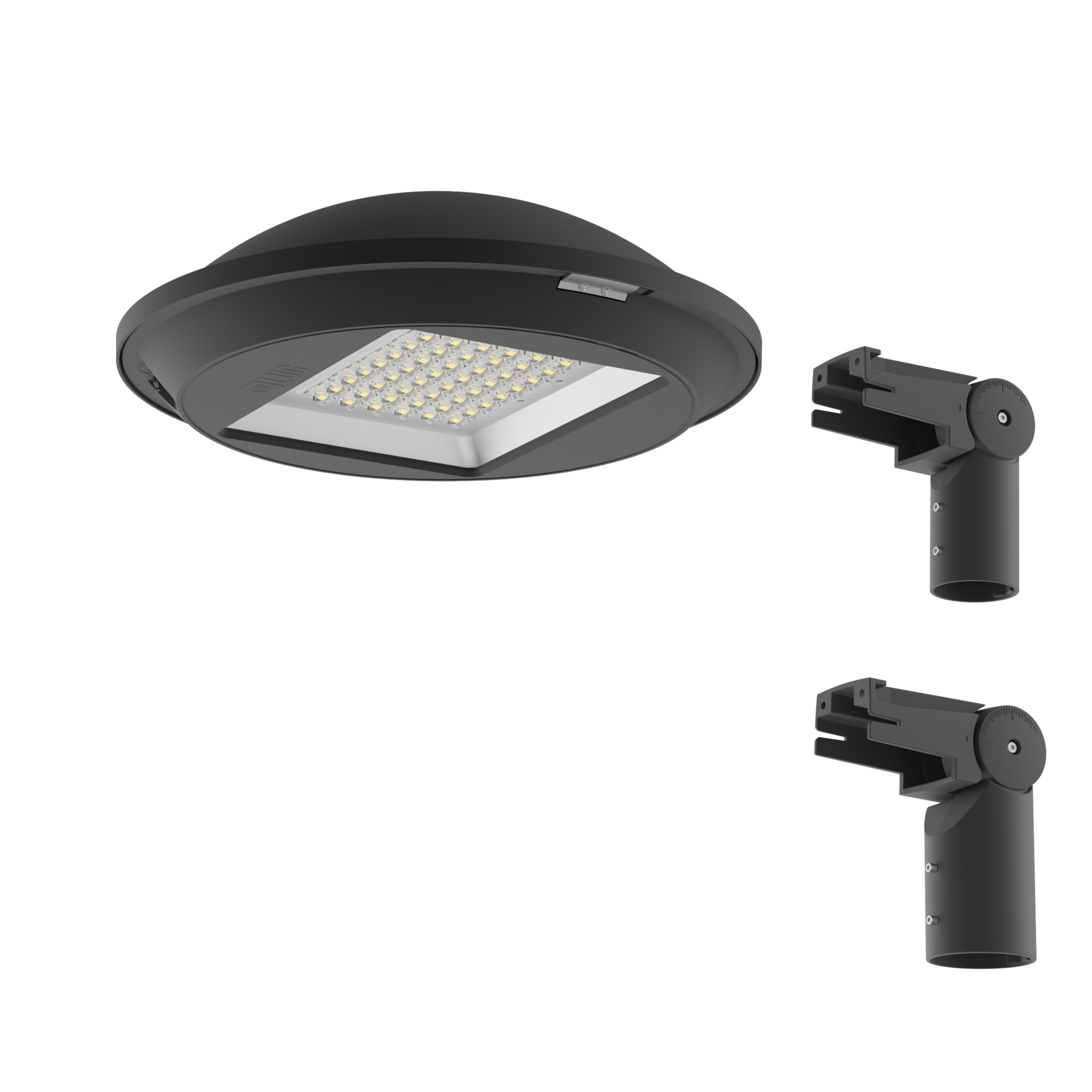

the pole and boom are not part of the luminaire; mounting bracket as an accessory, to be ordered separately

Lifetime L90B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] WxH	Pallet quantity	Quantity in package	Net weight [kg]
521x165	20	1	9.4

Code	Protection Class	Type of optic	Type of equipment	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Operating temperature range	(DarkSky)
130695.5L012.010	II	O1 - for road lighting	ED	40	5500	138	2200	70	-40 ... +55	yes
130695.5L012.020	II	O2 - for road lighting	ED	40	5550	139	2200	70	-40 ... +55	yes
130695.5L012.030	II	O3 - for road lighting	ED	40	5500	138	2200	70	-40 ... +55	yes
130695.5L012.040	II	O4 - for road lighting	ED	40	5350	134	2200	70	-40 ... +55	yes
130695.5L012.050	II	O5 - for road lighting	ED	40	5450	136	2200	70	-40 ... +55	yes
130695.5L012.060	II	O6 - for road lighting	ED	40	5600	140	2200	70	-40 ... +55	yes
130695.5L012.070	II	O7 - for road lighting	ED	40	5600	140	2200	70	-40 ... +55	yes
130695.5L022.010	II	O1 - for road lighting	ED	40	5900	148	2700	70	-40 ... +55	yes
130695.5L022.020	II	O2 - for road lighting	ED	40	5950	149	2700	70	-40 ... +55	yes
130695.5L022.030	II	O3 - for road lighting	ED	40	5900	148	2700	70	-40 ... +55	yes

Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.

Please note that the standard luminaire is not intended for use in an environment with an increased corrosivity category. The use of the luminaire for work in an environment for which additional corrosion protection is necessary requires the use of an index with the extension .985 (on request).
In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
