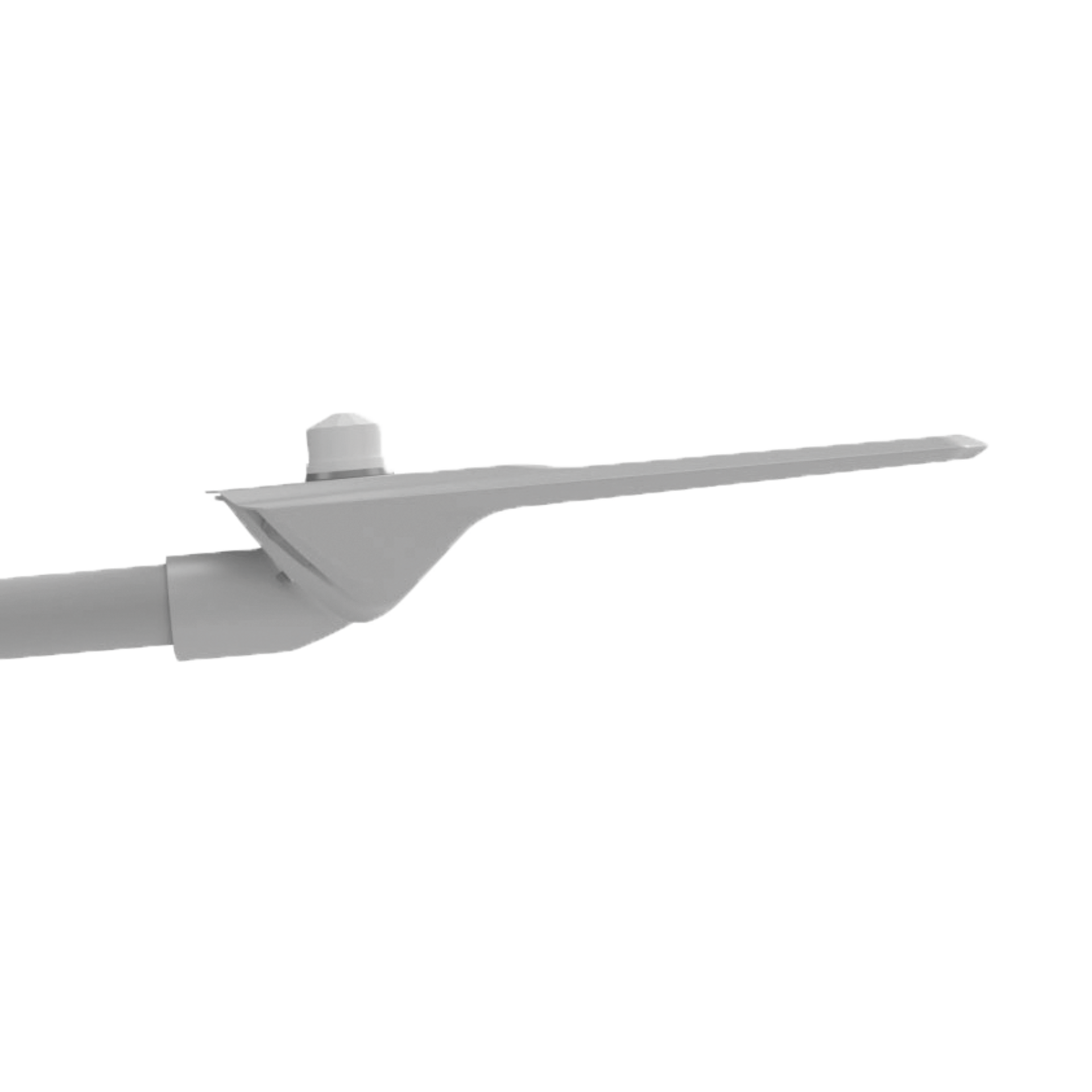

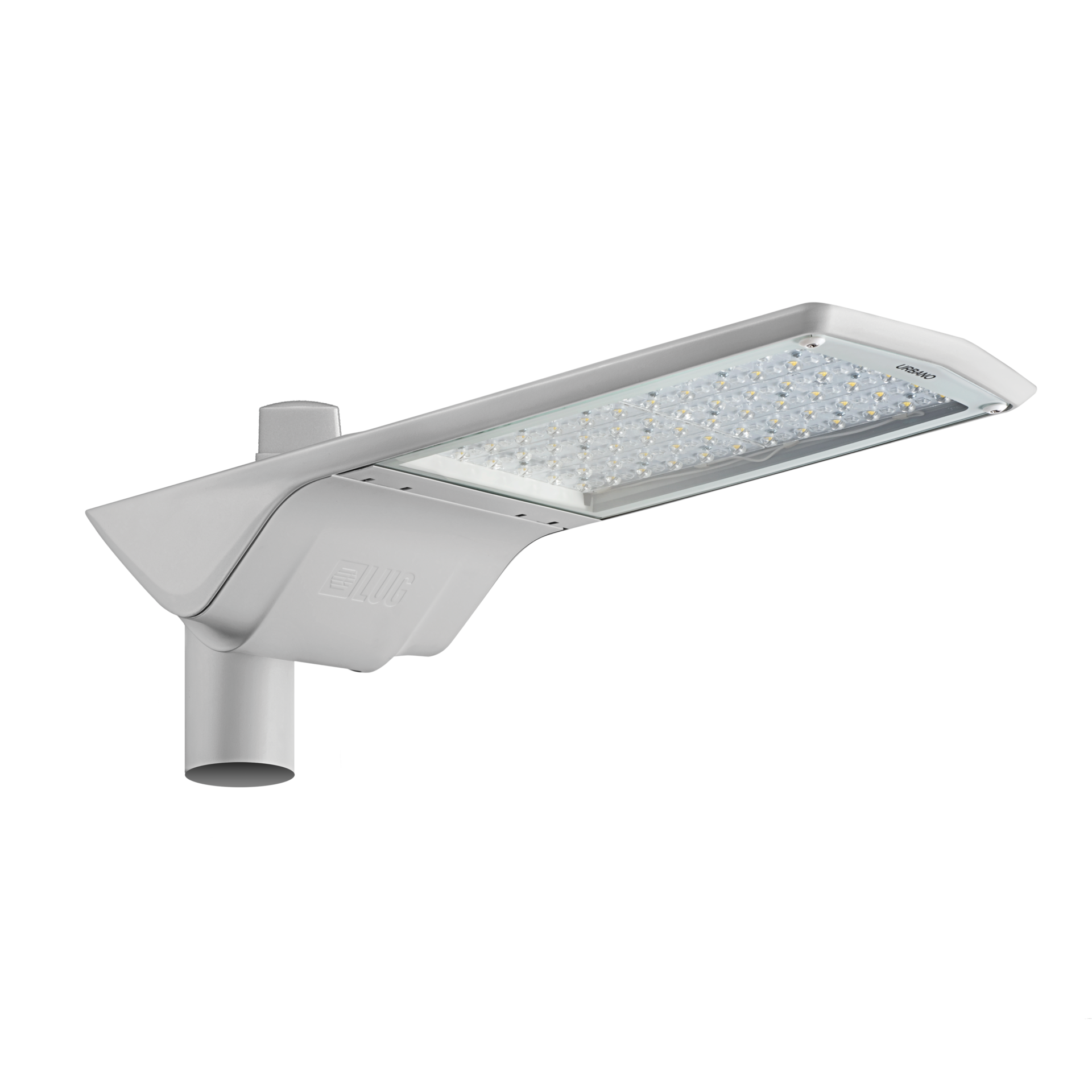

URBANO TWILIGHT LED
Professional streetlight luminaire for LED light sources. Luminaire with twilight sensor.



High efficacy to 123 lm/W
Possible illuminance control
Modern design
Simple one person mounting
Reliability

Application

area lighting, express roads, freeways, local roads, residential area roads, town roads

Available on request

10kV surge protection, CLO, DALI, DIM 1..10V, NTC, extension of the warranty to 10 years

Luminous flux range

12050 - 22900 [lm]

Variable color temperature

4000 - 5700 [K]

Mechanical data

Mounting
on pillar ø60-76mm, on outriggers ø60-76mm
Body colour
graphite, gray
Operating temperature range
-40 ... +35, -40 ... +50, -40 ... +55
RAL
7035
Body
high pressure die-cast aluminum
Lateral Surface Wind Exposed
0.054 m²
Type

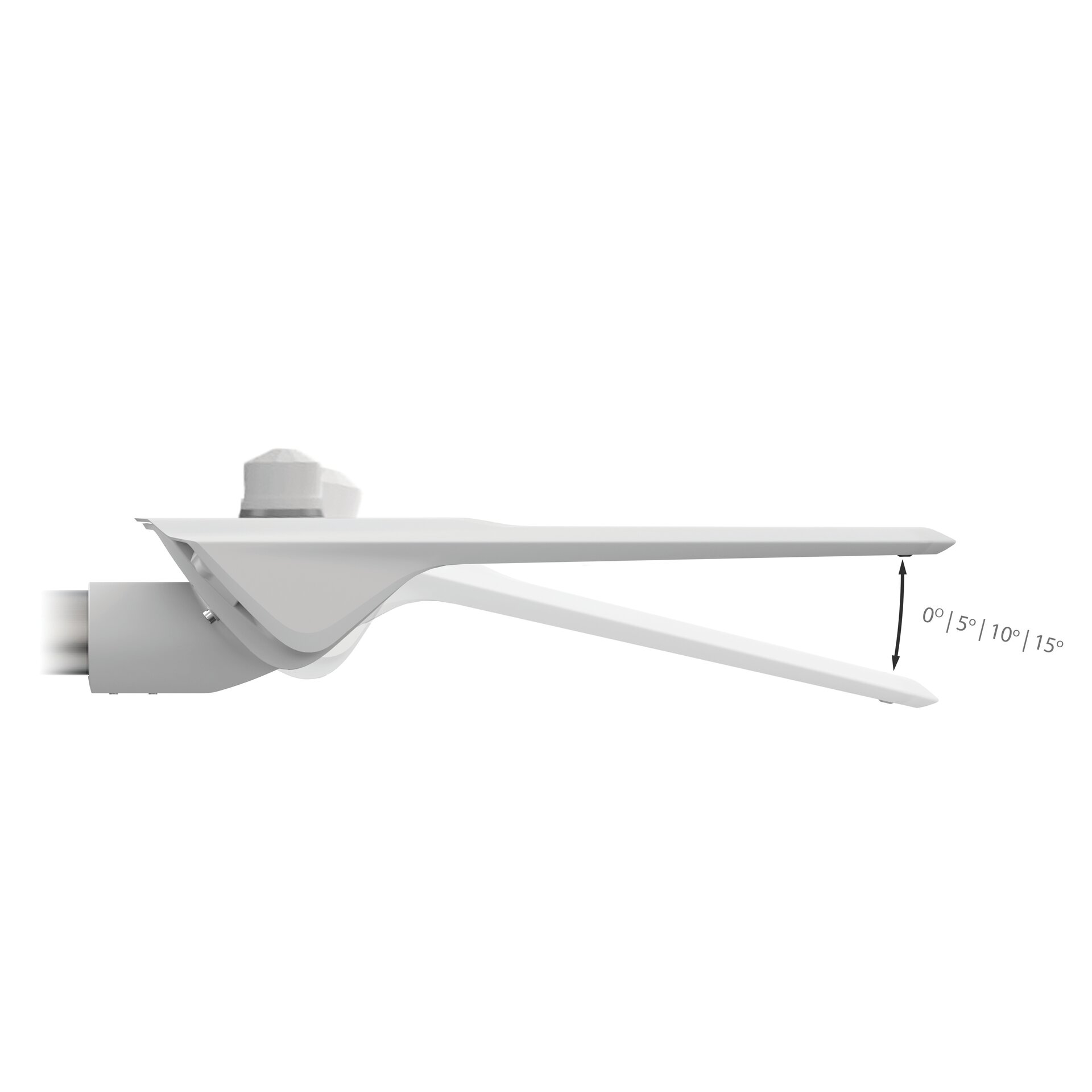

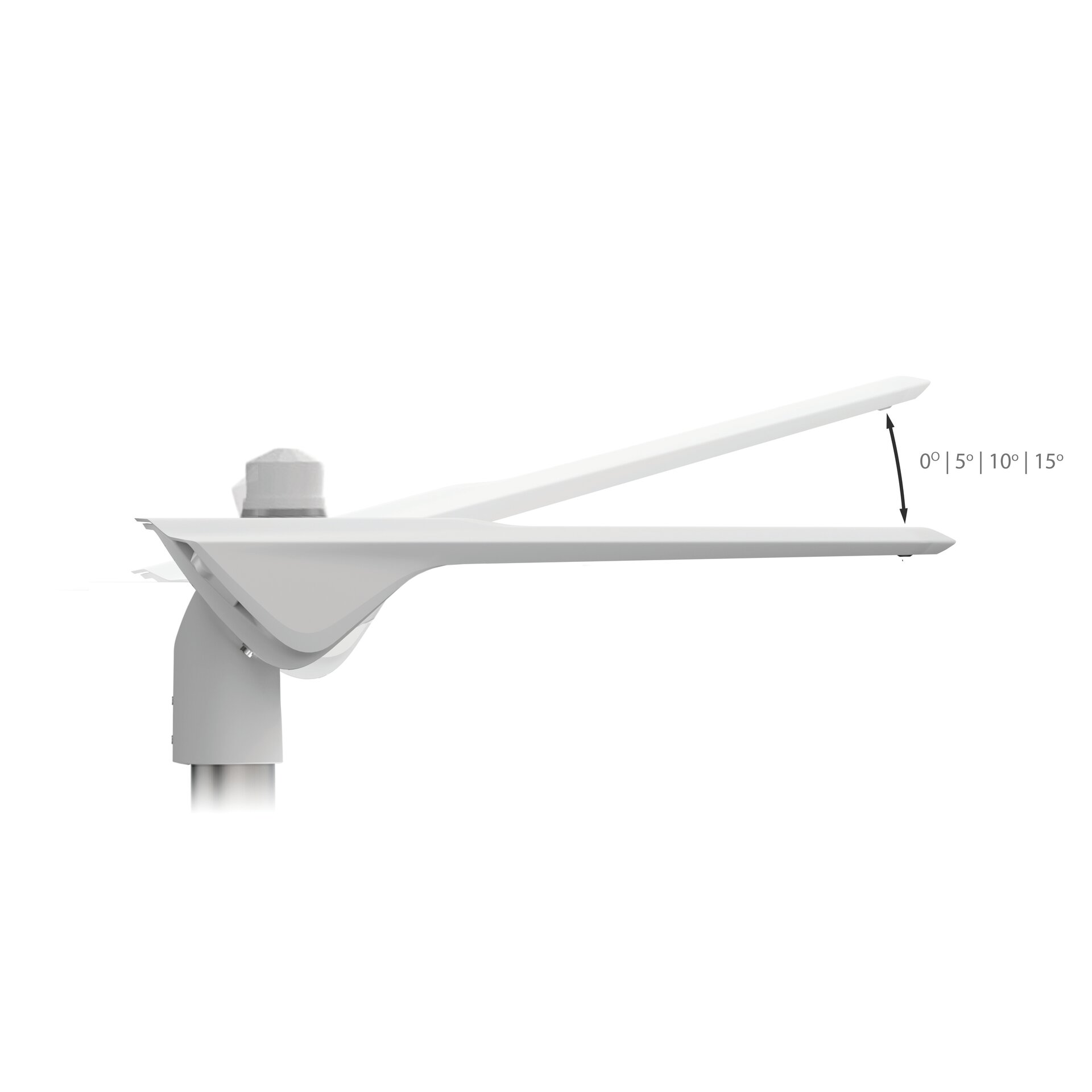

Regulation -15° ... 0°, Regulation 0° ... +15°

Electrical data

Power supply efficiency
≤93%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
103 - 200
Output current [mA]
700, 1050
Type of equipment
ED, NEMA socket, twilight sensor
Maximum number of luminaires in the circuit with a 10A fuse (B)
2 - 5
Maximum number of luminaires in the circuit with a 16A fuse (B)
4 - 8

Optical data

Way of lighting
direct
Type of optic
O1 - for freeways, O2 - for express roads, O3 - for local roads, O4 - for town roads, O5 - for residential area roads, O7 - for area lighting, O8 - for town and local roads
Diffuser
tempered glass
Colour temperature [K]
4000, 5700
CRI/Ra
>70
ULOR / DLOR
0% / 100%
Lumen luminaire [lm]
12050 - 22900
Efficacy [lm/W]
111 - 123
Number of LEDs
24, 72

General data

Additional information
Tilt adjustment: 5°, knife switch (for protection class I), access to the driver chamber without the use of tools. The possibility of using one or more power supplies in the luminaire.
Other remarks
the pole and boom are not part of the luminaire
Lifetime L90B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Pallet quantity Quantity in package Net weight [kg]
730x295x217 24 1 11
730x295x217 24 1 11.2
730x295x217 24 1 12.4
X

Available variants

Code
Colour temperature [K]
4000
5700
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
ED
NEMA socket
twilight sensor
Body colour
graphite
gray
Type of optic
O1 - for freeways
O2 - for express roads
O3 - for local roads
O4 - for town roads
O5 - for residential area roads
O7 - for area lighting
O8 - for town and local roads
Protection Class
I
II
Clear Filters
Compare Code Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] CRI/Ra Type of optic Body colour Operating temperature range Protection Class
130192.5L05.11.986 ED, NEMA socket, twilight sensor 103 12400 120 4000 >70 O1 - for freeways gray -40 ... +55 I
130192.5L05.111.986 ED, NEMA socket, twilight sensor 103 12400 120 4000 >70 O1 - for freeways gray -40 ... +55 I
130192.5L05.12.986 ED, NEMA socket, twilight sensor 103 12250 119 4000 >70 O2 - for express roads gray -40 ... +55 I
130192.5L05.121.986 ED, NEMA socket, twilight sensor 103 12250 119 4000 >70 O2 - for express roads gray -40 ... +55 I
130192.5L05.13.986 ED, NEMA socket, twilight sensor 103 12050 117 4000 >70 O3 - for local roads gray -40 ... +55 I
130192.5L05.131.986 ED, NEMA socket, twilight sensor 103 12050 117 4000 >70 O3 - for local roads gray -40 ... +55 I
130192.5L05.14.986 ED, NEMA socket, twilight sensor 103 12150 118 4000 >70 O4 - for town roads gray -40 ... +55 I
130192.5L05.141.986 ED, NEMA socket, twilight sensor 103 12150 118 4000 >70 O4 - for town roads gray -40 ... +55 I
130192.5L05.15.986 ED, NEMA socket, twilight sensor 103 12250 119 4000 >70 O5 - for residential area roads gray -40 ... +55 I
130192.5L05.151.986 ED, NEMA socket, twilight sensor 103 12250 119 4000 >70 O5 - for residential area roads gray -40 ... +55 I
Compare selected
Shown 10 / 280
Show all
Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Please note that the standard luminaire is not intended for use in an environment with a high degree of salinity. If it is required to adapt the luminaire to work in such an environment, please contact our Sales Department to confirm the possibility of using an additional protective coating.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
