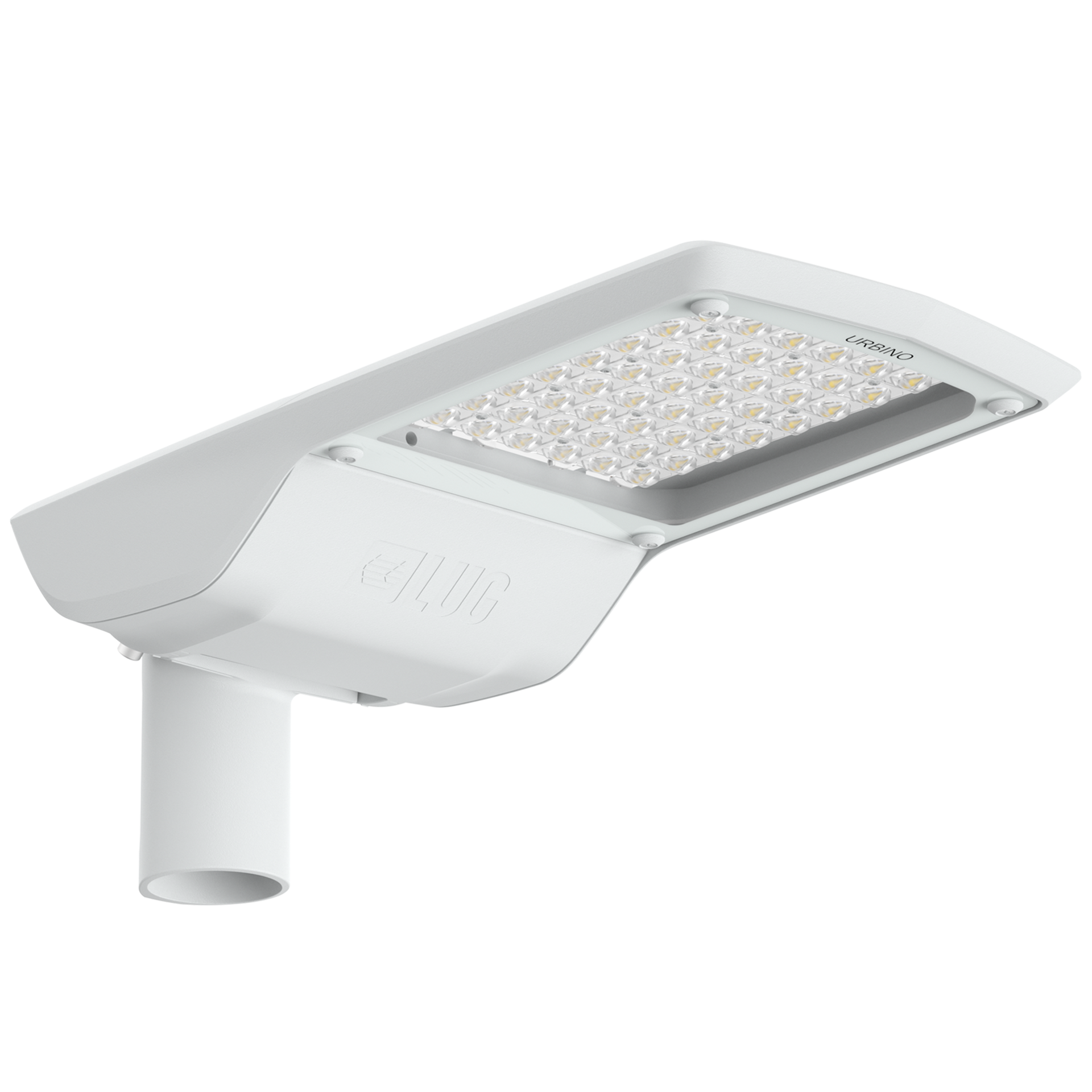

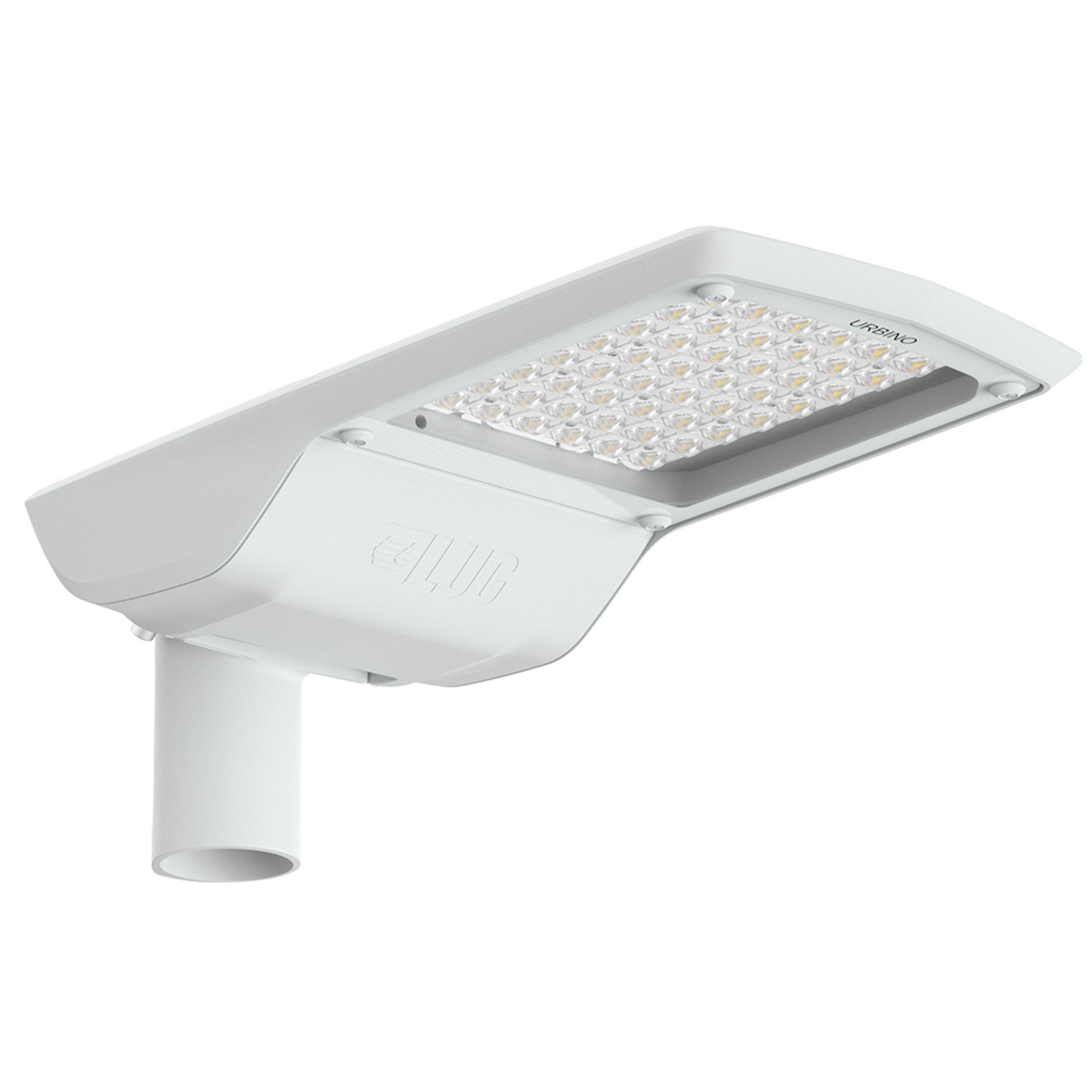

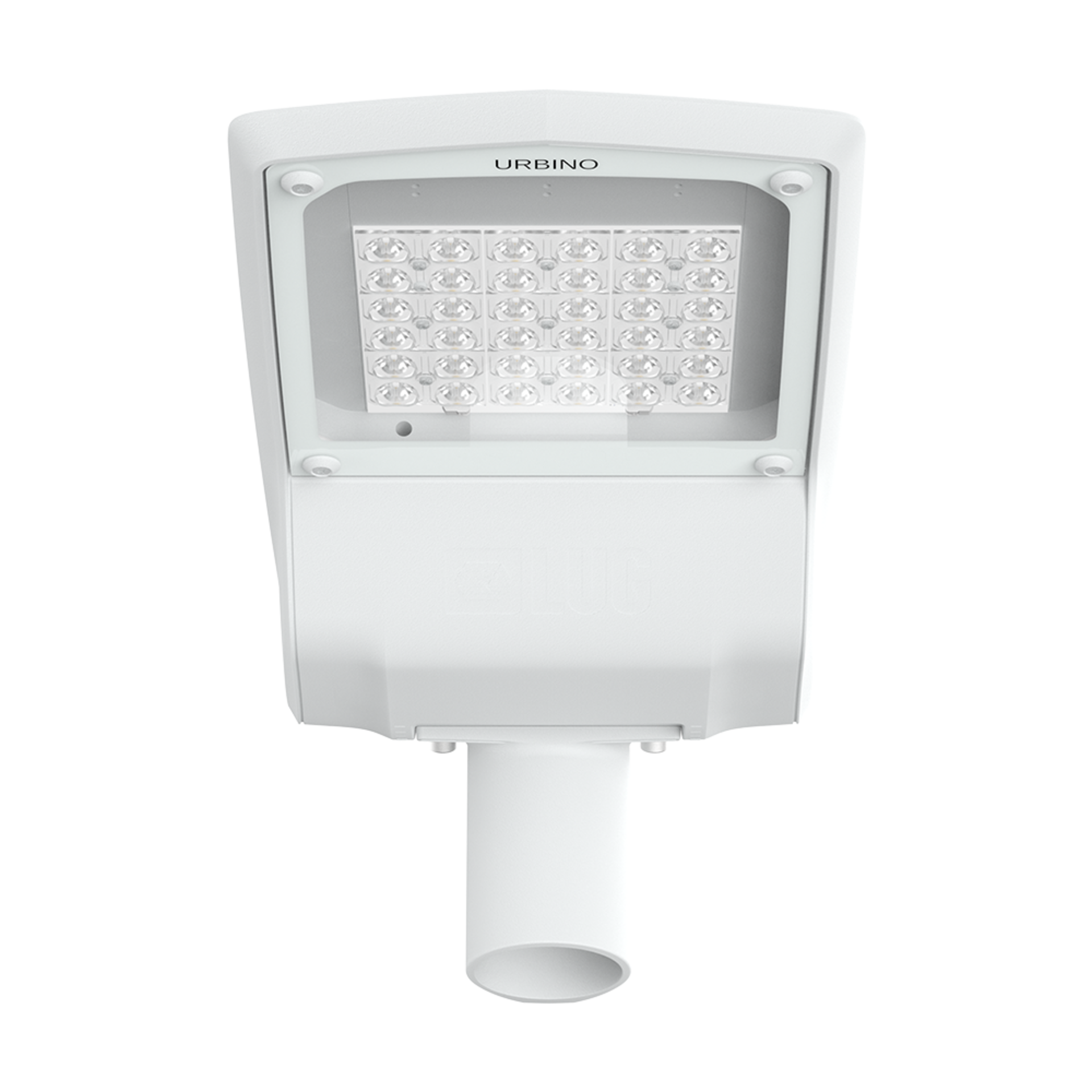

URBINO LED IK10

Luminaire with increased IK and convenient tool-free service access. Future-proof luminaire with Zhaga / NEMA connector option.

High efficacy to 160 lm/W

Possible illuminance control

Modern design

Simple one person mounting

Reliability

Application

area lighting, avenues, cycle paths, express roads, local roads, parking areas, pedestrian crossings, promenade, public spaces, residential area roads, town roads

Available on request

10kV surge protection, CLO, Colour temperature - 2200K; 2700K, DALI, DIM 1..10V, NEMA connector, NTC, ZHAGA connector, extension of the warranty to 10 years, knife switch, twilight sensor, version with increased corrosion resistance in accordance with class C5

Luminous flux range

3050 - 16350 [lm]

Variable color temperature

3000 - 4000 [K]

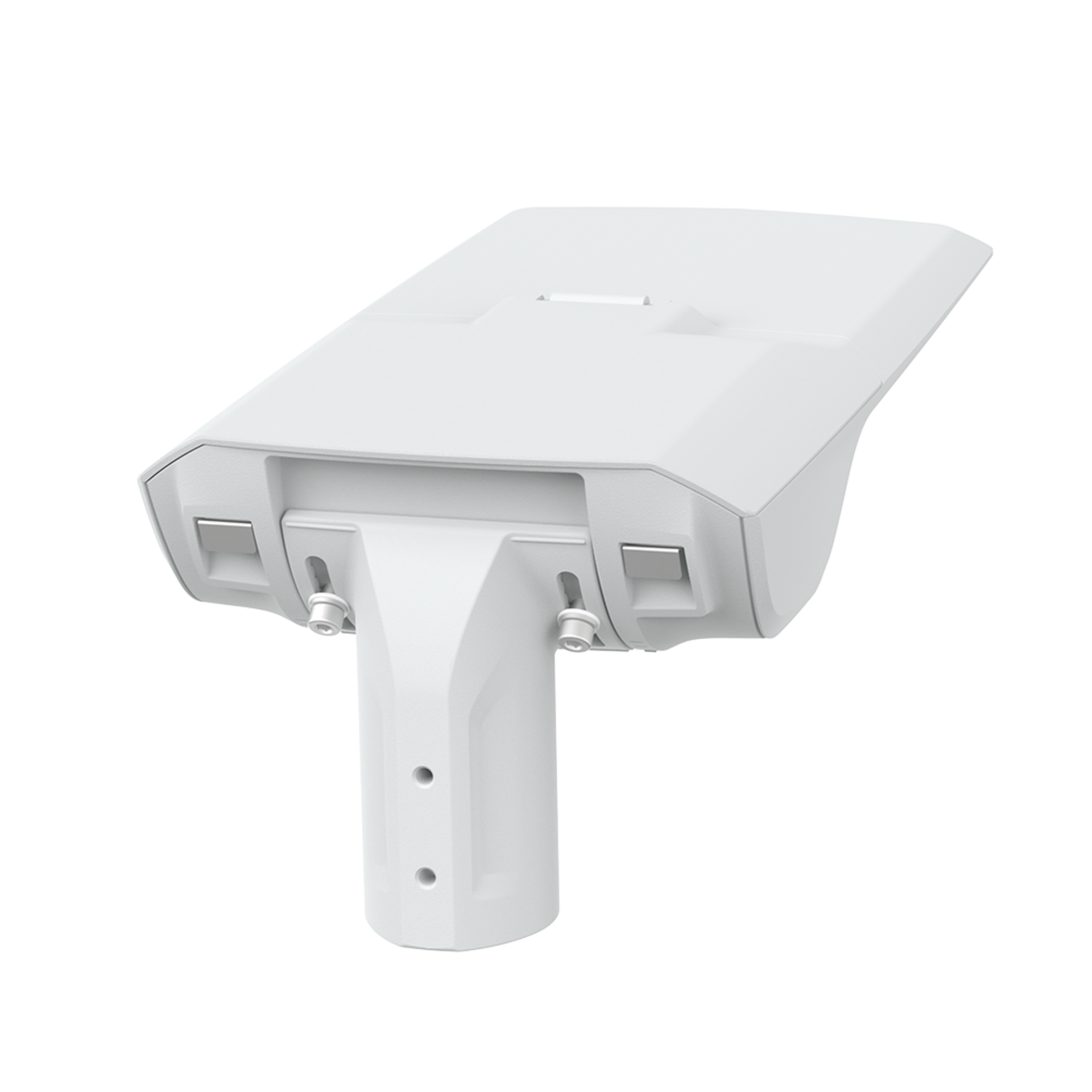

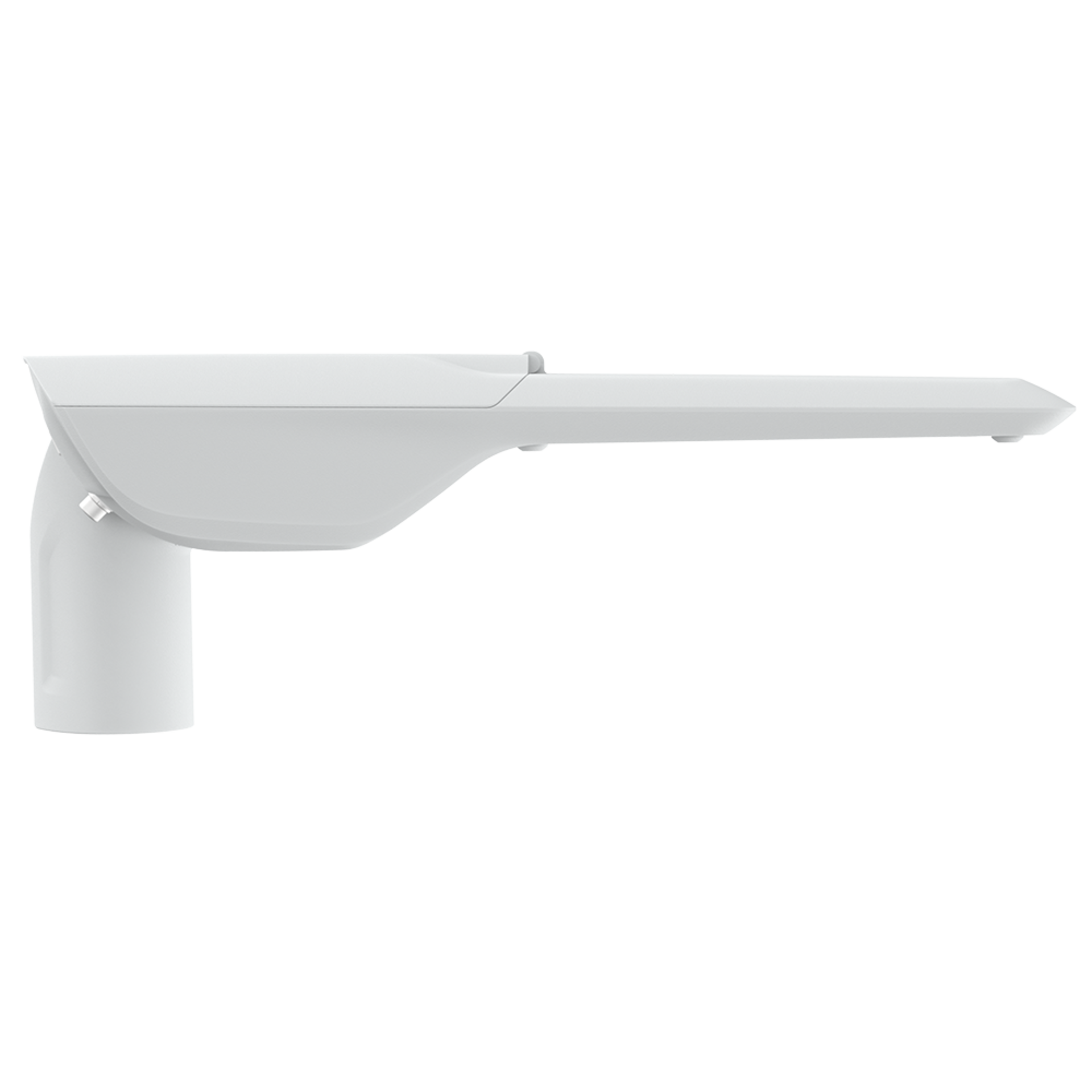

Mechanical data

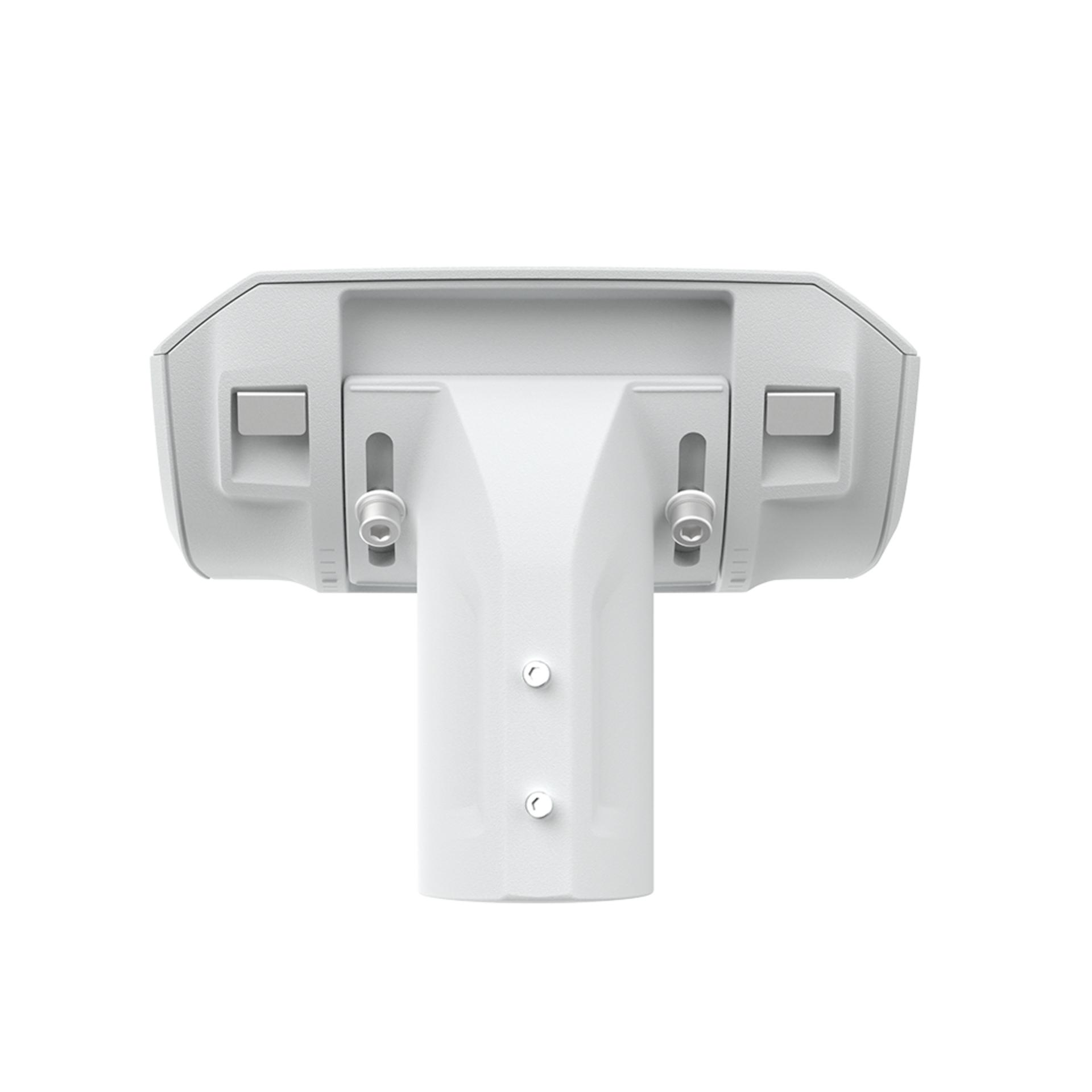

Mounting

on pillar ø40-60mm, on outriggers ø40-60mm

Body colour

gray

Operating temperature range

-40 ... +50

RAL

7035

Body

high pressure die-cast aluminum

Lateral Surface Wind Exposed

0.039 m²

Type

O1, O2, O3, O4, O5, O6, O7, O8, O9, O10, O11, O12, O13, O21, O22, O23, O24 optics, O14, O15, O16, O17, O18, O19, O20 optics

Corrosion class

Electrical data

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

27 - 102

Output current [mA]

700

Type of equipment

Light source / lamp

LED

Maximum number of luminaires in the circuit with a 10A fuse (B)

7 - 18

Maximum number of luminaires in the circuit with a 16A fuse (B)

11 - 28

Maximum number of luminaires in the circuit with a 25A fuse (B)

17 - 43

Optical data

Way of lighting

direct

Type of optic

O1, O10, O11, O12, O13, O14, O15, O16, O17, O18, O19, O2, O20, O21, O22, O23, O24, O3, O4, O5, O6, O7, O8, O9

Diffuser

tempered glass

Colour temperature [K]

3000, 4000

CRI/Ra

>70

MacAdam's steps

ULOR / DLOR

0% / 100%

Lumen luminaire [lm]

3050 - 16350

Efficacy [lm/W]

113 - 160

Photobiological risk group

RG1

SVM

≤0,4

PstLM

≤1

Number of LEDs

12, 16, 24, 36, 48

General data

Additional equipment

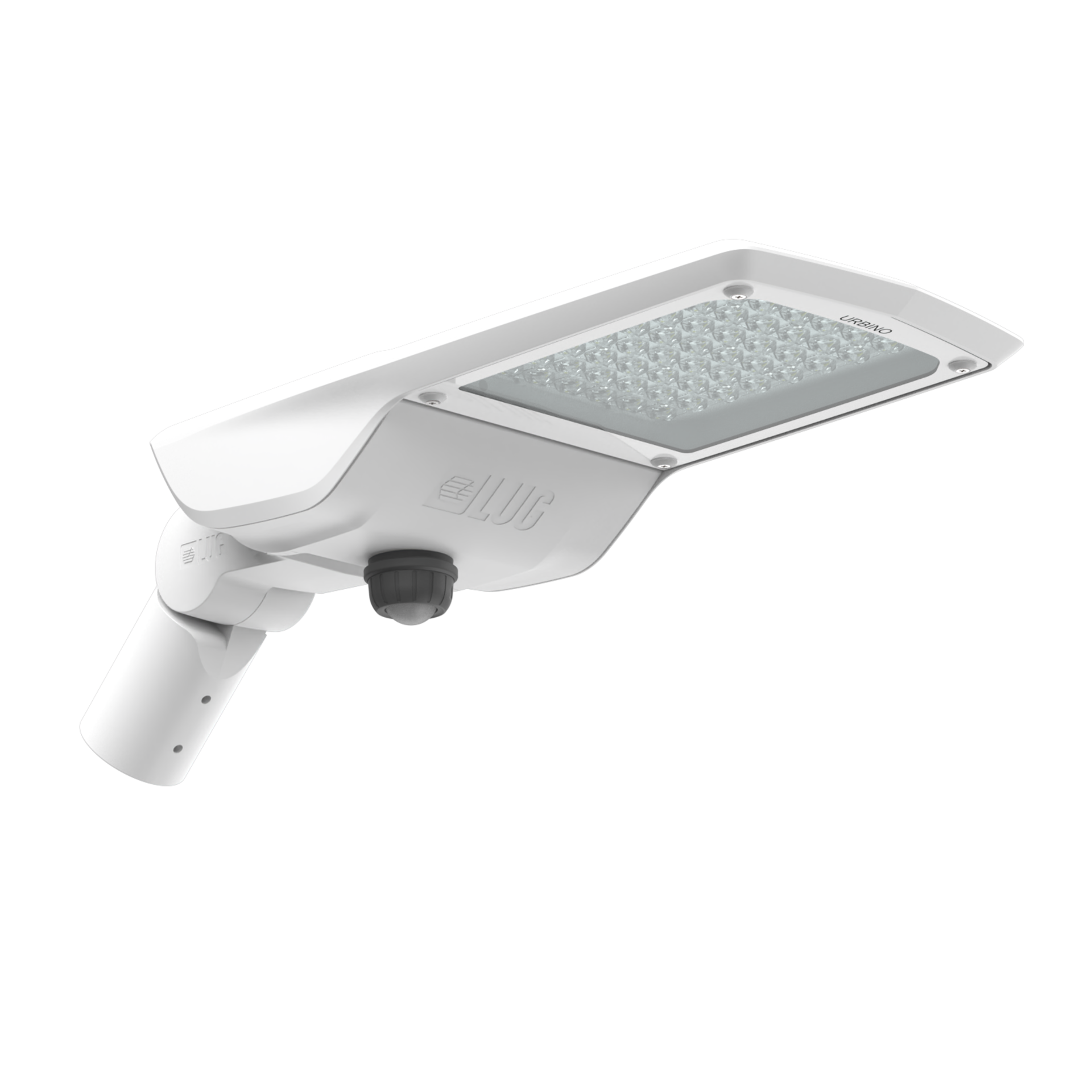

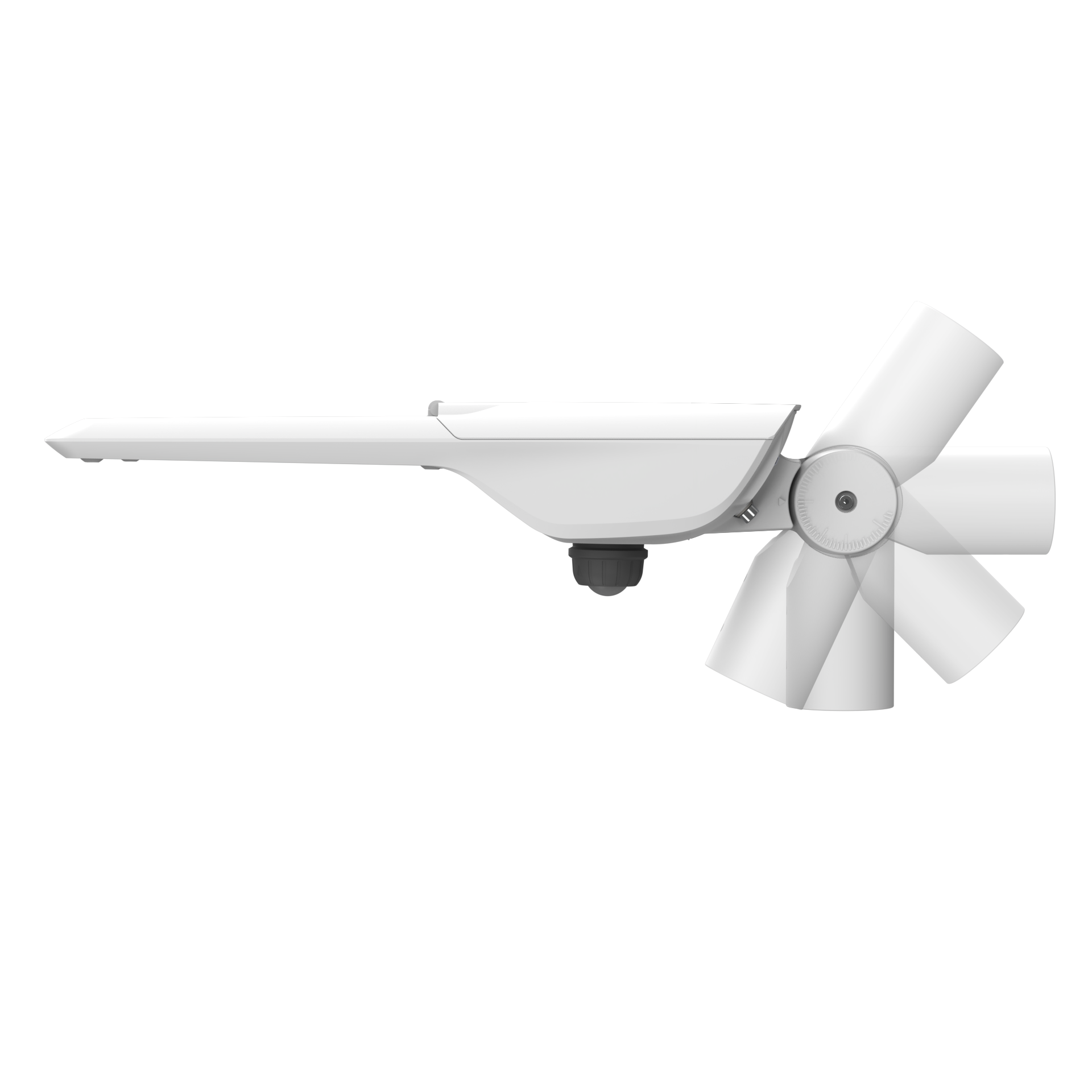

luminaire with motion detector (index extension: .870 / .871 / .872) - available as standard with ø60mm adjustable handle with adjustment range of -110° to +55°/-20° to +145°, luminaire with pole mounting bracket ø76mm (index extension: .829), luminaire with adjustable bracket ø60mm with adjustment range from -110° to +55°/-20° to +145° (index extension: .867), luminaire with adjustable bracket ø76mm with adjustment range from -110° to +55°/-20° to +145° (index extension: .876)

Additional information

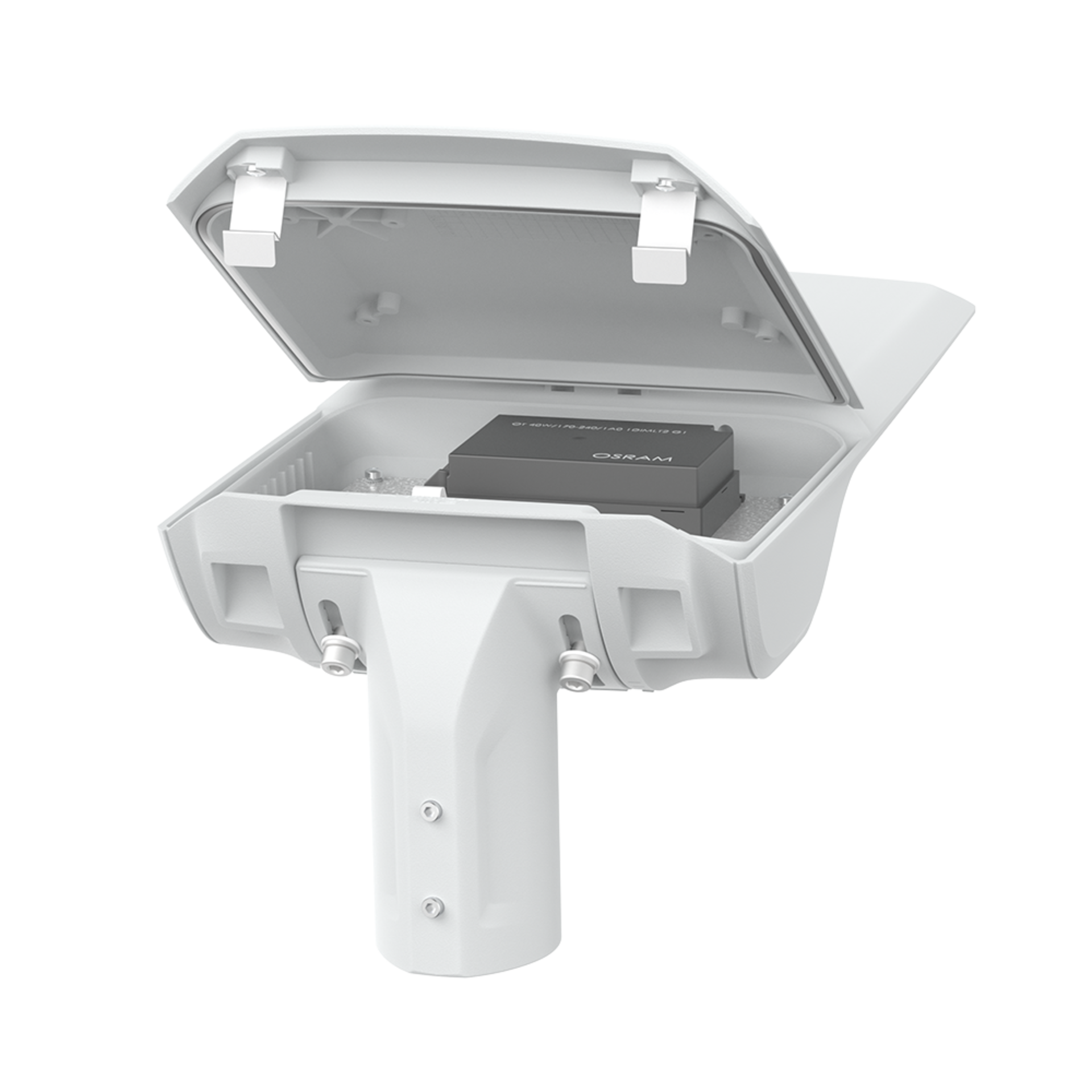

tool-free access to power supply compartment by means of clips

Other remarks

the pole and boom are not part of the luminaire

Lifetime L90B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Pallet quantity	Quantity in package	Net weight [kg]
543x248x102	50	1	6.1

Code	Protection Class	Type of optic	Type of equipment	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	Operating temperature range
130752.5L011.010	I	O1	ED	27	3150	117	3000	-40 ... +50
130752.5L011.020	I	O2	ED	27	3100	115	3000	-40 ... +50
130752.5L011.030	I	O3	ED	27	3150	117	3000	-40 ... +50
130752.5L011.040	I	O4	ED	27	3150	117	3000	-40 ... +50
130752.5L011.050	I	O5	ED	27	3200	119	3000	-40 ... +50
130752.5L011.060	I	O6	ED	27	3200	119	3000	-40 ... +50
130752.5L011.070	I	O7	ED	27	3200	119	3000	-40 ... +50
130752.5L011.080	I	O8	ED	27	3150	117	3000	-40 ... +50
130752.5L011.090	I	O9	ED	27	3050	113	3000	-40 ... +50
130752.5L011.100	I	O10	ED	27	3200	119	3000	-40 ... +50

Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.

In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
