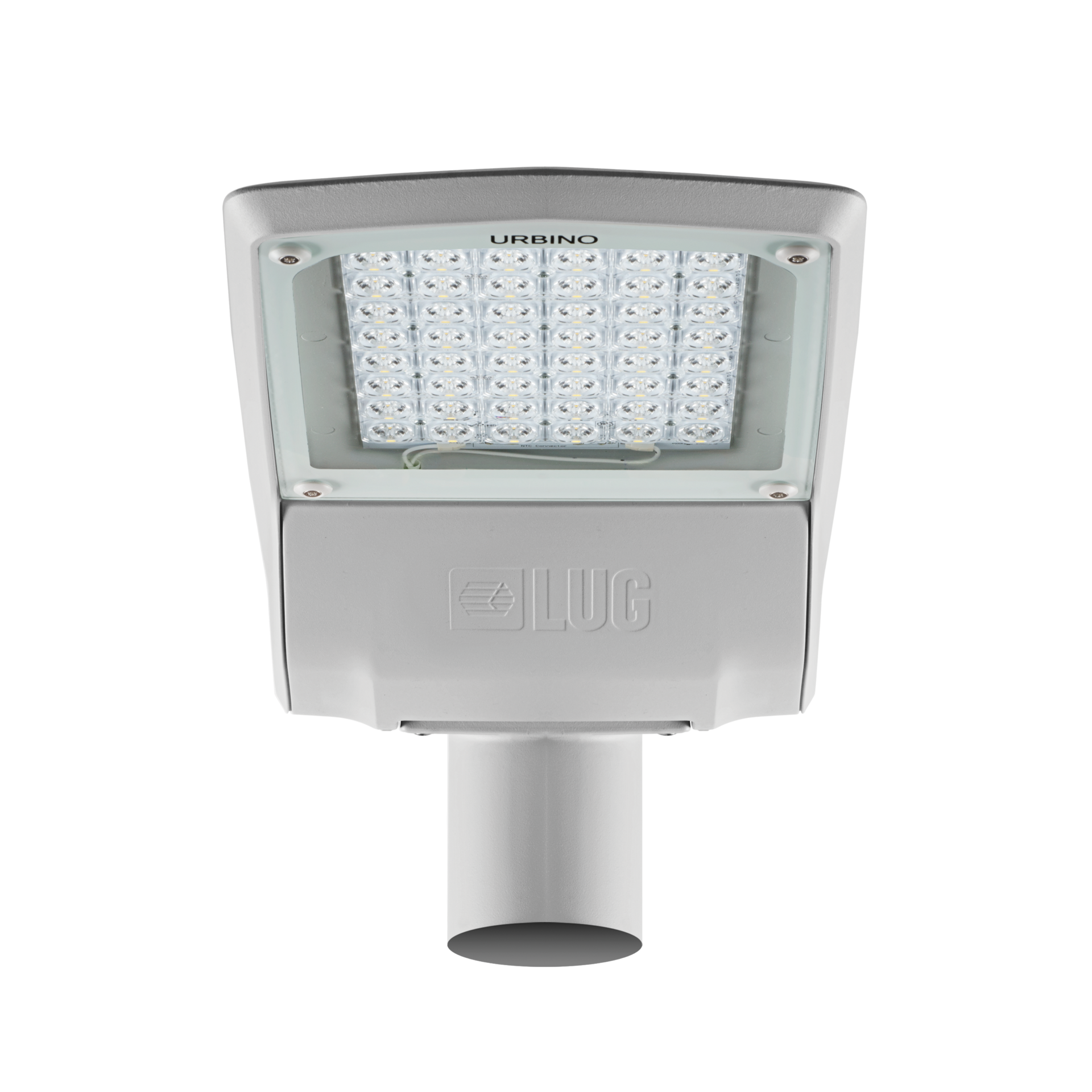

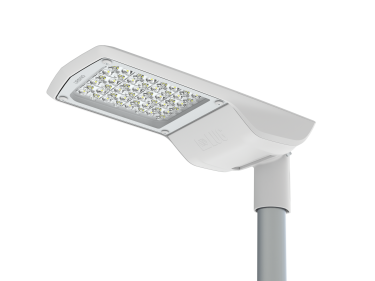

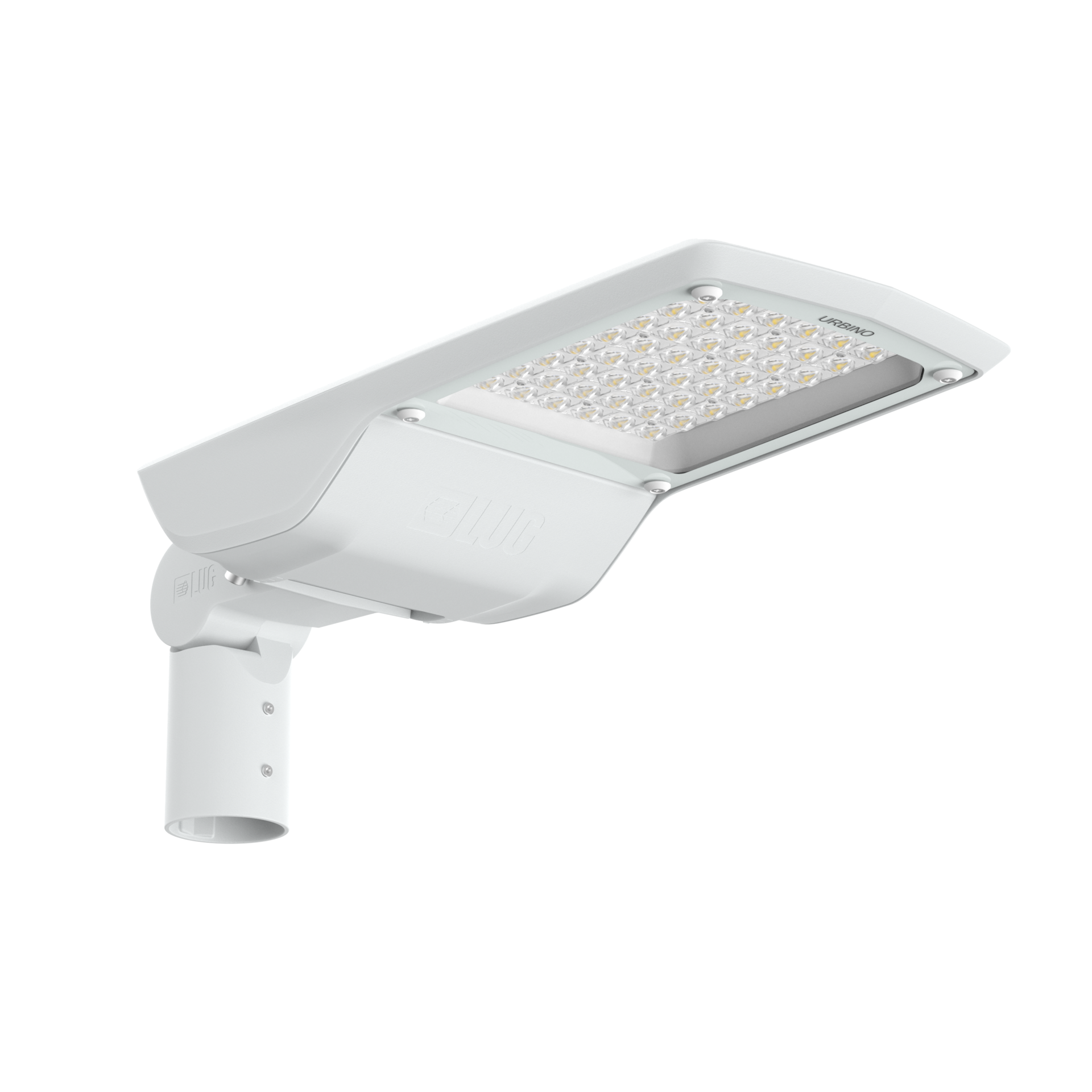

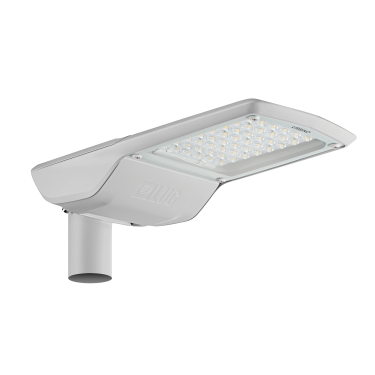

URBINO LED
Professional streetlight luminaire for LED light sources.



Possible illuminance control
Modern design
Reliability
High efficacy to 181 lm/W

Application

area lighting, avenues, cycle paths, express roads, local roads, parking areas, pedestrian crossings, promenade, public spaces, residential area roads, town roads

Available on request

10kV surge protection, CLO, Colour temperature - 2200K; 2700K, DALI, DIM 1..10V, NEMA connector, NTC, ZHAGA connector, extension of the warranty to 10 years, knife switch, twilight sensor

Luminous flux range

3000 - 24000 [lm]

Variable color temperature

3000 - 5700 [K]

Mechanical data

Mounting

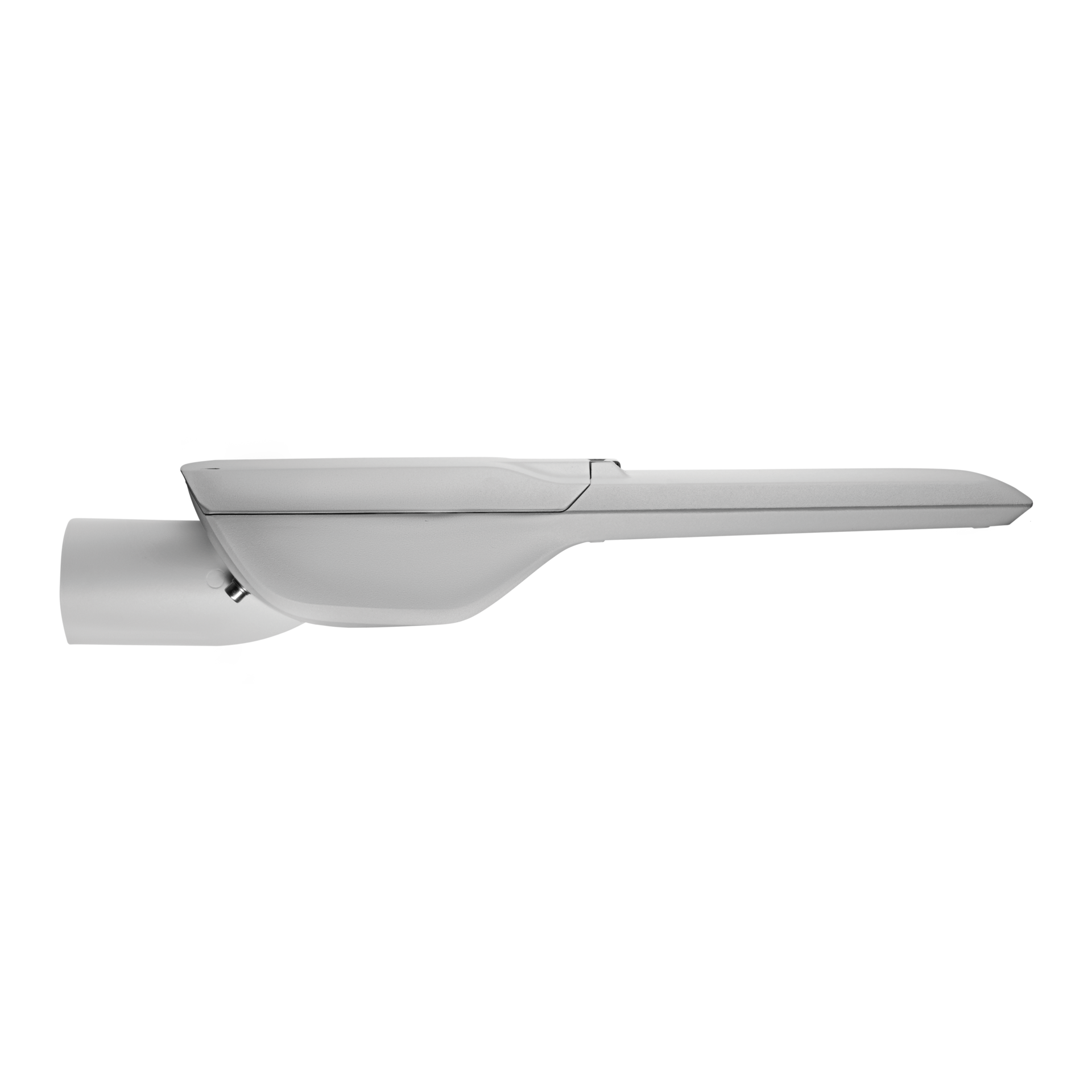

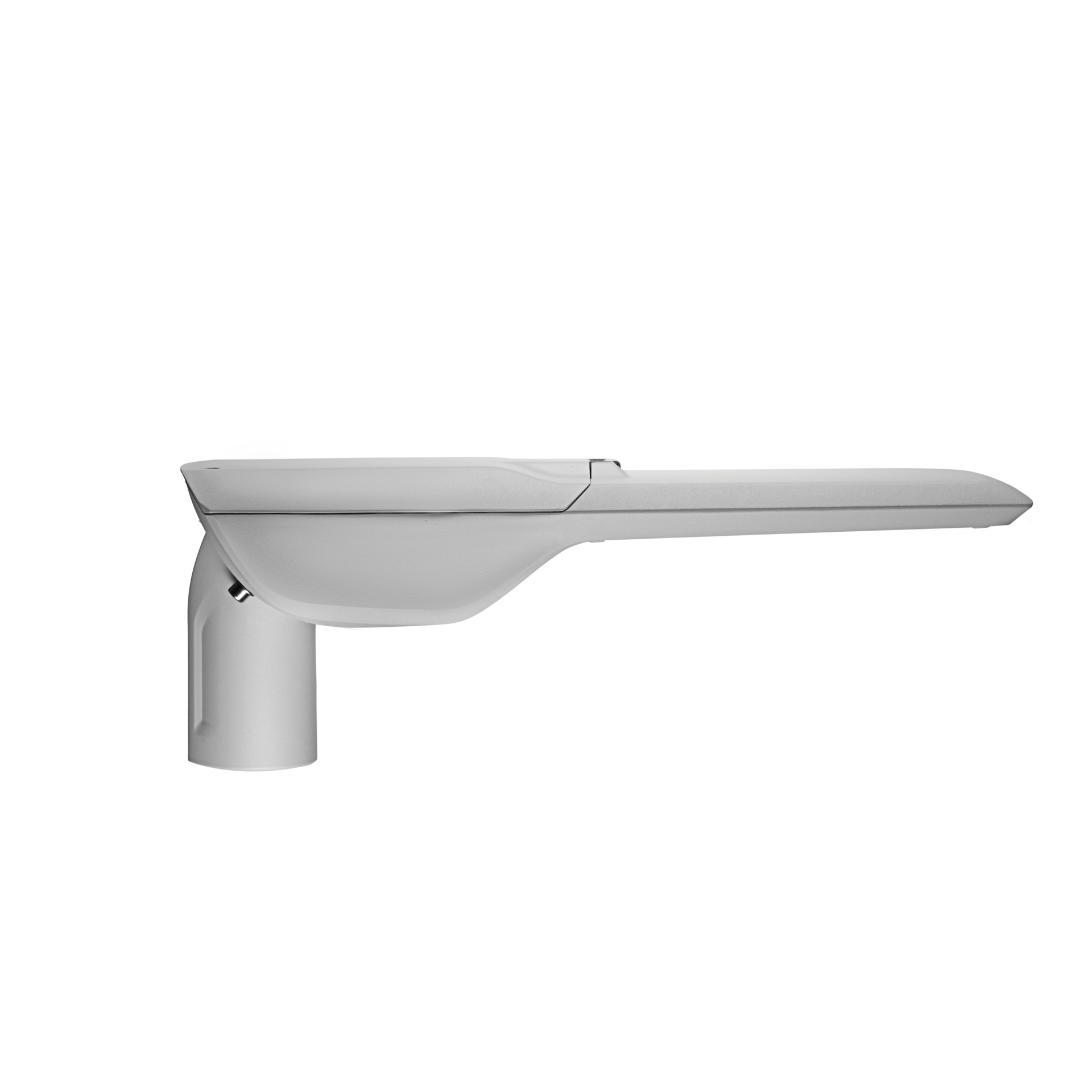

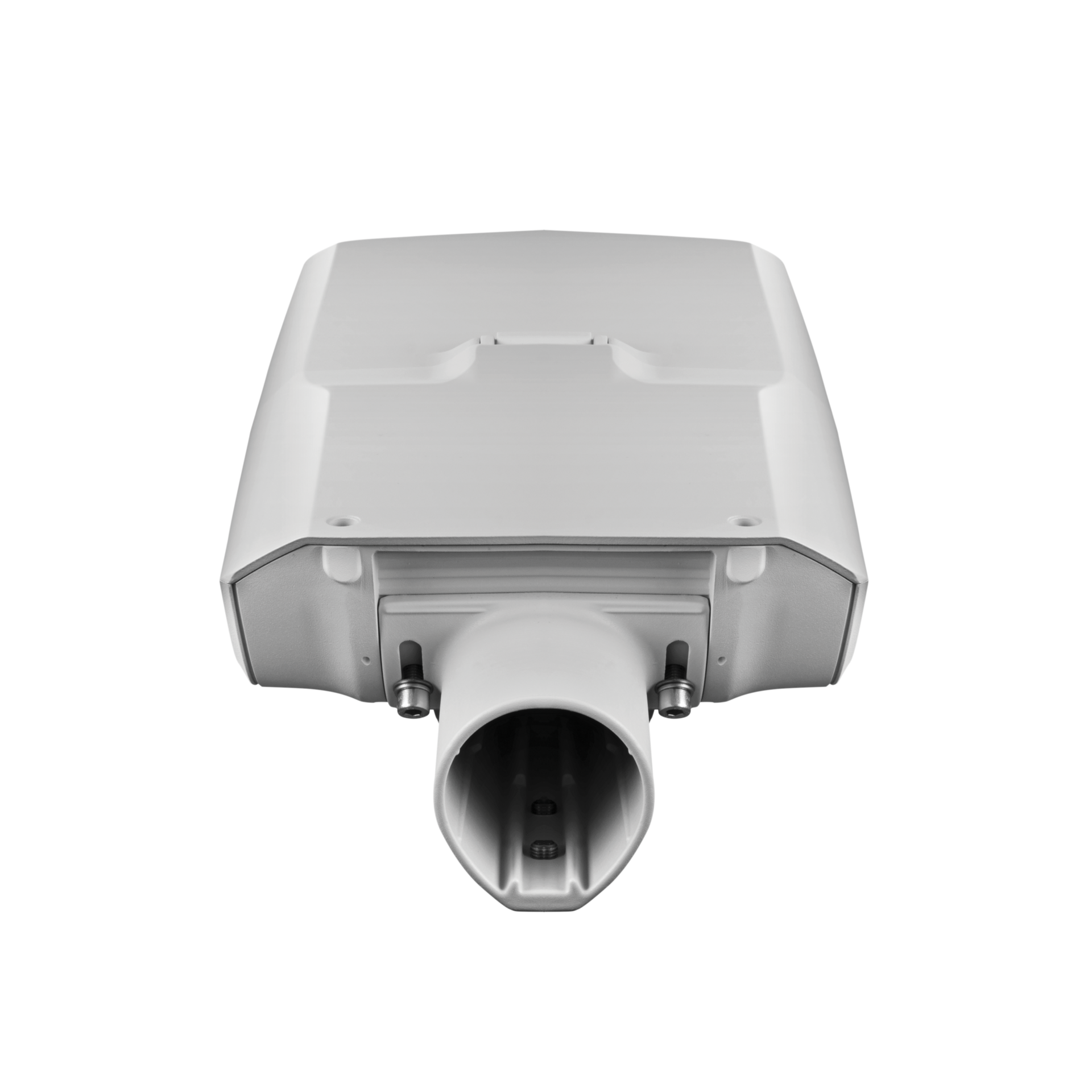

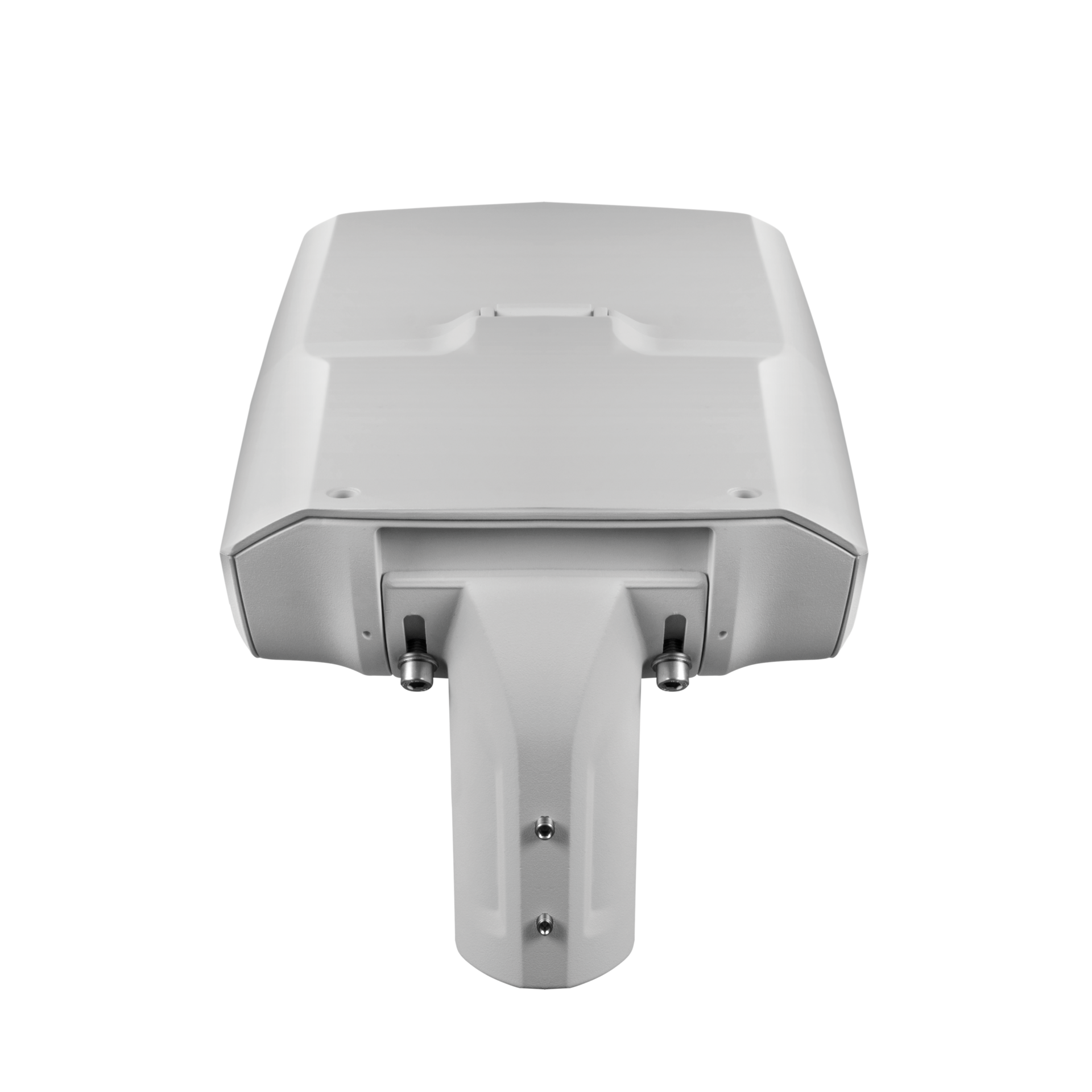

on pillar ø40-60mm, on pillar ø76mm - modification .829, on outriggers ø40-60mm, on outriggers ø76mm - modification .829
Body colour
gray
Operating temperature range
* max +35, * max +40, * max +50, -40 ... +50***, -40 ... +55
RAL
7035
Body
high pressure die-cast aluminum
Lateral Surface Wind Exposed
0.039 m²
Type
O13, O14, O15, O16 optics, O2, O3, O4, O5, O6P, O6L, O7, O8, O26 optics, O2, O3, O4, O5, O6P, O6L, O7, O8, O26, O59, O60, O61, O84, O85, O88, O89 optics, O33, O34, O35, O36, O37P, O37L, O38, O39, O40 optics, O90, O91, O92 optics, OP2 optics

Electrical data

Power supply efficiency
≤93%
Power
220-240V 50/60Hz
Includes light source
yes
Luminaire power [W]
23 - 157
Output current [mA]
350, 450, 550, 610, 630, 650, 700
Type of equipment
DALI/ED, ED
Maximum number of luminaires in the circuit with a 10A fuse (B)
4 - 23
Maximum number of luminaires in the circuit with a 16A fuse (B)
7 - 36
Maximum number of luminaires in the circuit with a 25A fuse (B)
12 - 57

Optical data

Way of lighting
direct
Type of optic
O13 - for express roads, O14 - for local roads, O15 - for town roads, O16 - for residential area roads, O2 - for express roads, O26 - for wet surfaces, O3 - for local roads, O33 - for express roads, O34 - for local roads, O35 - for town roads, O36 - for residential area roads, O37L - for pedestrian crossings, left side traffic, O37P - for pedestrian crossings, right side traffic, O38 - for area lighting, O39 - for town and local roads, O4 - for town roads, O40 - for wet surfaces, O5 - for residential area roads, O59 - for local roads, O60 - for town roads, O61 - for residential area roads, O6L - for pedestrian crossings, left side traffic, O6P - for pedestrian crossings, right side traffic, O7 - for area lighting, O8 - for town and local roads, O84 - for road lighting, O85 - for road lighting, O88 - for road lighting, O89 - for road lighting, O90 - for road lighting, O91 - for road lighting, O92 - for road lighting, OP2
Diffuser
tempered glass
Colour temperature [K]
3000, 4000, 5700
CRI/Ra
>70
MacAdam's steps
5
ULOR / DLOR
0% / 100%
Lumen luminaire [lm]
3000 - 24000
Efficacy [lm/W]
109 - 181
Photobiological risk group
RG1
Number of LEDs
12, 16, 24, 32, 36, 48, 72, 96
DarkSky
yes

General data

Additional equipment

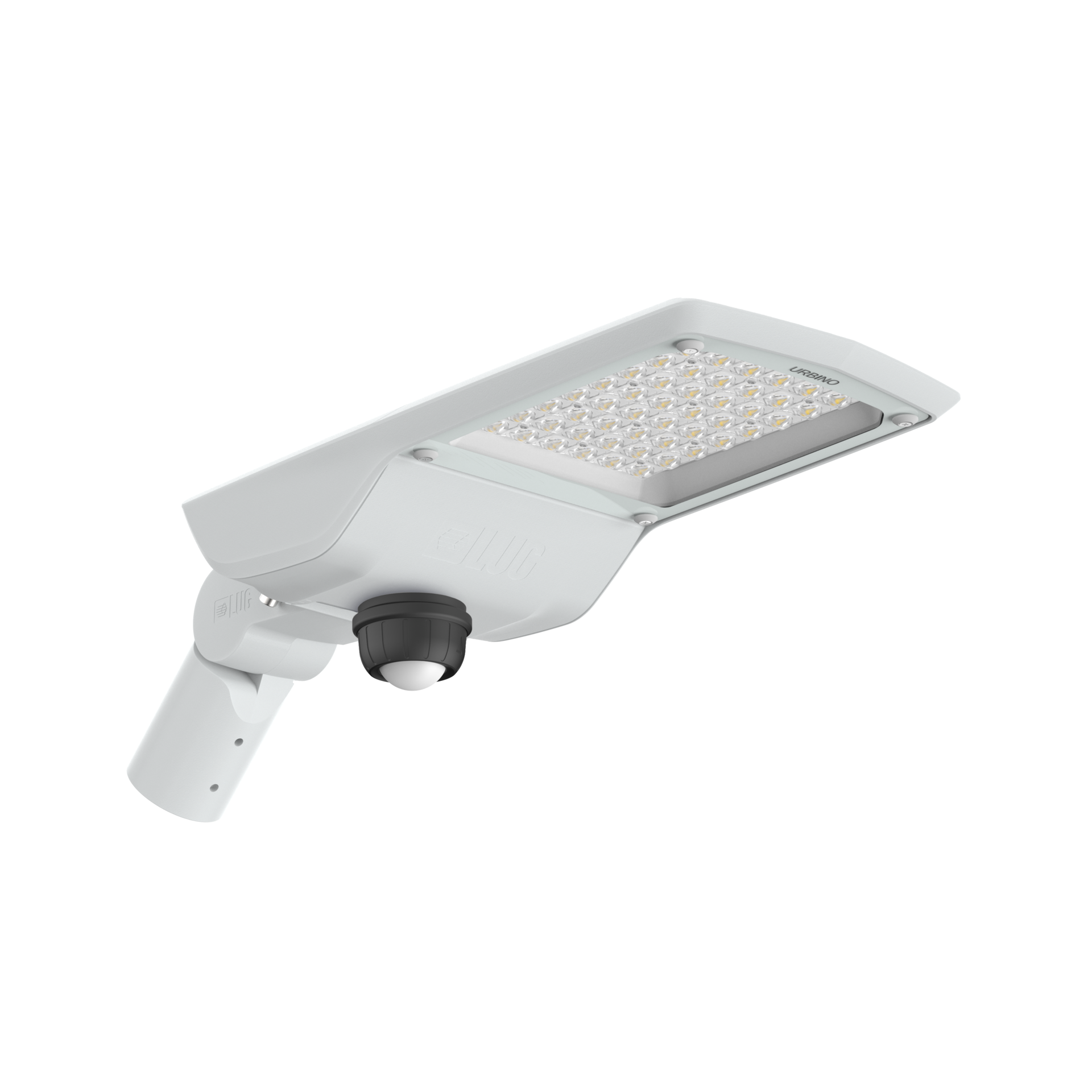

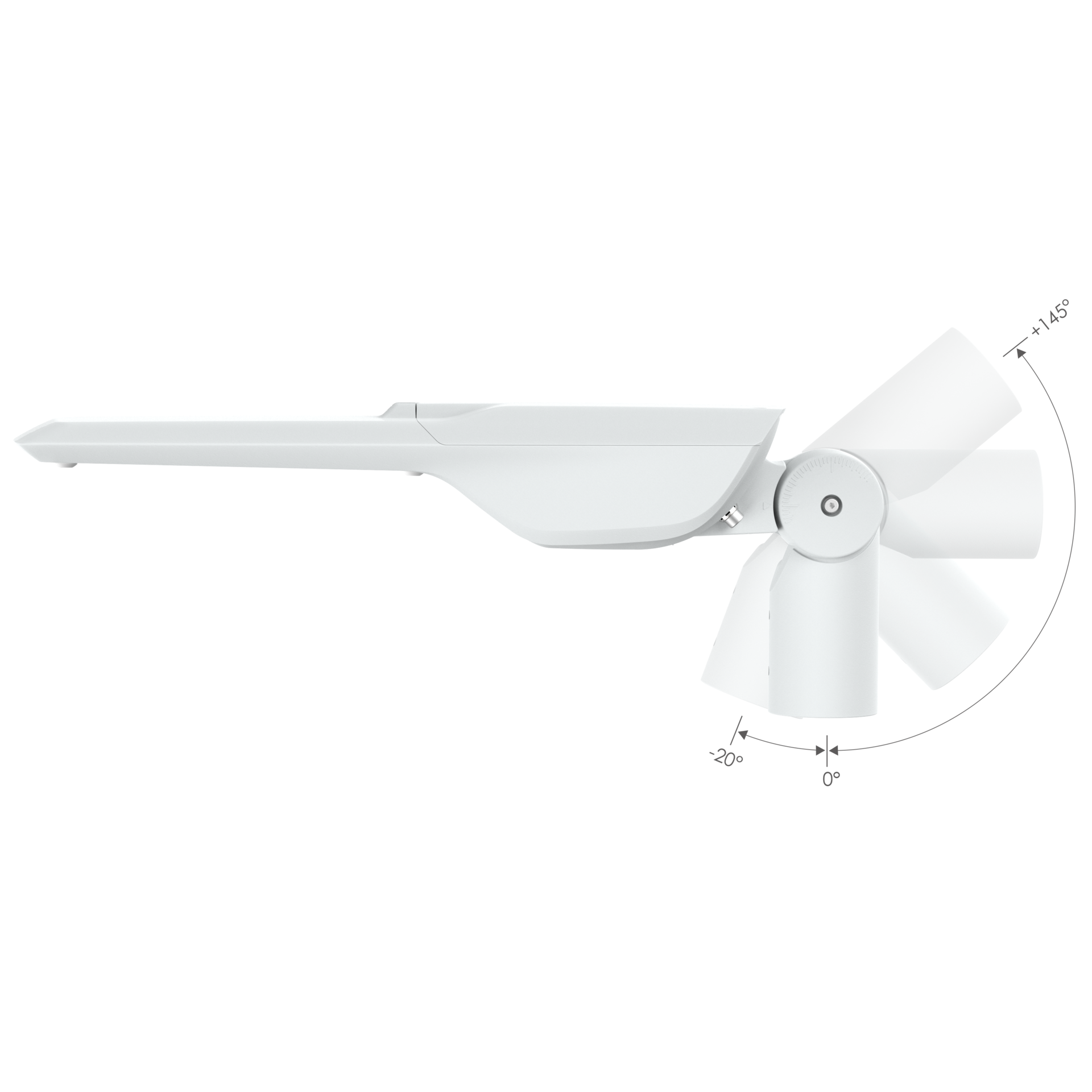

additional anti-corrosive protection (index extension: .985), access to the driver chamber without the use of tools (index extension: .825), luminaire with holder for mounting on a ø76mm pillar (index extension: .829), luminaire with motion detector (index extension: .870 / .871 / .872) - available as standard with ø60mm adjustable handle with adjustment range of -110° to +55°/-20° to +145°, ø60mm adjustable bracket with an adjustment range of -110° to +55°/-20° to +145° (index extension: .867)
Additional information

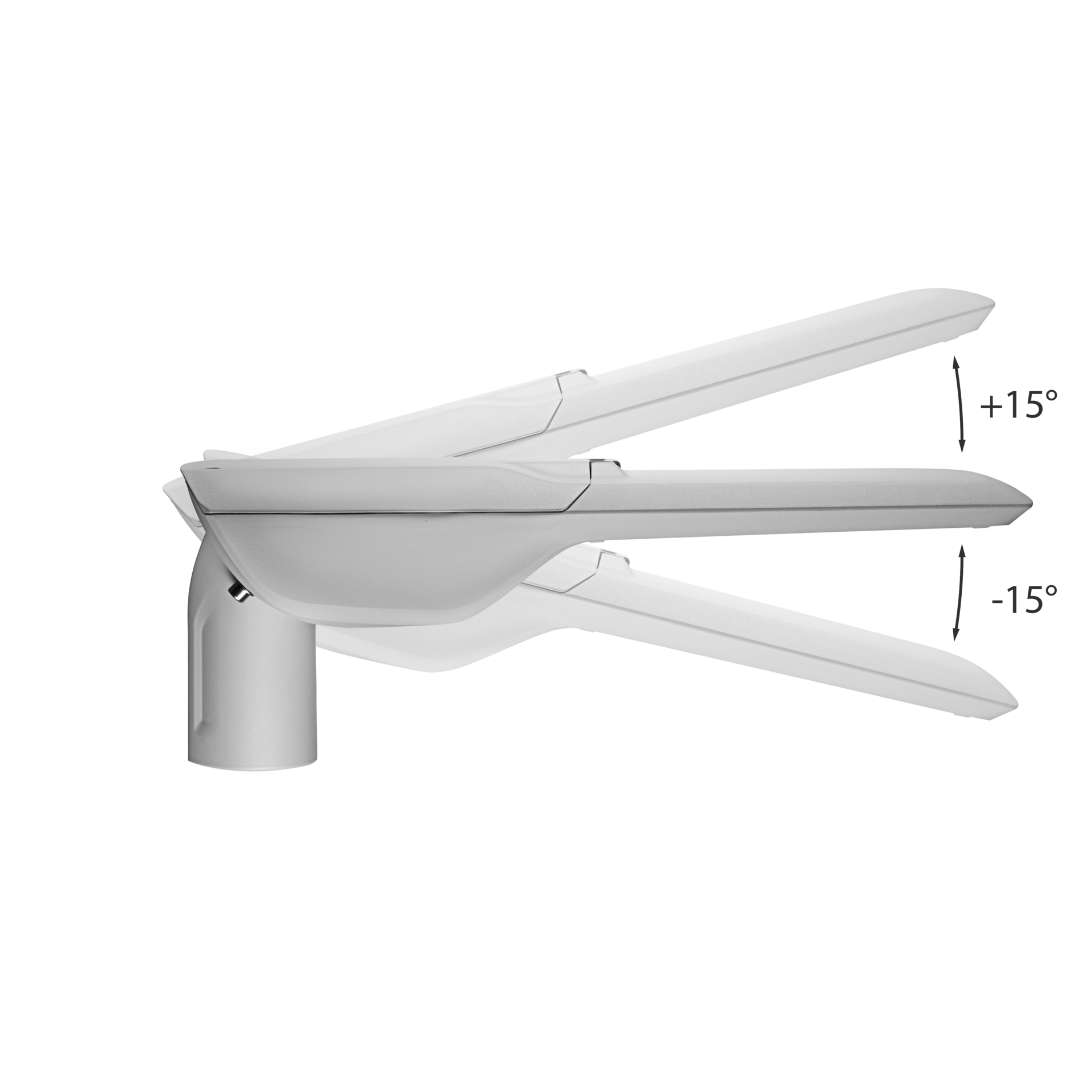

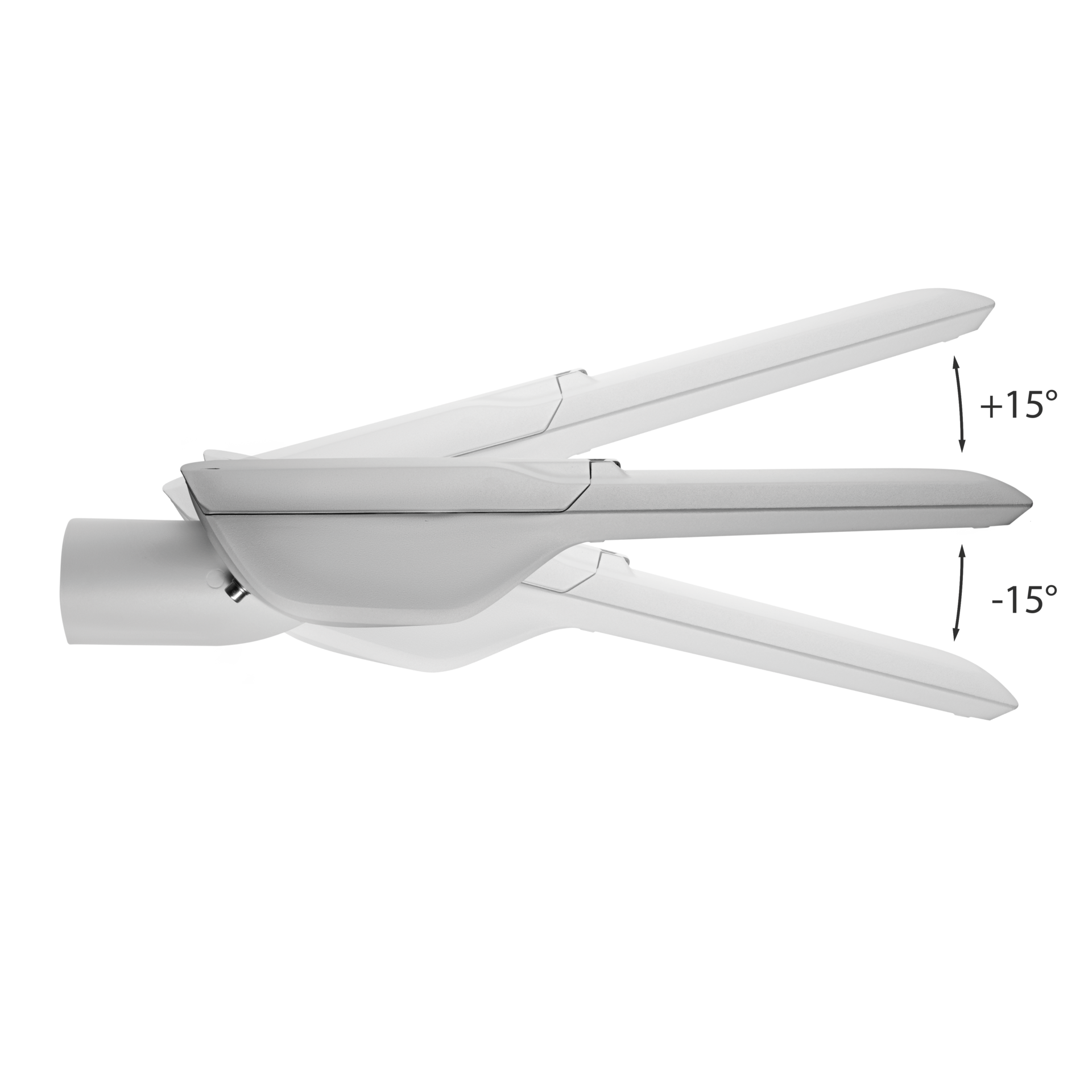

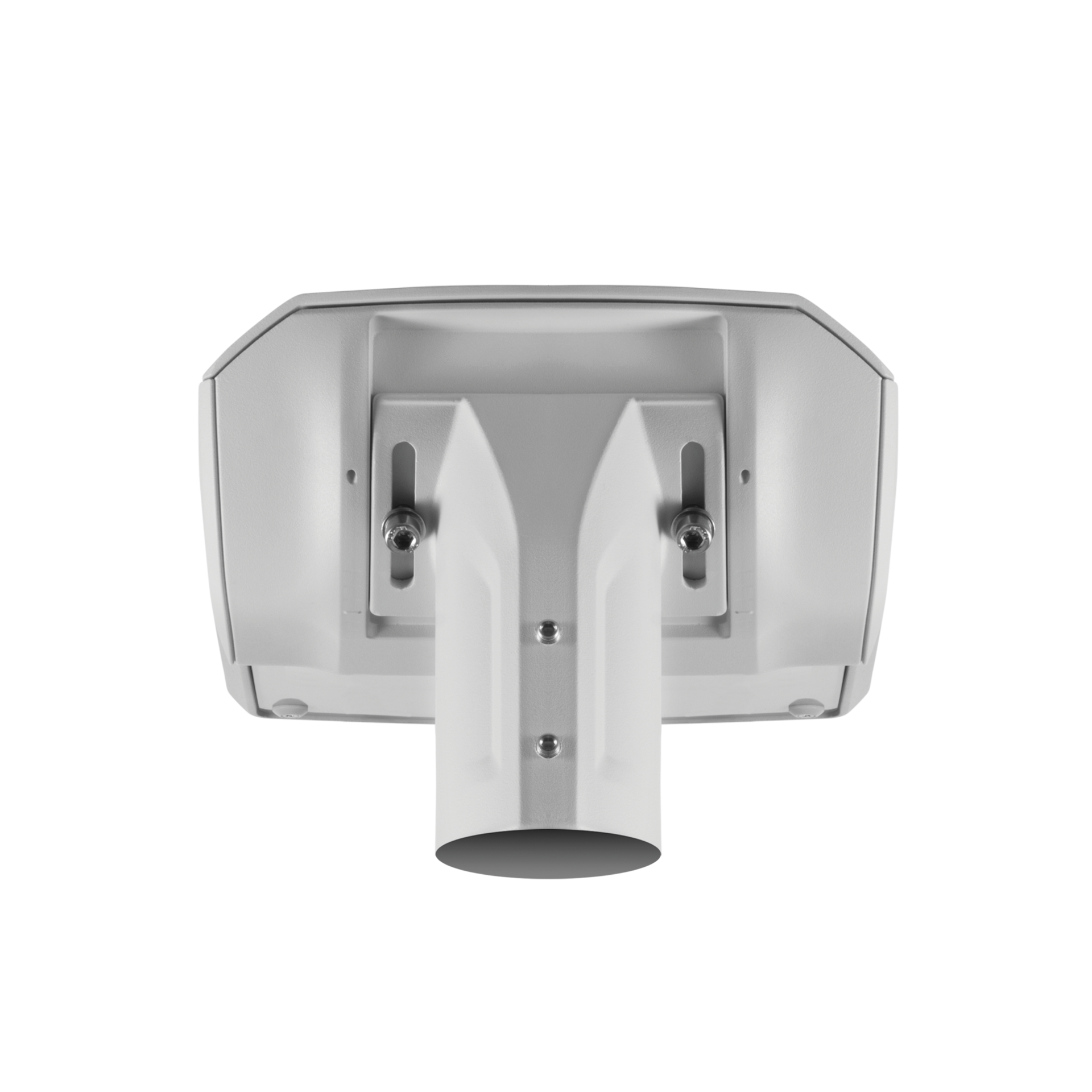

Tilt adjustment: -15° to +15° (every 5°), CRI/Ra >70
Other remarks
the pole and boom are not part of the luminaire
Lifetime L90B10
100 000 h
Warranty
5 years

Dimensions

Dimensions [mm] LxWxH Marking Pallet quantity Quantity in package Net weight [kg]
550x250x100 ED 50 1 6.8
550x250x100 DALI/ED 50 1 7
X

Available variants

Code
Colour temperature [K]
3000
4000
5700
Lumen luminaire [lm]
Luminaire power [W]
Efficacy [lm/W]
Type of equipment
DALI/ED
ED
Type of optic
O13 - for express roads
O14 - for local roads
O15 - for town roads
O16 - for residential area roads
O2 - for express roads
O26 - for wet surfaces
O3 - for local roads
O33 - for express roads
O34 - for local roads
O35 - for town roads
O36 - for residential area roads
O37L - for pedestrian crossings, left side traffic
O37P - for pedestrian crossings, right side traffic
O38 - for area lighting
O39 - for town and local roads
O4 - for town roads
O40 - for wet surfaces
O5 - for residential area roads
O59 - for local roads
O60 - for town roads
O61 - for residential area roads
O6L - for pedestrian crossings, left side traffic
O6P - for pedestrian crossings, right side traffic
O7 - for area lighting
O8 - for town and local roads
O84 - for road lighting
O85 - for road lighting
O88 - for road lighting
O89 - for road lighting
O90 - for road lighting
O91 - for road lighting
O92 - for road lighting
OP2
Protection Class
I
II
Clear Filters
Compare Code Protection Class Number of LEDs Type of optic Type of equipment Luminaire power [W] Lumen luminaire [lm] Efficacy [lm/W] Colour temperature [K] Operating temperature range
130222.5L011.011 I 12 O2 - for express roads ED 27 3300 122 4000 * max +50
130222.5L011.021 I 12 O3 - for local roads ED 27 3250 120 4000 * max +50
130222.5L011.031 I 12 O4 - for town roads ED 27 3250 120 4000 * max +50
130222.5L011.041 I 12 O5 - for residential area roads ED 27 3300 122 4000 * max +50
130222.5L011.051 I 12 O6P - for pedestrian crossings, right side traffic ED 27 3350 124 4000 * max +50
130222.5L011.061 I 12 O7 - for area lighting ED 27 3300 122 4000 * max +50
130222.5L011.081 I 12 O8 - for town and local roads ED 27 3250 120 4000 * max +50
130222.5L011.091 I 12 O6L - for pedestrian crossings, left side traffic ED 27 3350 124 4000 * max +50
130222.5L011.101 I 12 O26 - for wet surfaces ED 27 3150 117 4000 * max +50
130222.5L011.351 I 12 O59 - for local roads ED 29 3300 114 4000 * max +50
Compare selected
Shown 10 / 775
Show all
Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.
* Lower temperature range: -40°C to -20°C, depending on the type of power supply used (consultation with the LUG Technical Preparation of Production Branch is required).

*** Luminaire equipped with NTC.
Please note that the standard luminaire is not intended for use in an environment with an increased corrosivity category. The use of the luminaire for work in an environment for which additional corrosion protection is necessary requires the use of an index with the extension .985 (on request).
In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
DARK SKY certification available for colour temperatures of 3000K and below and for lighting fixtures mounted in a horizontal position (use adjustment/leveling if necessary).
Download Materials
Select and download the materials you are interested in
To download
Product sheet
Declarations and certificates
Light beam curves
3D/2D models
Mounting instruction
Download selected
CUSTOMISATION - OUR SETTING YOUR WAY
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
custom
Customisation
Bespoke - Let's develop a project together
A luminaire, according to the Journal of Standards, is a device that is used to distribute, filter and convert the light output from one or more light-emitting sources, which is located in the mains
bespoke
Bespoke
Custom Products
URBINO LED 100000 h
Professional streetlight luminaire for LED light sources. Lifetime (L80B10) 100000 h.
View
URBINO LED 10kV DALI
Professional streetlight luminaire for LED light sources. Luminaire equipped with DALI driver, RAL7016 color, 10kV and NTC protection on the LED module.
View
URBINO LED 10kV KNIFE SWITCH
Professional streetlight luminaire for LED light sources. The subject of the modification is the fitting of the luminaire with a power cord of three different lengths, a knife switch, 10KV surge protection andaccess to the driver chamber without the use of tools.
View
URBINO LED 120-277V
Professional streetlight luminaire for LED light sources. Power supply 120 - 277V.
View
URBINO LED 120-277V 5700K
Professional streetlight luminaire for LED light sources. Power supply 120-277V 50 / 60Hz. Color temperature 5700K.
View
URBINO LED 2700K 10kV/10kA
Professional streetlight luminaire for LED light sources. Surge protection 10kV/10kA w. Ind. with indicator LED, NTC - LED temp. protection, Knife switch, handle ø76mm, Tool-less access, CLO, 2700K
View
URBINO LED 3000K
Professional streetlight luminaire for LED light sources. Color temperature 3000K.
View
URBINO LED ALUMINUM ARM

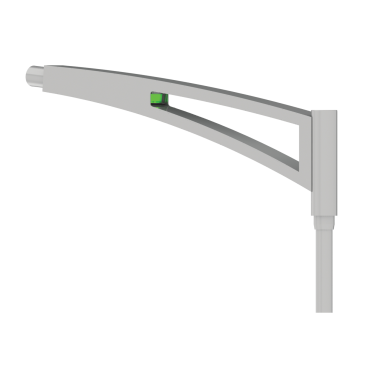

Aluminum arm for URBINO LED luminaire, equipped with a mLED module with green accent light. New.
