LUG - URBINO LED S - Infrastructural lighting

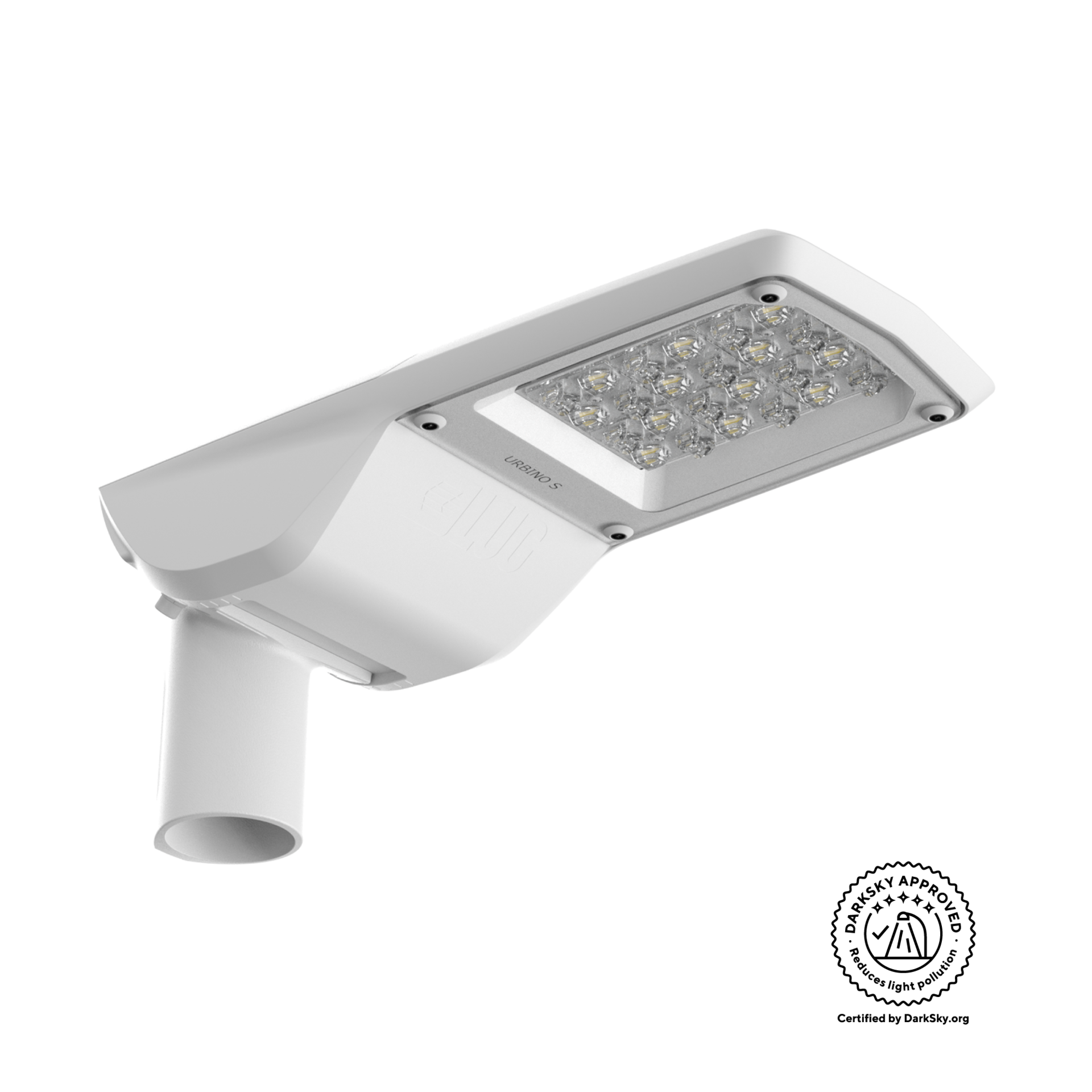

URBINO LED S

A functionally optimised modern LED luminaire that complements the URBINO LED luminaire family in an environmentally responsible way with solutions for lower power and flux points.

Possible illuminance control

Modern design

Simple one person mounting

Reliability

High efficacy to 176 lm/W

Application

Railway stations, avenues, cycle paths, local roads, parking areas, parks, pedestrian crossings, playgrounds, promenade, public spaces, residential, residential area roads, sidewalks, town roads

Available on request

10kV surge protection, CLO, DALI, DIM 1..10V, NEMA connector, NTC, ZHAGA connector, extension of the warranty to 10 years, knife switch, version with increased corrosion resistance in accordance with class C5-M

Luminous flux range

400 - 11350 [lm]

Variable color temperature

2200 - 4000 [K]

Mechanical data

Mounting

on pillar ø40-60mm, on outriggers ø40-60mm

Body colour

gray

Operating temperature range

-40 ... +40, -40 ... +50, -40 ... +55

RAL

7035

Body

high pressure die-cast aluminum

Lateral Surface Wind Exposed

0.035 m²

Type

O1, O2, O3, O4, O5, O6, O7, O8, O9, O19, O20, O21 optics, O10 optics, O11, O12, O13, O14, O15, O16, O17, O18, O22 optics

Electrical data

Power supply efficiency

≤93%

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

4.5 - 74

Output current [mA]

100, 200, 400, 500, 1000, 1050

Type of equipment

Maximum number of luminaires in the circuit with a 10A fuse (B)

8 - 28

Maximum number of luminaires in the circuit with a 16A fuse (B)

12 - 44

Maximum number of luminaires in the circuit with a 25A fuse (B)

20 - 51

Optical data

Way of lighting

direct

Type of optic

O1 - for express roads, O10 - for town and local roads, O11 - for residential area roads, O12 - for residential area roads, O13 - for town roads, O14 - for town roads, O15 - for road lighting, O16 - for area lighting, O17 - for pedestrian crossings, left side traffic, O18 - for pedestrian crossings, right side traffic, O19 - for area lighting, O2 - for local roads, O20 - for town roads, O21 - for road lighting, O22 - for local roads, O3 - for pedestrian crossings, right side traffic, O4 - for pedestrian crossings, left side traffic, O5 - for area lighting, O6 - for town and local roads, O7 - for wet surfaces, O8 - for town and local roads, O9 - for residential area roads

Diffuser

tempered glass

Colour temperature [K]

2200, 2700, 3000, 4000

CRI/Ra

>70

MacAdam's steps

ULOR / DLOR

0% / 100%

Lumen luminaire [lm]

400 - 11350

Efficacy [lm/W]

79 - 176

Photobiological risk group

RG1

Number of LEDs

12, 24

DarkSky

yes

General data

Additional equipment

luminaire with pole mounting bracket ø76mm (index extension: .829), luminaire with adjustable bracket ø60mm with adjustment range from -110° to +55°/-20° to +145° (index extension: .867), luminaire with adjustable bracket ø76mm with adjustment range from -110° to +55°/-20° to +145° (index extension: .876), dual Zhaga connector for IoT controller and motion sensor (index extension: .875)

Additional information

the standard version of the luminaire is corrosion resistant according to class C4

Other remarks

the pole and boom are not part of the luminaire

Lifetime L90B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Pallet quantity	Quantity in package	Net weight [kg]
470x200x100	60	1	4.45

Code	Protection Class	Number of LEDs	Type of optic	Type of equipment	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	Operating temperature range
130772.5L011.010	I	12	O1 - for express roads	ED	4,5	450	100	2200	-40 ... +55
130772.5L011.020	I	12	O2 - for local roads	ED	4,5	450	100	2200	-40 ... +55
130772.5L011.030	I	12	O3 - for pedestrian crossings, right side traffic	ED	4,5	450	100	2200	-40 ... +55
130772.5L011.040	I	12	O4 - for pedestrian crossings, left side traffic	ED	4,5	450	100	2200	-40 ... +55
130772.5L011.050	I	12	O5 - for area lighting	ED	4,5	450	100	2200	-40 ... +55
130772.5L011.060	I	12	O6 - for town and local roads	ED	4,5	450	100	2200	-40 ... +55
130772.5L011.070	I	12	O7 - for wet surfaces	ED	4,5	450	100	2200	-40 ... +55
130772.5L011.080	I	12	O8 - for town and local roads	ED	4,5	400	89	2200	-40 ... +55
130772.5L011.090	I	12	O9 - for residential area roads	ED	4,5	400	89	2200	-40 ... +55
130772.5L011.190	I	12	O19 - for area lighting	ED	4,5	450	100	2200	-40 ... +55

Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.

In order to apply the luminaire in an aggressive environment, for example with an increased concentration of sulfur, salt or other aggressive substances, a consultation with the LUG Technical Preparation of Production Branch is required.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
DARK SKY certification available for colour temperatures of 3000K and below and for lighting fixtures mounted in a horizontal position (use adjustment/leveling if necessary).
