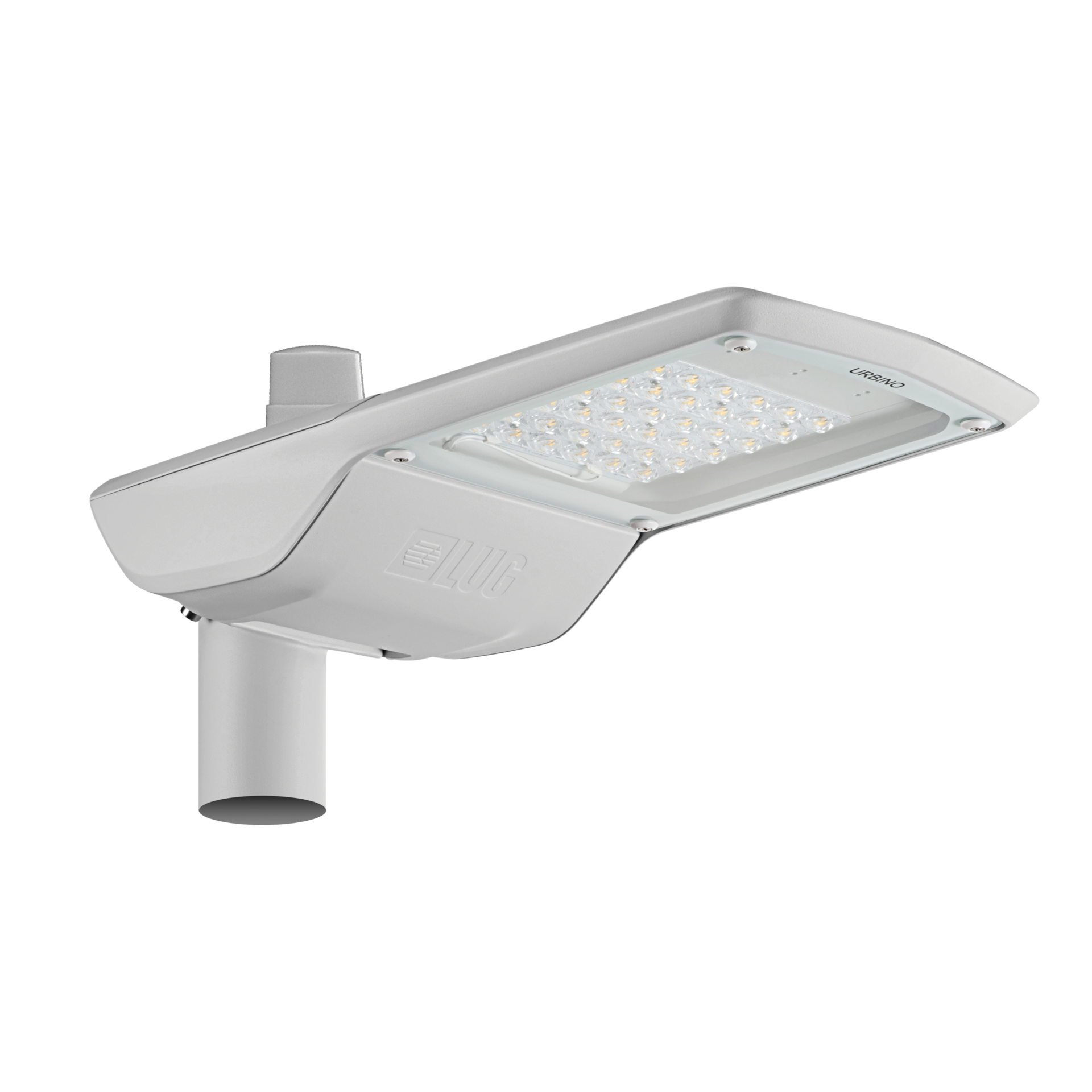

URBINO TWILIGHT LED

Professional streetlight luminaire for LED light sources. Luminaire with twilight sensor.

High efficacy to 131 lm/W

Possible illuminance control

Modern design

Reliability

Application

area lighting, avenues, cycle paths, express roads, local roads, pedestrian crossings, promenade, residential area roads, town roads

Available on request

10kV surge protection, CLO, DALI, DIM 1..10V, NTC, access to the driver chamber without the use of tools, extension of the warranty to 10 years, knife switch

Luminous flux range

3050 - 13400 [lm]

Variable color temperature

3000 - 5700 [K]

Mechanical data

Mounting

on pillar ø48-60mm, on outriggers ø48-60mm

Body colour

gray

Operating temperature range

-40 ... +50, -40 ... +55

RAL

7035

Body

high pressure die-cast aluminum

Lateral Surface Wind Exposed

0.044 m²

Electrical data

Power supply efficiency

≤95%

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

27 - 102

Output current [mA]

700

Type of equipment

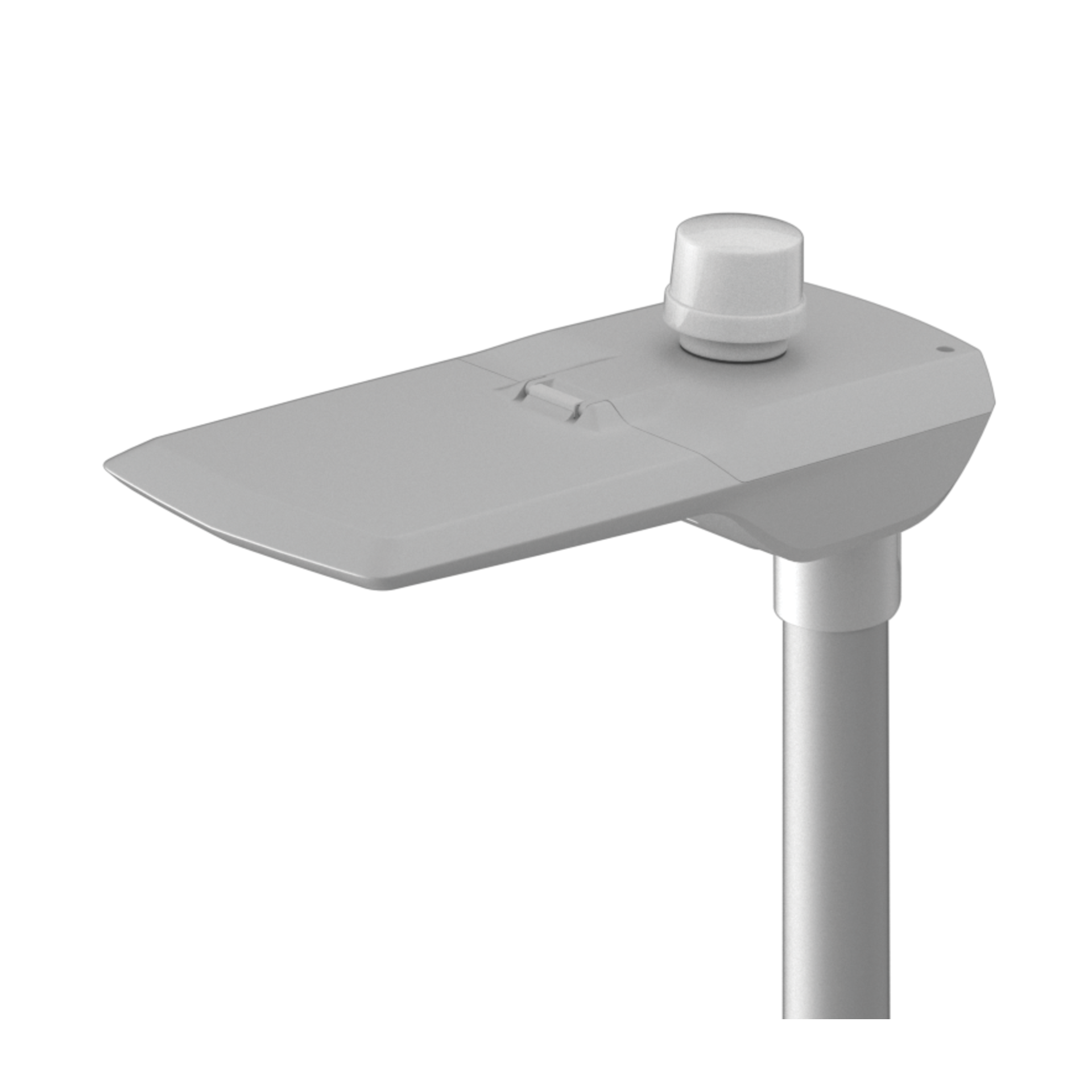

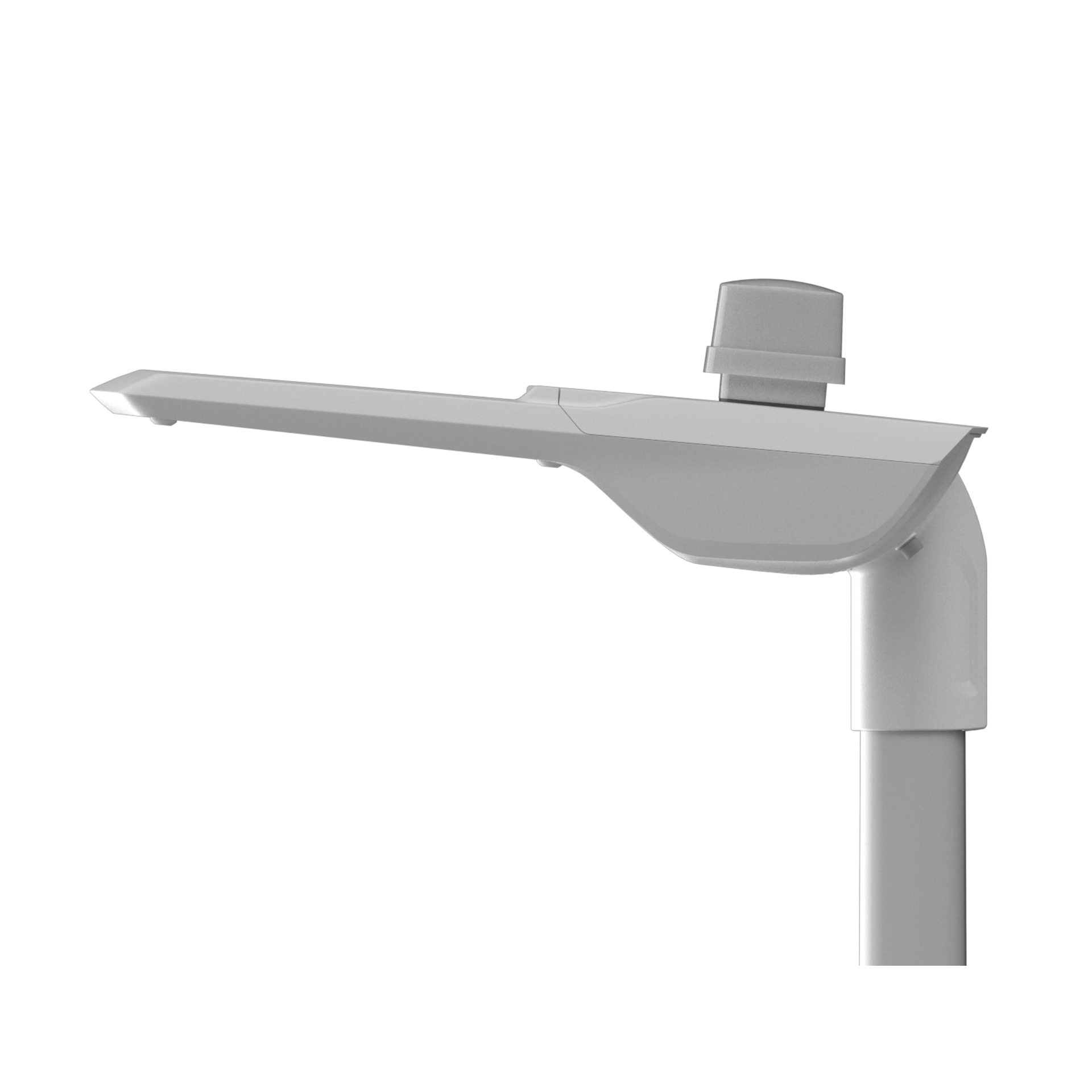

ED, NEMA socket, twilight sensor

Maximum number of luminaires in the circuit with a 10A fuse (B)

4 - 8

Maximum number of luminaires in the circuit with a 16A fuse (B)

7 - 13

Optical data

Way of lighting

direct

Type of optic

O2 - for express roads, O26 - for wet surfaces, O3 - for local roads, O4 - for town roads, O5 - for residential area roads, O6L - for pedestrian crossings, left side traffic, O6P - for pedestrian crossings, right side traffic, O7 - for area lighting, O8 - for town and local roads

Diffuser

tempered glass

Colour temperature [K]

3000, 4000, 5700

CRI/Ra

>70

ULOR / DLOR

0% / 100%

Lumen luminaire [lm]

3050 - 13400

Efficacy [lm/W]

113 - 131

Number of LEDs

12, 16, 24, 36, 48

General data

Additional information

Tilt adjustment: -15° to +15° (every 5°)

Other remarks

the pole and boom are not part of the luminaire

Lifetime L90B10

100 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxH	Pallet quantity	Quantity in package	Net weight [kg]
550x250x195	20	1	7

Available variants

Code	Type of equipment	Protection Class	Type of optic	Luminaire power [W]	Lumen luminaire [lm]	Efficacy [lm/W]	Colour temperature [K]	CRI/Ra	Operating temperature range
130222.5L011.011.986	ED, NEMA socket, twilight sensor	I	O2 - for express roads	27	3300	122	4000	>70	-40 ... +55
130222.5L011.021.986	ED, NEMA socket, twilight sensor	I	O3 - for local roads	27	3250	120	4000	>70	-40 ... +55
130222.5L011.031.986	ED, NEMA socket, twilight sensor	I	O4 - for town roads	27	3250	120	4000	>70	-40 ... +55
130222.5L011.041.986	ED, NEMA socket, twilight sensor	I	O5 - for residential area roads	27	3300	122	4000	>70	-40 ... +55
130222.5L011.051.986	ED, NEMA socket, twilight sensor	I	O6P - for pedestrian crossings, right side traffic	27	3350	124	4000	>70	-40 ... +55
130222.5L011.061.986	ED, NEMA socket, twilight sensor	I	O7 - for area lighting	27	3300	122	4000	>70	-40 ... +55
130222.5L011.081.986	ED, NEMA socket, twilight sensor	I	O8 - for town and local roads	27	3250	120	4000	>70	-40 ... +55
130222.5L011.091.986	ED, NEMA socket, twilight sensor	I	O6L - for pedestrian crossings, left side traffic	27	3350	124	4000	>70	-40 ... +55
130222.5L011.101.986	ED, NEMA socket, twilight sensor	I	O26 - for wet surfaces	27	3150	117	4000	>70	-40 ... +55
130222.5L012.011.986	ED, NEMA socket, twilight sensor	II	O2 - for express roads	27	3300	122	4000	>70	-40 ... +55

Compare selected

Shown 10 / 270

Show all

Compliant with British Standards: BS 5489-1 2020; BS EN 13201 2015; BS EN 60598-2-3:2003+A1:2011 and BS EN IEC 60598-1:2021+A11:2022.
Please note that the standard luminaire is not intended for use in an environment with a high degree of salinity. If it is required to adapt the luminaire to work in such an environment, please contact our Sales Department to confirm the possibility of using an additional protective coating.
Luminous flux tolerance +/- 10%.
Power tolerance +/- 5%.
Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
Up-to-date product info and General Warranty Terms available on our website www.luglightfactory.com
Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
The parameters in the data sheet are given for Ta=25°C.
The operating temperature ranges apply only to luminaires used in the outdoor environment.
Colour temperature tolerance +/- 5%.
