ARGUS TRIMLESS LED SYSTEM

Product description

Technical parameters

To download

Accessories

Explore services Customisation Support and contact

Other parameters available View variants

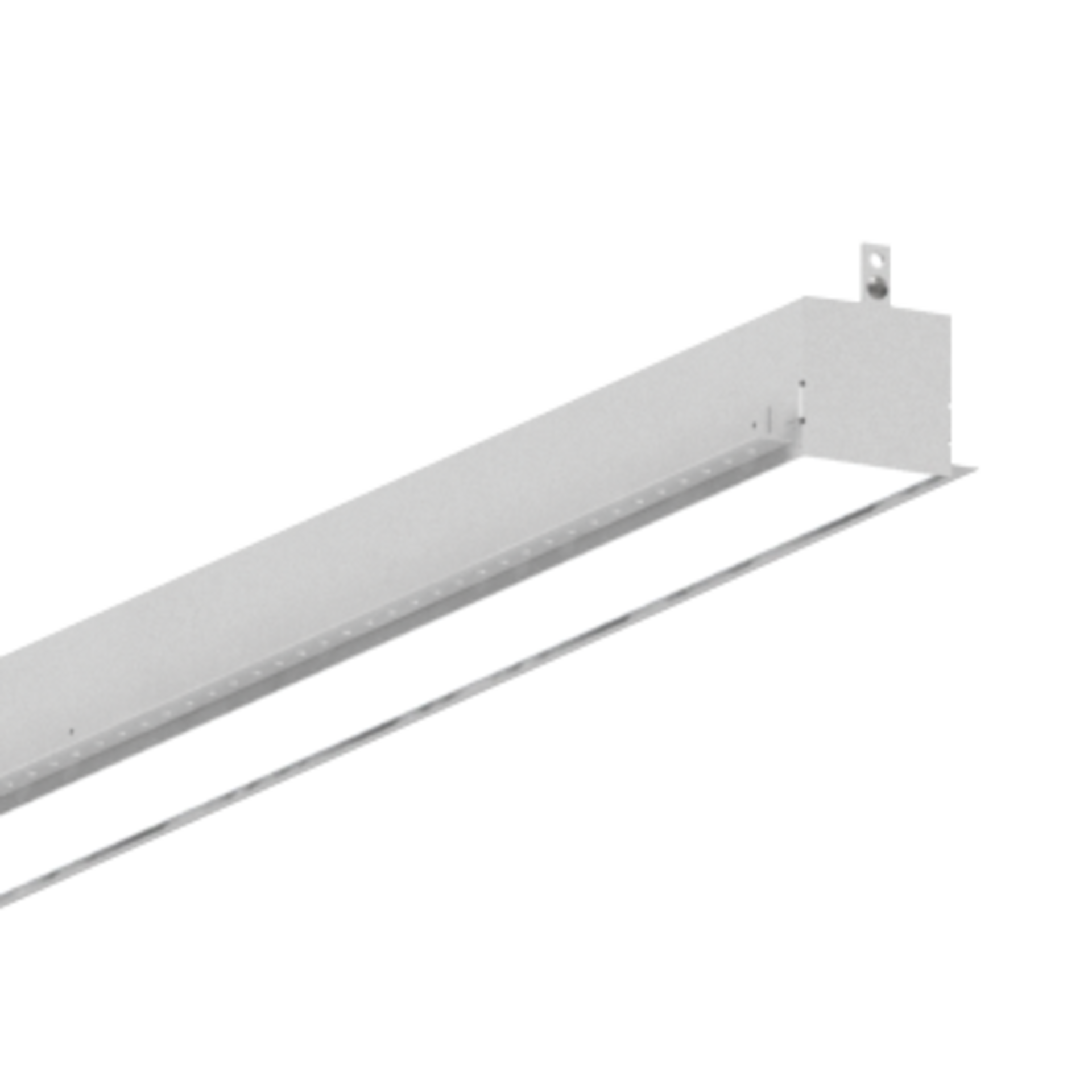

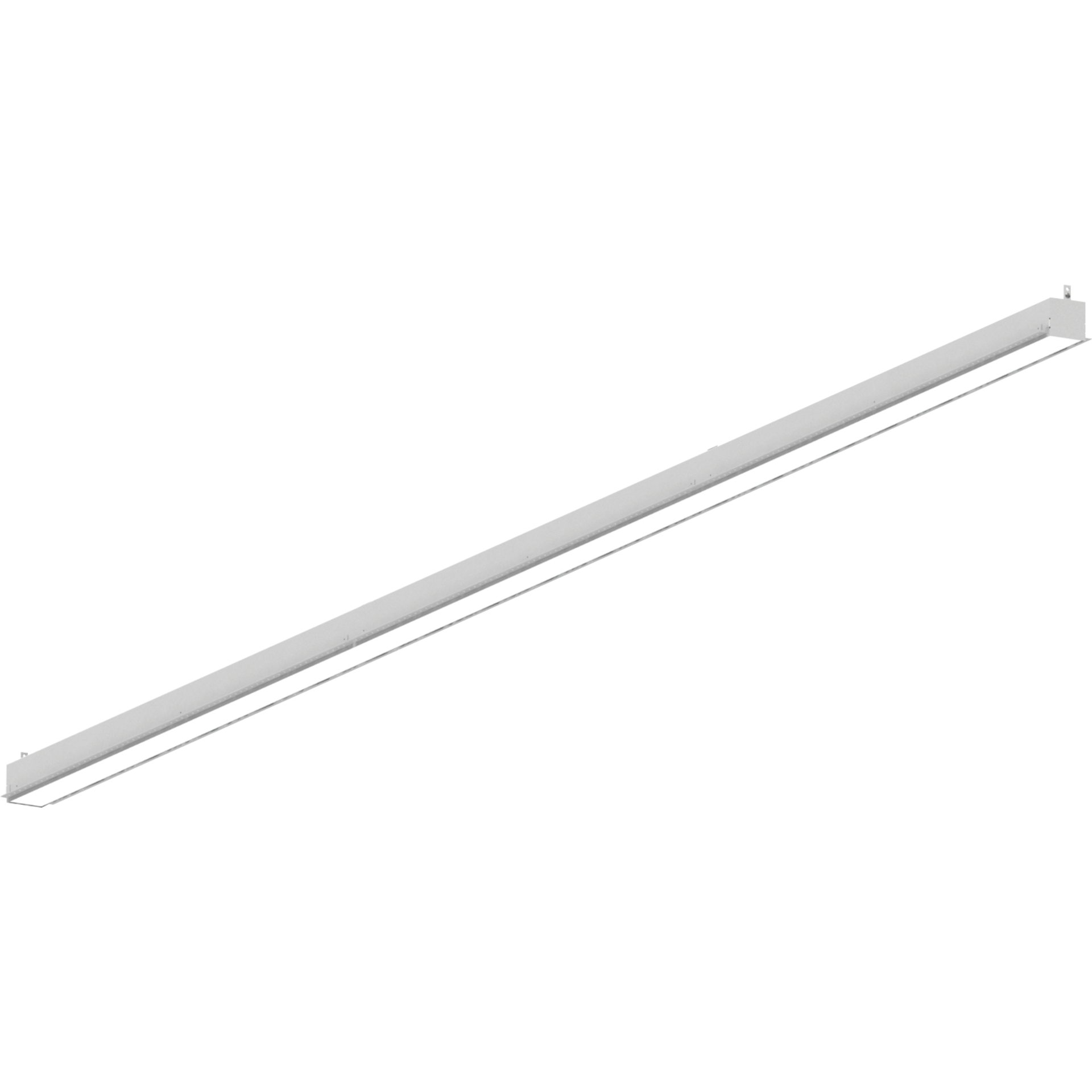

ARGUS TRIMLESS LED SYSTEM

System of frameless luminaires for LED light sources for plasterboard ceilings. Adjustment of mounting brackets for GK mounting with steel troughs.

High efficacy to 89 lm/W

Application

boutiques, car showrooms, hotels, museums, offices, shopping centers

Luminous flux range

1875 - 3750 [lm]

Variable color temperature

4000 [K]

Mechanical data

Mounting

in the ceiling, with mounting brackets (included)

Body colour

gray

Operating temperature range

0˚C ... +35˚C

Body

aluminium profile

Electrical data

Power supply efficiency

≤85%

Power

220-240V 50/60Hz

Includes light source

yes

Luminaire power [W]

22 - 42

Type of equipment

DALI, ED

Optical data

Way of lighting

direct

Diffuser

opal plexiglass (PLX)

Colour temperature [K]

4000

CRI/Ra

>80

UGR

<19

Lumen luminaire [lm]

1875 - 3750

Efficacy [lm/W]

85 - 89

General data

Additional equipment

steel end caps

Additional information

The possibility of using one or more power supplies in the luminaire.

Other remarks

In order to supply luminaire lines with power, an appropriate initial module should be used. Each initial module has a side end cap (included)

Lifetime L80B10

50 000 h

Warranty

5 years

Dimensions

Dimensions [mm] LxWxHxD	Net weight [kg]
905x54x62x80	1	2.8
1200x54x62x80	1	3.7
1205x54x62x80	1	3.7
1800x54x62x80	1	5.3
1805x54x62x80	1	5.3

Available variants

Code	Light source / lamp	Diffuser
900010.00519	LED	opal plexiglass (PLX)
900010.00520	LED	opal plexiglass (PLX)
900010.00521	LED	opal plexiglass (PLX)
900010.00522	LED	opal plexiglass (PLX)
900010.00523	LED	opal plexiglass (PLX)
900010.00525	LED	opal plexiglass (PLX)
900010.00526	LED	opal plexiglass (PLX)

Compare selected

Download Materials

Select and download the materials you are interested in

Product sheet

PDF (311.8KB)

Declarations and certificates

ZIP (504.1KB)

Download selected
